RZJ95R-GKMRK (1999)
Toyota Land Cruiser 90
ILLUST NO. 2 OF 3(9906- )RHD

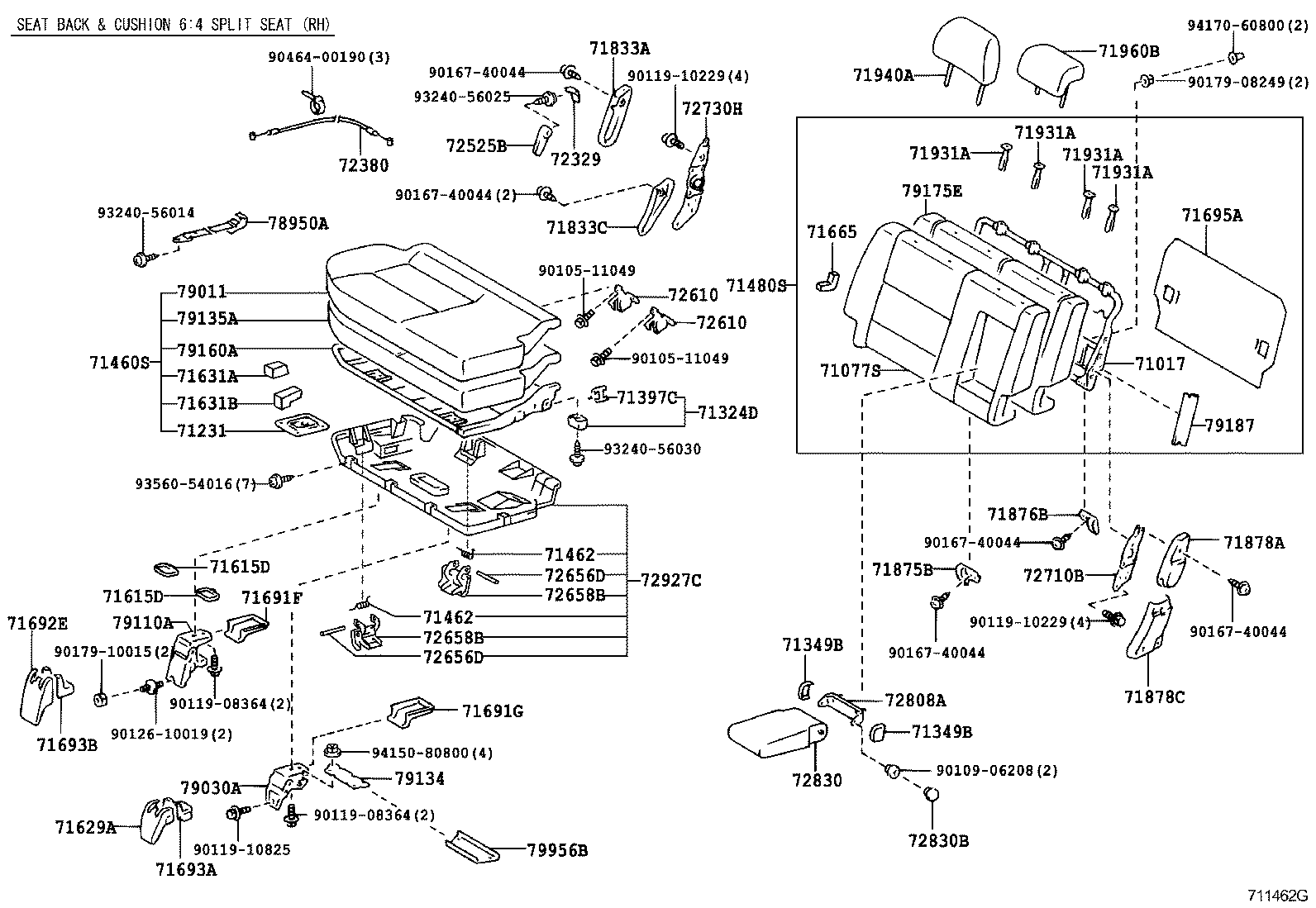

RR NO.1-SEAT BACK & CUSHION 6:4 RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-60480 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT) |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-6A350B1 |
LJ95,RZJ95..STD SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71231 - PLATE, REAR SEAT SPRING SET, NO.1 | ||||
| 71231-60010B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1# |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-6A840B1 |
LJ95,RZJ95..STD ***,SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 71631A - PAD, REAR SEAT CUSHION CORNER | ||||
| 71631-60020 |
RZJ90..STD;KZJ95,LJ9#,RZJ95..GEN W(6:4 SPRIT REAR SEAT) |
2 | ||
| 71631-60020 |
KZJ9#,LJ9#,RZJ9#..GEN W(6:4 SPRIT REAR SEAT) |
2 | ||
| 71631-60020 |
KZJ9#,LJ9#,RZJ9#..GEN |
2 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 71695A - PROTECTOR, REAR SEAT, NO.1 RH | ||||
| 71696-60060 |
KZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) W(REAR NO.1 SEAT=TYPE A(6:4 BENCH SEAT):REFER TO ILLUSTRATION) |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-60030B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 71833-60110B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60120 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60120 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-60390B0 |
KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1# |
2 | ||
| 71910-60490B2 |
LJ9#,RZJ9#..STD SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-60100B4 |
LJ9#,RZJ9#..STD SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-60020B1 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-60020 |
RZJ95..RHD..STD |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60040B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 72525-60080B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-60020B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 72658-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = BENCH SEAT);W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT),MD.MOON MIST,TRIM1# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-60020B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 72658-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = BENCH SEAT);W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT),MD.MOON MIST,TRIM1# |
2 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 71651-60290 |
KZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT) |
1 | ||
| 79187 - COVER, NO.1 SEAT INNER BRACKET | ||||
| 79187-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90109-06208 | ||||
| 90119-08364 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90126-10019 | ||||
| 90167-40044 | ||||
| 90179-08249 | ||||
| 90179-10015 | ||||
| 90464-00190 | ||||
| 93240-56014 | ||||
| 93240-56025 | ||||
| 93240-56030 | ||||
| 93560-54016 | ||||
| 94150-80800 | ||||
| 94170-60800 | ||||
ILLUST NO. 2 OF 3(9906- )RHD

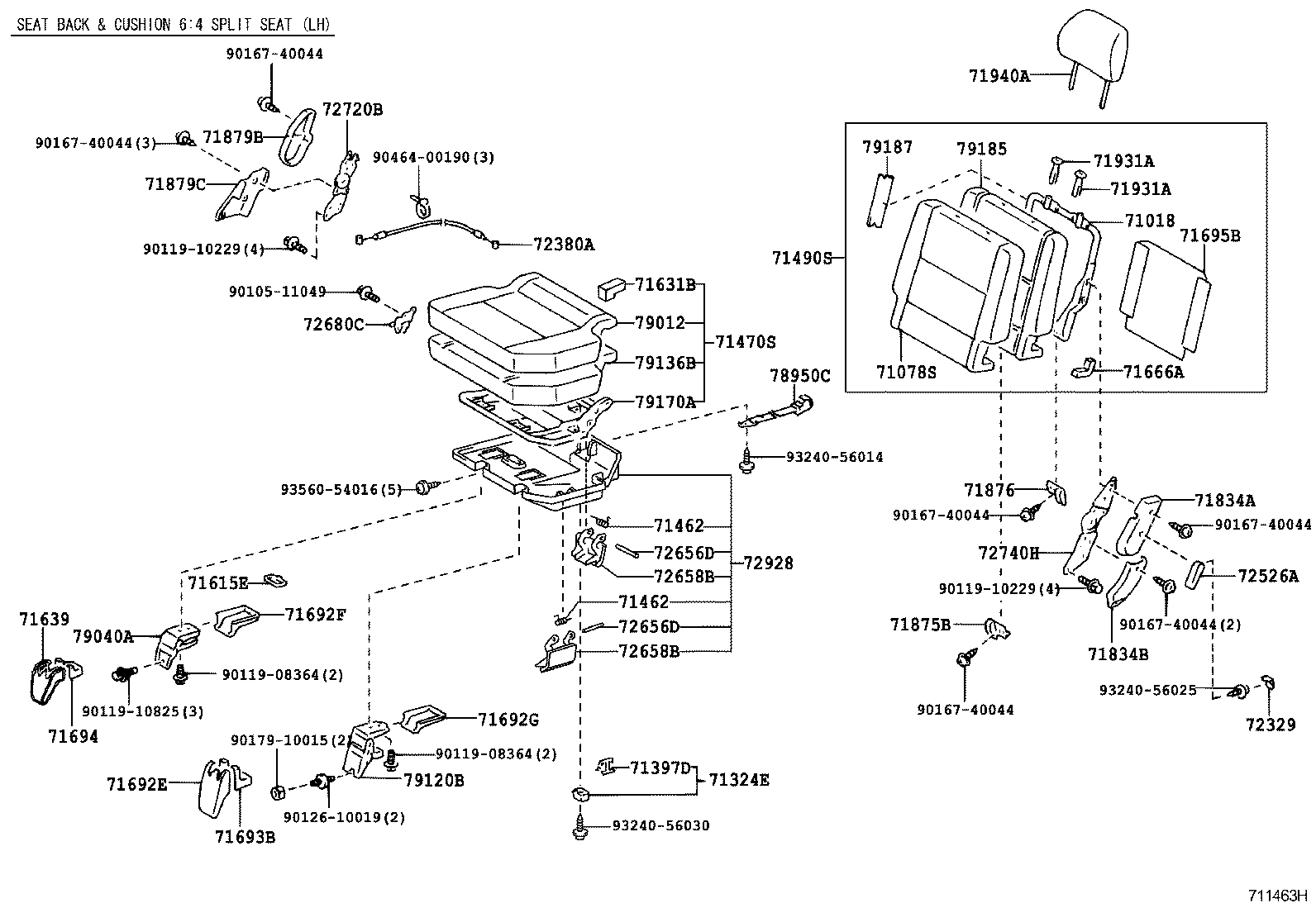

RR NO.1-SEAT BACK & CUSHION 6:4 LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-60280 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT) |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-60760B1 |
LJ95,RZJ95..STD SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-6A130B1 |
LJ95,RZJ95..STD ***,SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 71666A - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71665-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-60160 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-60030B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60120 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60030B0 |
LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER |
1 | ||
| 71875-60020B0 |
LJ9#,RZJ95..RHD..GEN W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER |
1 | ||
| 71876-60030B0 |
LJ9#,RZJ95..RHD..STD W(BENCH SEAT),MD.MOON MIST,TRIM1#,OUTER |
1 | ||
| 71875-60020B0 |
LJ9#,RZJ95..RHD..GEN W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-60390B0 |
KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1# |
2 | ||
| 71910-60490B2 |
LJ9#,RZJ9#..STD SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
2 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-60020B1 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
2 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-60040 |
RZJ95..RHD..STD |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 72526-60050B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-60020B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 72658-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = BENCH SEAT);W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT),MD.MOON MIST,TRIM1# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-60020B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 72658-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = BENCH SEAT);W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT),MD.MOON MIST,TRIM1# |
2 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 71652-60190 |
VZJ95..MTM..GCC;KZJ95,VZJ95..ARL;KZJ95,LJ95,RZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 79187 - COVER, NO.1 SEAT INNER BRACKET | ||||
| 79187-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90119-08364 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90126-10019 | ||||
| 90167-40044 | ||||
| 90179-10015 | ||||
| 90464-00190 | ||||
| 93240-56014 | ||||
| 93240-56025 | ||||
| 93240-56030 | ||||
| 93560-54016 | ||||
ILLUST NO. 2 OF 3(9906- )KZJ95,LJ95,RZJ95,VZJ95

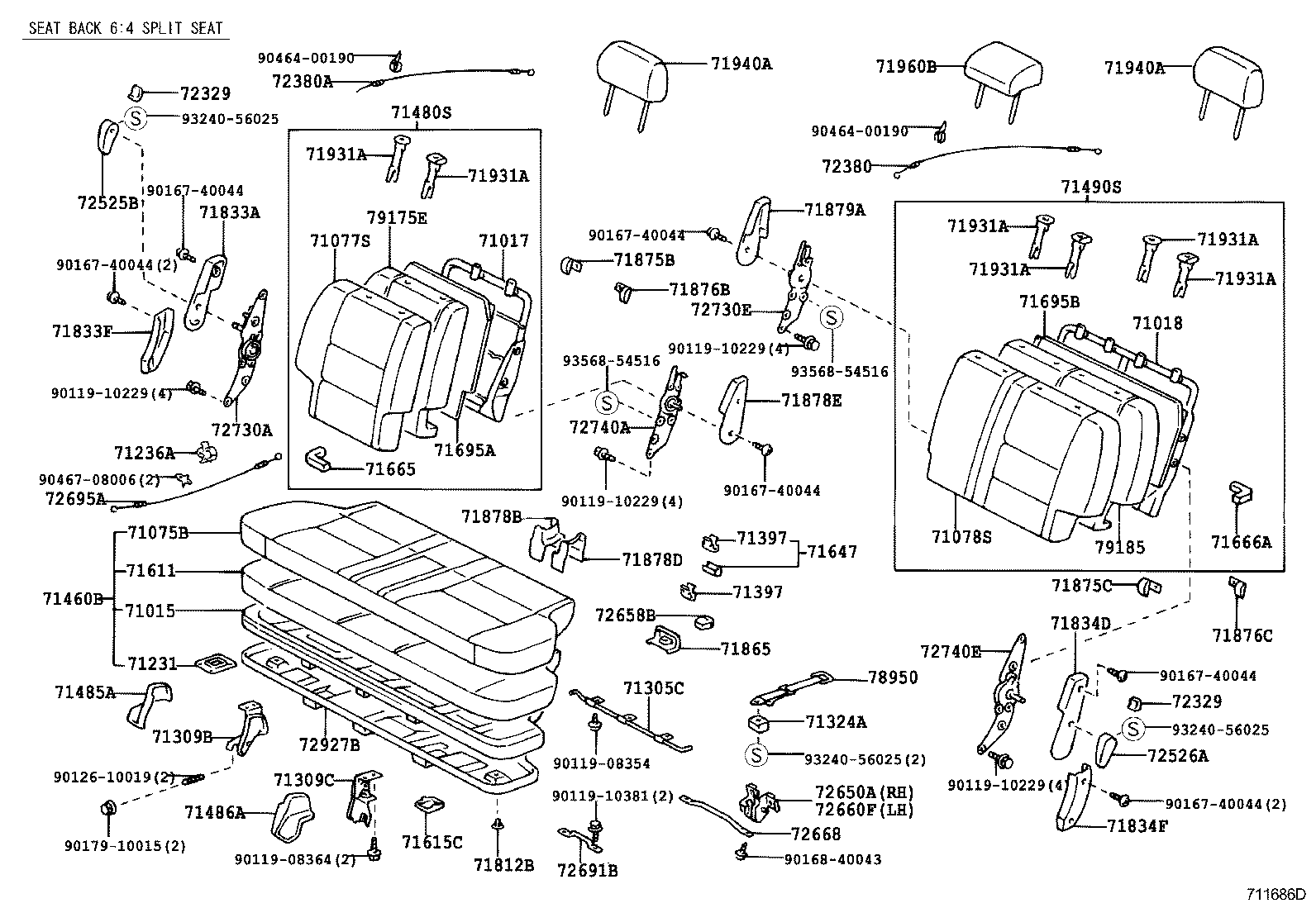

RR NO.1 SEAT - SEAT BACK 6:4 SPLIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-60080 |
KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN W(BENCH SEAT) |
1 | ||
| 71015-60190 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-60480 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-60280 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-60780B0 |
LJ95,RZJ95..STD GRAY,TRIM1# |
1 | ||
| 71075-60870B0 |
LJ95,RZJ95..STD W(SEAT BELT),GRAY,TRIM1# |
1 | ||
| 71065-60480B0 |
RZJ95..RHD..STD SEAT = TYPE C-*104 & W(SEAT BELT),GRAY,TRIM1# |
1 | ||
| 71065-60500B0 |
LJ95,RZJ95..STD SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-6A350B1 |
LJ95,RZJ95..STD SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-60760B1 |
LJ95,RZJ95..STD SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71231 - PLATE, REAR SEAT SPRING SET, NO.1 | ||||
| 71231-60010B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1# |
2 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-60030 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
4 | ||
| 71236-60010 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 71305C - STAY SUB-ASSY, REAR SEAT | ||||
| 71305-60010 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 71305-60080 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
1 | ||
| 71309B - LEG SUB-ASSY, REAR SEAT, REAR RH | ||||
| 71308-60030 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 71308-60060 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
1 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71309-60030 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 71309-60040 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-60110 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 71324-60110 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 71397-60010 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
6 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 71397-60010 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
6 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-60010B0 |
LJ95,RZJ95..STD W(SEAT BELT),MD.MOON MIST,TRIM1# |
1 | ||
| 71560-60270B0 |
LJ95,RZJ95..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71560-60700B1 |
LJ95,RZJ95..STD SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 71560-60690B1 |
RZJ95..RHD..STD ***,SEAT = TYPE C-*104 & W(SEAT BELT),MD.MOON MIST,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-6A840B1 |
LJ95,RZJ95..STD ***,SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 71485A - COVER, REAR SEAT HINGE, NO.2 RH | ||||
| 71485-60030B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 71485-60030B0 |
KZJ95,LJ95,RZJ95..MTM..(GCC,GEN) W(SPLIT TYPE REAR SEAT),MD.MOON MIST,TRIM1# |
1 | ||
| 71485-60030B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN MD.MOON MIST,TRIM1# |
1 | ||
| 71486A - COVER, REAR SEAT HINGE, NO.2 LH | ||||
| 71486-60030B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN MD.MOON MIST,TRIM1# |
1 | ||
| 71486-60030B0 |
KZJ95,LJ95,RZJ95..MTM..(GCC,GEN) W(SPLIT TYPE REAR SEAT),MD.MOON MIST,TRIM1# |
1 | ||
| 71486-60030B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-6A130B1 |
LJ95,RZJ95..STD ***,SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-60130 |
LJ95..RHD;LJ95..LHD..STD;RZJ95,VZJ95..(STD,VX)..(GCC,GEN) |
1 | ||
| 71611-60290 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
1 | ||
| 71615C - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN MD.MOON MIST,TRIM1# |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60130B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1# |
4 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 71666A - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71665-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 71695A - PROTECTOR, REAR SEAT, NO.1 RH | ||||
| 71696-60060 |
KZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) W(REAR NO.1 SEAT=TYPE A(6:4 BENCH SEAT):REFER TO ILLUSTRATION) |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-60160 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71769-60010B0 |
KZJ95,LJ95,RZJ95,VZJ95 W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1# |
13 | ||
| 71769-60010B0 |
RZJ95..GEN;RZJ95..ATM..GCC;KZJ95..GX..TDEFI MD.MOON MIST,TRIM1# |
13 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-60030B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 71833-60110B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71833F - COVER, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 71833-60120B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71834D - COVER, REAR SEAT RECLINING, LH | ||||
| 71834-60110B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71834F - COVER, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 71834-60120B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-60020B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 71865-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN MD.MOON MIST,TRIM1# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60120 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60120 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60120 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60120 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA |
1 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60080B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71878D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71879-60070B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71878E - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60050B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60040B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95..RHD..STD;RZJ95..MTM..GCC;VZJ95..ATM..GCC W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RZJ95,VZJ95..GCC,GEN W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71930-44010B0 |
RZJ95,VZJ95..GCC,GEN W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-60390B0 |
KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1# |
2 | ||
| 71910-60490B2 |
LJ9#,RZJ9#..STD SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-60390B0 |
KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1# |
2 | ||
| 71910-60490B2 |
LJ9#,RZJ9#..STD SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-60100B4 |
LJ9#,RZJ9#..STD SEAT = TYPE C-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-60020B1 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
2 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-60020B1 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-60020 |
RZJ95..RHD..STD |
1 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-60040 |
RZJ95..RHD..STD |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60040B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 72525-60080B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 72526-60050B0 |
RZJ95..RHD..STD MD.MOON MIST,TRIM1# |
1 | ||
| 72650A - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 72650-60130 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-60020B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 72658-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN W(REAR NO.1 SEAT = BENCH SEAT);W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT),MD.MOON MIST,TRIM1# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 72660-60140 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN |
1 | ||
| 72668 - BAR, REAR SEAT CUSHION LOCK STRIKER | ||||
| 72698-60010 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 72698-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 72691-60020 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
2 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-60060 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 72695-60150 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 72730-60200 |
RZJ95..RHD..STD |
1 | ||
| 72730E - ADJUSTER ASSY, REAR SEAT BACK, OUTER RH | ||||
| 72720-60090 |
RZJ95..RHD..STD |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 72710-60100 |
RZJ95..RHD..STD |
1 | ||
| 72740E - ADJUSTER ASSY, REAR SEAT BACK, OUTER LH | ||||
| 72740-60190 |
RZJ95..RHD..STD |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72907-60060B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95,VZJ95..ARL,GEN MOON MIST,TRIM1# |
1 | ||
| 72907-60020B0 |
KZJ95,LJ95,RZJ95,VZJ95 W(WALK-IN SEAT),MOON MIST,TRIM1# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-60060B0 |
KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 78950-60120B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,VZJ95..ARL;KZJ95,LJ95,RZJ95..(DSL,EFI,TD)..GEN W(REAR NO.1 SEAT=TYPE A(BENCH SEAT):REFER TO ILLUSTRATION),MD.MOON MIST,TRIM1# |
2 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 71651-60290 |
KZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) W(REAR NO.1 SEAT = SEAT BACK 6:4 SPLIT SEAT) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 71652-60190 |
VZJ95..MTM..GCC;KZJ95,VZJ95..ARL;KZJ95,LJ95,RZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-08354 | ||||
| 90119-08364 | ||||
| 90119-10229 | ||||
| 90119-10381 | ||||
| 90126-10019 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90179-10015 | ||||
| 90464-00190 | ||||
| 90467-08006 | ||||
| 93240-56025 | ||||
| 93568-54516 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
