RZJ95R-GKMNU (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9604- )ARL,CO,GCC,GEN

Click highlighted areas on diagram

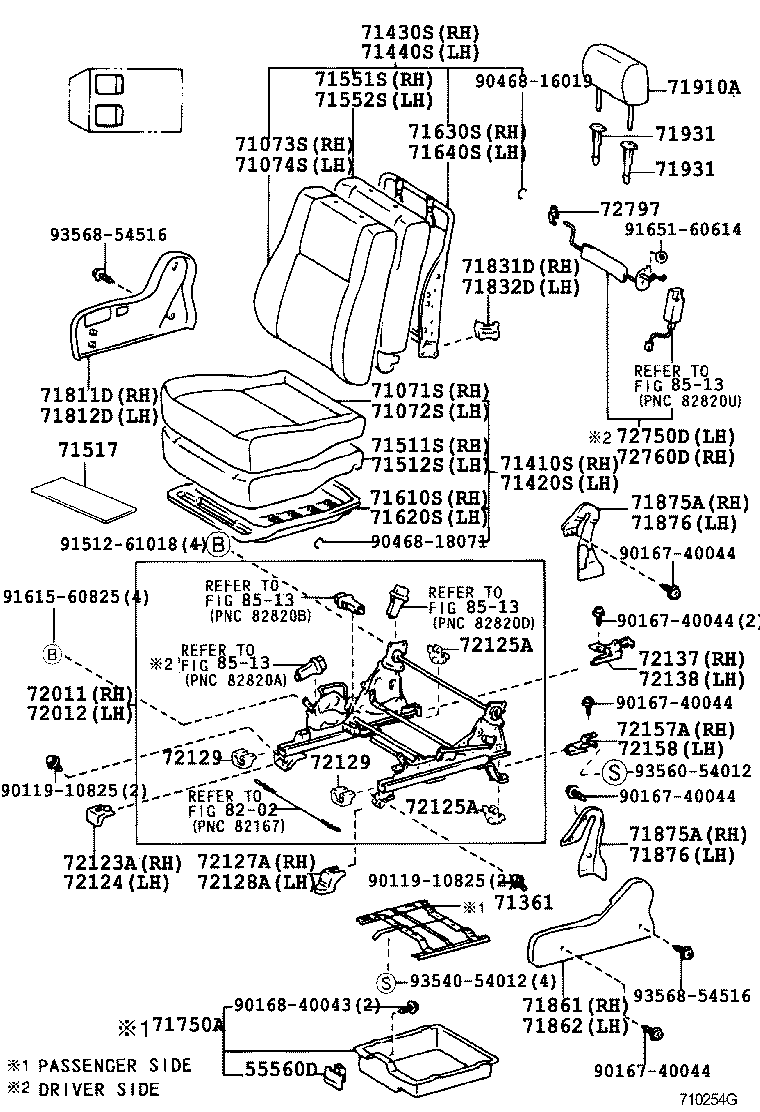

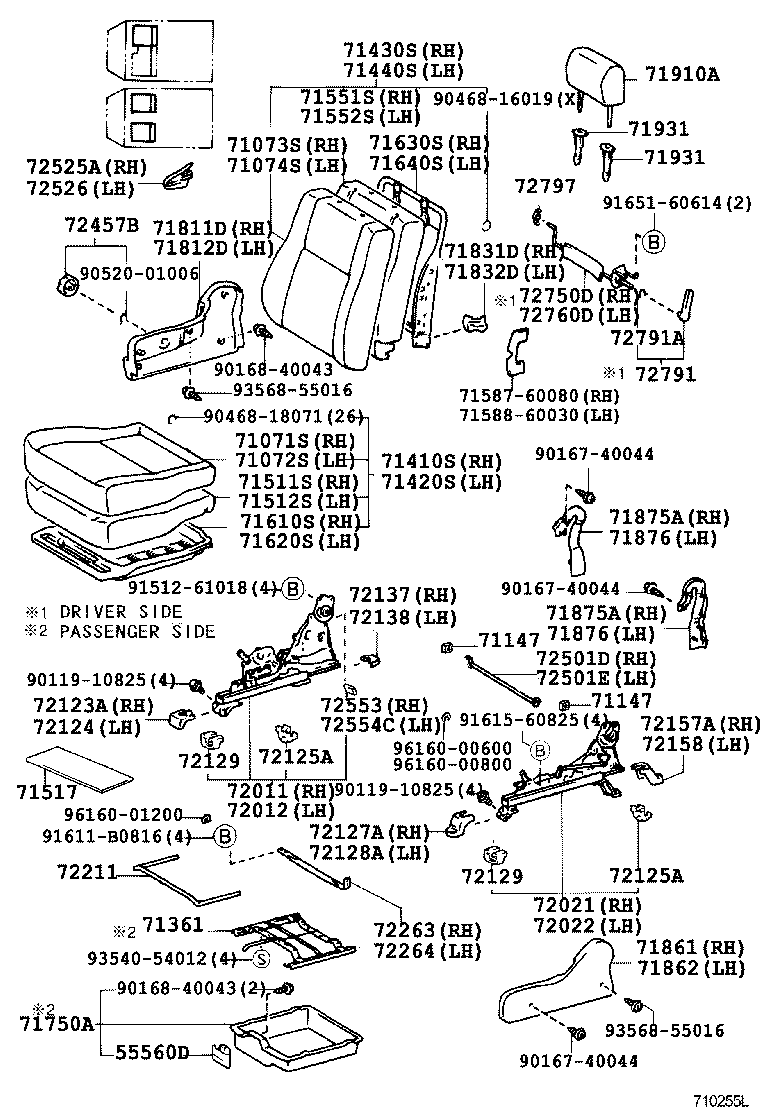

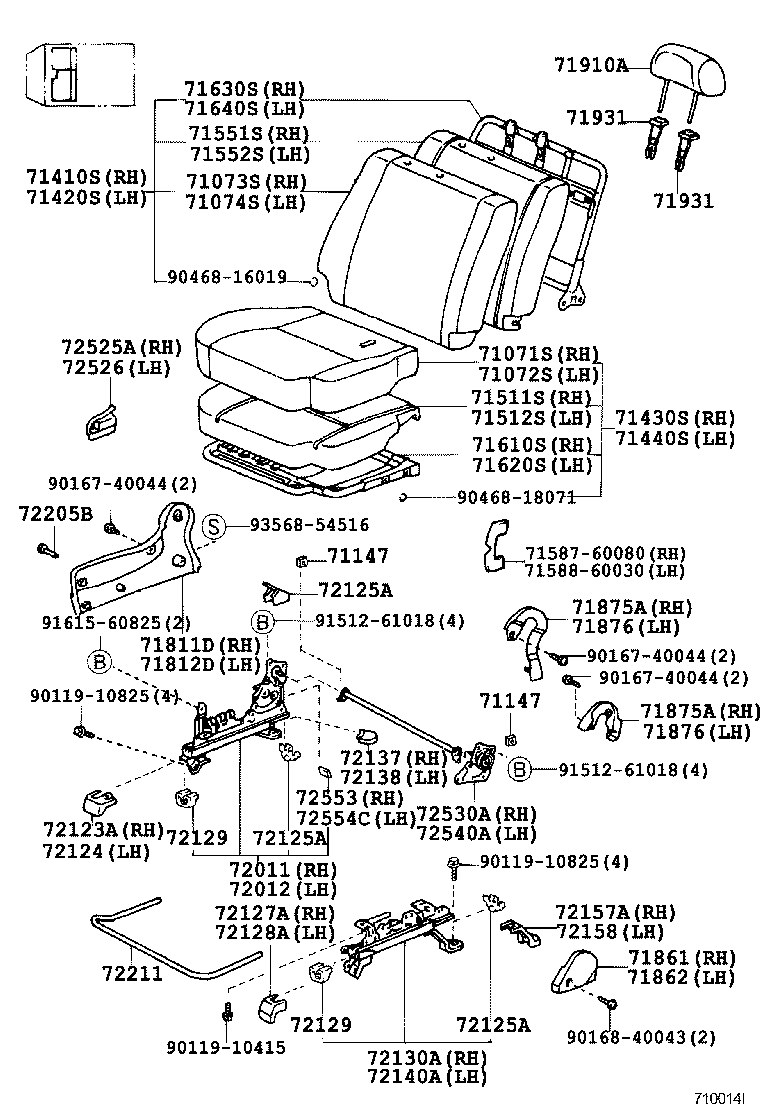

FRONT SEAT - BENCH(PASSENGER)

diagram 71071S 71072S 71073S 71074S 71147 71147 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 7158760080 7158860030 71610S 71620S 71630S 71640S 71811D 71812D 71861 71862 71875A 71875A 71876 71876 71910A 71931 71931 72011 72012 72123A 72124 72125A 72125A 72125A 72127A 72128A 72129 72129 72130A 72137 72138 72140A 72157A 72158 72205B 72211 72525A 72526 72530A 72540A 72553 72554C 9011910415 9011910825 9011910825 9016740044 9016740044 9016740044 9016840043 9046816019 9046818071 9151261018 9151261018 9161560825 9356854516
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71072-60580B1

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),GRAY,TRIM1#

 1
71072-60580B1

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71074-60630B1

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),GRAY,TRIM1#

 1
71074-60630B1

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-6A420B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-6A420B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71420-6A240B0

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71420-6A240B0

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-6A170B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-60830B0

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71440-60830B0

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71430-6A170B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-60110

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-60090

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71512-60090

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71511-60110

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-60180

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-60180

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71552-60130

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71552-60130

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-60130

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71610-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71620-60130

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-60120

LJ95,RZJ95..LHD..GX;LJ95,RZJ95,VZJ95..RHD..(GX,STD);KZJ9#,LJ90,RZJ90,VZJ9#..CO,GCC,GEN

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-60210

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71014-60210

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71630-60120

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);LJ95,RZJ90..LHD..STD..(CBR,DSL);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-60050

VZJ95..GX;VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-60050B0

VZJ95..ARL;KZJ9#,LJ9#,RZJ9#

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-60040B0

RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60040B0

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL)

MD.MOON MIST,TRIM1#

 1
71862-60050B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71862-60050B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71875-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#,OUTER

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71875-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#,OUTER

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#,OUTER

 1
71875-60020B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71875-60020B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71876-60050B0

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#,OUTER

 1
71875-60020B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71875-60020B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71876-60050B0

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-60010

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72011-60011

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-60040

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
72012-60041

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
72012-60011

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72012-60010

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-60050B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72123-60070B0

LJ90..RHD;KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72124-60040B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72125-60050B0

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60050B0

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60070

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72125-60070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W(POWER SEAT)

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72125-60050B0

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60050B0

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60070

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72125-60070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W(POWER SEAT)

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72125-60050B0

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60050B0

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60070

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72125-60070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W(POWER SEAT)

 2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60040

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 3
72129-60030

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 3
72129-60030

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(POWER SEAT)

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60040

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 3
72129-60030

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 3
72129-60030

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(POWER SEAT)

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-60030B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-60030B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-60161

LJ9#,RZJ95..RHD..(CBR,DSL)

 1
72140-60160

LJ9#,RZJ95..RHD..GEN

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-60050B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-60020B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72205B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER
72205-90K00

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72205-90K00

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-60110

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(GX,STD)..(DSL,EFI,TD)

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010B7

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72540A - ADJUSTER ASSY, RECLINING SEAT, INNER LH
72540-60050

LJ9#,RZJ95..RHD..GEN

 1
72540-60050

LJ9#,RZJ95..RHD..(CBR,DSL)

 1
Common parts
71587-60080
71588-60030
90119-10415
90119-10825
90167-40044
90168-40043
90468-16019
90468-18071
91512-61018
91615-60825
93568-54516

ILLUST NO. 2 OF 3(9604-9906)KZJ95,LJ95,RZJ95,VZJ95 ; (9906- )CO

Click highlighted areas on diagram

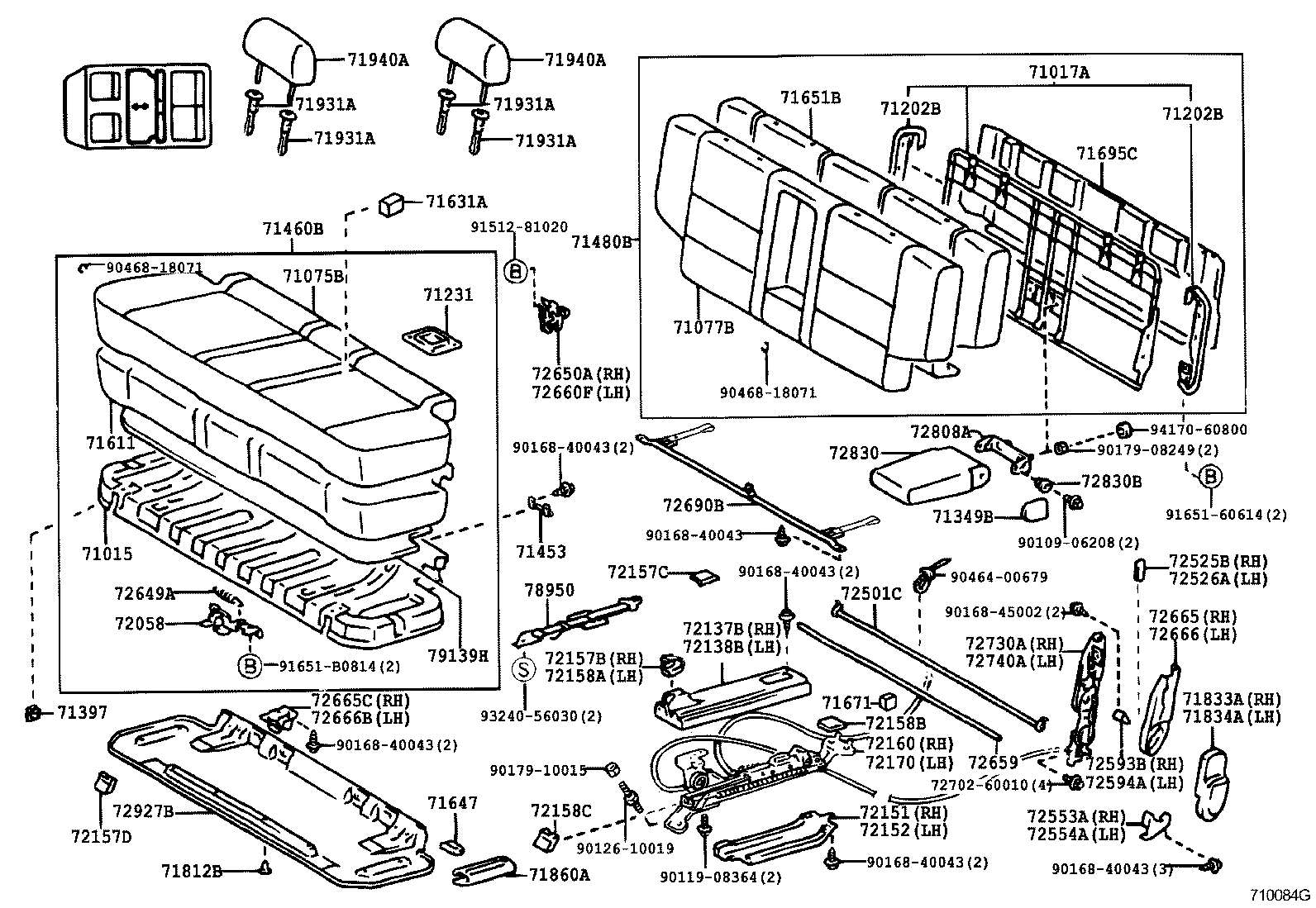

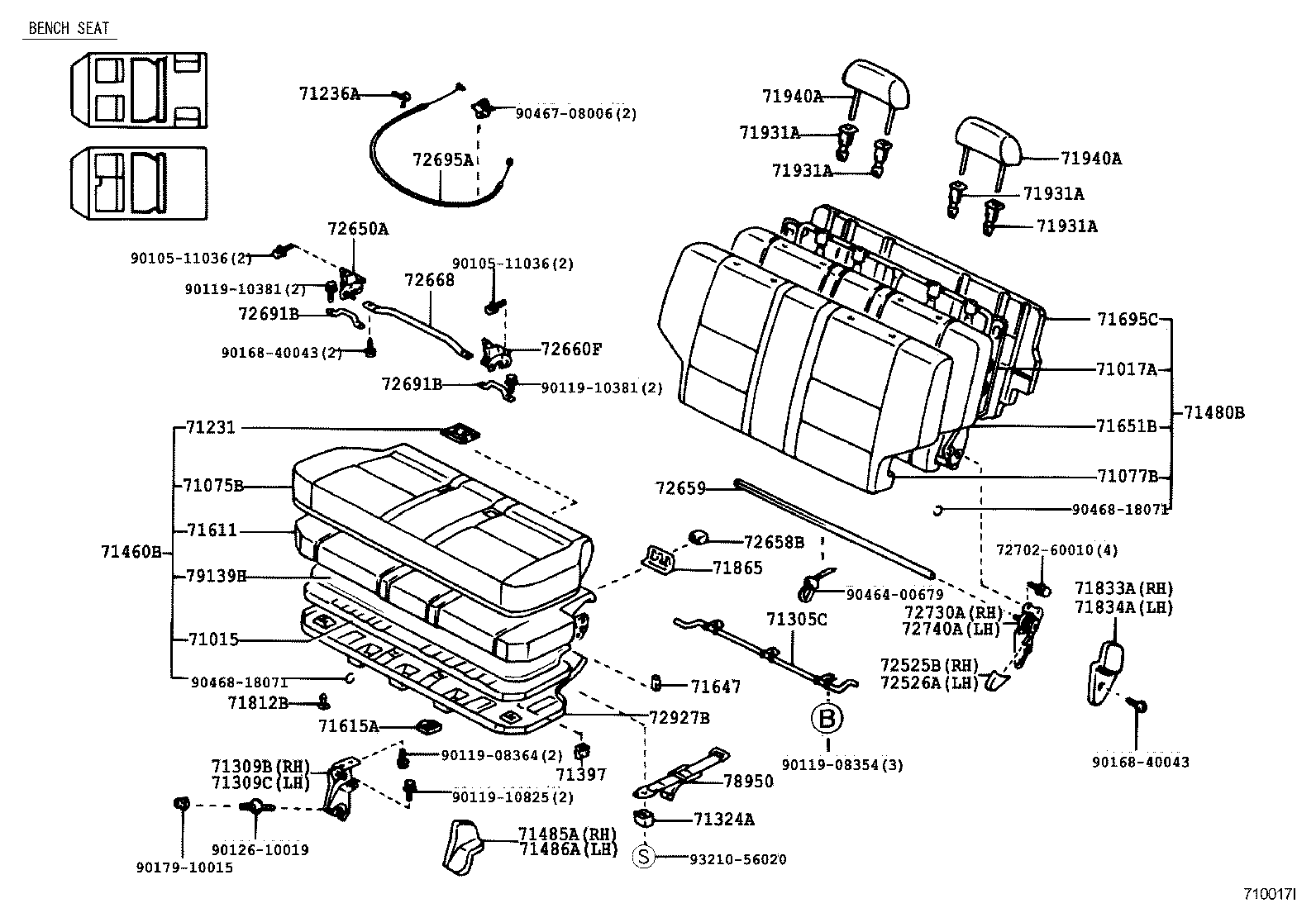

REAR NO.1 SEAT - BENCH SEAT

diagram 71015 71017A 71075B 71077B 71231 71236A 71305C 71309B 71309C 71324A 71397 71460B 71480B 71485A 71486A 71611 71615A 71647 71651B 71695C 71812B 71833A 71834A 71865 71931A 71931A 71931A 71931A 71940A 71940A 72525B 72526A 72650A 72658B 72659 72660F 72668 72691B 72691B 72695A 7270260010 72730A 72740A 72927B 78950 79139H 9010511036 9010511036 9011908354 9011908364 9011910381 9011910381 9011910825 9012610019 9016840043 9016840043 9017910015 9046400679 9046708006 9046818071 9046818071 9321056020
Part # Description Qty Price

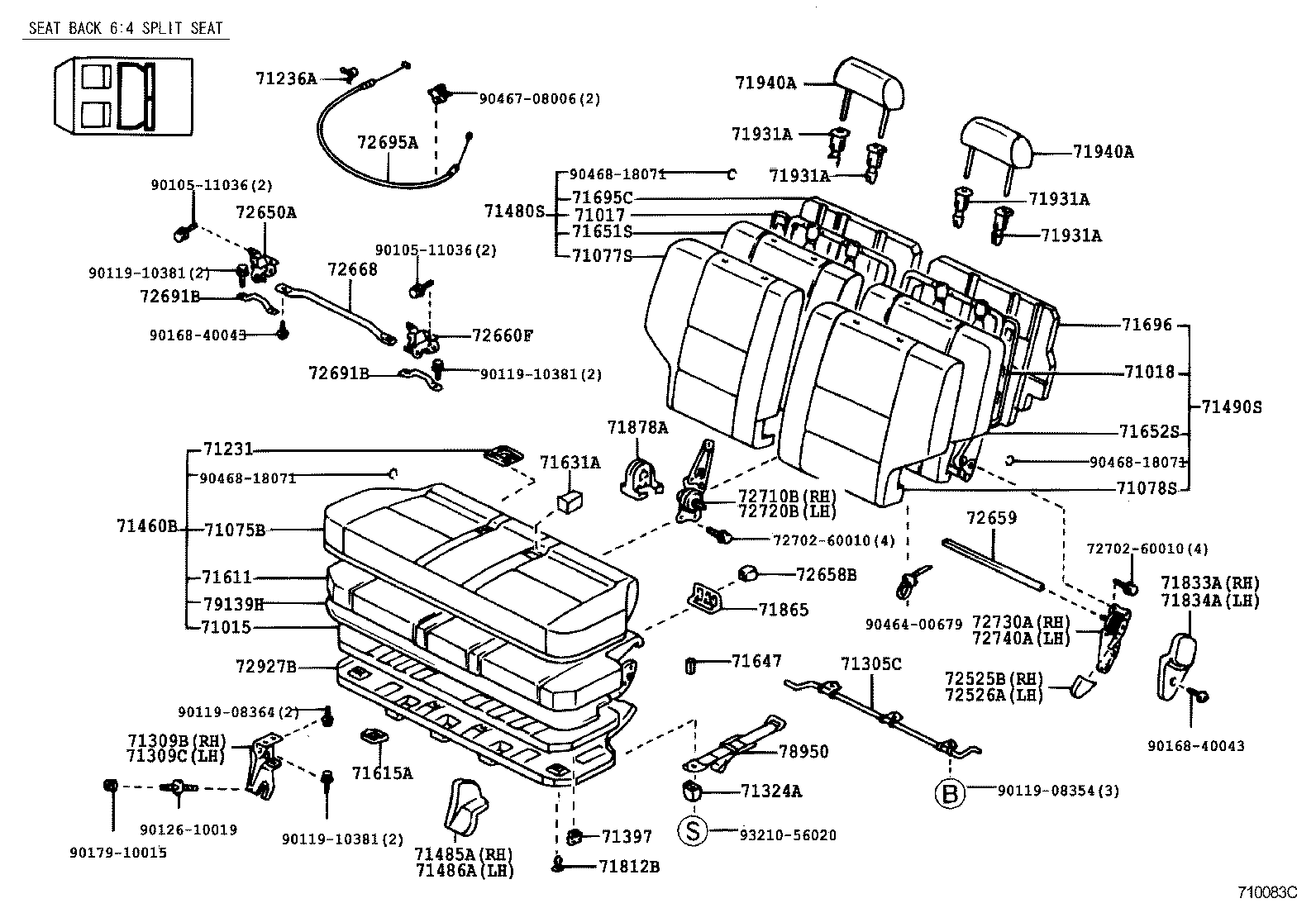

71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-60080

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

W(BENCH SEAT)

 1
71015-60100

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71015-60090

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 1
71015-60080

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71015-60090

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

W(5:5 SPLIT SEAT)

 1
71015-60100

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-60290

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71017-60270

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

W(BENCH SEAT)

 1
71017-60270

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71017-60290

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-60020B1

KZJ95,LJ95,RZJ95..GX..GEN

W(5:5 SPLIT SEAT),GRAY,TRIM1#

 1
71065-60050B1

KZJ95,LJ95,RZJ95..GX..GEN

GRAY,TRIM1#

 1
71075-60860B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(SEAT BELT),GRAY,TRIM1#

 1
71075-60740B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT & SEAT BELT),GRAY,TRIM1#

 1
71065-60070B1

KZJ95,LJ95,RZJ95..GX..GEN

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71075-60840B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),GRAY,TRIM1#

 1
71065-60020B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(5:5 SPLIT SEAT),GRAY,TRIM1#

 1
71065-60070B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71075-60840B1

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),GRAY,TRIM1#

 1
71075-60860B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(SEAT BELT),GRAY,TRIM1#

 1
71065-60050B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-6A010B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71077-60840B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(BENCH SEAT),GRAY,TRIM1#

 1
71077-60840B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(BENCH SEAT),GRAY,TRIM1#

 1
71231 - PLATE, REAR SEAT SPRING SET, NO.1
71231-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 2
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-60010

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 2
71236-60010

KZJ95,LJ95,RZJ95,VZJ95

 2
71305C - STAY SUB-ASSY, REAR SEAT
71305-60010

KZJ95,LJ95,RZJ95,VZJ95

 1
71305-60010

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
71309B - LEG SUB-ASSY, REAR SEAT, REAR RH
71308-60030

KZJ95,LJ95,RZJ95,VZJ95

 1
71308-60030

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
71309C - LEG SUB-ASSY, REAR SEAT, REAR LH
71309-60030

KZJ95,LJ95,RZJ95,VZJ95

 1
71309-60030

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
71324A - CUSHION, REAR SEAT
71324-60110

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
71324-60110

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 2
71397 - STOPPER, REAR SEAT
71397-60010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
71397-60010

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-60880B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60240B0

KZJ95,LJ95,RZJ95..GX..GEN

MD.MOON MIST,TRIM1#

 1
71560-60260B0

KZJ95,LJ95,RZJ95..GX..GEN

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 1
71560-60020B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60170B0

KZJ95,LJ95,RZJ95..GX..GEN

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71460-60880B0

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60240B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

MD.MOON MIST,TRIM1#

 1
71560-60170B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71560-60260B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 1
71560-60150B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60020B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-6A460B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

MD.MOON MIST,TRIM1#

 1
71480-6A400B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71480-6A460B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

MD.MOON MIST,TRIM1#

 1
71485A - COVER, REAR SEAT HINGE, NO.2 RH
71485-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
71486A - COVER, REAR SEAT HINGE, NO.2 LH
71486-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-60130

RZJ95..GX..CBR;KZJ95,LJ95..LHD..GX

W(5:5 SPLIT SEAT)

 1
71611-60130

KZJ95,LJ95..LHD..GX;RZJ95..GX..(GCC,GEN)

W(5:5 SPLIT SEAT)

 1
71611-60120

LJ95..RHD..GX;KZJ95,RZJ95..GX..(GCC,GEN)

W(BENCH SEAT)

 1
71611-60140

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71611-60120

LJ95..RHD..GX;KZJ95,RZJ95..GX..(CBR,TD)

W(BENCH SEAT)

 1
71611-60140

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71615A - COVER, NO.2 SEAT LOCK STRIKER
72615-60020B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 2
72615-60020B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 2
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60130B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 4
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-60150

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71651-60170

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71651-60150

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71651-60170

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71695C - PROTECTOR, REAR SEAT, NO.1
71695-60050

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71695-60080

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

W(5:5 SPLIT SEAT)

 1
71695-60050

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71695-60080

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 1
71695-60060

KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71695-60060

KZJ95,LJ95,RZJ95..GCC,GEN

W(BENCH SEAT)

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
71769-60010B0

KZJ95,LJ95,RZJ95,VZJ95

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 13
71769-60010B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 10
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-60040B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71833-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
71833-60030B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
71834-60030B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
71834-60040B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71865 - BEZEL, REAR SEAT COVER, NO.1
71865-60020B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-60030B1

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
72525-60040B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
72525-60040B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-60030B1

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
72526-60010B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
72526-60010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72650A - LOCK ASSY, REAR SEAT, RH
72650-60080

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72650-60070

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72650-60071

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72650-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
72659 - ROD, REAR SEAT BACK LOCK CONNECTING
72659-60090

KZJ95,LJ95,RZJ95..GCC,GEN

W(BENCH SEAT)

 1
72659-60060

RZJ95..MTM..GX;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 2
72659-60080

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72659-60060

RZJ95..GX..CBR;RZJ95..MTM..ARL;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 2
72659-60090

KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
72660F - LOCK ASSY, REAR SEAT, LH
72660-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72660-60021

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72660-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
72660-60070

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72668 - BAR, REAR SEAT CUSHION LOCK STRIKER
72698-60010

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72698-60010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
72691-60020

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
72691-60020

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
72695A - CABLE, REAR SEAT LOCK CONTROL
72695-60060

KZJ95,LJ95,RZJ95,VZJ95

 2
72695-60060

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 2
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-60090

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72730-60090

KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN

 1
72730-60100

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72730-60110

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72730-60090

RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90

 1
72730-60110

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-60090

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72740-60100

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72740-60110

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740-60090

KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN

 1
72740-60110

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740-60090

RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90

 1
72927B - COVER, REAR SEAT CUSHION UNDER
72907-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD. MOON MIST,TRIM1#

 1
72907-60020B0

KZJ95,LJ95,RZJ95,VZJ95

W(WALK-IN SEAT),MOON MIST,TRIM1#

 1
72907-60020B0

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

W(WALK-IN SEAT),MOON MIST,TRIM1#

 1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-60080B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 2
78950-60060B0

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

MD.MOON MIST,TRIM1#

 2
78950-60060B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
79139H - CLOTH, NO.3 SEAT CUSHION
79139-60030

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
79139-60030

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
79139-60010

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
79139-60010

KZJ95,LJ95,RZJ95,VZJ95

 1
Common parts
72702-60010
90105-11036
90119-08354
90119-08364
90119-10381
90119-10825
90126-10019
90168-40043
90179-10015
90464-00679
90467-08006
90468-18071
93210-56020

ILLUST NO. 3 OF 3(9604- )KZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN

Click highlighted areas on diagram

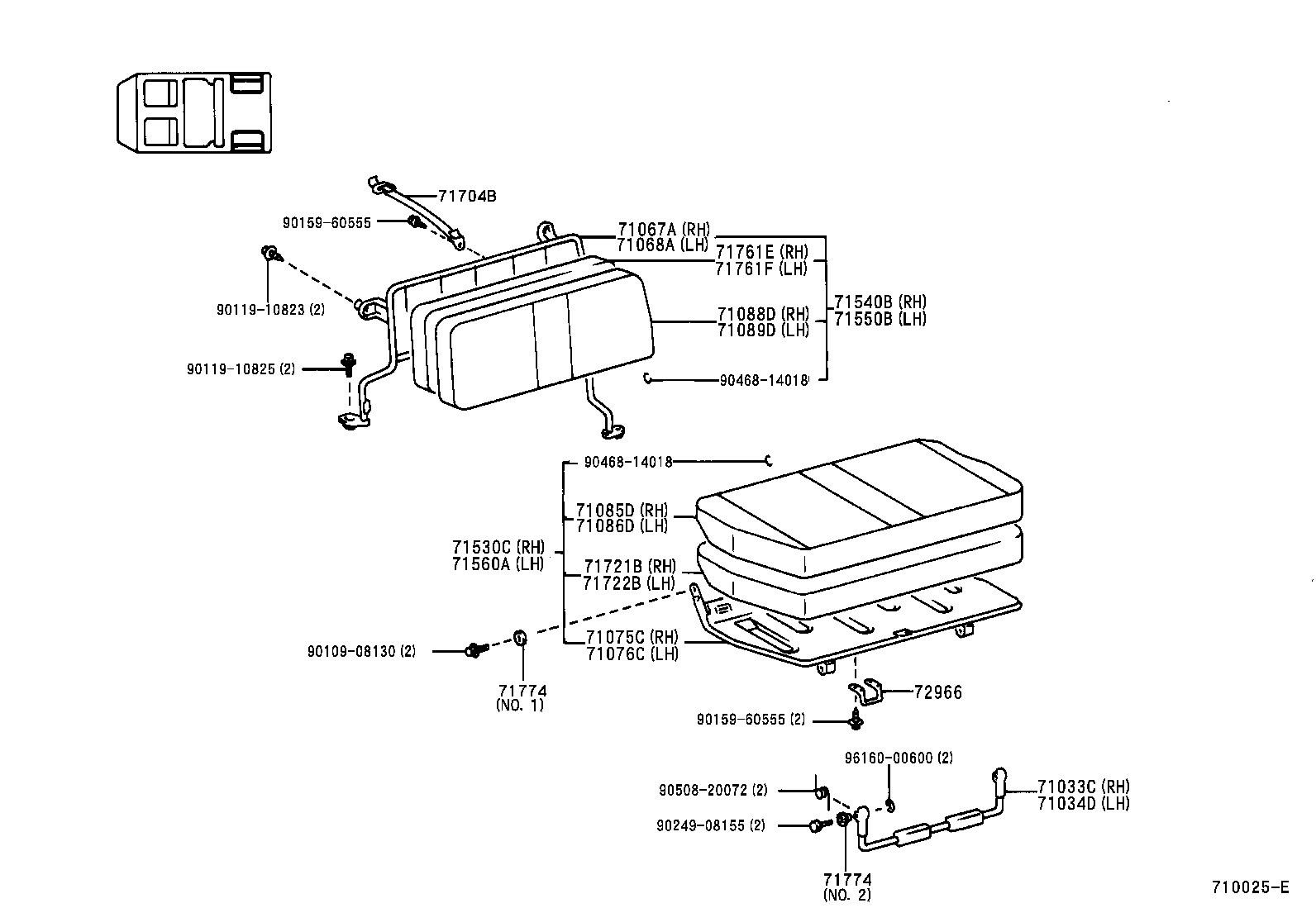

REAR NO.2 SEAT - OPPOSING TYPE

diagram 71033C 71034D 71067A 71068A 71075C 71076C 71085D 71086D 71088D 71089D 71530C 71540B 71550B 71560A 71704B 71721B 71722B 71761E 71761F 71774 71774 72966 9010908130 9011910823 9011910825 9015960555 9015960555 9024908155 9046814018 9046814018 9050820072 9616000600
Part # Description Qty Price
71033C - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH
71033-60260

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71033-60260

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71034D - LEG SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, LH
71034-60150

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71034-60150

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71067A - FRAME SUB-ASSY, REAR NO.2 SIDE SEAT BACK, RH
71067-60040

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71067-60040

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71068A - FRAME SUB-ASSY, REAR NO.2 SIDE SEAT BACK, LH
71068-60030

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71068-60030

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71075C - FRAME SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, RH
71075-60710

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71075-60710

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71076C - FRAME SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, LH
71066-60010

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71066-60010

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71085D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, RH
71085-60300B2

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

GRAY,TRIM1#

 1
71085-60300B2

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

GRAY,TRIM1#

 1
71086D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, LH
71086-60280B2

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

GRAY,TRIM1#

 1
71086-60280B2

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

GRAY,TRIM1#

 1
71088D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT BACK, RH
71088-60360B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

GRAY,TRIM1#

 1
71088-60360B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

GRAY,TRIM1#

 1
71089D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT BACK, LH
71089-60260B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

GRAY,TRIM1#

 1
71089-60260B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

GRAY,TRIM1#

 1
71530C - CUSHION ASSY, REAR NO.2 SIDE SEAT, RH
71530-60050B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

MD.MOON MIST,TRIM1#

 1
71530-60050B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

MD.MOON MIST,TRIM1#

 1
71540B - BACK ASSY, REAR NO.2 SIDE SEAT, RH
71540-60030B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

MD.MOON MIST,TRIM1#

 1
71540-60030B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

MD.MOON MIST,TRIM1#

 1
71550B - BACK ASSY, REAR NO.2 SIDE SEAT, LH
71550-60050B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

MD.MOON MIST,TRIM1#

 1
71550-60050B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

MD.MOON MIST,TRIM1#

 1
71560A - CUSHION ASSY, REAR NO.2 SIDE SEAT, LH
71560-60200B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

MD.MOON MIST,TRIM1#

 1
71560-60200B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

MD.MOON MIST,TRIM1#

 1
71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2
71704-60060B0

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 2
71704-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

MD.MOON MIST,TRIM1#

 2
71721B - PAD, REAR NO.2 SIDE SEAT CUSHION, RH
71721-60080

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71721-60080

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71722B - PAD, REAR NO.2 SIDE SEAT CUSHION, LH
71722-60060

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71722-60060

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71761E - PAD, REAR NO.2 SIDE SEAT BACK, RH
71761-60050

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71761-60050

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71761F - PAD, REAR NO.2 SIDE SEAT BACK, LH
71762-60020

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71762-60020

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71774 - PLATE, REAR SIDE SEAT HINGE
71717-60020

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

NO.2

 4
71774-60030

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

NO.1

 4
71774-60030

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

NO.1

 4
71717-60020

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

NO.2

 4
71774 - PLATE, REAR SIDE SEAT HINGE
71717-60020

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

NO.2

 4
71774-60030

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

NO.1

 4
71774-60030

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

NO.1

 4
71717-60020

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

NO.2

 4
72966 - BRACKET, REAR SEAT TURN LOCK
72966-60010

RZJ95,VZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 2
72966-60010

VZJ95..GCC;KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 2
Common parts
90109-08130
90119-10823
90119-10825
90159-60555
90249-08155
90468-14018
90508-20072
96160-00600

ILLUST NO. 3 OF 3(9604-9801)KZJ95,LJ95,RZJ95,VZJ95

Click highlighted areas on diagram

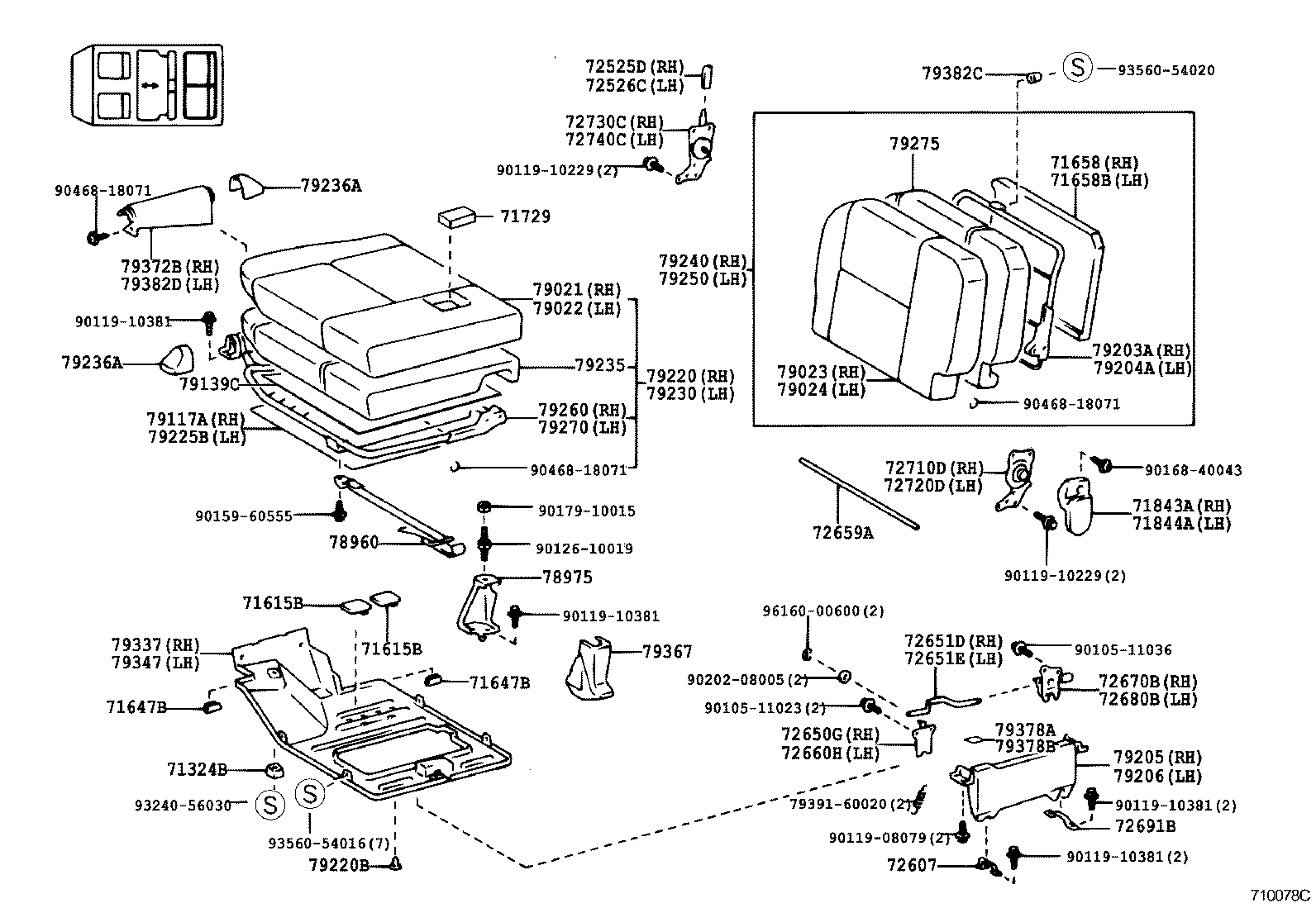

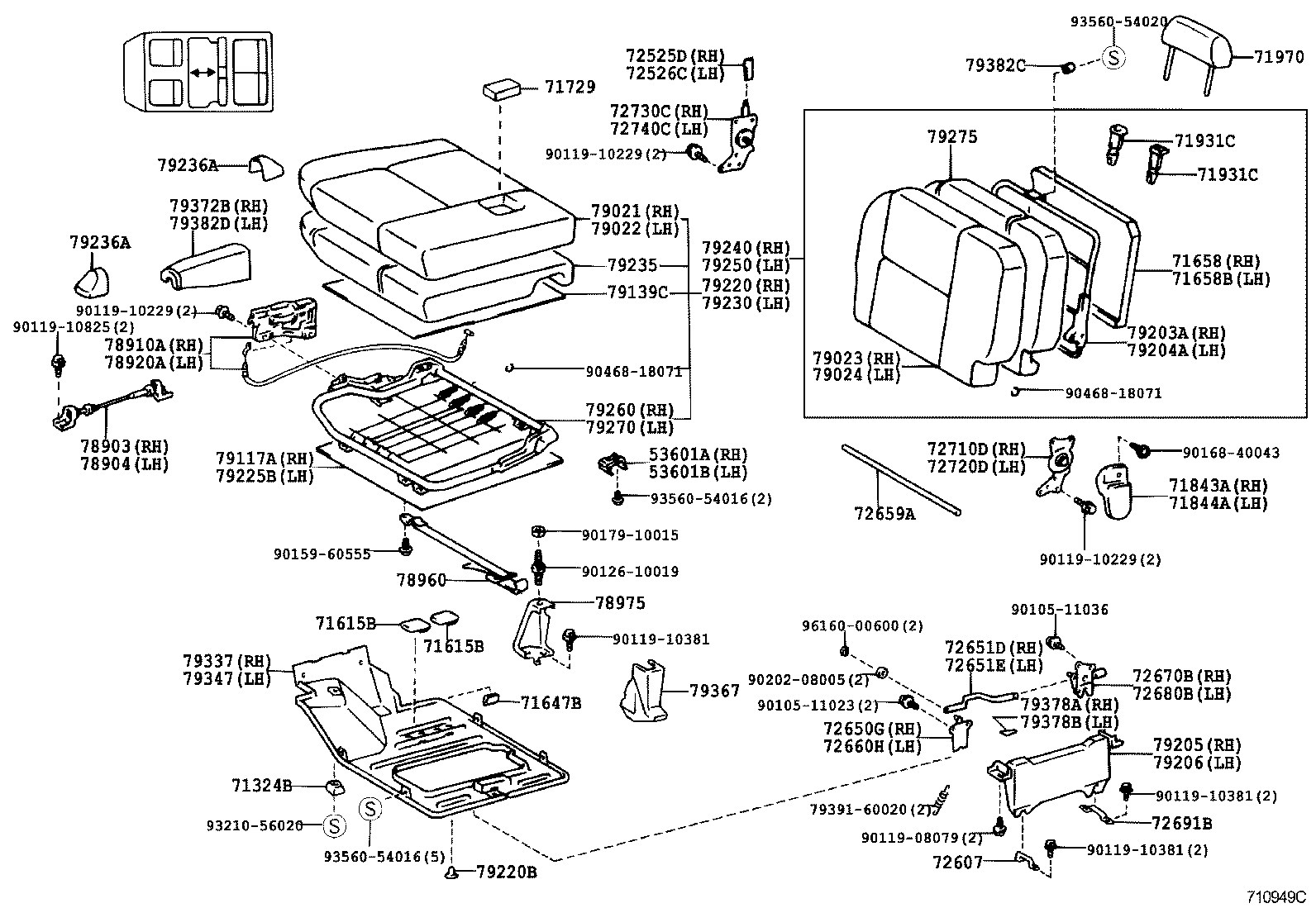

REAR NO.2 SEAT - SPLIT TYPE

diagram 71324B 71615B 71615B 71647B 71647B 71658 71658B 71729 71843A 71844A 72525D 72526C 72607 72650G 72651D 72651E 72659A 72660H 72670B 72680B 72691B 72710D 72720D 72730C 72740C 78960 78975 79021 79022 79023 79024 79117A 79139C 79203A 79204A 79205 79206 79220 79220B 79225B 79230 79235 79236A 79236A 79240 79250 79260 79270 79275 79337 79347 79367 79372B 79378A 79378B 79382C 79382D 7939160020 9010511023 9010511036 9011908079 9011910229 9011910229 9011910381 9011910381 9011910381 9011910381 9012610019 9015960555 9016840043 9017910015 9020208005 9046818071 9046818071 9046818071 9324056030 9356054016 9356054020 9616000600
Part # Description Qty Price
71324B - CUSHION, REAR SEAT
71622-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 2
71615B - COVER, NO.3 SEAT LOCK STRIKER
72615-60030B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#,FRONT

 2
72615-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#,REAR

 2
71615B - COVER, NO.3 SEAT LOCK STRIKER
72615-60030B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#,FRONT

 2
72615-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#,REAR

 2
71647B - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60140B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 4
71647B - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60140B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 4
71658 - PAD, REAR NO.2 SEAT BACK SAFETY, FRONT RH
71658-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71658-60010

KZJ95,LJ95,RZJ95,VZJ95..GX

 1
71658-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71658B - PAD, REAR NO.2 SEAT BACK SAFETY, FRONT LH
71658-60020

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71658-60090

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71729 - PAD, REAR SIDE SEAT CUSHION
71729-60020

KZJ95,LJ95,RZJ95..GX..GEN

 2
71729-60020

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

 2
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-60020B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 2
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-60020B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 2
72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH
72525-60030B1

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH
72525-60030B1

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72607-60010

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 2
72650G - LOCK ASSY, REAR NO.2 SEAT, RH
72650-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72651D - ROD, REAR SEAT BACK LOCK, RH
72651-60040

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72651E - ROD, REAR SEAT BACK LOCK, LH
72651-60040

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72659A - ROD, REAR NO.2 SEAT BACK LOCK CONNECTING
72659-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 2
72660H - LOCK ASSY, REAR NO.2 SEAT, LH
72660-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72670B - LOCK ASSY, REAR SEAT CUSHION, RH
72670-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72680B - LOCK ASSY, REAR SEAT CUSHION, LH
72680-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
72691-60020

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
72710D - ADJUSTER ASSY, NO.2 REAR SEAT BACK, INNER RH
72710-60010

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72720D - ADJUSTER ASSY, NO.2 REAR SEAT BACK, INNER LH
72720-60010

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH
72730-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH
72740-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2
78960-60050B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 2
78975 - BRACKET, FOLD SEAT STRIKER
78975-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79031-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),GRAY,TRIM1#

 1
79031-60411B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),GRAY,TRIM1#

 1
79031-60410B1

KZJ95,LJ95,RZJ95..GX..GEN

GRAY,TRIM1#

 1
79031-60440B0

KZJ95,LJ95,RZJ95,VZJ95..GX

NEW ZEALAND SPEC,GRAY,TRIM1#

 1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79032-60410B1

KZJ95,LJ95,RZJ95..GX..GEN

GRAY,TRIM1#

 1
79032-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),GRAY,TRIM1#

 1
79032-60411B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),GRAY,TRIM1#

 1
79032-60440B0

KZJ95,LJ95,RZJ95,VZJ95..GX

NEW ZEALAND SPEC,GRAY,TRIM1#

 1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79033-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

GRAY,TRIM1#

 1
79033-60381B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),GRAY,TRIM1#

 1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79034-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

GRAY,TRIM1#

 1
79034-60381B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),GRAY,TRIM1#

 1
79117A - CARPET, REAR NO.2 SEAT CUSHION, RH
79117-60030B4

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH
79303-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79304-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79205 - LEG SUB-ASSY, NO.2 SEAT
79305-60050B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79206 - BRACKET SUB-ASSY, NO.2 LH SEAT, LH
79306-60070B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79220 - CUSHION ASSY, NO.2 SEAT, RH
79320-60580B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79320-60600B0

KZJ95,LJ95,RZJ95..GX..GEN

MD.MOON MIST,TRIM1#

 1
79320-60531B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79320-60601B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79220B - CLIP, NO.2 SEAT CUSHION
71769-60010B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 4
79225B - CARPET, REAR NO.2 SEAT CUSHION, LH
79225-60020B4

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79230 - CUSHION ASSY, NO.2 SEAT, LH
79330-60531B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79330-60580B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79330-60600B0

KZJ95,LJ95,RZJ95..GX..GEN

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79330-60601B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79235 - PAD, NO.2 SEAT CUSHION
79345-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

LH

 1
79335-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

RH

 1
79236A - COVER, NO.2 SEAT LEG
79236-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 4
79236A - COVER, NO.2 SEAT LEG
79236-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 4
79240 - BACK ASSY, NO.2 SEAT, RH
79340-60491B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79340-60490B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79250 - BACK ASSY, NO.2 SEAT, LH
79350-60491B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79350-60490B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79260 - SPRING ASSY, NO.2 SEAT CUSHION
79360-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79270 - BOX ASSY, NO.2 SEAT, LH
79370-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79275 - PAD, NO.2 SEAT BACK
79375-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

RH

 1
79385-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

LH

 1
79337 - CARPET, NO.2 SEAT CUSHION UNDER, RH
79337-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MOON MIST,TRIM1#

 1
79337-60040B2

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

GRAY,TRIM1#

 1
79347 - CARPET, NO.2 SEAT CUSHION UNDER, LH
79347-60040B2

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

GRAY,TRIM1#

 1
79347-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MOON MIST,TRIM1#

 1
79367 - COVER, NO.3 SEAT LEG, NO.2
79367-60030B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79372B - COVER, NO.2 SEAT FRONT BRACKET, RH
79372-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
79382C - CUSHION, NO.2 SEAT
79382-60040

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 2
79382D - COVER, NO.2 SEAT FRONT BRACKET, LH
79382-60050B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
Common parts
79391-60020
90105-11023
90105-11036
90119-08079
90119-10229
90119-10381
90126-10019
90159-60555
90168-40043
90179-10015
90202-08005
90468-18071
93240-56030
93560-54016
93560-54020
96160-00600

ILLUST NO. 2 OF 3(9604-9906)KZJ95,LJ95,RZJ95,VZJ95

Click highlighted areas on diagram

RR NO.1 SEAT - SEAT BACK 5:5 SPLIT

diagram 71015 71017 71018 71075B 71077S 71078S 71231 71236A 71305C 71309B 71309C 71324A 71397 71460B 71480S 71485A 71486A 71490S 71611 71615A 71631A 71647 71651S 71652S 71695C 71696 71812B 71833A 71834A 71865 71878A 71931A 71931A 71931A 71931A 71940A 71940A 72525B 72526A 72650A 72658B 72659 72660F 72668 72691B 72691B 72695A 7270260010 7270260010 72710B 72720B 72730A 72740A 72927B 78950 79139H 9010511036 9010511036 9011908354 9011908364 9011910381 9011910381 9011910381 9012610019 9016840043 9016840043 9017910015 9046400679 9046708006 9046818071 9046818071 9046818071 9321056020
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-60080

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

W(BENCH SEAT)

 1
71015-60100

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71015-60090

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 1
71015-60080

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71015-60090

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

W(5:5 SPLIT SEAT)

 1
71015-60100

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-60260

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

 1
71017-60260

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-60150

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

 1
71018-60150

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-60020B1

KZJ95,LJ95,RZJ95..GX..GEN

W(5:5 SPLIT SEAT),GRAY,TRIM1#

 1
71065-60050B1

KZJ95,LJ95,RZJ95..GX..GEN

GRAY,TRIM1#

 1
71075-60860B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(SEAT BELT),GRAY,TRIM1#

 1
71075-60740B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT & SEAT BELT),GRAY,TRIM1#

 1
71065-60070B1

KZJ95,LJ95,RZJ95..GX..GEN

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71075-60840B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),GRAY,TRIM1#

 1
71065-60020B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(5:5 SPLIT SEAT),GRAY,TRIM1#

 1
71065-60070B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71075-60840B1

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),GRAY,TRIM1#

 1
71075-60860B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(SEAT BELT),GRAY,TRIM1#

 1
71065-60050B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-60820B1

KZJ95,LJ95,RZJ95,VZJ95..GX

GRAY,TRIM1#

 1
71077-60820B1

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-60440B1

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

GRAY,TRIM1#

 1
71078-60440B1

KZJ95,LJ95,RZJ95,VZJ95..GX

GRAY,TRIM1#

 1
71231 - PLATE, REAR SEAT SPRING SET, NO.1
71231-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 2
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-60010

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 2
71236-60010

KZJ95,LJ95,RZJ95,VZJ95

 2
71305C - STAY SUB-ASSY, REAR SEAT
71305-60010

KZJ95,LJ95,RZJ95,VZJ95

 1
71305-60010

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
71309B - LEG SUB-ASSY, REAR SEAT, REAR RH
71308-60030

KZJ95,LJ95,RZJ95,VZJ95

 1
71308-60030

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
71309C - LEG SUB-ASSY, REAR SEAT, REAR LH
71309-60030

KZJ95,LJ95,RZJ95,VZJ95

 1
71309-60030

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
71324A - CUSHION, REAR SEAT
71324-60110

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
71324-60110

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 2
71397 - STOPPER, REAR SEAT
71397-60010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
71397-60010

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-60880B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60240B0

KZJ95,LJ95,RZJ95..GX..GEN

MD.MOON MIST,TRIM1#

 1
71560-60260B0

KZJ95,LJ95,RZJ95..GX..GEN

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 1
71560-60020B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60170B0

KZJ95,LJ95,RZJ95..GX..GEN

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71460-60880B0

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60240B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

MD.MOON MIST,TRIM1#

 1
71560-60170B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71560-60260B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 1
71560-60150B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60020B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-6A450B0

KZJ95,LJ95,RZJ95,VZJ95..GX

***,MD.MOON MIST,TRIM1#

 1
71480-6A450B0

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

***,MD.MOON MIST,TRIM1#

 1
71485A - COVER, REAR SEAT HINGE, NO.2 RH
71485-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
71486A - COVER, REAR SEAT HINGE, NO.2 LH
71486-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-60680B0

KZJ95,LJ95,RZJ95,VZJ95..GX

***,MD.MOON MIST,TRIM1#

 1
71490-60680B0

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

***,MD.MOON MIST,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-60130

RZJ95..GX..CBR;KZJ95,LJ95..LHD..GX

W(5:5 SPLIT SEAT)

 1
71611-60130

KZJ95,LJ95..LHD..GX;RZJ95..GX..(GCC,GEN)

W(5:5 SPLIT SEAT)

 1
71611-60120

LJ95..RHD..GX;KZJ95,RZJ95..GX..(GCC,GEN)

W(BENCH SEAT)

 1
71611-60140

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71611-60120

LJ95..RHD..GX;KZJ95,RZJ95..GX..(CBR,TD)

W(BENCH SEAT)

 1
71611-60140

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71615A - COVER, NO.2 SEAT LOCK STRIKER
72615-60020B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 2
72615-60020B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 2
71631A - PAD, REAR SEAT CUSHION CORNER
71631-60020

KZJ9#,LJ9#,RZJ9#..GEN

 2
71631-60020

RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90..GEN

 2
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60130B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 4
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-60190

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

 1
71651-60190

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-60120

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

 1
71652-60120

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
71695C - PROTECTOR, REAR SEAT, NO.1
71695-60050

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71695-60080

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

W(5:5 SPLIT SEAT)

 1
71695-60050

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71695-60080

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 1
71695-60060

KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71695-60060

KZJ95,LJ95,RZJ95..GCC,GEN

W(BENCH SEAT)

 1
71696 - PROTECTOR, REAR SEAT, NO.2
71696-60030

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
71696-60030

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
71769-60010B0

KZJ95,LJ95,RZJ95,VZJ95

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 13
71769-60010B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 10
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-60040B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71833-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
71833-60030B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
71834-60030B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
71834-60040B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71865 - BEZEL, REAR SEAT COVER, NO.1
71865-60020B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
71878A - COVER, REAR SEAT RECLINING, INNER RH
71878-60010B0

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

MD.MOON MIST,TRIM1#

 1
71878-60010B0

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

MD.MOON MIST,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-60030B1

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
72525-60040B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
72525-60040B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-60030B1

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
72526-60010B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
72526-60010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72650A - LOCK ASSY, REAR SEAT, RH
72650-60080

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72650-60070

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72650-60071

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72650-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
72659 - ROD, REAR SEAT BACK LOCK CONNECTING
72659-60090

KZJ95,LJ95,RZJ95..GCC,GEN

W(BENCH SEAT)

 1
72659-60060

RZJ95..MTM..GX;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 2
72659-60080

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72659-60060

RZJ95..GX..CBR;RZJ95..MTM..ARL;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 2
72659-60090

KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
72660F - LOCK ASSY, REAR SEAT, LH
72660-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72660-60021

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72660-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
72660-60070

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72668 - BAR, REAR SEAT CUSHION LOCK STRIKER
72698-60010

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72698-60010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
72691-60020

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
72691-60020

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
72695A - CABLE, REAR SEAT LOCK CONTROL
72695-60060

KZJ95,LJ95,RZJ95,VZJ95

 2
72695-60060

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 2
72710B - ADJUSTER ASSY, REAR SEAT BACK, INNER RH
72710-60020

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

 1
72710-60020

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

 1
72720B - ADJUSTER ASSY, REAR SEAT BACK, INNER LH
72720-60020

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

 1
72720-60020

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

 1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-60090

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72730-60090

KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN

 1
72730-60100

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72730-60110

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72730-60090

RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90

 1
72730-60110

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-60090

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72740-60100

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72740-60110

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740-60090

KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN

 1
72740-60110

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740-60090

RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90

 1
72927B - COVER, REAR SEAT CUSHION UNDER
72907-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD. MOON MIST,TRIM1#

 1
72907-60020B0

KZJ95,LJ95,RZJ95,VZJ95

W(WALK-IN SEAT),MOON MIST,TRIM1#

 1
72907-60020B0

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

W(WALK-IN SEAT),MOON MIST,TRIM1#

 1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-60080B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 2
78950-60060B0

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

MD.MOON MIST,TRIM1#

 2
78950-60060B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
79139H - CLOTH, NO.3 SEAT CUSHION
79139-60030

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
79139-60030

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
79139-60010

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
79139-60010

KZJ95,LJ95,RZJ95,VZJ95

 1
Common parts
72702-60010
90105-11036
90119-08354
90119-08364
90119-10381
90126-10019
90168-40043
90179-10015
90464-00679
90467-08006
90468-18071
93210-56020

ILLUST NO. 2 OF 3(9604-9906)KZJ95,LJ95,RZJ95,VZJ95 ; (9906- )VZJ95..CO

Click highlighted areas on diagram

REAR NO.1 SEAT - WALK-IN TYPE

diagram 71015 71017A 71075B 71077B 71202B 71202B 71231 71349B 71397 71453 71460B 71480B 71611 71631A 71647 71651B 71671 71695C 71812B 71833A 71834A 71860A 71931A 71931A 71931A 71931A 71940A 71940A 72058 72137B 72138B 72151 72152 72157B 72157C 72157D 72158A 72158B 72158C 72160 72170 72501C 72525B 72526A 72553A 72554A 72593B 72594A 72649A 72650A 72659 72660F 72665 72665C 72666 72666B 72690B 7270260010 72730A 72740A 72808A 72830 72830B 72927B 78950 79139H 9010906208 9011908364 9012610019 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016845002 9017908249 9017910015 9046400679 9046818071 9046818071 9151281020 9165160614 91651B0814 9324056030 9417060800
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-60080

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

W(BENCH SEAT)

 1
71015-60100

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71015-60090

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 1
71015-60080

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71015-60090

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

W(5:5 SPLIT SEAT)

 1
71015-60100

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-60290

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71017-60270

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

W(BENCH SEAT)

 1
71017-60270

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71017-60290

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-60020B1

KZJ95,LJ95,RZJ95..GX..GEN

W(5:5 SPLIT SEAT),GRAY,TRIM1#

 1
71065-60050B1

KZJ95,LJ95,RZJ95..GX..GEN

GRAY,TRIM1#

 1
71075-60860B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(SEAT BELT),GRAY,TRIM1#

 1
71075-60740B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT & SEAT BELT),GRAY,TRIM1#

 1
71065-60070B1

KZJ95,LJ95,RZJ95..GX..GEN

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71075-60840B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),GRAY,TRIM1#

 1
71065-60020B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(5:5 SPLIT SEAT),GRAY,TRIM1#

 1
71065-60070B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71075-60840B1

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),GRAY,TRIM1#

 1
71075-60860B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(SEAT BELT),GRAY,TRIM1#

 1
71065-60050B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-6A010B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT),GRAY,TRIM1#

 1
71077-60840B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(BENCH SEAT),GRAY,TRIM1#

 1
71077-60840B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(BENCH SEAT),GRAY,TRIM1#

 1
71202B - PANEL, REAR SEAT BACK
71203-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

LH

 1
71203-60010

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX

LH

 1
71202-60010

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX

RH

 1
71202-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

RH

 1
71202B - PANEL, REAR SEAT BACK
71203-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

LH

 1
71203-60010

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX

LH

 1
71202-60010

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX

RH

 1
71202-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

RH

 1
71231 - PLATE, REAR SEAT SPRING SET, NO.1
71231-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 2
71397 - STOPPER, REAR SEAT
71397-60010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
71397-60010

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
71453 - WIRE, REAR SEAT CUSHION SPRING
71453-60020

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 2
71453-60020

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-60880B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60240B0

KZJ95,LJ95,RZJ95..GX..GEN

MD.MOON MIST,TRIM1#

 1
71560-60260B0

KZJ95,LJ95,RZJ95..GX..GEN

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 1
71560-60020B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60170B0

KZJ95,LJ95,RZJ95..GX..GEN

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71460-60880B0

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(5:5 SPLIT SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60240B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

MD.MOON MIST,TRIM1#

 1
71560-60170B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71560-60260B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 1
71560-60150B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT & SEAT BELT),MD.MOON MIST,TRIM1#

 1
71560-60020B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-6A460B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

MD.MOON MIST,TRIM1#

 1
71480-6A400B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71480-6A460B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)

MD.MOON MIST,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-60130

RZJ95..GX..CBR;KZJ95,LJ95..LHD..GX

W(5:5 SPLIT SEAT)

 1
71611-60130

KZJ95,LJ95..LHD..GX;RZJ95..GX..(GCC,GEN)

W(5:5 SPLIT SEAT)

 1
71611-60120

LJ95..RHD..GX;KZJ95,RZJ95..GX..(GCC,GEN)

W(BENCH SEAT)

 1
71611-60140

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71611-60120

LJ95..RHD..GX;KZJ95,RZJ95..GX..(CBR,TD)

W(BENCH SEAT)

 1
71611-60140

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71631A - PAD, REAR SEAT CUSHION CORNER
71631-60020

KZJ9#,LJ9#,RZJ9#..GEN

 2
71631-60020

RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90..GEN

 2
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60130B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 4
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-60150

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
71651-60170

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71651-60150

VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD

 1
71651-60170

KZJ95,LJ95,RZJ95,VZJ95..GX

W(WALK-IN SEAT)

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-60020

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 2
71672-60040

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71672-60040

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71695C - PROTECTOR, REAR SEAT, NO.1
71695-60050

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
71695-60080

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

W(5:5 SPLIT SEAT)

 1
71695-60050

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
71695-60080

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 1
71695-60060

KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
71695-60060

KZJ95,LJ95,RZJ95..GCC,GEN

W(BENCH SEAT)

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
71769-60010B0

KZJ95,LJ95,RZJ95,VZJ95

W(5:5 SPLIT SEAT),MD.MOON MIST,TRIM1#

 13
71769-60010B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 10
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-60040B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71833-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
71833-60030B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
71834-60030B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
71834-60040B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71860A - CARPET ASSY, REAR SEAT CUSHION BOARD
71860-60010B2

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL
72058-60040

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
72058-60040

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX

 1
72137B - COVER, SEAT TRACK, RH
72137-60050B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72138B - COVER, SEAT TRACK, LH
72138-60040B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72151 - RAIL, SEAT TRACK, LOWER RH
72137-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72152 - RAIL, SEAT TRACK, LOWER LH
72138-60030B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH
72127-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72157C - COVER, SEAT TRACK BRACKET, INNER RH
72157-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72157D - COVER, SEAT TRACK BRACKER, INNER RH
72157-60070B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH
72128-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72158B - COVER, SEAT TRACK BRACKET, INNER LH
72158-60030B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72158C - COVER, SEAT TRACK BRACKET, INNER LH
72158-60040B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72160 - TRACK ASSY, REAR SEAT, OUTER RH
72160-60021

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
72160-60020

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
72170 - TRACK ASSY, REAR SEAT, OUTER LH
72170-60021

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
72170-60020

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
72501C - PIPE SUB-ASSY, RECLINING CONNECTING
72501-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-60030B1

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
72525-60040B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
72525-60040B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-60030B1

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
72526-60010B0

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

MD.MOON MIST,TRIM1#

 1
72526-60010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72553A - PROTECTOR, RECLINING COVER, RH
72553-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72554A - PROTECTOR, RECLINING COVER, LH
72554-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72593B - KNOB, RECLINING REMOTE CONTROL LEVER, RH
72593-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72594A - KNOB, RECLINING REMOTE CONTROL LEVER, LH
72594-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72649A - TENSION SPRING, REAR SEAT LOCK CONTROL
90506-09055

VZJ95..ARL;KZJ95,LJ95,RZJ95..GX

 1
72650A - LOCK ASSY, REAR SEAT, RH
72650-60080

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72650-60070

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72650-60071

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72650-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
72659 - ROD, REAR SEAT BACK LOCK CONNECTING
72659-60090

KZJ95,LJ95,RZJ95..GCC,GEN

W(BENCH SEAT)

 1
72659-60060

RZJ95..MTM..GX;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 2
72659-60080

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72659-60060

RZJ95..GX..CBR;RZJ95..MTM..ARL;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GEN)

W(5:5 SPLIT SEAT)

 2
72659-60090

KZJ95,LJ95,RZJ95..CBR,DSL,TD

W(BENCH SEAT)

 1
72660F - LOCK ASSY, REAR SEAT, LH
72660-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72660-60021

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)

 1
72660-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
72660-60070

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72665C - COVER, REAR SEAT LOCK, RH
72665-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72666 - COVER, REAR SEAT BACK LOCK, LH
72666-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72666B - COVER, REAR SEAT LOCK, LH
72666-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72690B - LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH
72690-60020

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
72690-60020

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX

 1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-60090

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72730-60090

KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN

 1
72730-60100

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72730-60110

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72730-60090

RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90

 1
72730-60110

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-60090

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
72740-60100

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
72740-60110

VZJ95..ARL;KZJ95,LJ95,RZJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740-60090

KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN

 1
72740-60110

RZJ95..GX..CBR;RZJ95,VZJ95..ARL;KZJ95,LJ95,VZJ90..GX,VX

W(SPLIT TYPE REAR SEAT)

 1
72740-60090

RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90

 1
72927B - COVER, REAR SEAT CUSHION UNDER
72907-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD. MOON MIST,TRIM1#

 1
72907-60020B0

KZJ95,LJ95,RZJ95,VZJ95

W(WALK-IN SEAT),MOON MIST,TRIM1#

 1
72907-60020B0

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

W(WALK-IN SEAT),MOON MIST,TRIM1#

 1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-60080B0

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 2
78950-60060B0

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

MD.MOON MIST,TRIM1#

 2
78950-60060B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
79139H - CLOTH, NO.3 SEAT CUSHION
79139-60030

RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)

W(WALK-IN SEAT)

 1
79139-60030

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

W(WALK-IN SEAT)

 1
79139-60010

RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN

 1
79139-60010

KZJ95,LJ95,RZJ95,VZJ95

 1
Common parts
72702-60010
90109-06208
90119-08364
90126-10019
90168-40043
90168-45002
90179-08249
90179-10015
90464-00679
90468-18071
91512-81020
91651-60614
91651-B0814
93240-56030
94170-60800

ILLUST NO. 1 OF 3(9604- )KZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN

Click highlighted areas on diagram

FRONT SEAT - POWER SEAT

diagram 55560D 71071S 71072S 71073S 71074S 71361 71410S 71420S 71430S 71440S 71511S 71512S 71517 71551S 71552S 71610S 71620S 71630S 71640S 71750A 71811D 71812D 71831D 71832D 71861 71862 71875A 71875A 71876 71876 71910A 71931 71931 72011 72012 72123A 72124 72125A 72125A 72127A 72128A 72129 72129 72137 72138 72157A 72158 72750D 72760D 72797 8202 8513 8513 8513 8513 9011910825 9011910825 9016740044 9016740044 9016740044 9016740044 9016740044 9016840043 9046816019 9046818071 9151261018 9161560825 9165160614 9354054012 9356054012 9356854516 9356854516
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71072-60580B1

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),GRAY,TRIM1#

 1
71072-60580B1

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71074-60630B1

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),GRAY,TRIM1#

 1
71074-60630B1

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-6A420B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-6A420B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71420-6A240B0

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71420-6A240B0

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-6A170B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-60830B0

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71440-60830B0

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71430-6A170B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-60110

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-60090

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71512-60090

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71511-60110

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-60180

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-60180

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71552-60130

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71552-60130

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-60130

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71610-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71620-60130

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-60120

LJ95,RZJ95..LHD..GX;LJ95,RZJ95,VZJ95..RHD..(GX,STD);KZJ9#,LJ90,RZJ90,VZJ9#..CO,GCC,GEN

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-60210

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71014-60210

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71630-60120

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);LJ95,RZJ90..LHD..STD..(CBR,DSL);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-60050

VZJ95..GX;VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-60050B0

VZJ95..ARL;KZJ9#,LJ9#,RZJ9#

MD.MOON MIST,TRIM1#

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 1
71831-35050

LJ9#,RZJ95..RHD..GEN;KZJ95,LJ95,RZJ95..LHD..GX

W(BENCH SEAT)

 1
71831-35050

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

W(BENCH SEAT)

 1
71831-35050

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 2
71832-35050

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

W(BENCH SEAT)

 1
71832-35050

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 1
71832-35050

LJ9#,RZJ95..RHD..GEN;KZJ95,LJ95,RZJ95..LHD..GX

W(BENCH SEAT)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-60040B0

RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60040B0

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL)

MD.MOON MIST,TRIM1#

 1
71862-60050B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71862-60050B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71875-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#,OUTER

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71875-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#,OUTER

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#,OUTER

 1
71875-60020B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71875-60020B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71876-60050B0

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#,OUTER

 1
71875-60020B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71875-60020B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71876-60050B0

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-60010

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72011-60011

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-60040

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
72012-60041

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
72012-60011

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72012-60010

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-60050B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72123-60070B0

LJ90..RHD;KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72124-60040B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72125-60050B0

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60050B0

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60070

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72125-60070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W(POWER SEAT)

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72125-60050B0

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60050B0

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60070

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72125-60070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W(POWER SEAT)

 2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60040

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 3
72129-60030

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 3
72129-60030

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(POWER SEAT)

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60040

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 3
72129-60030

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 3
72129-60030

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(POWER SEAT)

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-60030B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-60030B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-60050B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-60020B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10825
90167-40044
90168-40043
90468-16019
90468-18071
91512-61018
91615-60825
91651-60614
93540-54012
93560-54012
93568-54516
Linked diagrams
8202
8513

ILLUST NO. 1 OF 3(9604- )

Click highlighted areas on diagram

FRONT SEAT - SEPARATE/BENCH(DRIVER)

diagram 55560D 71071S 71072S 71073S 71074S 71147 71147 71361 71410S 71420S 71430S 71440S 71511S 71512S 71517 71551S 71552S 7158760080 7158860030 71610S 71620S 71630S 71640S 71750A 71811D 71812D 71831D 71832D 71861 71862 71875A 71875A 71876 71876 71910A 71931 71931 72011 72012 72021 72022 72123A 72124 72125A 72125A 72127A 72128A 72129 72129 72137 72138 72157A 72158 72211 72263 72264 72457B 72501D 72501E 72525A 72526 72553 72554C 72750D 72760D 72791 72791A 72797 9011910825 9011910825 9016740044 9016740044 9016740044 9016840043 9016840043 9046816019 9046818071 9052001006 9151261018 91611B0816 9161560825 9165160614 9354054012 9356855016 9356855016 9616000600 9616000800 9616001200
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71072-60580B1

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),GRAY,TRIM1#

 1
71072-60580B1

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-60740B1

KZJ9#,LJ95,RZJ9#,VZJ95..GX

GRAY,TRIM1#

 1
71074-60630B1

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),GRAY,TRIM1#

 1
71074-60630B1

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-6A420B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-6A420B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71420-6A240B0

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71420-6A240B0

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-6A170B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-60830B0

LJ95,RZJ95..RHD..GX..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71440-60830B0

LJ95,RZJ95..RHD..GX..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71430-6A170B0

KZJ9#,LJ95,RZJ9#,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-60110

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-60090

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71512-60090

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71511-60110

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-60180

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-60180

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71552-60130

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71552-60130

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-60130

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71610-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
71620-60130

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-60120

LJ95,RZJ95..LHD..GX;LJ95,RZJ95,VZJ95..RHD..(GX,STD);KZJ9#,LJ90,RZJ90,VZJ9#..CO,GCC,GEN

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-60210

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
71014-60210

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
71630-60120

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);LJ95,RZJ90..LHD..STD..(CBR,DSL);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-60050

VZJ95..GX;VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-60050B0

VZJ95..ARL;KZJ9#,LJ9#,RZJ9#

MD.MOON MIST,TRIM1#

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 1
71831-35050

LJ9#,RZJ95..RHD..GEN;KZJ95,LJ95,RZJ95..LHD..GX

W(BENCH SEAT)

 1
71831-35050

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

W(BENCH SEAT)

 1
71831-35050

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

 2
71832-35050

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

W(BENCH SEAT)

 1
71832-35050

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 1
71832-35050

LJ9#,RZJ95..RHD..GEN;KZJ95,LJ95,RZJ95..LHD..GX

W(BENCH SEAT)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-60040B0

RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60040B0

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL)

MD.MOON MIST,TRIM1#

 1
71862-60050B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71862-60050B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71875-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#,OUTER

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0

LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71875-60030B0

KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#,OUTER

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#,OUTER

 1
71875-60020B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71875-60020B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71876-60050B0

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#,OUTER

 1
71875-60020B0

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71875-60020B0

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER

 1
71876-60050B0

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#

MD.MOON MIST,TRIM1#,INNER

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-60390B0

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

MD.MOON MIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
71930-32020B2

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(LOCK),BLUE GRAY,TRIM1#

 2
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-60010

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72011-60011

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-60040

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
72012-60041

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
72012-60011

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72012-60010

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-60011

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72021-60010

LJ9#,RZJ95,VZJ95..RHD..(GX,STD);KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX)

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-60011

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72022-60010

LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-60050B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72123-60070B0

LJ90..RHD;KZJ95,LJ95,RZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-60030B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
72124-60040B0

LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD

MD.MOON MIST,TRIM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72125-60050B0

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60050B0

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60070

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72125-60070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W(POWER SEAT)

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

 1
72125-60050B0

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60050B0

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

MD.MOON MIST,TRIM1#

 1
72125-60070

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 1
72125-60070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

W(POWER SEAT)

 2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-60010B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60040

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 3
72129-60030

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 3
72129-60030

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(POWER SEAT)

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60040

KZJ95,LJ9#,RZJ9#..CBR,DSL,TD

W(BENCH SEAT)

 3
72129-60030

RZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD

 3
72129-60030

KZJ9#,LJ9#,RZJ9#,VZJ9#

W(POWER SEAT)

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-60030B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-60030B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-60050B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-60020B0

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-60110

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(GX,STD)..(DSL,EFI,TD)

 2
72263 - REINFORCEMENT, INNER SEAT TRACK, RH
72263-60030

RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
72264 - REINFORCEMENT, INNER SEAT TRACK, LH
72263-60030

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL)

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-60040

RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-60050

LJ9#,RZJ95..RHD..(CBR,DSL)

W(BENCH SEAT)

 1
72501-60050

LJ9#,RZJ95..RHD..GEN

W(BENCH SEAT)

 1
72501-60040

LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010B7

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
Common parts
71587-60080
71588-60030
90119-10825
90167-40044
90168-40043
90468-16019
90468-18071
90520-01006
91512-61018
91611-B0816
91615-60825
91651-60614
93540-54012
93568-55016
96160-00600
96160-00800
96160-01200

ILLUST NO. 3 OF 3(9801- )KZJ95,LJ95,RZJ95,VZJ95

Click highlighted areas on diagram

REAR NO.2 SEAT - SPLIT TYPE

diagram 53601A 53601B 71324B 71615B 71615B 71647B 71658 71658B 71729 71843A 71844A 71931C 71931C 71970 72525D 72526C 72607 72650G 72651D 72651E 72659A 72660H 72670B 72680B 72691B 72710D 72720D 72730C 72740C 78903 78904 78910A 78920A 78960 78975 79021 79022 79023 79024 79117A 79139C 79203A 79204A 79205 79206 79220 79220B 79225B 79230 79235 79236A 79236A 79240 79250 79260 79270 79275 79337 79347 79367 79372B 79378A 79378B 79382C 79382D 7939160020 9010511023 9010511036 9011908079 9011910229 9011910229 9011910229 9011910381 9011910381 9011910381 9011910825 9012610019 9015960555 9016840043 9017910015 9020208005 9046818071 9046818071 9321056020 9356054016 9356054016 9356054020 9616000600
Part # Description Qty Price
53601A - LEVER SUB-ASSY, SEAT CUSHION LOCK
53601-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MOON MIST,TRIM1#

 1
53601B - LEVER SUB-ASSY, SEAT CUSHION LOCK, NO.2
53601-60010B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MOON MIST,TRIM1#

 1
71324B - CUSHION, REAR SEAT
71622-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 2
71615B - COVER, NO.3 SEAT LOCK STRIKER
72615-60030B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#,FRONT

 2
72615-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#,REAR

 2
71615B - COVER, NO.3 SEAT LOCK STRIKER
72615-60030B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#,FRONT

 2
72615-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#,REAR

 2
71647B - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60140B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 4
71658 - PAD, REAR NO.2 SEAT BACK SAFETY, FRONT RH
71658-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71658-60010

KZJ95,LJ95,RZJ95,VZJ95..GX

 1
71658-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71658B - PAD, REAR NO.2 SEAT BACK SAFETY, FRONT LH
71658-60020

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71658-60090

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
71729 - PAD, REAR SIDE SEAT CUSHION
71729-60020

KZJ95,LJ95,RZJ95..GX..GEN

 2
71729-60020

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

 2
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-60020B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 2
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-60020B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 2
71970 - HEADREST ASSY, REAR SEAT
71970-60270B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 2
72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH
72525-60030B1

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH
72525-60030B1

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72607-60010

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 2
72650G - LOCK ASSY, REAR NO.2 SEAT, RH
72650-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72651D - ROD, REAR SEAT BACK LOCK, RH
72651-60040

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72651E - ROD, REAR SEAT BACK LOCK, LH
72651-60040

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72659A - ROD, REAR NO.2 SEAT BACK LOCK CONNECTING
72659-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 2
72660H - LOCK ASSY, REAR NO.2 SEAT, LH
72660-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72670B - LOCK ASSY, REAR SEAT CUSHION, RH
72670-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72680B - LOCK ASSY, REAR SEAT CUSHION, LH
72680-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
72691-60020

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 2
72710D - ADJUSTER ASSY, NO.2 REAR SEAT BACK, INNER RH
72710-60010

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72720D - ADJUSTER ASSY, NO.2 REAR SEAT BACK, INNER LH
72720-60010

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH
72730-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH
72740-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK
78903-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
78904 - STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2
78904-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
78910A - LOCK ASSY, FOLD SEAT, RH
78910-60050B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

BLUISH GRAY,TRIM1#

 1
78920A - LOCK ASSY, FOLD SEAT, LH
78920-60040

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2
78960-60050B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 2
78975 - BRACKET, FOLD SEAT STRIKER
78975-60020

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

 1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79031-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),GRAY,TRIM1#

 1
79031-60411B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),GRAY,TRIM1#

 1
79031-60410B1

KZJ95,LJ95,RZJ95..GX..GEN

GRAY,TRIM1#

 1
79031-60440B0

KZJ95,LJ95,RZJ95,VZJ95..GX

NEW ZEALAND SPEC,GRAY,TRIM1#

 1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79032-60410B1

KZJ95,LJ95,RZJ95..GX..GEN

GRAY,TRIM1#

 1
79032-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),GRAY,TRIM1#

 1
79032-60411B1

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),GRAY,TRIM1#

 1
79032-60440B0

KZJ95,LJ95,RZJ95,VZJ95..GX

NEW ZEALAND SPEC,GRAY,TRIM1#

 1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79033-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

GRAY,TRIM1#

 1
79033-60381B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),GRAY,TRIM1#

 1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79034-60380B1

KZJ95,LJ95,RZJ95,VZJ95..GX

GRAY,TRIM1#

 1
79034-60381B1

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),GRAY,TRIM1#

 1
79117A - CARPET, REAR NO.2 SEAT CUSHION, RH
79117-60030B4

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH
79303-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79304-60070

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79205 - LEG SUB-ASSY, NO.2 SEAT
79305-60050B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79206 - BRACKET SUB-ASSY, NO.2 LH SEAT, LH
79306-60070B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79220 - CUSHION ASSY, NO.2 SEAT, RH
79320-60580B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79320-60600B0

KZJ95,LJ95,RZJ95..GX..GEN

MD.MOON MIST,TRIM1#

 1
79320-60531B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79320-60601B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79220B - CLIP, NO.2 SEAT CUSHION
71769-60010B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 4
79225B - CARPET, REAR NO.2 SEAT CUSHION, LH
79225-60020B4

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79230 - CUSHION ASSY, NO.2 SEAT, LH
79330-60531B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79330-60580B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79330-60600B0

KZJ95,LJ95,RZJ95..GX..GEN

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79330-60601B0

KZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)..GEN

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79235 - PAD, NO.2 SEAT CUSHION
79345-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

LH

 1
79335-60080

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

RH

 1
79236A - COVER, NO.2 SEAT LEG
79236-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 4
79236A - COVER, NO.2 SEAT LEG
79236-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 4
79240 - BACK ASSY, NO.2 SEAT, RH
79340-60491B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79340-60490B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79250 - BACK ASSY, NO.2 SEAT, LH
79350-60491B0

KZJ95,LJ95,RZJ95..GX..(GCC,GEN)

W/O(SEAT BELT),MD.MOON MIST,TRIM1#

 1
79350-60490B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
79260 - SPRING ASSY, NO.2 SEAT CUSHION
79360-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79270 - BOX ASSY, NO.2 SEAT, LH
79370-60010

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
79275 - PAD, NO.2 SEAT BACK
79375-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

RH

 1
79385-60080

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

LH

 1
79337 - CARPET, NO.2 SEAT CUSHION UNDER, RH
79337-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MOON MIST,TRIM1#

 1
79337-60040B2

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

GRAY,TRIM1#

 1
79347 - CARPET, NO.2 SEAT CUSHION UNDER, LH
79347-60040B2

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

GRAY,TRIM1#

 1
79347-60060B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MOON MIST,TRIM1#

 1
79367 - COVER, NO.3 SEAT LEG, NO.2
79367-60030B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
79372B - COVER, NO.2 SEAT FRONT BRACKET, RH
79372-60020B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
79382C - CUSHION, NO.2 SEAT
79382-60040

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 2
79382D - COVER, NO.2 SEAT FRONT BRACKET, LH
79382-60050B0

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 1
Common parts
79391-60020
90105-11023
90105-11036
90119-08079
90119-10229
90119-10381
90119-10825
90126-10019
90159-60555
90168-40043
90179-10015
90202-08005
90468-18071
93210-56020
93560-54016
93560-54020
96160-00600
