RZJ95R-GKMNU (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

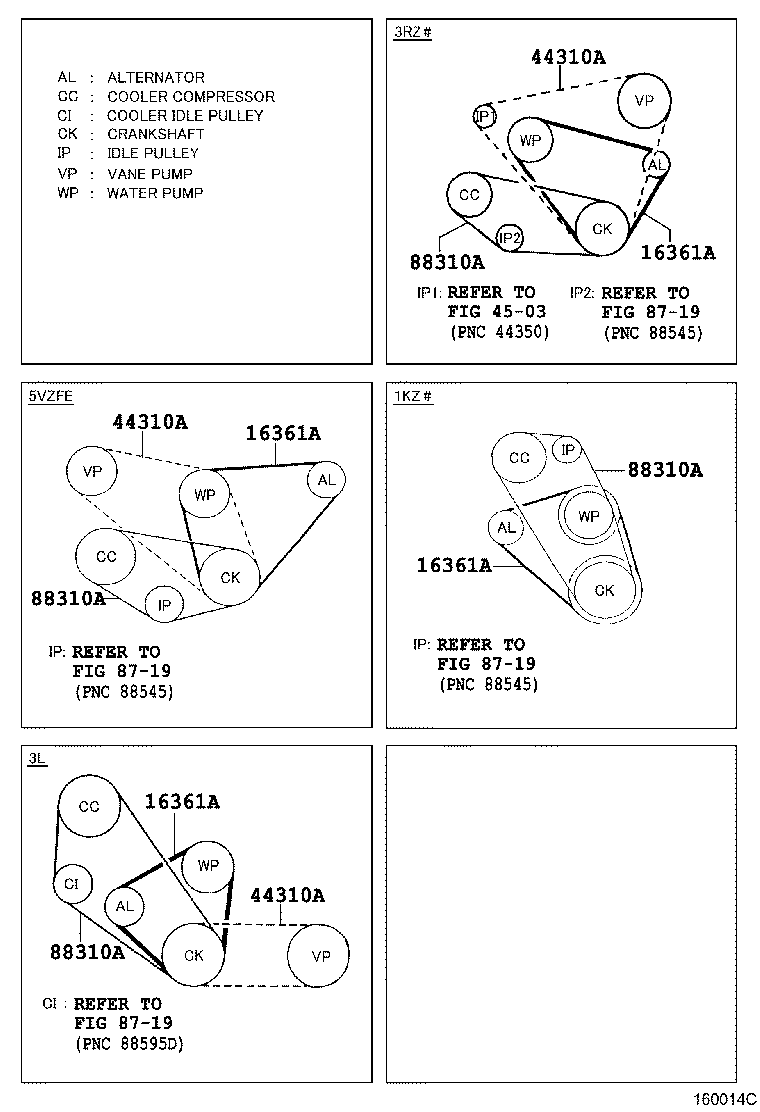

Click highlighted areas on diagram

diagram 16361A 16361A 16361A 16361A 44310A 44310A 44310A 4503 8719 8719 8719 8719 88310A 88310A 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80890

3RZ#..RZJ9#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80890

3RZ#..RZJ9#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80890

3RZ#..RZJ9#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80890

3RZ#..RZJ9#

 1
44310A - BELT, V(FOR VANE PUMP)
99364-81100

RZJ9#..CBR

 1
44310A - BELT, V(FOR VANE PUMP)
99364-81100

RZJ9#..CBR

 1
44310A - BELT, V(FOR VANE PUMP)
99364-81100

RZJ9#..CBR

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-80910

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

L=910

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-80910

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

L=910

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-80910

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

L=910

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-80910

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

L=910

 1
Linked diagrams
4503
8719
