RZJ95L-GKPNKV (1999)

Toyota Land Cruiser 90

Production Jun 1999 - Sep 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9906- )VZJ95..VX..ARL,GCC ; (9906- )KZJ9#,LJ9#,RZJ9#,VZJ90..GCC,GEN

Click highlighted areas on diagram

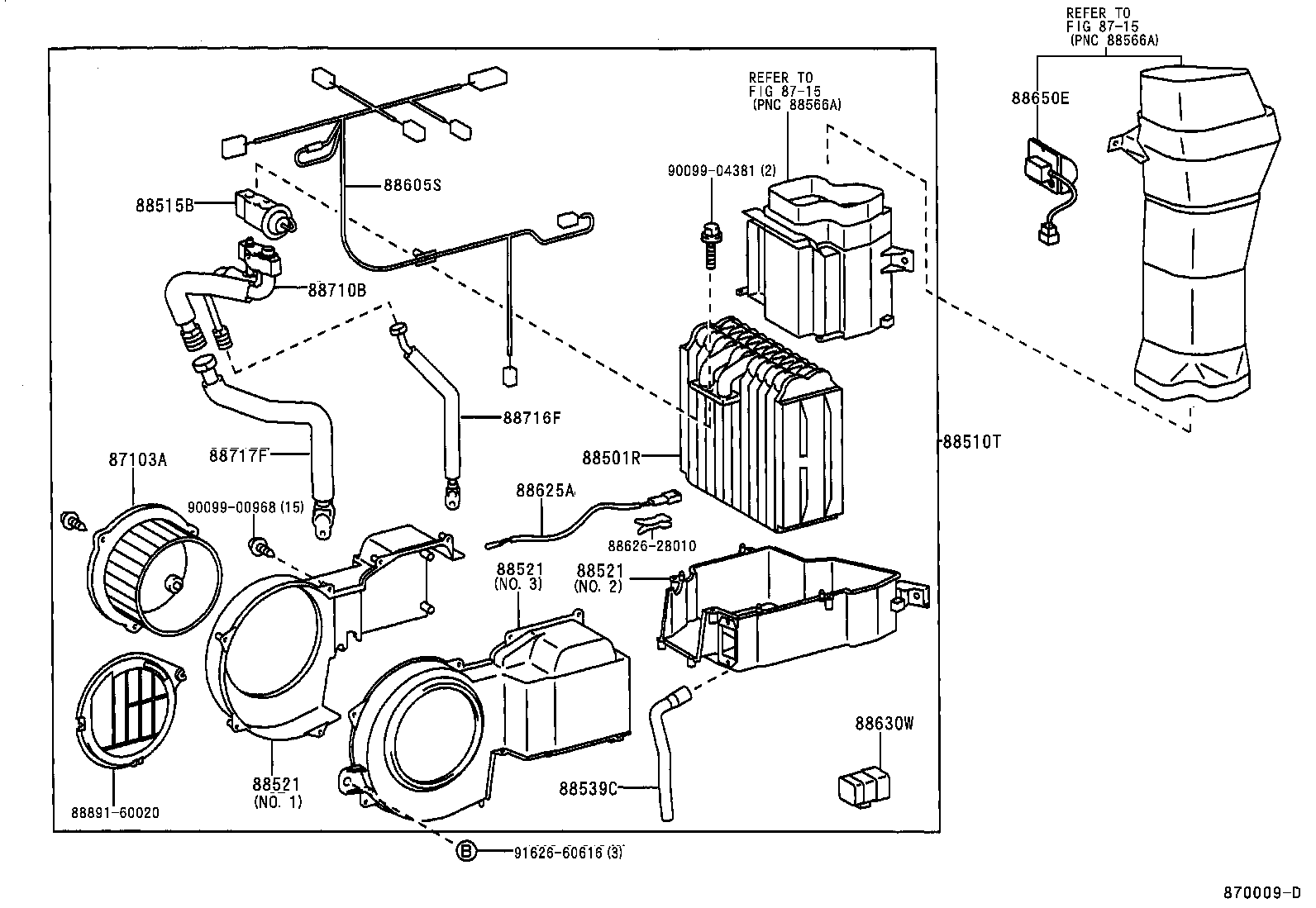

REAR--AUTO

diagram 87103A 8715 8715 88501R 88510T 88515B 88521 88521 88521 88539C 88605S 88625A 8862628010 88630W 88650E 88710B 88716F 88717F 8889160020 9009900968 9009904381 9162660616
Part # Description Qty Price
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-60160

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
88510T - UNIT ASSY, COOLING (REAR)
88510-60830

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-60050

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
Common parts
88626-28010
88891-60020
90099-00968
90099-04381
91626-60616
Linked diagrams
8715

ILLUST NO. 1 OF 3(9906- )VZJ95..VX..ARL,GCC ; (9906- )KZJ9#,LJ9#,RZJ9#,VZJ90..GCC,GEN

Click highlighted areas on diagram

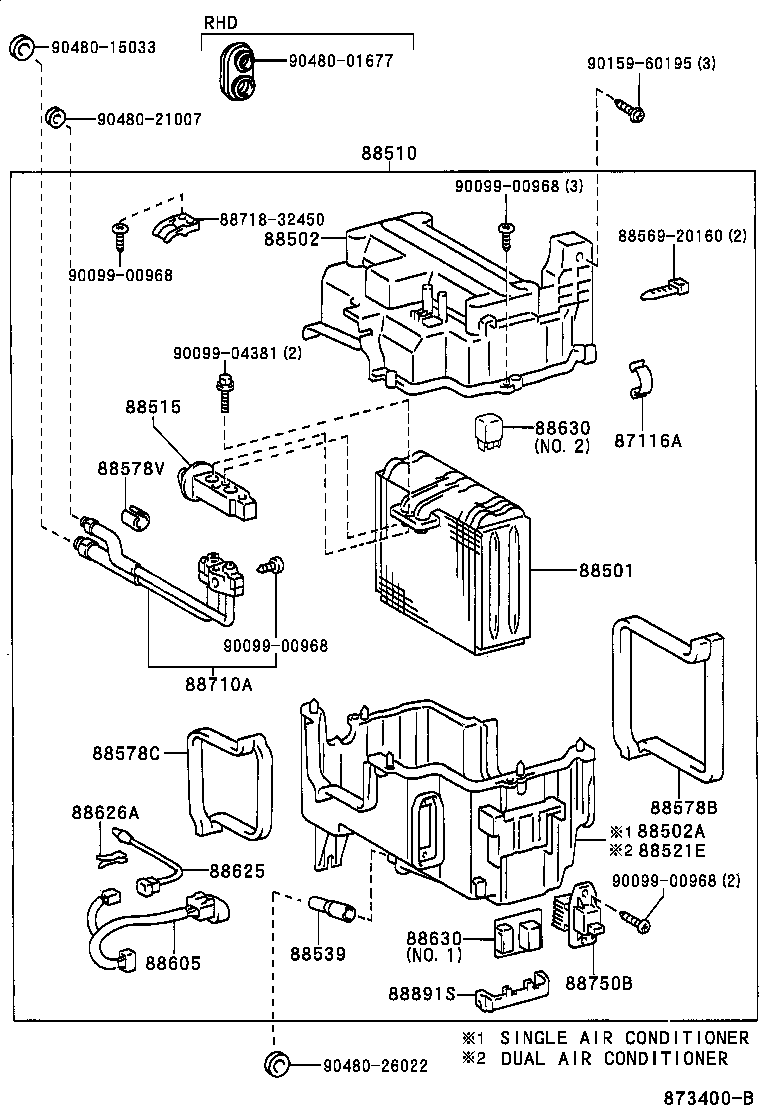

FRONT--AUTO

diagram 87116A 88501 88502 88502A 88510 88515 88521E 88539 8856920160 88578B 88578C 88578V 88605 88625 88626A 88630 88630 88710A 8871832450 88750B 88891S 9009900968 9009900968 9009900968 9009900968 9009904381 9015960195 9048001677 9048015033 9048021007 9048026022
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN)

 1
88501-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35030

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
88510 - UNIT ASSY, COOLER
88510-6A040

RZJ95..LHD..GX

DUAL MANUAL AIR CONDITIONER

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88515-20100

KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-35060

LJ95..LHD..GX;KZJ95,RZJ9#,VZJ9#..LHD

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-35050

LJ95..LHD..GX;LJ9#,VZJ95..RHD;KZJ95,RZJ9#,VZJ90

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-35070

RZJ95..GX..(GCC,GEN);LJ95,VZJ95..LHD..(GX,VX);KZJ95,VZJ90..ARL,GCC,GEN;RZJ90,VZJ95..GX..(ARL,CO)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60870

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)

DUAL MANUAL AIR CONDITIONER

 1
88605-35220

RZJ9#,VZJ9#..EFI

 1
88605-35220

VZJ95..CO;RZJ95..LHD;RZJ95..RHD..GX..GEN;KZJ95,RZJ90,VZJ95..(GX,STD)..(EFI,TDEFI)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090

KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN

 1
88625-3A090

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-35290

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
88891S - COVER, COOLER, NO.1
88891-35010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88891-35010

VZJ95;RZJ95..LHD;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN

 1
Common parts
88569-20160
88718-32450
90099-00968
90099-04381
90159-60195
90480-01677
90480-15033
90480-21007
90480-26022
