RZJ95L-GKPNKV (1999)
Toyota Land Cruiser 90
(0001- )

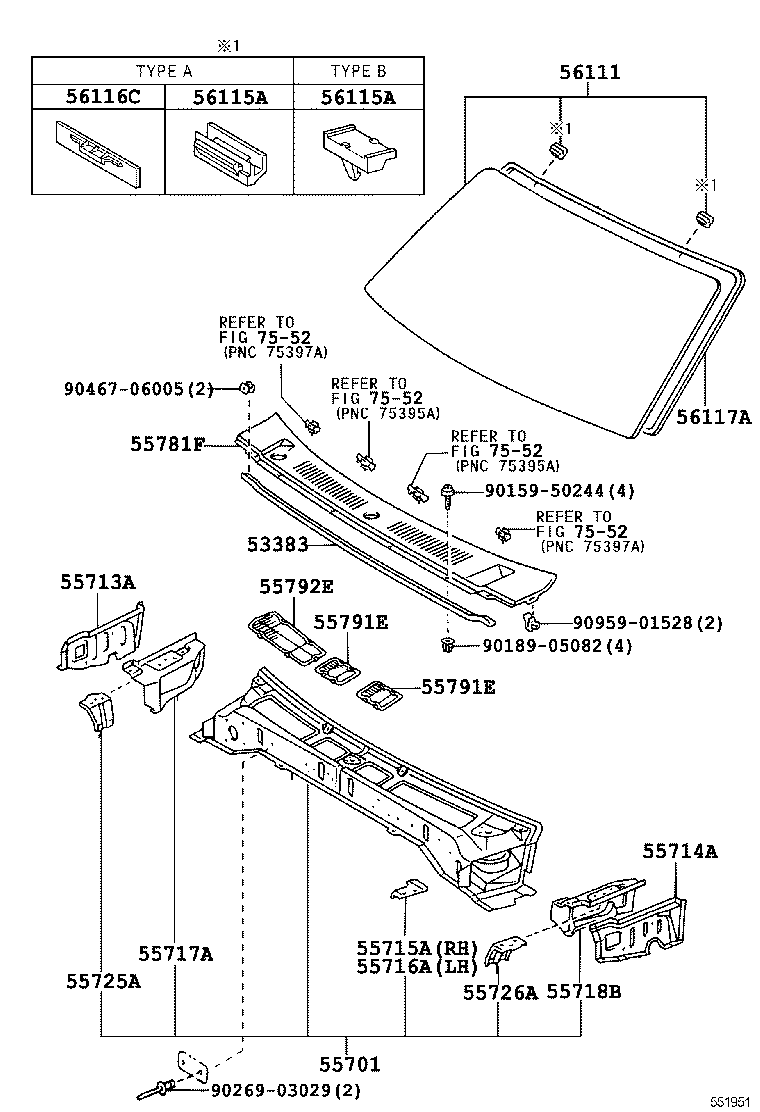

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-6A550 |
RZJ95..EFI |
1 | ||
| 55700-6A561 |
RZJ9#..LHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55717A - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55718B - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH | ||||
| 55725-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55726A - REINFORCEMENT, HOOD HINGE MOUNTING, LH | ||||
| 55726-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55781F - LOUVER, COWL TOP VENTILATOR | ||||
| 55781-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55791E - COVER, HEATER DUCT HOLE | ||||
| 55791-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 55791E - COVER, HEATER DUCT HOLE | ||||
| 55791-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 55792E - COVER, HEATER AIR DUCT HOLE, NO.2 | ||||
| 55792-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-60130 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *LAM,T=4.7,GREEN |
1 | ||
| 56111-60340 |
RZJ95,VZJ9#..GCC *LAM,T=4.7,GREEN,W(VIN PLATE) |
1 | ||
| 56111-60130 |
VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ9#..ARL,CO,GCC,GEN *LAM,T=4.7,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..(DSL,EFI,TD,TDEFI)..(ARL,CO,GCC,GEN) TYPE A:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE B:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ95,RZJ95,VZJ9#..GCC,MA TYPE B:REFER ILLUST. |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..(DSL,EFI,TD,TDEFI)..(ARL,CO,GCC,GEN) TYPE A:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE B:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ95,RZJ95,VZJ9#..GCC,MA TYPE B:REFER ILLUST. |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER ILLUST. |
2 | ||
| 56116-22050 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,CO,GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-60060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=780,NO.1 |
1 | ||
| 56117-50020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=3090 |
1 | ||
| 56117-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=3090,NO.2 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-60060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=780,NO.1 |
1 | ||
| 56117-50020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=3090 |
1 | ||
| 56117-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=3090,NO.2 |
1 | ||
| Common parts | ||||
| 90159-50244 | ||||
| 90189-05082 | ||||
| 90269-03029 | ||||
| 90467-06005 | ||||
| 90959-01528 | ||||
| Linked diagrams | ||||
| 7552 | ||||

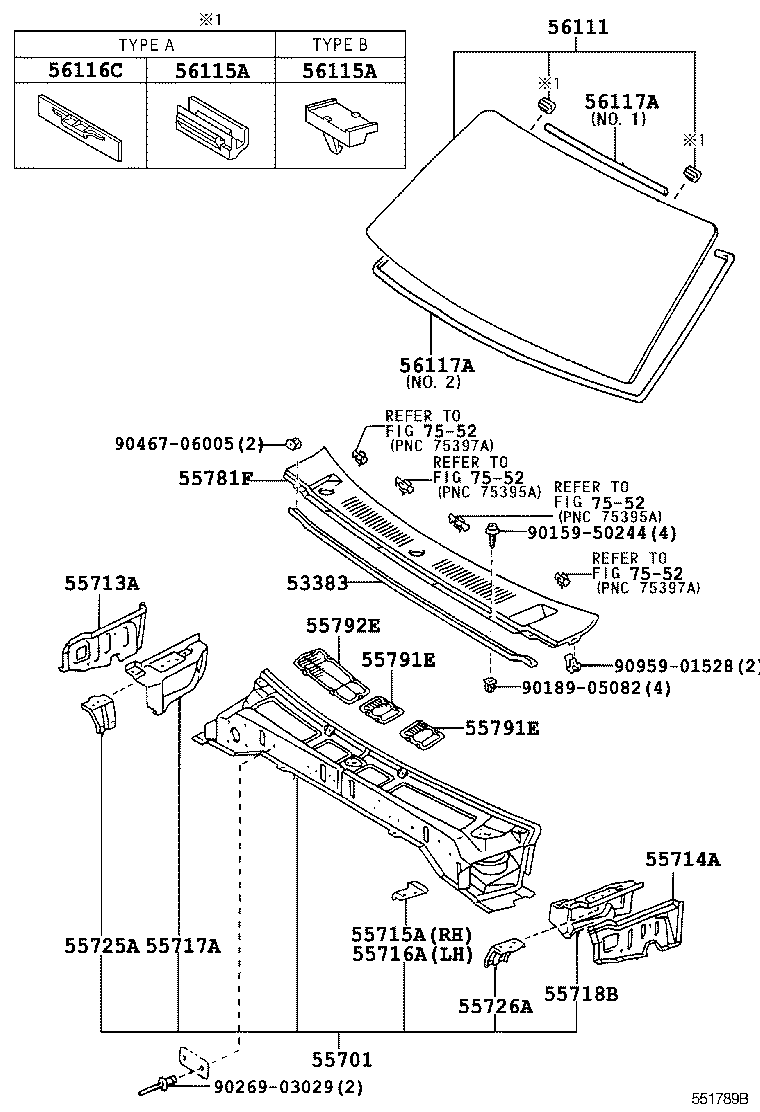

(9604-0001)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-6A550 |
RZJ95..EFI |
1 | ||
| 55700-6A561 |
RZJ9#..LHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55717A - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55718B - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH | ||||
| 55725-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55726A - REINFORCEMENT, HOOD HINGE MOUNTING, LH | ||||
| 55726-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55781F - LOUVER, COWL TOP VENTILATOR | ||||
| 55781-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55791E - COVER, HEATER DUCT HOLE | ||||
| 55791-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 55791E - COVER, HEATER DUCT HOLE | ||||
| 55791-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 55792E - COVER, HEATER AIR DUCT HOLE, NO.2 | ||||
| 55792-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-60130 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *LAM,T=4.7,GREEN |
1 | ||
| 56111-60340 |
RZJ95,VZJ9#..GCC *LAM,T=4.7,GREEN,W(VIN PLATE) |
1 | ||
| 56111-60130 |
VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ9#..ARL,CO,GCC,GEN *LAM,T=4.7,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..(DSL,EFI,TD,TDEFI)..(ARL,CO,GCC,GEN) TYPE A:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE B:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ95,RZJ95,VZJ9#..GCC,MA TYPE B:REFER ILLUST. |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..(DSL,EFI,TD,TDEFI)..(ARL,CO,GCC,GEN) TYPE A:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE B:REFER ILLUST. |
2 | ||
| 56115-33020 |
KZJ95,RZJ95,VZJ9#..GCC,MA TYPE B:REFER ILLUST. |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER ILLUST. |
2 | ||
| 56116-22050 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,CO,GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-60060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=780,NO.1 |
1 | ||
| 56117-50020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=3090 |
1 | ||
| 56117-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=3090,NO.2 |
1 | ||
| Common parts | ||||
| 90159-50244 | ||||
| 90189-05082 | ||||
| 90269-03029 | ||||
| 90467-06005 | ||||
| 90959-01528 | ||||
| Linked diagrams | ||||
| 7552 | ||||
