RZJ95L-GKMRK (1999)

Toyota Land Cruiser 90

Production Jun 1999 - Sep 2002
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9906- )LHD

Click highlighted areas on diagram

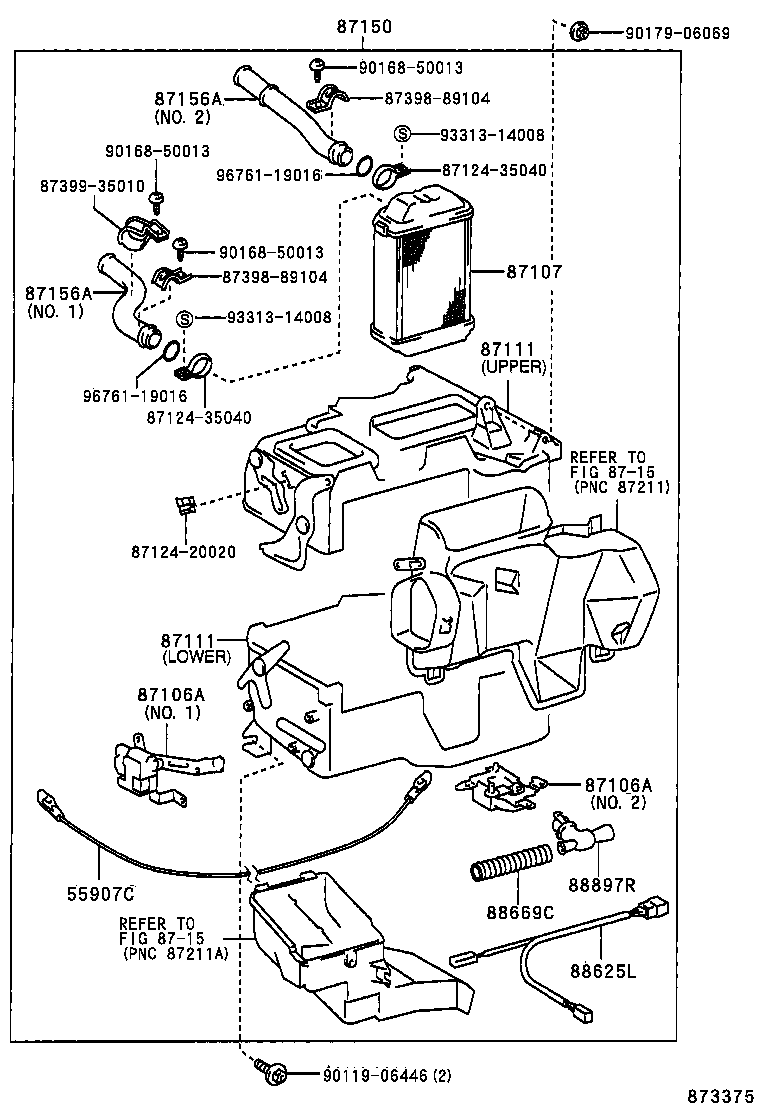

FRONT RADIATOR(AUTO A/C)

diagram 55907C 87106A 87106A 87107 87111 87111 8712420020 8712435040 8712435040 8715 8715 87150 87156A 87156A 8739889104 8739889104 8739935010 88625L 88669C 88897R 9011906446 9016850013 9016850013 9016850013 9017906069 9331314008 9331314008 9676119016 9676119016
Part # Description Qty Price
87111 - CASE, HEATER
87111-35010

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

UPPER

 1
87111-89101

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

LOWER

 1
87111-35310

KZJ95,LJ9#,RZJ9#,VZJ9#..LHD

UPPER

 1
87111-35321

VZJ95..CO;KZJ95,LJ9#,RZJ9#..LHD

LOWER

 1
87111 - CASE, HEATER
87111-35010

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

UPPER

 1
87111-89101

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

LOWER

 1
87111-35310

KZJ95,LJ9#,RZJ9#,VZJ9#..LHD

UPPER

 1
87111-35321

VZJ95..CO;KZJ95,LJ9#,RZJ9#..LHD

LOWER

 1
87150 - RADIATOR ASSY, HEATER
87150-35210

VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD

 1
87150-35130

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
87150-60770

VZJ95..CO;KZJ95,LJ9#,RZJ9#..LHD

 1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35040

KZJ95,LJ9#,RZJ9#,VZJ9#..LHD

NO.2

 1
87156-35030

KZJ95,LJ9#,RZJ9#,VZJ9#..LHD

NO.1

 1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35040

KZJ95,LJ9#,RZJ9#,VZJ9#..LHD

NO.2

 1
87156-35030

KZJ95,LJ9#,RZJ9#,VZJ9#..LHD

NO.1

 1
Common parts
87124-20020
87124-35040
87398-89104
87399-35010
90119-06446
90168-50013
90179-06069
93313-14008
96761-19016
Linked diagrams
8715
