RZJ95L-GKMNUV (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )ARL,CO,GCC,GEN

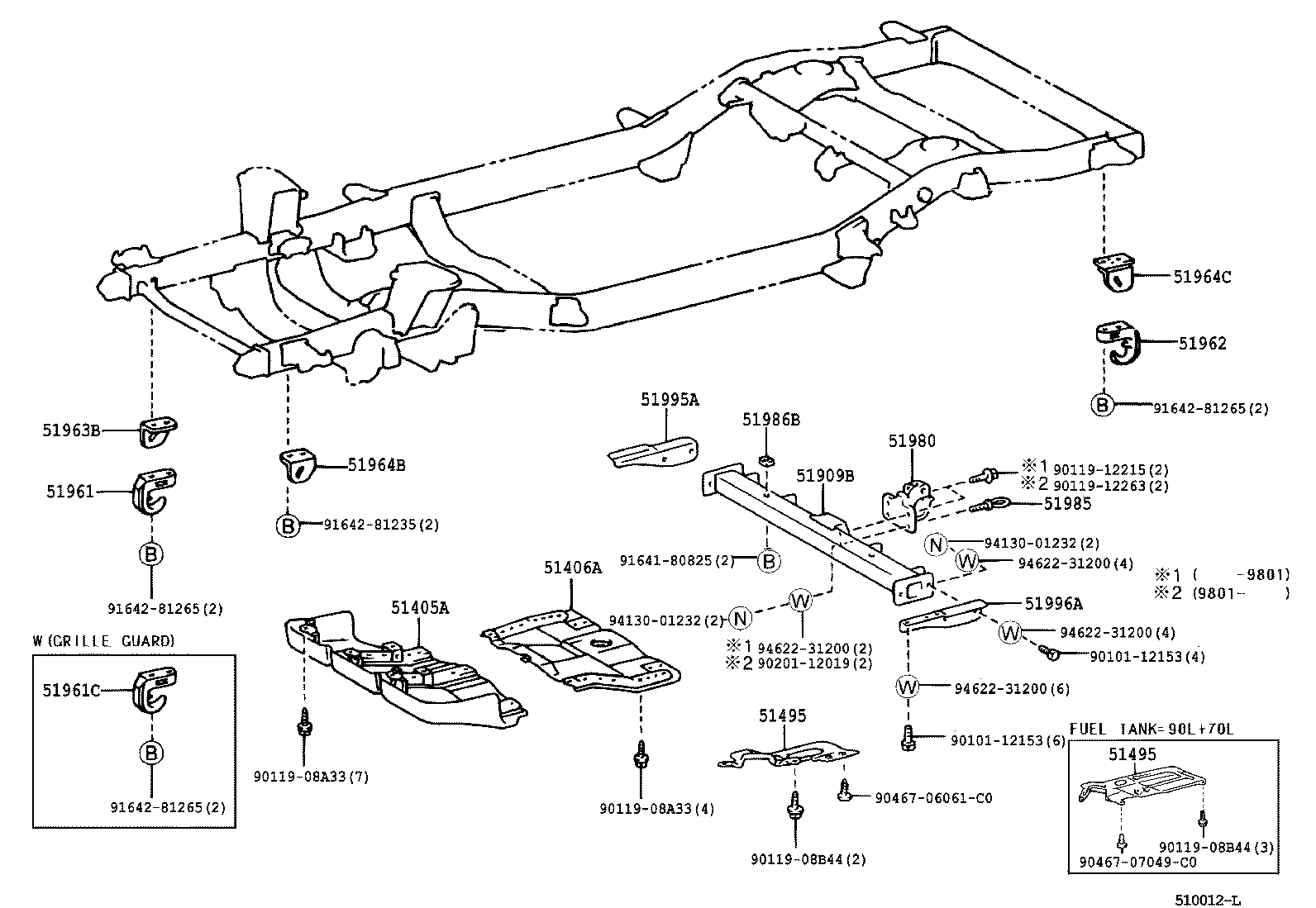

Click highlighted areas on diagram

diagram 51405A 51406A 51495 51495 51909B 51961 51961C 51962 51963B 51964B 51964C 51980 51985 51986B 51995A 51996A 9010112153 9010112153 9011908A33 9011908A33 9011908B44 9011908B44 9011912215 9011912263 9020112019 9046706061C0 9046707049C0 9164180825 9164281235 9164281265 9164281265 9164281265 9413001232 9413001232 9462231200 9462231200 9462231200 9462231200
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-35070

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-35010

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
51909B - TUBE SUB-ASSY, PINTLE HOOK SUPPORT
51909-60020

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

 1
51961 - HOOK, NO.1
51961-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
51961-35051

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
51961-35051

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 1
51961C - HOOK, FRONT
51961-35051

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

 1
51961-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

 1
51962 - HOOK, NO.2
51961-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-35070

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-35050

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 1
51964-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
51964C - HOOK, TRANSPORT, REAR LH
51963-35070

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
51963-35070

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 1
51980 - HOOK ASSY, PINTLE
51980-60012

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

 1
51980-60011

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

 1
51985 - HOOK, EYELET PINTLE
51985-60011

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

 2
51986B - RETAINER, PINTLE HOOK
51986-60010

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

 2
51995A - BRACKET, PINTLE HOOK SUPPORT, RH
51995-60020

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
51996A - BRACKET, PINTLE HOOK SUPPORT, LH
51996-60020

KZJ95,LJ95,RZJ95,VZJ95..GCC,GEN

 1
Common parts
90101-12153
90119-08A33
90119-08B44
90119-12215
90119-12263
90201-12019
90467-06061C0
90467-07049C0
91641-80825
91642-81235
91642-81265
94130-01232
94622-31200
