RZJ95L-GKMNUV (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )RZJ9#..LHD

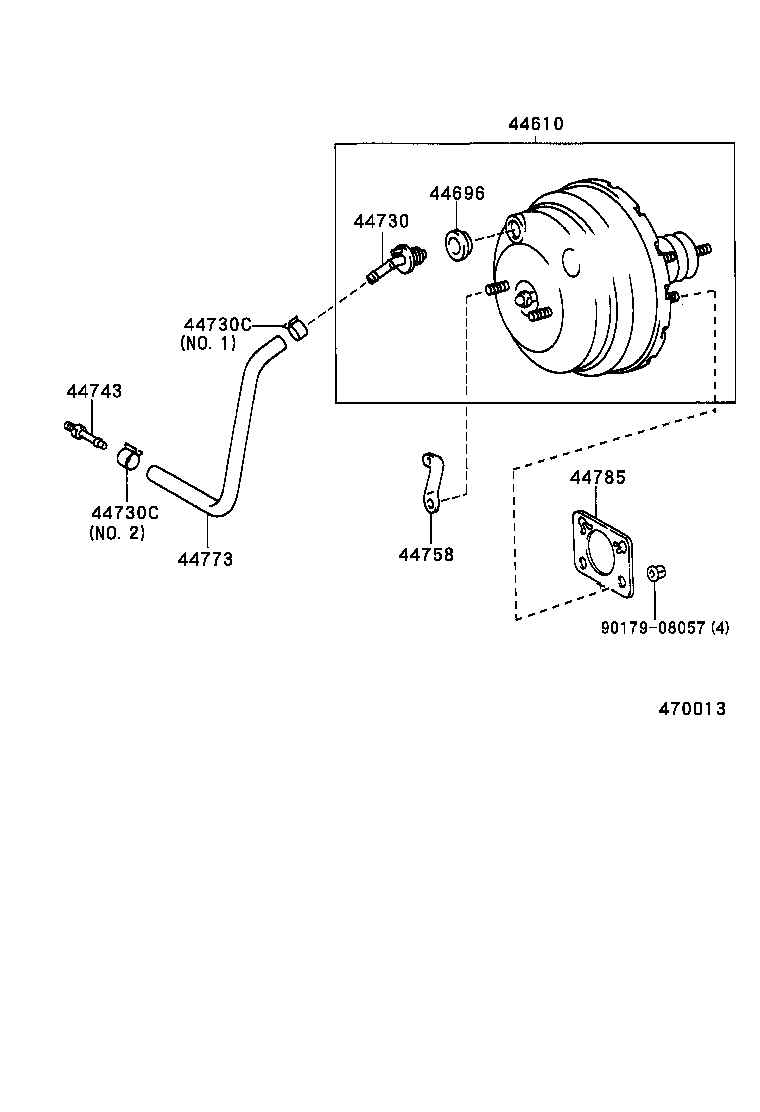

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44743 44758 44773 44785 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-6A010

RZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30030

RZJ9#..LHD

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)

 2
44743 - UNION(FOR VACUUM PUMP)
90404-51319

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35120

RZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)

 1
44773 - HOSE, VACUUM, NO.2
44773-60160

RZJ9#..LHD..CBR

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
Common parts
90179-08057
