RZJ95L-GKMNUV (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3RZF

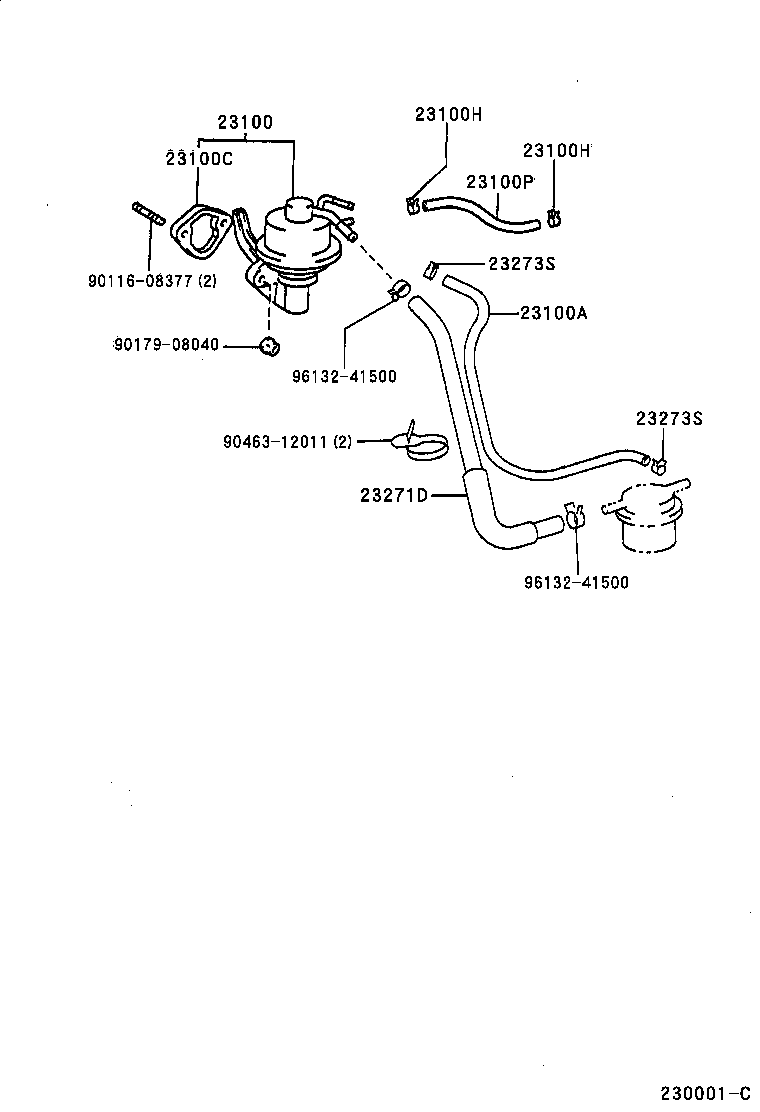

Click highlighted areas on diagram

diagram 23100 23100A 23100C 23100H 23100H 23100P 23271D 23273S 23273S 9011608377 9017908040 9046312011 9613241500 9613241500
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-79095

3RZF..RZJ9#

 1
23100-79096

3RZF..RZJ9#

 1
23100A - HOSE, FUEL
95333-06060

3RZF..RZJ9#

 1
23100C - INSULATOR, FUEL PUMP
90923-06017

3RZF..RZJ9#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-41100

3RZF..RZJ9#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

3RZF..RZJ9#

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95333-06020

3RZF..RZJ9#

 1
23271D - HOSE, FUEL, NO.1
23271-75060

3RZF..RZJ9#

 1
23273S - CLIP, HOSE(FOR FUEL HOSE NO.2)
96135-41100

3RZF..RZJ9#

 2
23273S - CLIP, HOSE(FOR FUEL HOSE NO.2)
96135-41100

3RZF..RZJ9#

 2
Common parts
90116-08377
90179-08040
90463-12011
96132-41500
