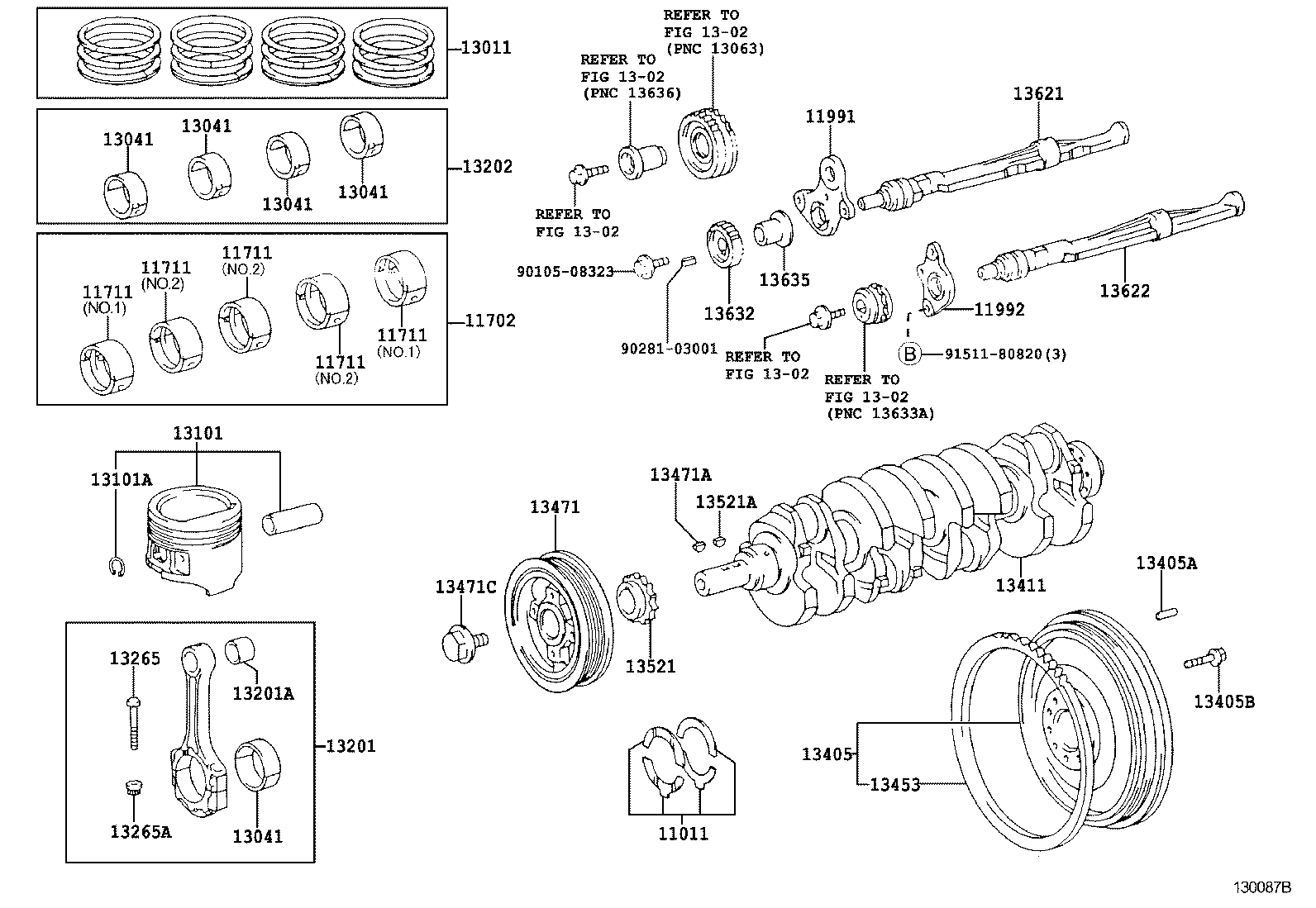

RZJ95L-GKMNUV (1996)
Toyota Land Cruiser 90
(9604-0812)3RZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-75020 |
3RZ#..RZJ9# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502003 |
3RZ#..RZJ9# MARK 3,NO.2 |
3 | ||
| 11701-7502003 |
3RZ#..RZJ9# MARK 3,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502003 |
3RZ#..RZJ9# MARK 3,NO.2 |
3 | ||
| 11701-7502003 |
3RZ#..RZJ9# MARK 3,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502003 |
3RZ#..RZJ9# MARK 3,NO.2 |
3 | ||
| 11701-7502003 |
3RZ#..RZJ9# MARK 3,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502003 |
3RZ#..RZJ9# MARK 3,NO.2 |
3 | ||
| 11701-7502003 |
3RZ#..RZJ9# MARK 3,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502003 |
3RZ#..RZJ9# MARK 3,NO.2 |
3 | ||
| 11701-7502003 |
3RZ#..RZJ9# MARK 3,NO.1 |
2 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 11992 - WASHER, BALANCESHAFT THRUST, NO.2 | ||||
| 11992-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-75060 |
3RZF..RZJ9# STD |
1 | ||
| 13013-75060 |
3RZF..RZJ9# O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7502004 |
3RZ#..RZJ9# MARK 4 |
4 | ||
| 13041-7502006 |
3RZ#..RZJ9# MARK 6 |
4 | ||
| 13041-7502005 |
3RZ#..RZJ9# MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7502004 |
3RZ#..RZJ9# MARK 4 |
4 | ||
| 13041-7502006 |
3RZ#..RZJ9# MARK 6 |
4 | ||
| 13041-7502005 |
3RZ#..RZJ9# MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7502004 |
3RZ#..RZJ9# MARK 4 |
4 | ||
| 13041-7502006 |
3RZ#..RZJ9# MARK 6 |
4 | ||
| 13041-7502005 |
3RZ#..RZJ9# MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7502004 |
3RZ#..RZJ9# MARK 4 |
4 | ||
| 13041-7502006 |
3RZ#..RZJ9# MARK 6 |
4 | ||
| 13041-7502005 |
3RZ#..RZJ9# MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7502004 |
3RZ#..RZJ9# MARK 4 |
4 | ||
| 13041-7502006 |
3RZ#..RZJ9# MARK 6 |
4 | ||
| 13041-7502005 |
3RZ#..RZJ9# MARK 5 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-75050 |
3RZF..RZJ9# STD |
4 | ||
| 13103-75050 |
3RZF..RZJ9# O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-28003 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79205 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73129 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-75020 |
3RZ#..RZJ9# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-75030 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-09009 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-75040 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-02116 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
10 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-75030 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16041 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05005 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13621 - BALANCESHAFT, NO.1 | ||||
| 13621-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13622 - BALANCESHAFT, NO.2 | ||||
| 13622-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 13635 - SPACER, BALANCESHAFT THRUST | ||||
| 13635-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90105-08323 | ||||
| 90281-03001 | ||||
| 91511-80820 | ||||
| Linked diagrams | ||||
| 1302 | ||||
