RZJ95L-GKMNU (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

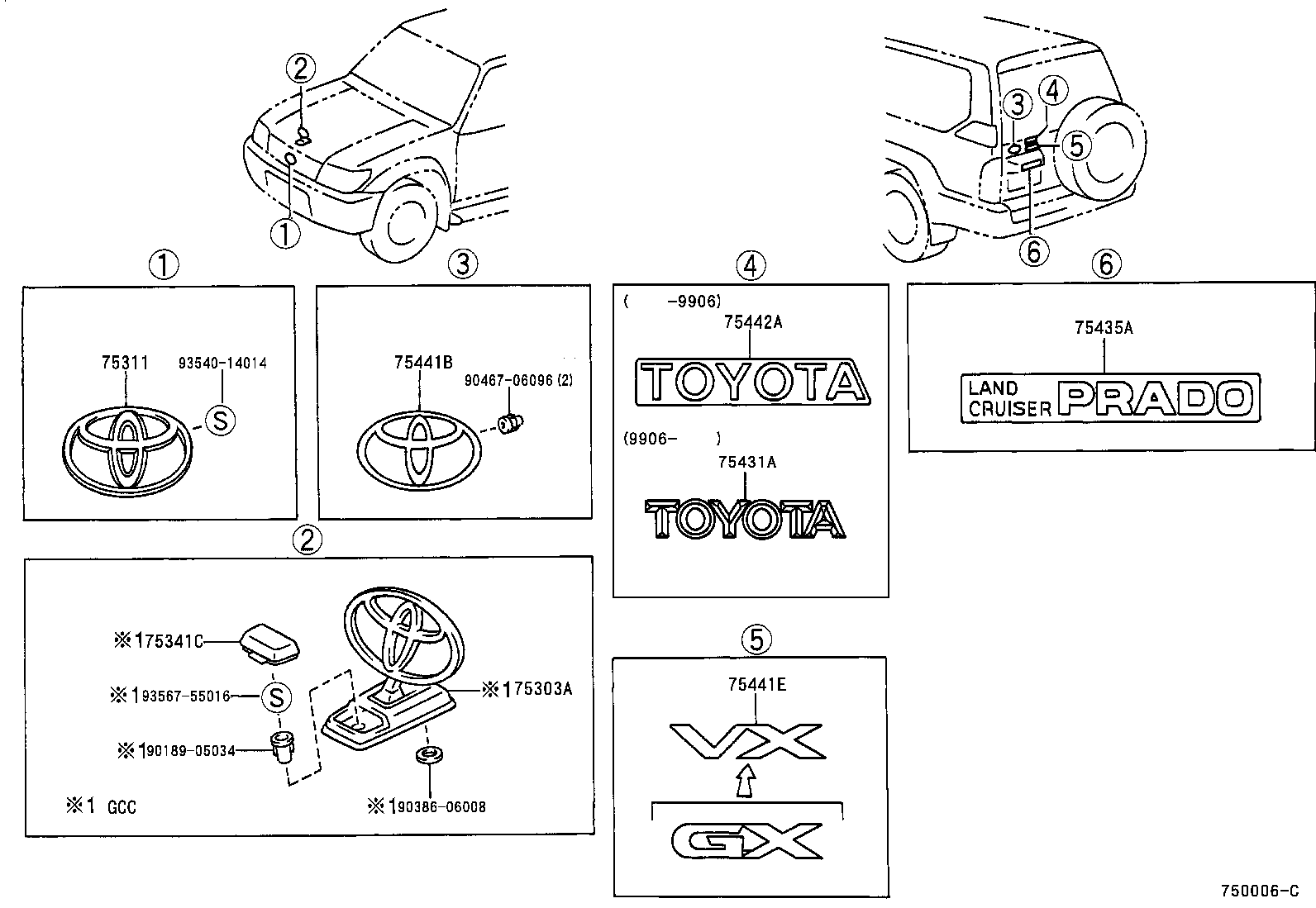

Click highlighted areas on diagram

diagram 75303A 75311 75341C 75431A 75435A 75441B 75441E 75442A 9018905034 9038606008 9046706096 9354014014 9356755016
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-60120

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
75435A - ORNAMENT, BACK DOOR
75435-60050

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
75441B - PLATE, BACK DOOR NAME
75441-60200

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
75441E - PLATE, BACK DOOR NAME, NO.1
75441-60310

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ95,RZJ90..MTM..GX

GX

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-60120

VZJ95..VX;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(CO,GCC,GEN)

TOYOTA

 1
Common parts
90189-05034
90386-06008
90467-06096
93540-14014
93567-55016
