RZJ95L-GKMNU (1996)
Toyota Land Cruiser 90

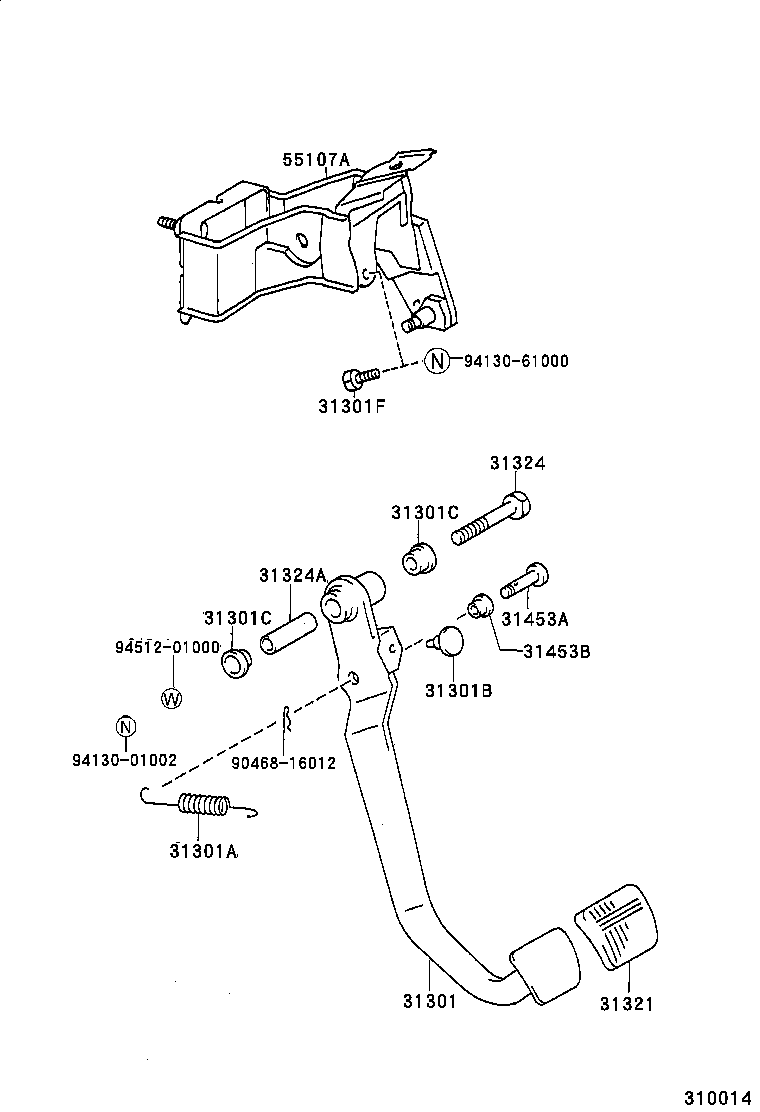

ILLUST NO. 1 OF 2(9604- )LJ9#,RZJ9#..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60200 |
RZJ90..GX;LJ9#,RZJ9#..LHD..(CBR,DSL) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14030 |
RZJ90..GX;LJ9#,RZJ9#..CBR,DSL;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
LJ9#,RZJ9#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
LJ9#,RZJ9#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10177 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10082 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-35030 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..MTM L=28.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60120 |
RZJ90..GX;LJ9#,RZJ9#..LHD..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 94130-01002 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||

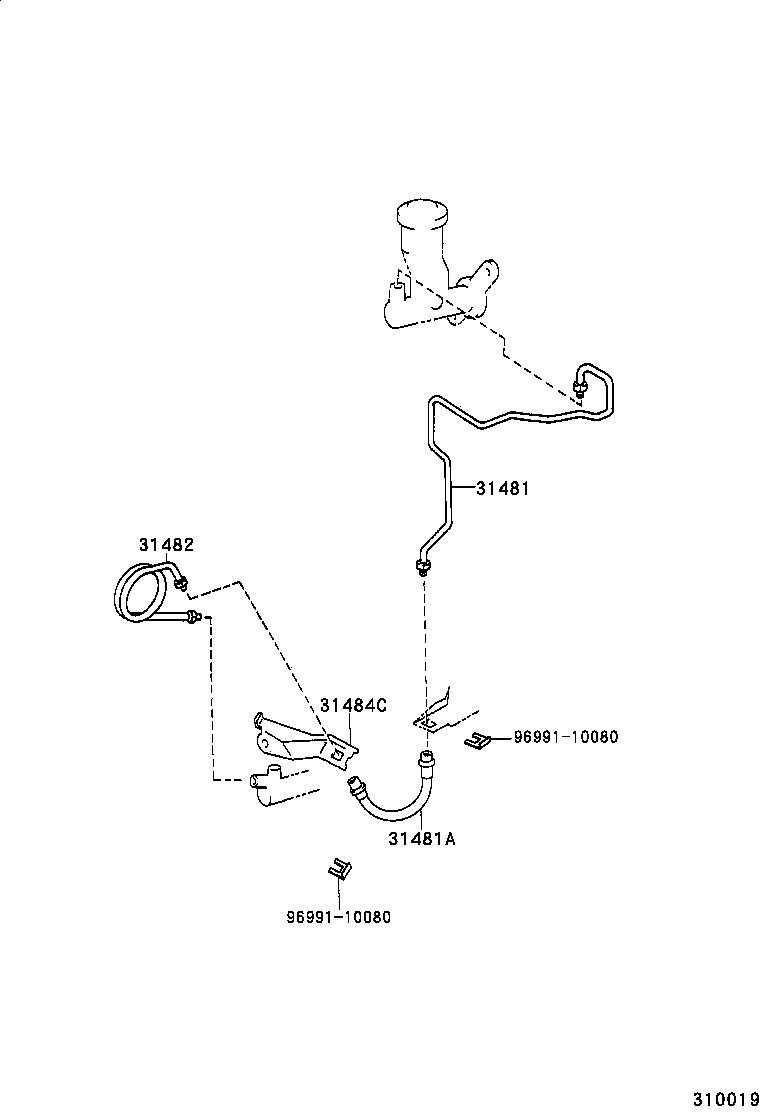

ILLUST NO. 2 OF 2(9604- )LJ9#,RZJ9#..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-35420 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02863 |
KZJ9#,RZJ9#..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-35390 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) L=211.7 |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-35280 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
