RZJ95L-GKMNU (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3RZF

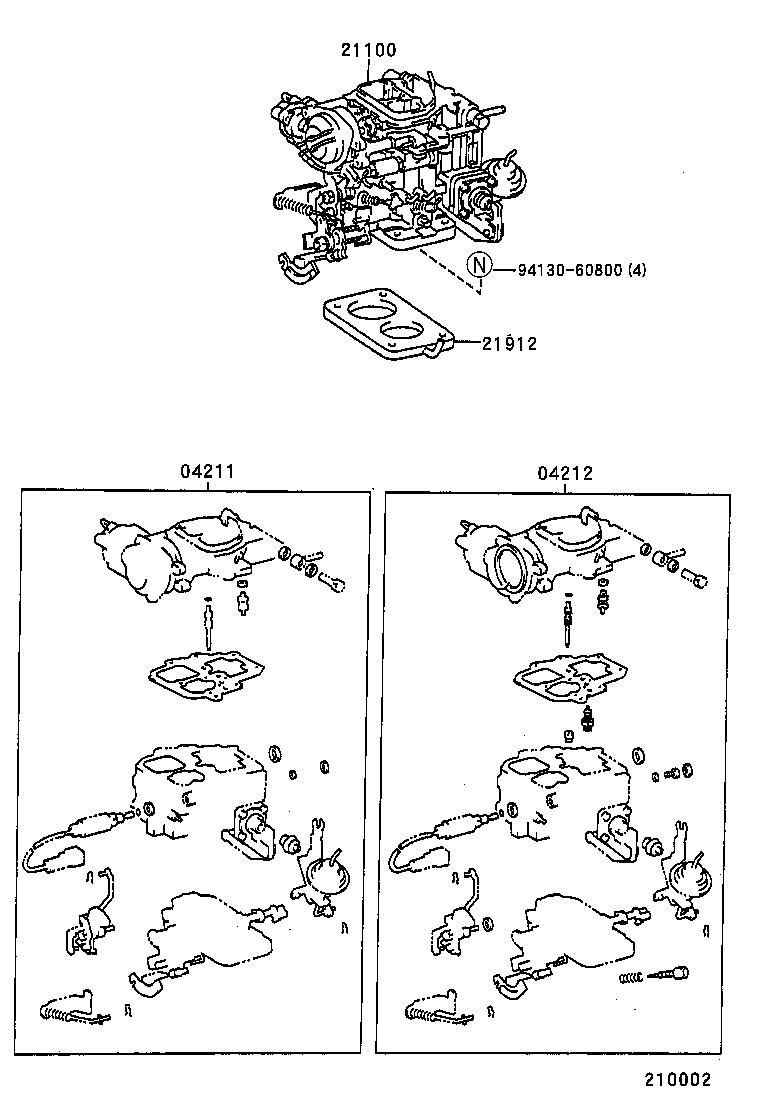

Click highlighted areas on diagram

diagram 04211 04212 21100 21912 9413060800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-75091

3RZF..RZJ9#..GEN

 1
04212 - GASKET KIT, CARBURETOR
04212-75080

3RZF..RZJ9#

 1
21100 - CARBURETOR ASSY
21100-75100

3RZF..RZJ9#..GEN

 1
21100-75101

3RZF..RZJ9#..GEN

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-75020

3RZF..RZJ9#

 1
Common parts
94130-60800
