RZJ95L-GKMNU (1996)
Toyota Land Cruiser 90

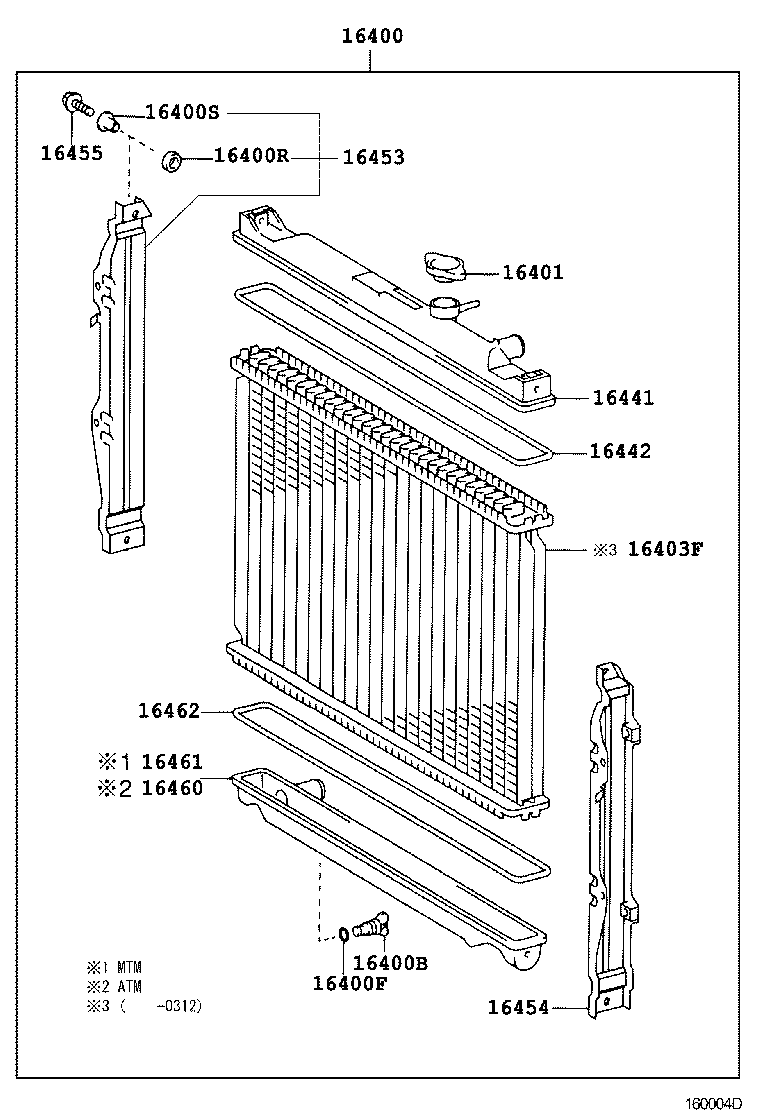

ILLUST NO. 2 OF 2(9604- )3RZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-75210 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3RZ#..RZJ9#..MTM |
1 | ||
| 23322-54010 |
3RZ#..RZJ9# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
3RZ#..RZJ9#..MTM |
1 | ||
| 96711-19007 |
3RZ#..RZJ9# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
3RZ#..RZJ9# |
2 | ||
| 16444-67130 |
3RZ#..RZJ9#..MTM |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-67130 |
3RZ#..RZJ9#..MTM |
2 | ||
| 16445-75180 |
3RZ#..RZJ9# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401-54750 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401-72090 |
3RZ#..RZJ9# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-67130 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16403-75180 |
3RZ#..RZJ9# |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-75210 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16441-75180 |
3RZ#..RZJ9# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-67130 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16462-42240 |
3RZ#..RZJ9# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-67130 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16453-75180 |
3RZ#..RZJ9# |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-67130 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16454-75180 |
3RZ#..RZJ9# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91652-B0820 |
3RZ#..RZJ9# |
4 | ||
| 16455-67130 |
3RZ#..RZJ9#..MTM |
4 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-5B420 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-67130 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16462-42240 |
3RZ#..RZJ9# |
1 | ||

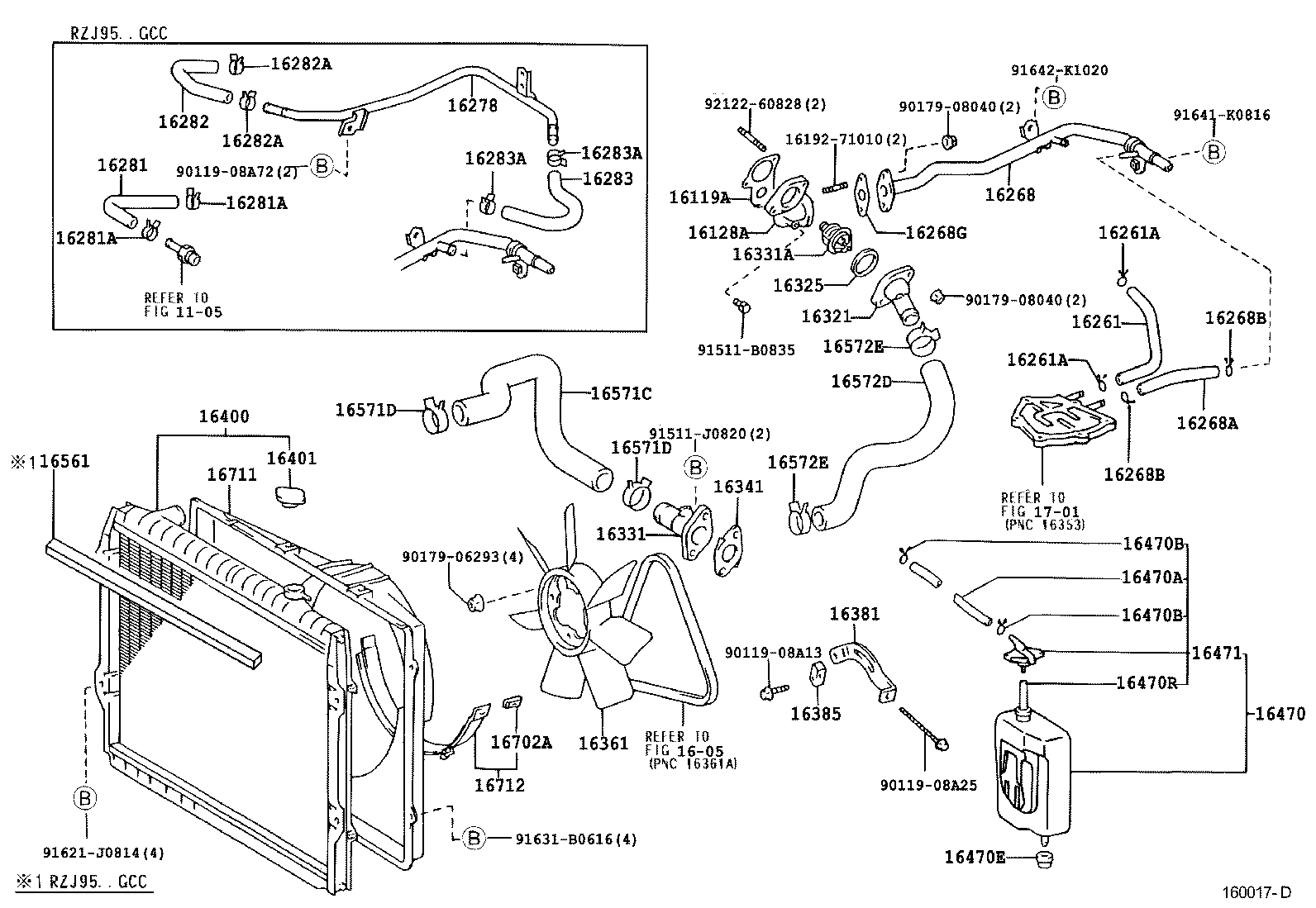

ILLUST NO. 1 OF 2(9604-9906)3RZF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16128A - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16128-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75050 |
3RZF..RZJ9# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75020 |
3RZF..RZJ9#..GEN;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99555-10200 |
3RZF..RZJ9# *H,L=150 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
3RZF..RZJ9# |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
3RZF..RZJ9# |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0W010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3RZ#..RZJ9# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0W010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03101 |
3RZ#..RZJ9# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16361 - FAN | ||||
| 16361-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75030 |
3RZ#..RZJ9# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75210 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401-54750 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401-72090 |
3RZ#..RZJ9# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75030 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) *H,L=390 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C021 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75090 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C031 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0C011 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90119-08A13 | ||||
| 90119-08A25 | ||||
| 90119-08A72 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 91511-B0835 | ||||
| 91511-J0820 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||
| 91641-K0816 | ||||
| 91642-K1020 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1605 | ||||
| 1701 | ||||

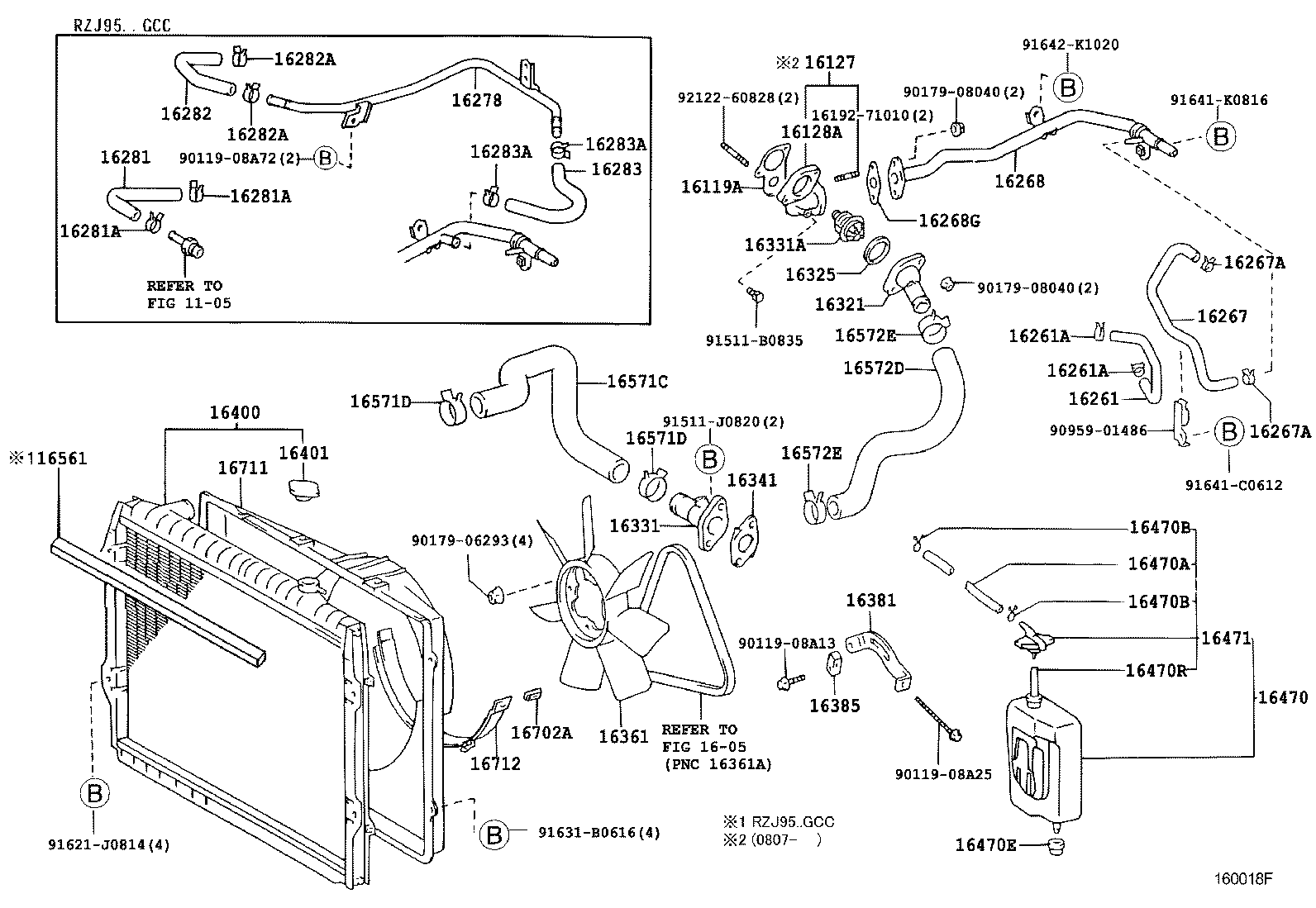

ILLUST NO. 1 OF 2(9604- )3RZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16128A - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16128-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75050 |
3RZF..RZJ9# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75020 |
3RZF..RZJ9#..GEN;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0W010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3RZ#..RZJ9# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0W010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03101 |
3RZ#..RZJ9# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16361 - FAN | ||||
| 16361-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75030 |
3RZ#..RZJ9# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75210 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401-54750 |
3RZ#..RZJ9#..MTM |
1 | ||
| 16401-72090 |
3RZ#..RZJ9# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75030 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) *H,L=390 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75020 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C021 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75090 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37002 |
3RZ#..RZJ9# |
2 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C031 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0C011 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90119-08A13 | ||||
| 90119-08A25 | ||||
| 90119-08A72 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90959-01486 | ||||
| 91511-B0835 | ||||
| 91511-J0820 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||
| 91641-C0612 | ||||
| 91641-K0816 | ||||
| 91642-K1020 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1605 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
