RZJ95L-GKMNU (1996)
Toyota Land Cruiser 90
(9604-0812)3RZ#

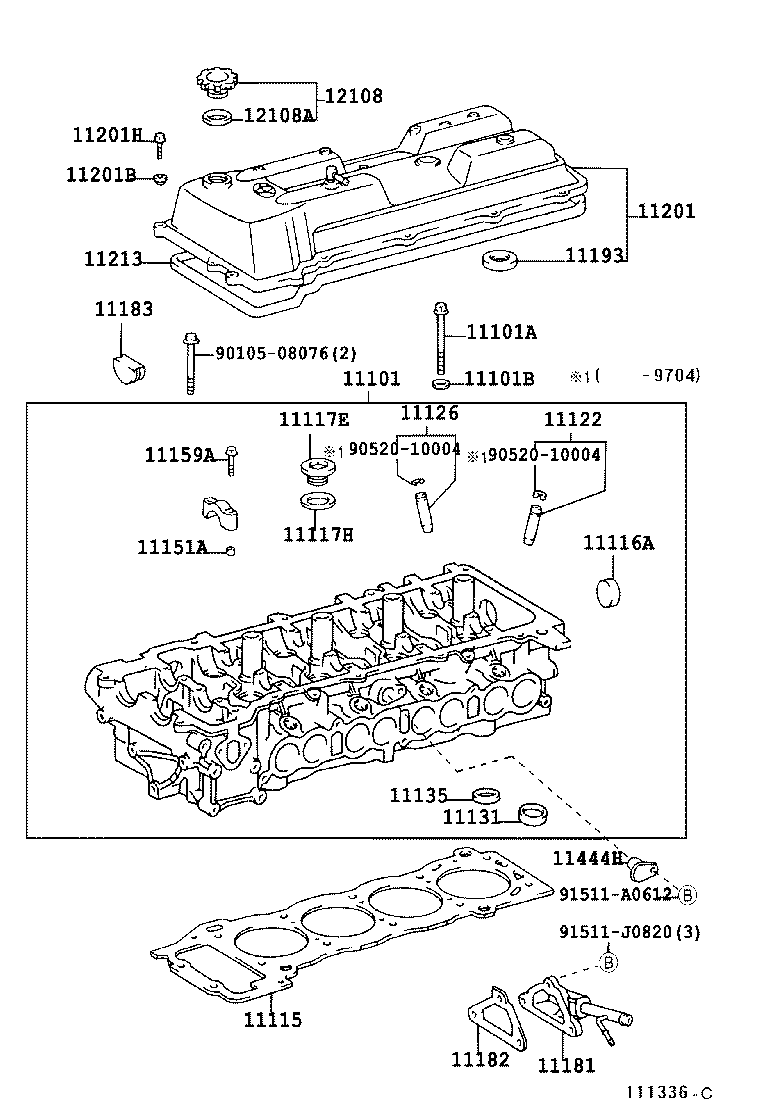

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-79086 |
3RZF..RZJ9# |
1 | ||
| 11101-79087 |
3RZF..RZJ9# |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02091 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-75030 |
3RZ#..RZJ9# T=1.25 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-62800 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-16020 |
3RZ#..RZJ9# STD |
8 | ||
| 11123-16020 |
3RZ#..RZJ9# O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-50040 |
3RZ#..RZJ9# STD |
8 | ||
| 11127-50040 |
3RZ#..RZJ9# O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-75040 |
3RZF..RZJ9# O/S 0.03 |
8 | ||
| 11131-75040 |
3RZF..RZJ9# STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-76030 |
3RZF..RZJ9# O/S 0.03 |
8 | ||
| 11135-76030 |
3RZF..RZJ9# STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
3RZ#..RZJ9# L=7,OD=10 |
20 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
20 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-75030 |
3RZF..RZJ9# |
1 | ||
| 11181-75031 |
3RZF..RZJ9# |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-75010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-75020 |
3RZ#..RZJ9# |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
10 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91513-J0628 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
10 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-75030 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-65011 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90105-08076 | ||||
| 90520-10004 | ||||
| 91511-A0612 | ||||
| 91511-J0820 | ||||
