RZJ95L-GKMNK (1999)

Toyota Land Cruiser 90

Production Jun 1999 - Sep 2002
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9906- )KZJ95,LJ95,RZJ95,VZJ95..GX,VX..ARL,GCC,GEN,MA

Click highlighted areas on diagram

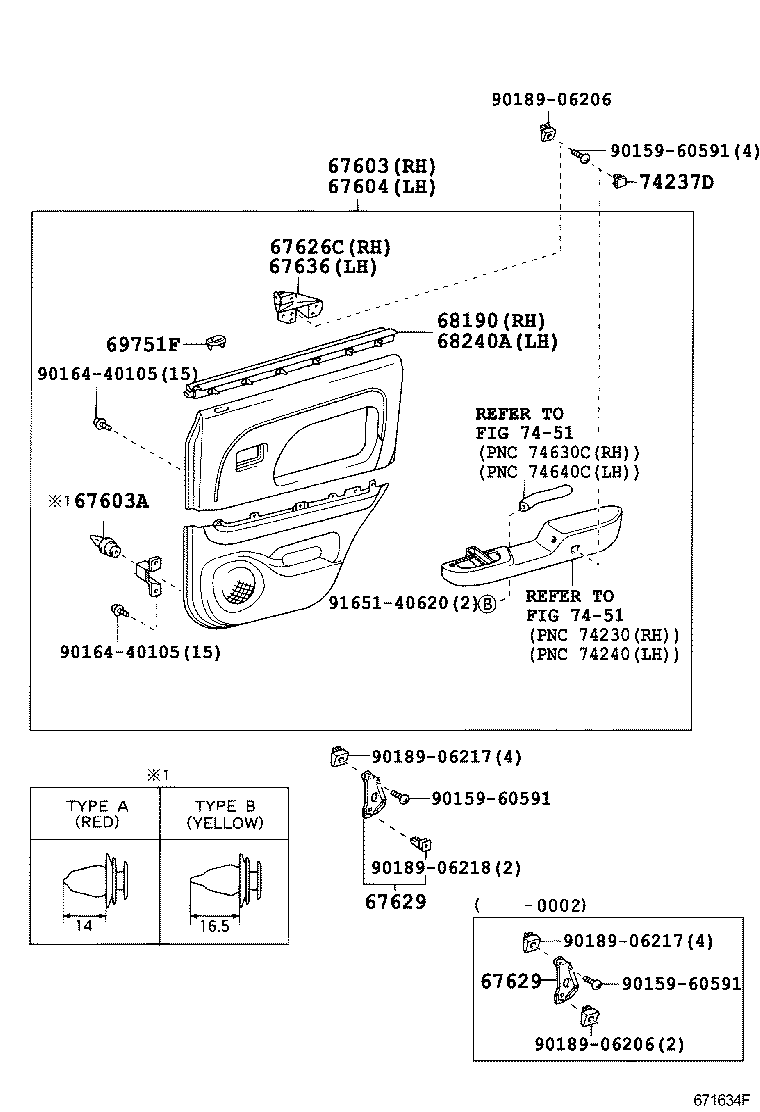

DOOR TRIM W(POWER WINDOW)

diagram 67603 67603A 67604 67626C 67629 67629 67636 68190 68240A 69751F 74237D 7451 7451 9015960591 9015960591 9015960591 9016440105 9016440105 9018906206 9018906206 9018906217 9018906217 9018906218 9165140620
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-60420B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(POWER WINDOW),MD.MOON MIST,TRIM1#

 1
67630-60410B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
67630-60680E0

KZJ95,LJ95,RZJ95,VZJ95..GX..(ARL,GCC,GEN)

DOOR TRIM=TYPE A-*104,OAK,TRIM4#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-20110

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

TYPE A

 8
67771-30090

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

TYPE B

 4
67771-30090

KZJ95,LJ95,RZJ95,VZJ95..GX

W(POWER WINDOW),TYPE B

 6
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-60420B0

KZJ95,LJ95,RZJ95,VZJ95..GX

W(POWER WINDOW),MD.MOON MIST,TRIM1#

 1
67640-60410B0

KZJ95,LJ95,RZJ95,VZJ95..GX

MD.MOON MIST,TRIM1#

 1
67640-60680E0

KZJ95,LJ95,RZJ95,VZJ95..GX..(ARL,GCC,GEN)

DOOR TRIM=TYPE A-*104,OAK,TRIM4#

 1
67629 - BRACKET, REAR DOOR TRIM BOARD
67629-60020

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA)

RH

 1
67639-60020

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA)

LH

 1
67629 - BRACKET, REAR DOOR TRIM BOARD
67629-60020

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA)

RH

 1
67639-60020

KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA)

LH

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-60050

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
68190-60050

KZJ95,LJ95,RZJ95,VZJ95

 1
68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68240-60030

KZJ95,LJ95,RZJ95,VZJ95

 1
68240-60030

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

 1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-12050B1

KZJ95,LJ95,RZJ95,VZJ95..GX,VX

MD.MOON MIST,TRIM1#

 2
69751-12050B1

VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95

MD.MOON MIST,TRIM1#

 2
Common parts
90159-60591
90164-40105
90189-06206
90189-06217
90189-06218
91651-40620
Linked diagrams
7451
