RZJ90L-GJMRU (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

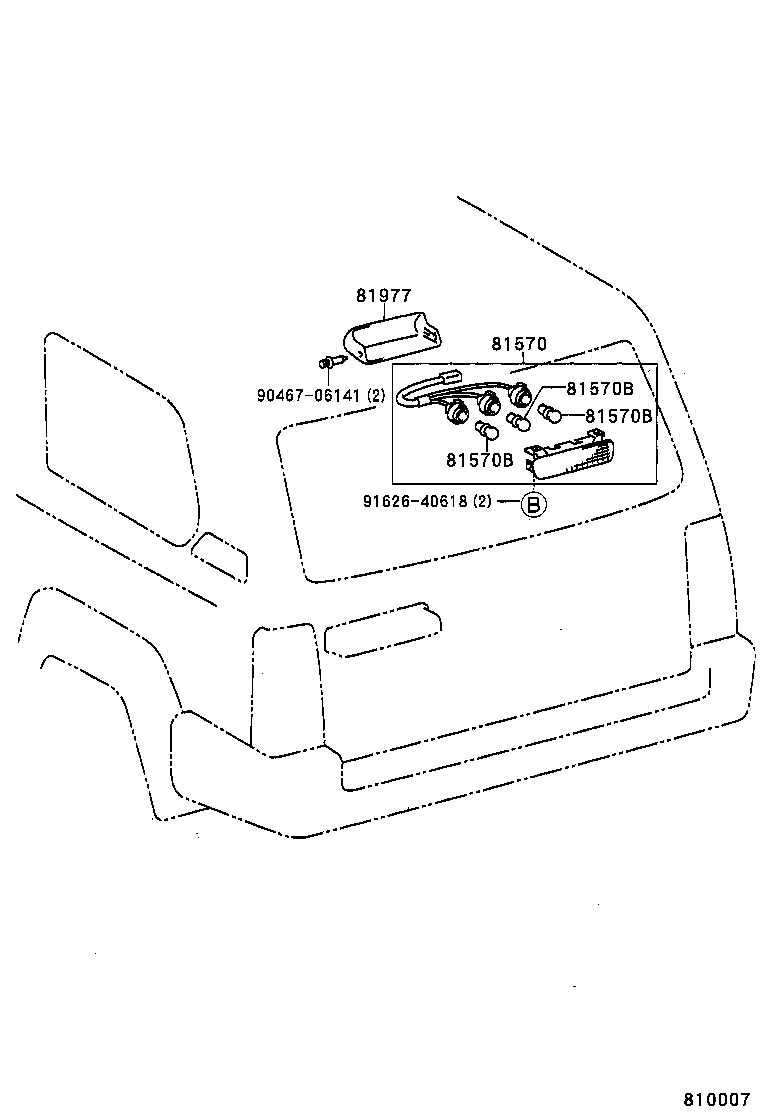

Click highlighted areas on diagram

diagram 81570 81570B 81570B 81570B 81977 9046706141 9162640618
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-60050

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-12013

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

12V 10W

 3
81570B - BULB (FOR CENTER STOP LAMP)
90981-12013

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

12V 10W

 3
81570B - BULB (FOR CENTER STOP LAMP)
90981-12013

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

12V 10W

 3
81977 - COVER, CENTER STOP LAMP
81977-60040B1

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
Common parts
90467-06141
91626-40618
