RZJ90L-GJMRU (1996)
Toyota Land Cruiser 90

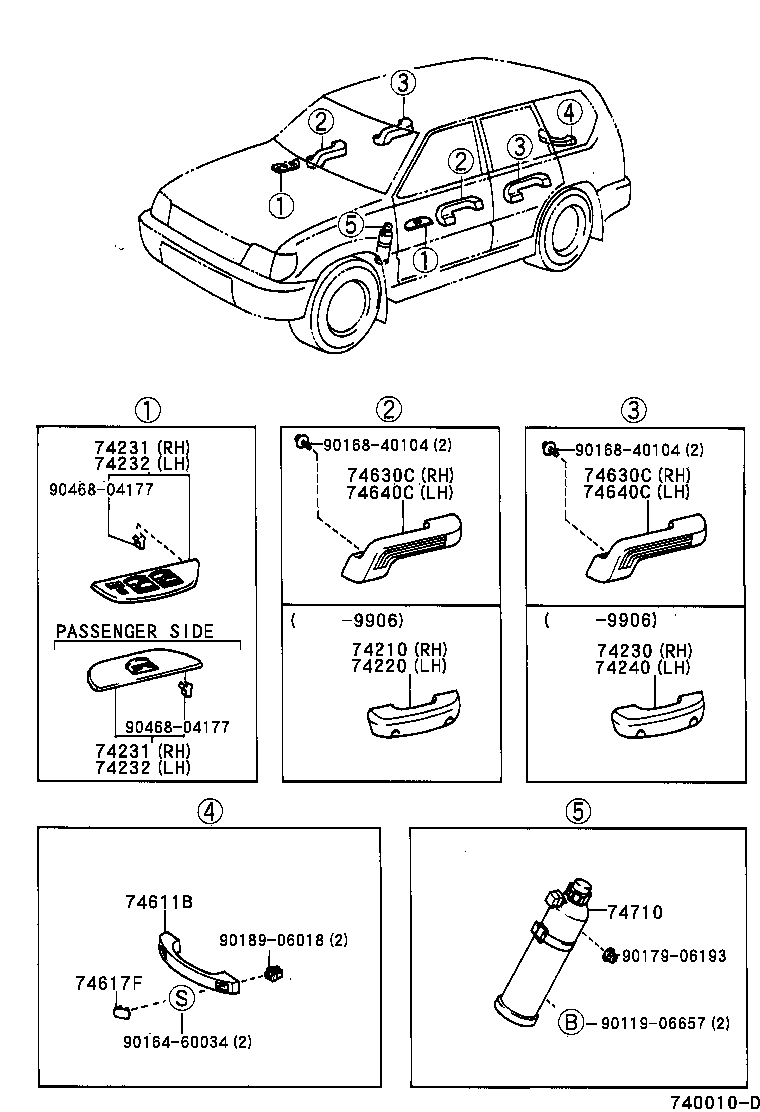

ILLUST NO. 1 OF 2(9604-9906) ; (9906- )
ARMREST(TYPE A)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-89106B1 |
LJ9#,RZJ9#..STD MD.MOON MIST,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-89106B1 |
LJ9#,RZJ9#..STD MD.MOON MIST,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60110B0 |
KZJ90,RZJ90,VZJ90..EFI,TD MD.MOON MIST,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60110B0 |
KZJ90,RZJ90,VZJ90..EFI,TD MD.MOON MIST,TRIM1# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74610-10020B2 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74617-14010B2 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
2 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-60030B0 |
KZJ90,RZJ90,VZJ90..EFI,TD MD.MOON MIST,TRIM1# |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-60030B0 |
KZJ90,RZJ90,VZJ90..EFI,TD MD.MOON MIST,TRIM1# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-60010B0 |
KZJ90,RZJ90,VZJ90..EFI,TD MD.MOON MIST,TRIM1# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-60010B0 |
KZJ90,RZJ90,VZJ90..EFI,TD MD.MOON MIST,TRIM1# |
1 | ||
| 74710 - EXTINGUISHER ASSY | ||||
| 74711-90K00 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06657 | ||||
| 90164-60034 | ||||
| 90168-40104 | ||||
| 90179-06193 | ||||
| 90189-06018 | ||||
| 90468-04177 | ||||

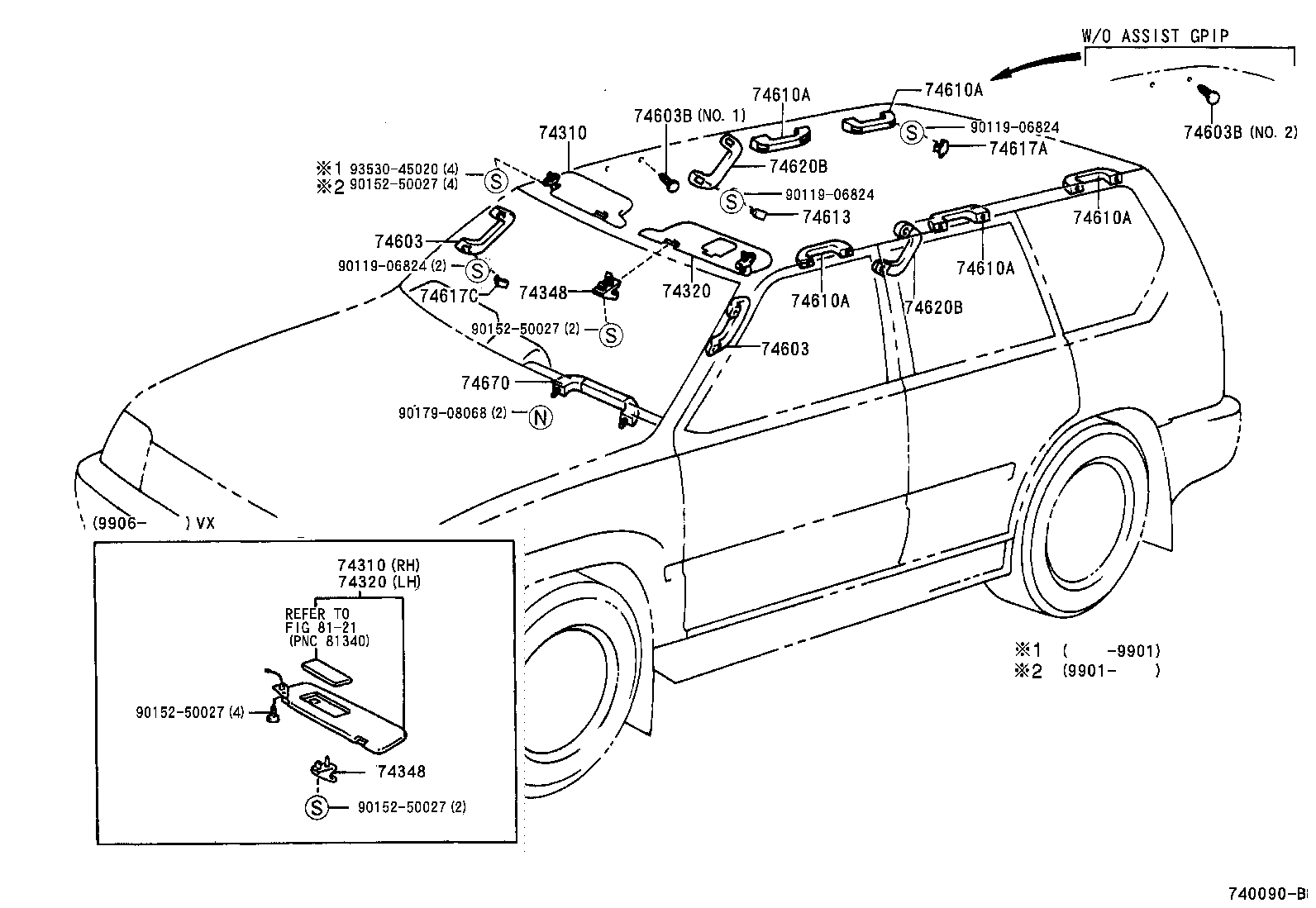

ILLUST NO. 2 OF 2(9604- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-60570B1 |
LJ9#,RZJ9#..LHD..STD MOON MIST,TRIM1# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-60570B1 |
LJ9#,RZJ9#..LHD..STD MOON MIST,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-60520B1 |
KZJ9#,LJ9#,RZJ9#..LHD..(GCC,GEN) W/O(AIR BAG CAUTION),MOON MIST,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-60520B1 |
KZJ9#,LJ9#,RZJ9#..LHD..(GCC,GEN) W/O(AIR BAG CAUTION),MOON MIST,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-60030B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MOON MIST,TRIM1# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-60030B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MOON MIST,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74620-60030B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74620-60030B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-05021B4 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 MOON MIST,TRIM1#,NO.1 |
2 | ||
| 90467-05021B4 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MOON MIST,TRIM1#,NO.1 |
2 | ||
| 90467-05021B4 |
RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD W/O(THIRD SEAT),MOON MIST,TRIM10 |
6 | ||
| 90467-05021B4 |
LJ90,RZJ90..STD W/O(THIRD SEAT),MOON MIST,TRIM1# |
6 | ||
| 90467-05021B4 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(THIRD SEAT),MOON MIST,TRIM10 |
6 | ||
| 90467-05021B4 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN MOON MIST,TRIM1#,NO.1 |
2 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-05021B4 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 MOON MIST,TRIM1#,NO.1 |
2 | ||
| 90467-05021B4 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MOON MIST,TRIM1#,NO.1 |
2 | ||
| 90467-05021B4 |
RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD W/O(THIRD SEAT),MOON MIST,TRIM10 |
6 | ||
| 90467-05021B4 |
LJ90,RZJ90..STD W/O(THIRD SEAT),MOON MIST,TRIM1# |
6 | ||
| 90467-05021B4 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(THIRD SEAT),MOON MIST,TRIM10 |
6 | ||
| 90467-05021B4 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN MOON MIST,TRIM1#,NO.1 |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN MOON MIST,TRIM1# |
5 | ||
| 74610-60060B0 |
LJ90,RZJ90..STD W(OPPOSING TYPE SEAT),MOON MIST,TRIM1# |
1 | ||
| 74610-60060B0 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN MOON MIST,TRIM1# |
5 | ||
| 74610-60060B0 |
LJ90,RZJ90..STD W(OPPOSING TYPE SEAT),MOON MIST,TRIM1# |
1 | ||
| 74610-60060B0 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN MOON MIST,TRIM1# |
5 | ||
| 74610-60060B0 |
LJ90,RZJ90..STD W(OPPOSING TYPE SEAT),MOON MIST,TRIM1# |
1 | ||
| 74610-60060B0 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN MOON MIST,TRIM1# |
5 | ||
| 74610-60060B0 |
LJ90,RZJ90..STD W(OPPOSING TYPE SEAT),MOON MIST,TRIM1# |
1 | ||
| 74610-60060B0 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN MOON MIST,TRIM1# |
5 | ||
| 74610-60060B0 |
LJ90,RZJ90..STD W(OPPOSING TYPE SEAT),MOON MIST,TRIM1# |
1 | ||
| 74610-60060B0 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-60010B0 |
LJ90,RZJ90..STD W(OPPOSING TYPE SEAT),MOON MIST,TRIM1# |
2 | ||
| 74617-60010B0 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN MOON MIST,TRIM1# |
10 | ||
| 74617-60010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
6 | ||
| 74617-60010B0 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN W/O(THIRD SEAT),MOON MIST,TRIM1# |
6 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74615-60020B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
4 | ||
| 74670 - GRIP ASSY, INSTRUMENT ASSIST | ||||
| 74670-60050B0 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06824 | ||||
| 90152-50027 | ||||
| 90179-08068 | ||||
| 93530-45020 | ||||
| Linked diagrams | ||||
| 8121 | ||||
