RZJ90L-GJMNKL (1998)

Toyota Land Cruiser 90

Production Aug 1998 - Dec 2008
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9906)

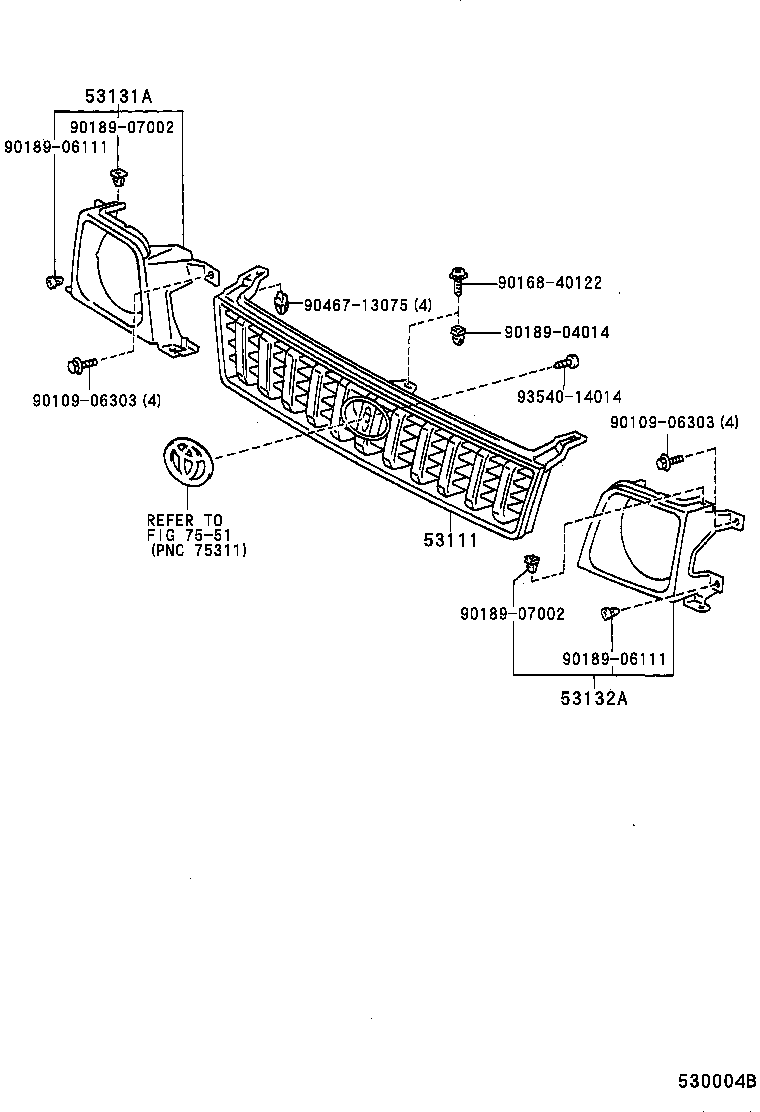

Click highlighted areas on diagram

diagram 53111 53131A 53132A 7551 9010906303 9010906303 9016840122 9018904014 9018906111 9018906111 9018907002 9018907002 9046713075 9354014014
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-60310

RZJ90,VZJ95..CO

CHROME PLATED

 1
53111-60310

RZJ95..RHD;RZJ95..LHD..GX;LJ95,VZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ90..LHD..(DSL,EFI,TD)

CHROME PLATED

 1
53111-60290

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

UNPAINTED(BLACK)

 1
53111-60310

RZJ90,VZJ95..CO

CHROME PLATED

 1
53111-60290

RZJ90..CO

UNPAINTED(BLACK)

 1
53111-60290

RZJ90..CO

UNPAINTED(BLACK)

 1
53131A - DOOR, HEADLAMP, RH
53131-60060

LJ95,RZJ95..GX..GEN;KZJ9#,LJ90,RZJ90..LHD..(DSL,EFI,TD)

CHROME PLATED

 1
53132A - DOOR, HEADLAMP, LH
53132-60060

LJ95,RZJ95..GX..GEN;KZJ9#,LJ90,RZJ90..LHD..(DSL,EFI,TD)

CHROME PLATED

 1
Common parts
90109-06303
90168-40122
90189-04014
90189-06111
90189-07002
90467-13075
93540-14014
Linked diagrams
7551

(9906- )

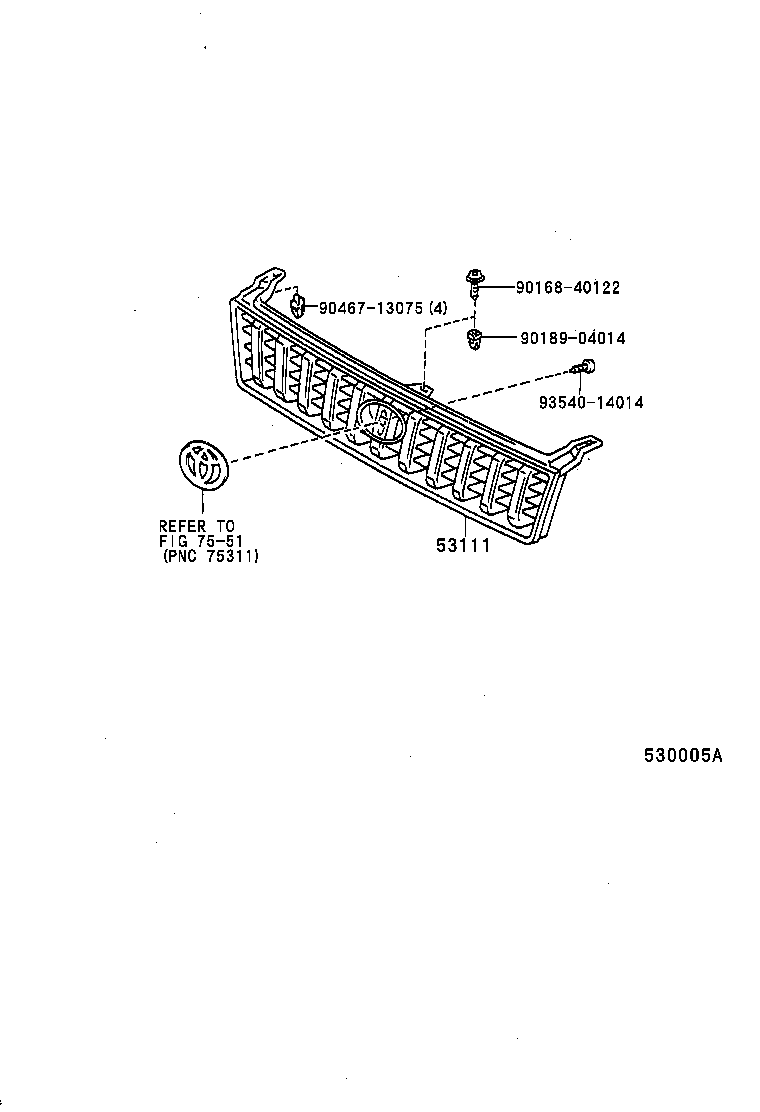

Click highlighted areas on diagram

diagram 53111 7551 9016840122 9018904014 9046713075 9354014014
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-60310

RZJ90,VZJ95..CO

CHROME PLATED

 1
53111-60310

RZJ95..RHD;RZJ95..LHD..GX;LJ95,VZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ90..LHD..(DSL,EFI,TD)

CHROME PLATED

 1
53111-60290

KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD

UNPAINTED(BLACK)

 1
53111-60310

RZJ90,VZJ95..CO

CHROME PLATED

 1
53111-60290

RZJ90..CO

UNPAINTED(BLACK)

 1
53111-60290

RZJ90..CO

UNPAINTED(BLACK)

 1
Common parts
90168-40122
90189-04014
90467-13075
93540-14014
Linked diagrams
7551
