RZJ90L-GJMNK (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

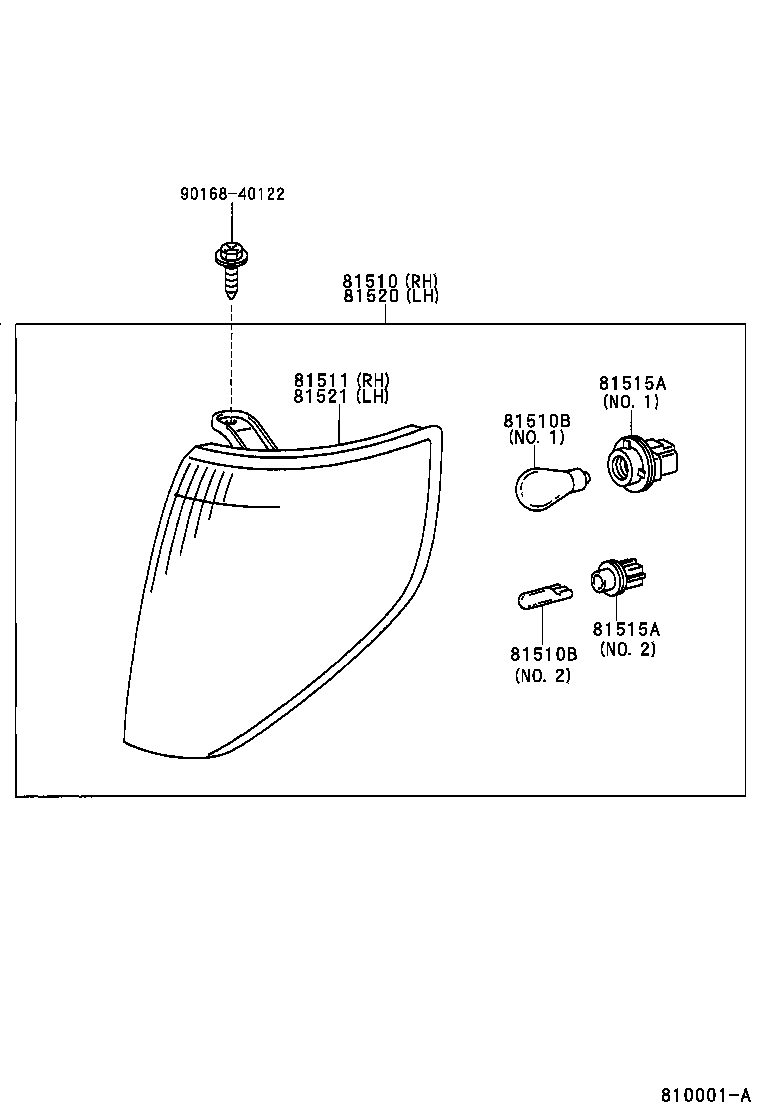

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515A 81515A 81520 81521 9016840122
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-60470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

KZJ9#,LJ9#,RZJ9#,VZJ9#

12V 21W,NO.1

 2
99132-12050

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

12V 5W,NO.2

 2
99132-12050

RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9#

12V 5W,NO.2

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

KZJ9#,LJ9#,RZJ9#,VZJ9#

12V 21W,NO.1

 2
99132-12050

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

12V 5W,NO.2

 2
99132-12050

RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9#

12V 5W,NO.2

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-60470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078

KZJ9#,LJ9#,RZJ9#,VZJ9#

NO.1

 2
90075-99091

KZJ9#,LJ9#,RZJ9#,VZJ9#

NO.2

 2
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078

KZJ9#,LJ9#,RZJ9#,VZJ9#

NO.1

 2
90075-99091

KZJ9#,LJ9#,RZJ9#,VZJ9#

NO.2

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-60340

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-60340

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
Common parts
90168-40122
