LJ95R-GKMRS (1996)
Toyota Land Cruiser 90

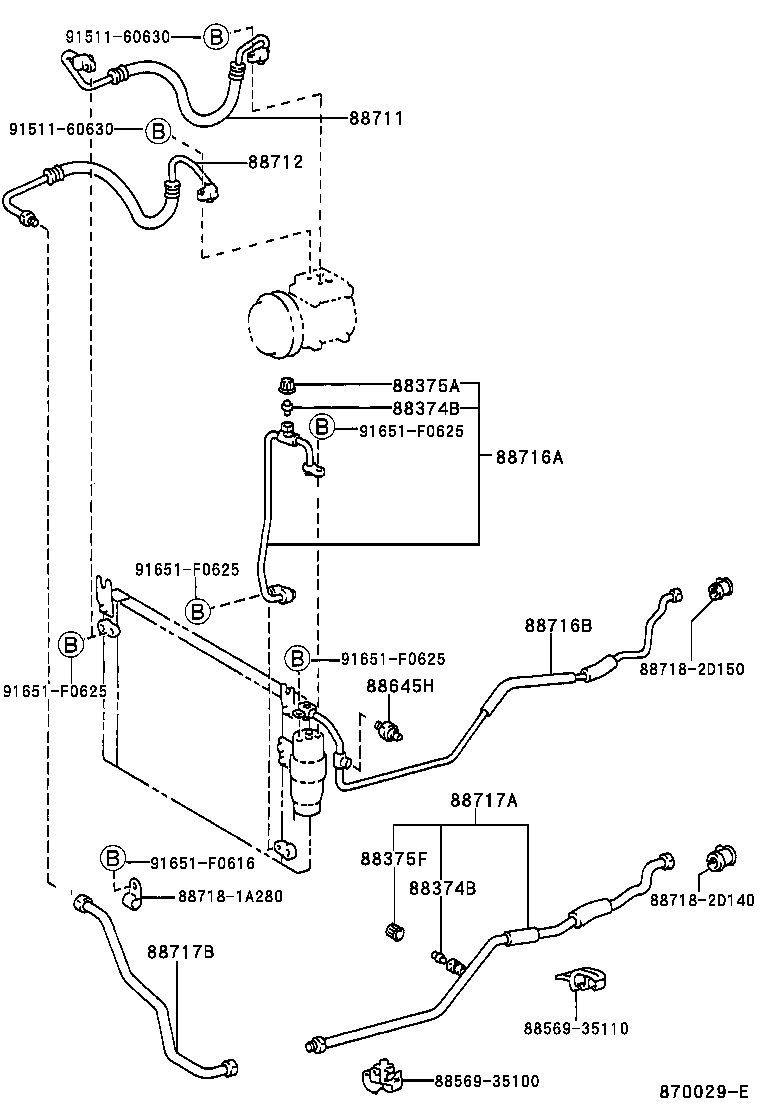

ILLUST NO. 2 OF 4(9604- )LJ9#..RHD
SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30290 |
LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) |
1 | ||
| 88375-30290 |
LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
LJ9#,RZJ95..RHD..STD |
1 | ||
| 88645-34010 |
LJ9#..RHD |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60420 |
LJ9# |
1 | ||
| 88711-60420 |
LJ9# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60740 |
LJ9#..RHD |
1 | ||
| 88712-60740 |
LJ9#..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A660 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88716-6A660 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88716-6A660 |
LJ9#,VZJ95..RHD;RZJ95..RHD..GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35340 |
LJ9#,RZJ95..RHD..GEN |
1 | ||
| 88716-35380 |
LJ9#,RZJ95..RHD..(CBR,DSL) |
1 | ||
| 88716-6B010 |
LJ9#,RZJ95..RHD..(CBR,DSL) |
1 | ||
| 88716-35380 |
VZJ95..VX..ARL;LJ9#,RZJ95..RHD..GEN |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-35120 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-6A250 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD DUAL AIR CONDITIONER |
1 | ||
| 88717-35130 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35150 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35130 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A030 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88717-6A030 |
KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88717-6A030 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| Common parts | ||||
| 88569-35100 | ||||
| 88569-35110 | ||||
| 88718-1A280 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 91511-60630 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||

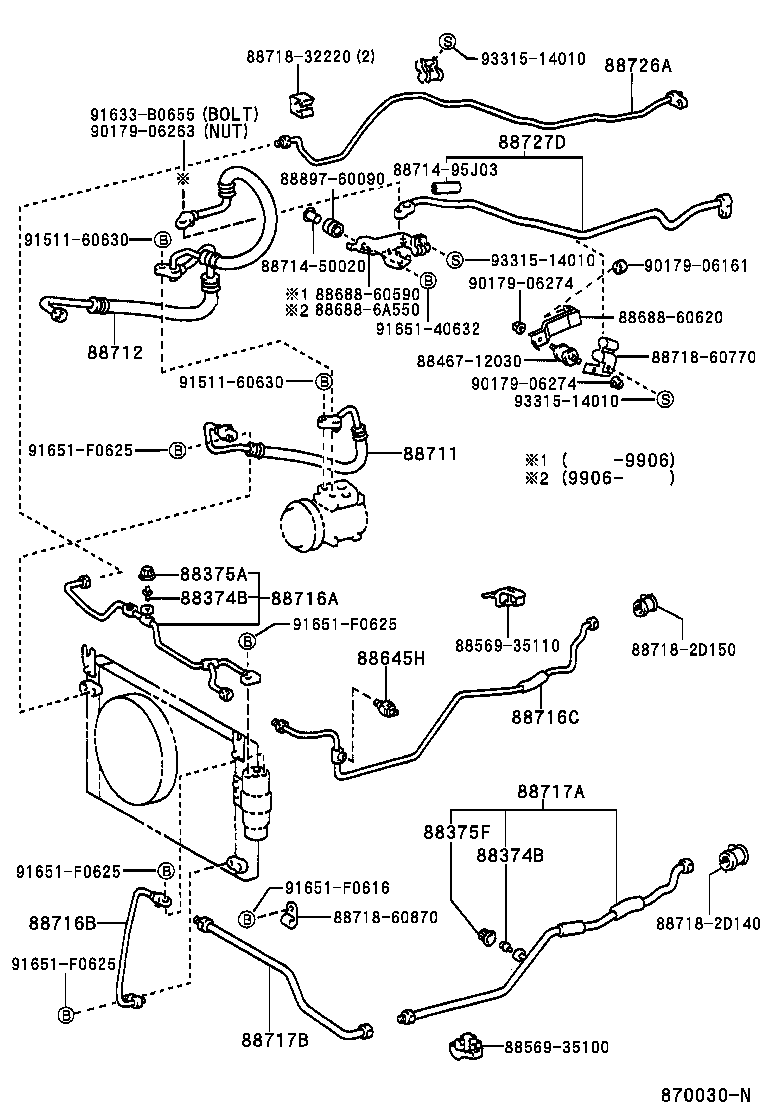

ILLUST NO. 2 OF 4(9604- )LJ9#..RHD
DUAL AIR CONDITIONER---FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30290 |
LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) |
1 | ||
| 88375-30290 |
LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
LJ9#,RZJ95..RHD..STD |
1 | ||
| 88645-34010 |
LJ9#..RHD |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60420 |
LJ9# |
1 | ||
| 88711-60420 |
LJ9# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60740 |
LJ9#..RHD |
1 | ||
| 88712-60740 |
LJ9#..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A660 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88716-6A660 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88716-6A660 |
LJ9#,VZJ95..RHD;RZJ95..RHD..GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35340 |
LJ9#,RZJ95..RHD..GEN |
1 | ||
| 88716-35380 |
LJ9#,RZJ95..RHD..(CBR,DSL) |
1 | ||
| 88716-6B010 |
LJ9#,RZJ95..RHD..(CBR,DSL) |
1 | ||
| 88716-35380 |
VZJ95..VX..ARL;LJ9#,RZJ95..RHD..GEN |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-35120 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-6A250 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD DUAL AIR CONDITIONER |
1 | ||
| 88717-35130 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35150 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35130 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A030 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88717-6A030 |
KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88717-6A030 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88569-35100 | ||||
| 88569-35110 | ||||
| 88688-60590 | ||||
| 88688-60620 | ||||
| 88688-6A550 | ||||
| 88714-50020 | ||||
| 88714-95J03 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-60770 | ||||
| 88718-60870 | ||||
| 88897-60090 | ||||
| 90179-06161 | ||||
| 90179-06263 | ||||
| 90179-06274 | ||||
| 91511-60630 | ||||
| 91633-B0655 | ||||
| 91651-40632 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
ILLUST NO. 1 OF 4(9604- )
DUAL AIR CONDITIONER(CONDENSER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60240 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
1 | ||
| 88460-60240 |
VZJ95..VX..ARL;LJ9#,RZJ95..RHD..GEN |
2 | ||
| 88460-60240 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 88471-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60130 |
RZJ95..ARL;LJ95,RZJ95..STD;KZJ90,LJ90,RZJ90,VZJ9# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88718-32220 | ||||
| 88895-89102 | ||||
| 88897-50020 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 91651-F0616 | ||||
| 91651-G0635 | ||||
ILLUST NO. 3 OF 4(9604-9906)
DUAL AIR CONDITIONER---REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-95D00 | ||||
| 88718-60780 | ||||
| 88718-60790 | ||||
| 88718-60800 | ||||
| 88718-60810 | ||||
| 88718-60820 | ||||
| 88718-60830 | ||||
| 88718-60840 | ||||
| 90179-06161 | ||||
| 91633-G0640 | ||||
| 93315-54010 | ||||
ILLUST NO. 1 OF 4(9604- )
SINGLE AIR CONDITIONER(CONDENSER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60240 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
1 | ||
| 88460-60240 |
VZJ95..VX..ARL;LJ9#,RZJ95..RHD..GEN |
2 | ||
| 88460-60240 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-35320 |
RZJ95..RHD..GEN;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88688-35320 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88688-35320 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-60010 |
RZJ95..RHD..GEN;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 88471-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60130 |
RZJ95..ARL;LJ95,RZJ95..STD;KZJ90,LJ90,RZJ90,VZJ9# |
1 | ||
| Common parts | ||||
| 88718-32160 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 91651-F0616 | ||||
ILLUST NO. 3 OF 4(9906- )ARL,GCC,GEN,MA
DUAL AIR CONDITIONER---REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-60780 | ||||
| 88718-60790 | ||||
| 88718-60800 | ||||
| 88718-60810 | ||||
| 88718-60830 | ||||
| 88718-60840 | ||||
| 88718-6A500 | ||||
| 90179-06161 | ||||
| 91633-G0640 | ||||
| 93315-54010 | ||||
ILLUST NO. 4 OF 4(9604- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
