LJ95R-GKMRS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )LJ9#..RHD

Click highlighted areas on diagram

W/O(REAR HEATER)

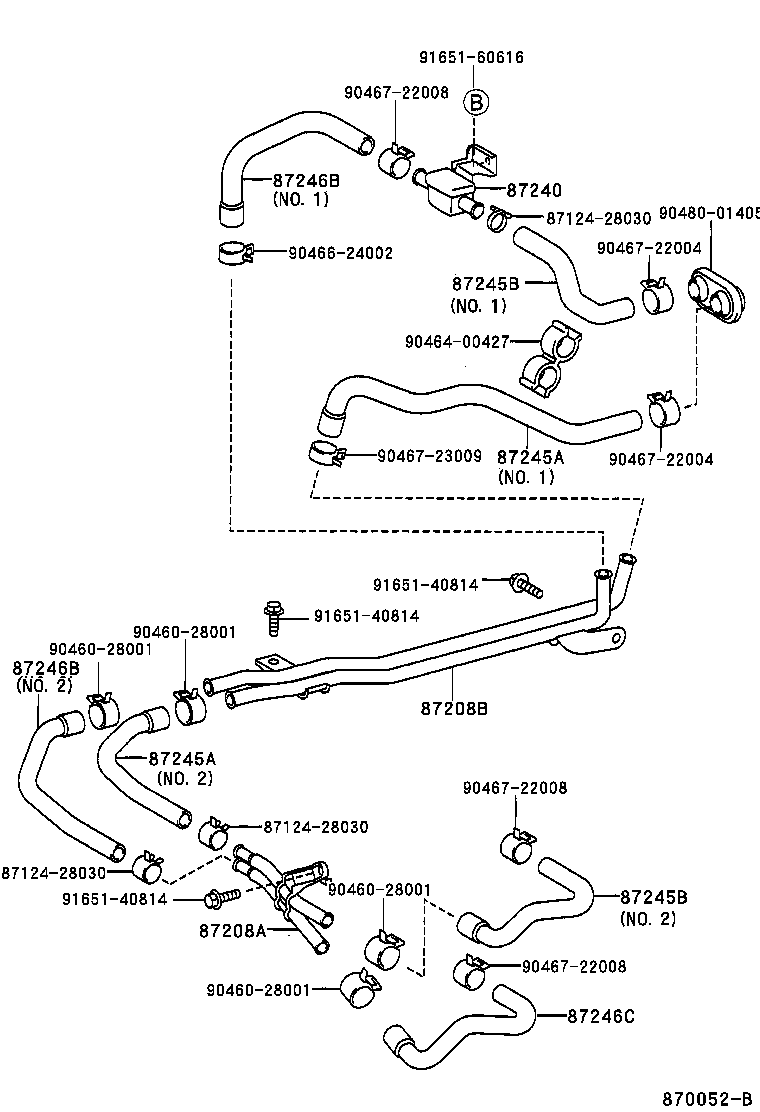

diagram 8712428030 8712428030 8712428030 87208A 87208B 87240 87245A 87245A 87245B 87245B 87246B 87246B 87246C 9046028001 9046028001 9046028001 9046028001 9046400427 9046624002 9046722004 9046722004 9046722008 9046722008 9046722008 9046723009 9048001405 9165140814 9165140814 9165140814 9165160616
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LJ9#

 1
87208-89144

LJ9#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-22211

LJ9#

 1
87208-60520

LJ9#

 1
87208-60520

LJ9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

LJ9#,RZJ95..RHD..(CBR,DSL);RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

NO.2

 1
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

NO.2

 1
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2A260

LJ9#

NO.2

 1
87245-35520

LJ9#..RHD

NO.1

 1
87245-2A260

LJ9#

 1
87245-35520

LJ9#..RHD

NO.1

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2A260

LJ9#

NO.2

 1
87245-35520

LJ9#..RHD

NO.1

 1
87245-2A260

LJ9#

 1
87245-35520

LJ9#..RHD

NO.1

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2A270

LJ9#

 1
87245-2A270

LJ9#

 1
Common parts
87124-28030
90460-28001
90464-00427
90466-24002
90467-22004
90467-22008
90467-23009
90480-01405
91651-40814
91651-60616

(9604- )LJ9#..RHD

Click highlighted areas on diagram

W(REAR HEATER)

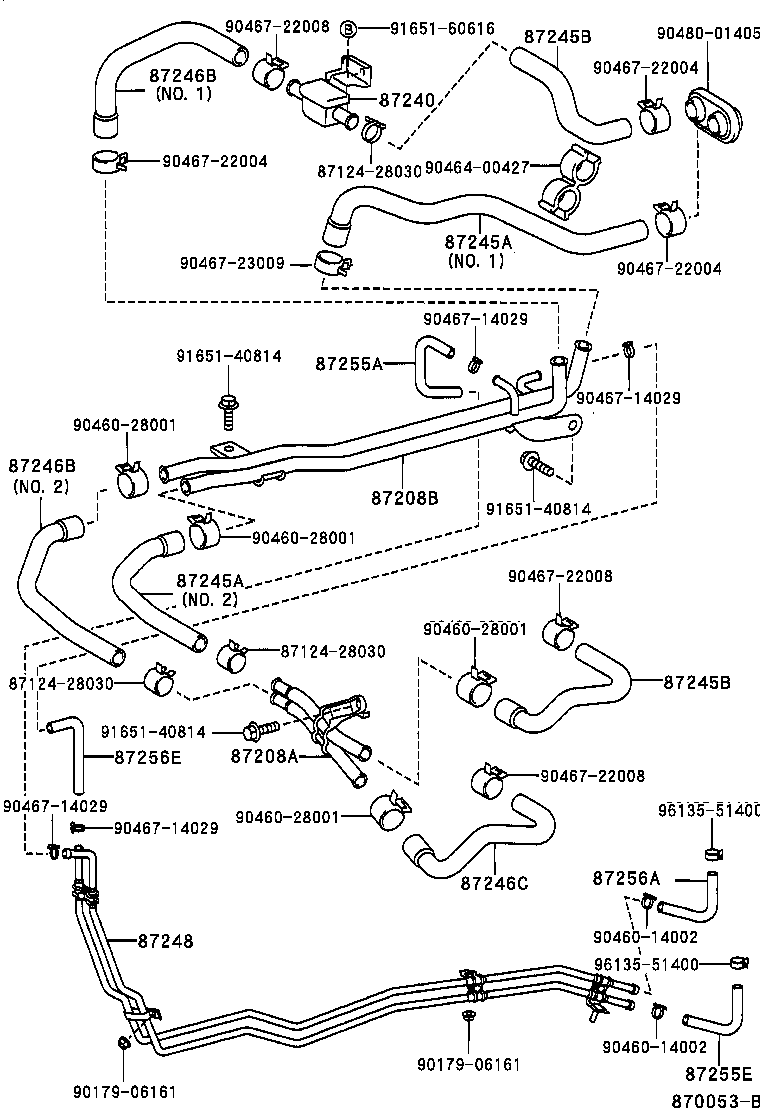

diagram 8712428030 8712428030 8712428030 87208A 87208B 87240 87240 87240 87245A 87245A 87245B 87245B 87246B 87246B 87246C 87248 87255A 87255E 87256A 87256E 9017906161 9017906161 9046014002 9046014002 9046028001 9046028001 9046028001 9046028001 9046400427 9046714029 9046714029 9046714029 9046714029 9046722004 9046722004 9046722004 9046722008 9046722008 9046722008 9046723009 9048001405 9165140814 9165140814 9165140814 9165160616 9613551400 9613551400
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LJ9#

 1
87208-89144

LJ9#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-22211

LJ9#

 1
87208-60520

LJ9#

 1
87208-60520

LJ9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

LJ9#,RZJ95..RHD..(CBR,DSL);RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

LJ9#,RZJ95..RHD..(CBR,DSL);RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

LJ9#,RZJ95..RHD..(CBR,DSL);RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

NO.2

 1
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

NO.2

 1
87245-60640

LJ9#..RHD

NO.1

 1
87245-2A320

LJ9#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2A260

LJ9#

NO.2

 1
87245-35520

LJ9#..RHD

NO.1

 1
87245-2A260

LJ9#

 1
87245-35520

LJ9#..RHD

NO.1

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2A260

LJ9#

NO.2

 1
87245-35520

LJ9#..RHD

NO.1

 1
87245-2A260

LJ9#

 1
87245-35520

LJ9#..RHD

NO.1

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87245-2A330

LJ9#

 1
87245-60630

LJ9#..RHD

NO.1

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2A270

LJ9#

 1
87245-2A270

LJ9#

 1
Common parts
87124-28030
90179-06161
90460-14002
90460-28001
90464-00427
90467-14029
90467-22004
90467-22008
90467-23009
90480-01405
91651-40814
91651-60616
96135-51400
