LJ95R-GKMRS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )STD

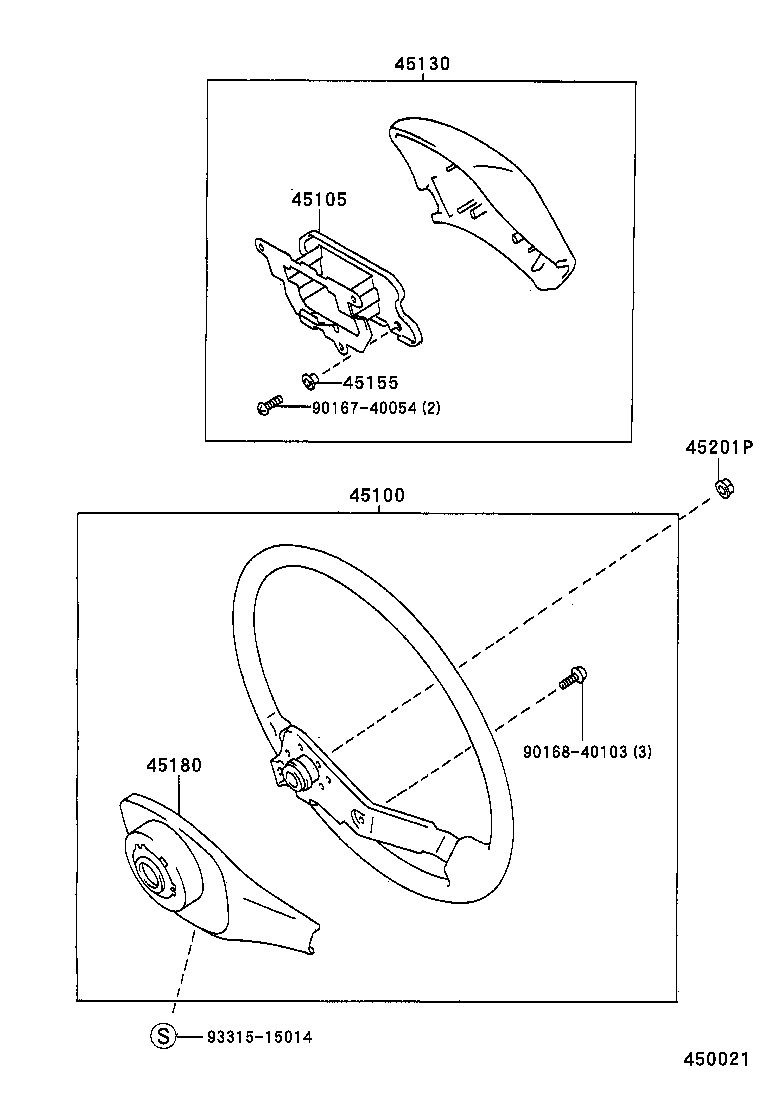

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45105 45130 45155 45180 45201P 9016740054 9016840103 9331515014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26230B2

LJ9#,RZJ9#..STD

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12200

LJ9#,RZJ9#..STD

 1
45130 - BUTTON ASSY, HORN
45130-26260B2

LJ9#,RZJ9#..STD

MD.MOON MIST,TRIM1#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-12050

LJ9#,RZJ9#..STD

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-26040B2

LJ9#,RZJ9#..STD

MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
90179-12071

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
Common parts
90167-40054
90168-40103
93315-15014

(9604-0108)GX,VX..ARL,CO,GCC,GEN ; (0108- )VZJ95..ARL,GCC ; (0108- )KZJ95,LJ9

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45130 45180 45201P 9015950238 9016840113 9331515014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26230B2

LJ9#,RZJ9#..STD

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12200

LJ9#,RZJ9#..STD

 1
45130 - BUTTON ASSY, HORN
45130-26260B2

LJ9#,RZJ9#..STD

MD.MOON MIST,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-26040B2

LJ9#,RZJ9#..STD

MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
90179-12071

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
Common parts
90159-50238
90168-40113
93315-15014
