LJ95R-GKMRS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3L..RHD

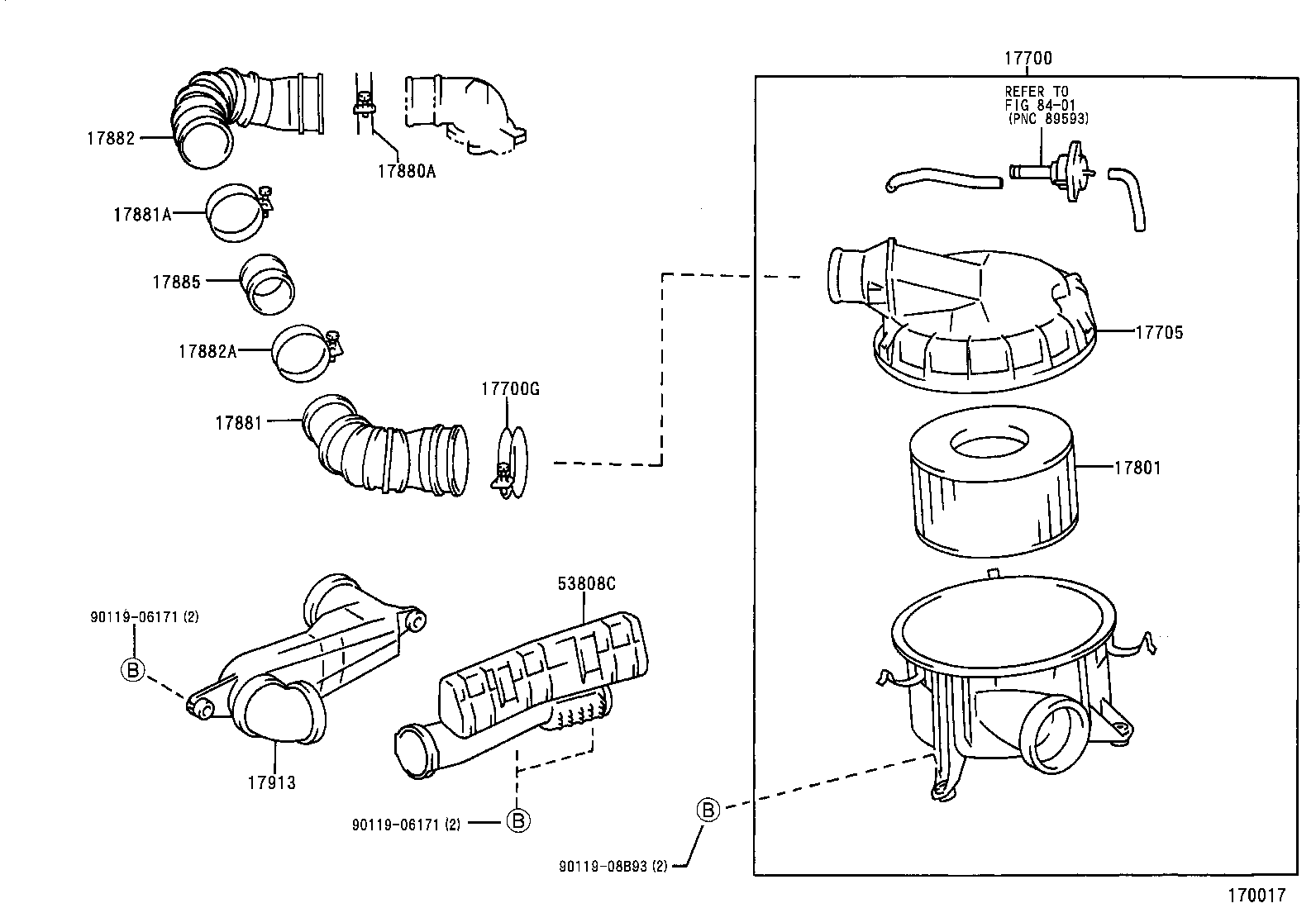

Click highlighted areas on diagram

diagram 17700 17700G 17705 17801 17880A 17881 17881A 17882 17882A 17885 17913 53808C 8401 9011906171 9011906171 9011908B93
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-5B010

3L..LJ9#..RHD

 1
17700-5B020

3L..LJ9#..RHD

W(WARNING SENSOR)

 1
17700-5B011

3L..LJ9#..RHD

 1
17700-5B021

3L..LJ9#..RHD

W(AIR CLEANER PLUGGING WARNING)

 1
17700-5B021

3L..LJ9#..RHD

W(AIR CLEANER PLUGGING WARNING)

 1
17700-5B011

3L..LJ9#..RHD

 1
17700G - CLAMP, HOSE(FOR AIR CLEANER)
96111-10830

3L..LJ9#..RHD

 1
96111-10830

3L..LJ9#..RHD

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54360

3L..LJ9#..RHD

W(WARNING SENSOR)

 1
17705-67100

3L..LJ9#

 1
17705-67150

3L..LJ9#..RHD

 1
17705-67160

3L..LJ9#..RHD

W(AIR CLEANER PLUGGING WARNING)

 1
17705-67150

3L..LJ9#..RHD

 1
17705-67160

3L..LJ9#..RHD

W(AIR CLEANER PLUGGING WARNING)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-67060

3L..LJ9#

 1
17801-67080

3L..LJ9#..RHD

 1
17801-67080

3L..LJ9#..RHD

 1
17880A - CLAMP, HOSE
96111-10750

3L..LJ9#..RHD

 1
96111-10750

3L..LJ9#..RHD

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-54600

3L..LJ9#..RHD

 1
17881-54600

3L..LJ9#..RHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

3L..LJ9#..RHD

 1
96111-10650

3L..LJ9#..RHD

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-54500

3L..LJ9#..RHD

 1
17882-54500

3L..LJ9#..RHD

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10650

3L..LJ9#..RHD

 1
96111-10650

3L..LJ9#..RHD

 1
17885 - PIPE, AIR CLEANER
17885-54240

3L..LJ9#..RHD

 1
17885-54240

3L..LJ9#..RHD

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-60010

3L..LJ9#..RHD

 1
52830-60010

3L..LJ9#..RHD

 1
53808C - DUCT SUB-ASSY, FRONT FENDER AIR, LH
53808-60030

LJ9#..RHD

 1
53808-60030

LJ9#..RHD

 1
Common parts
90119-06171
90119-08B93
Linked diagrams
8401
