LJ95R-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )LJ9#..RHD

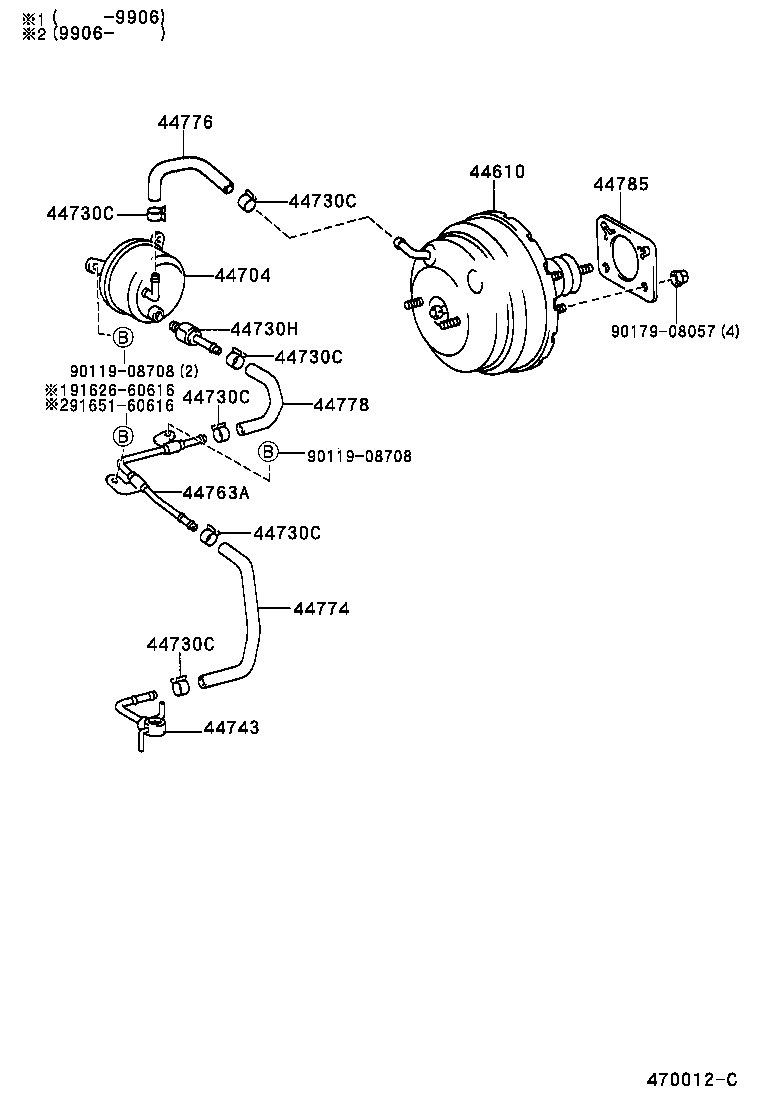

Click highlighted areas on diagram

diagram 44610 44704 44730C 44730C 44730C 44730C 44730C 44730C 44730H 44743 44763A 44774 44776 44778 44785 9011908708 9011908708 9017908057 9162660616 9165160616
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60890

LJ9#

 1
44610-6A100

LJ9#;KZJ95..RHD

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60200

LJ9#

 1
44704-60200

LJ9#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
90467-16002

LJ9#..RHD;KZJ9#..GEN

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
90467-16002

LJ9#..RHD;KZJ9#..GEN

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
90467-16002

LJ9#..RHD;KZJ9#..GEN

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
90467-16002

LJ9#..RHD;KZJ9#..GEN

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
90467-16002

LJ9#..RHD;KZJ9#..GEN

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
90467-16002

LJ9#..RHD;KZJ9#..GEN

 6
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-60050

LJ9#

 1
44730-60050

LJ9#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09136

LJ9#

 1
90405-09136

LJ9#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-60050

LJ9#

 1
44763-60050

LJ9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60200

LJ9#

 1
44774-60200

LJ9#

 1
44776 - HOSE, BRAKE BOOSTER
44776-60010

LJ9#..RHD

 1
44776-60010

LJ9#..RHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60140

LJ9#

 1
44778-60140

LJ9#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
44785-35030

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
Common parts
90119-08708
90179-08057
91626-60616
91651-60616
