LJ95R-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

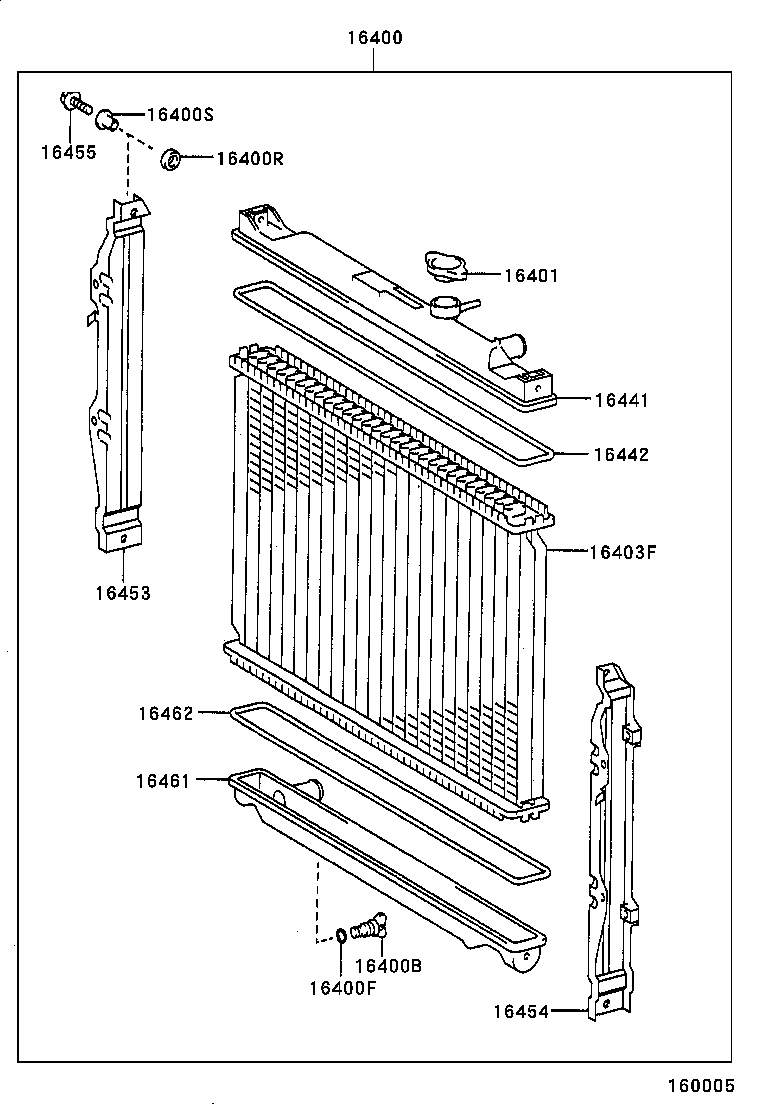

ILLUST NO. 2 OF 2(9604- )3L

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16400R 16400R 16400S 16401 16403F 16441 16442 16453 16454 16455 16461 16462
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-5B420

3L..LJ9#

 1
16400-5B420

3L..LJ9#

 1
16400-5B421

3L..LJ9#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

3L..LJ9#

 1
16417-15210

3L..LJ9#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

3L..LJ9#

 1
16418-15520

3L..LJ9#

 1
16400R - BUSHING(FOR RADIATOR)
16444-67130

3L..LJ9#

 2
16444-67130

3L..LJ9#

 2
16400R - BUSHING(FOR RADIATOR)
16444-67130

3L..LJ9#

 2
16444-67130

3L..LJ9#

 2
16400S - COLLAR(FOR RADIATOR)
16445-67130

3L..LJ9#

 2
16445-67130

3L..LJ9#

 2
16401 - CAP SUB-ASSY, RADIATOR
16401-54750

3L..LJ9#

 1
16401-67150

3L..LJ9#

 1
16401-54750

3L..LJ9#

 1
16401-71010

3L..LJ9#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-67130

3L..LJ9#

 1
16403-67130

3L..LJ9#

 1
16441 - TANK, RADIATOR, UPPER
16441-67130

3L..LJ9#

 1
16441-67130

3L..LJ9#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-67130

3L..LJ9#

 1
16442-67130

3L..LJ9#

 1
16453 - PLATE, RADIATOR SIDE
16453-67130

3L..LJ9#

 1
16453-67130

3L..LJ9#

 1
16454 - PLATE, RADIATOR SIDE
16454-67130

3L..LJ9#

 1
16454-67130

3L..LJ9#

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
16455-67130

3L..LJ9#

 4
16455-67130

3L..LJ9#

 4
16461 - TANK, RADIATOR, LOWER
16461-5B420

3L..LJ9#

 1
16461-5B420

3L..LJ9#

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16442-67130

3L..LJ9#

 1
16442-67130

3L..LJ9#

 1

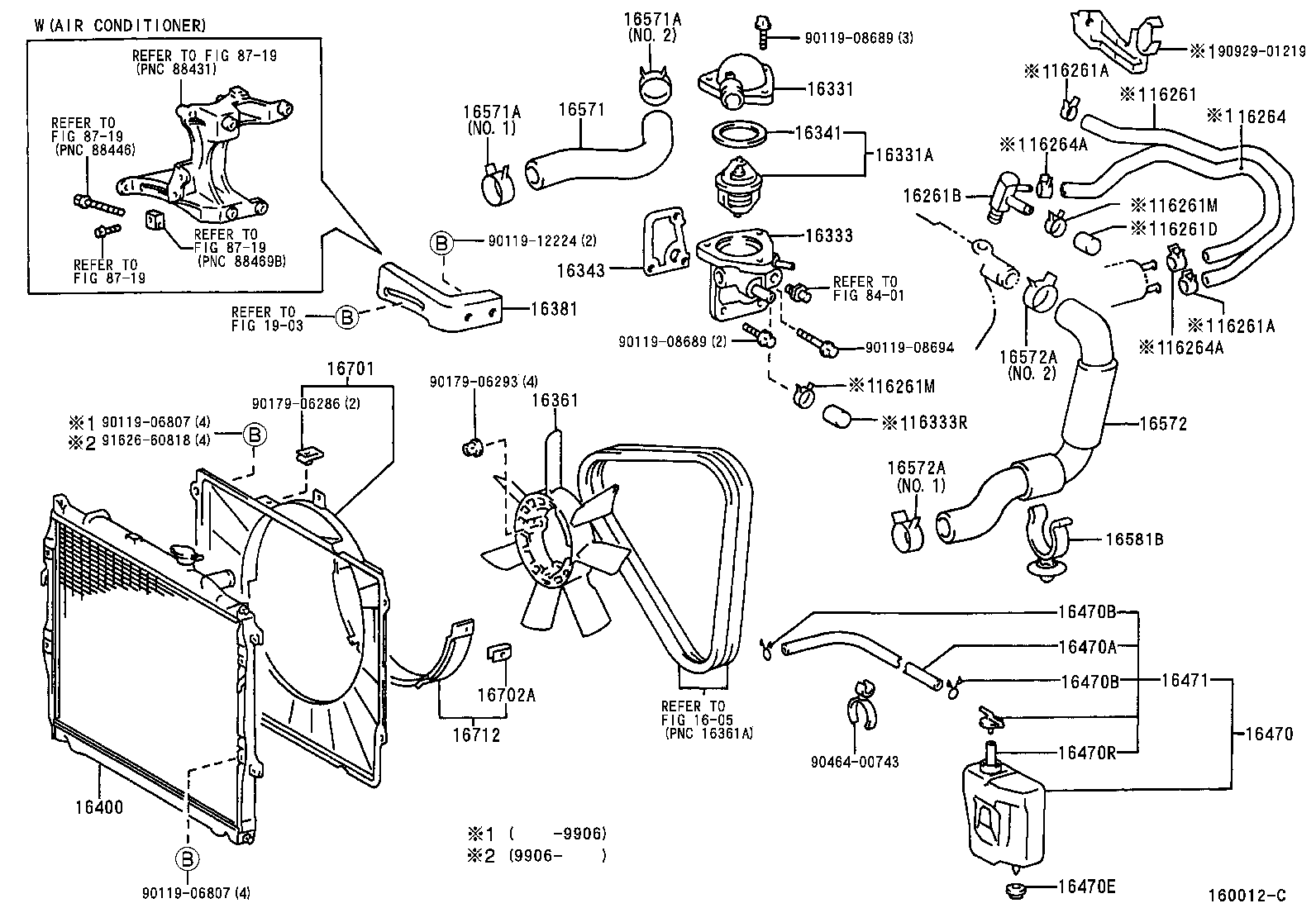

ILLUST NO. 1 OF 2(9604- )3L

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16261B 16261D 16261M 16261M 16264 16264A 16264A 16331 16331A 16333 16333R 16341 16343 16361 16381 16400 16470 16470A 16470B 16470B 16470E 16470R 16471 16571 16571A 16571A 16572 16572A 16572A 16581B 16701 16702A 16712 1903 8401 8719 8719 8719 8719 9011906807 9011906807 9011908689 9011908689 9011908694 9011912224 9017906286 9017906293 9046400743 9092901219 9162660818
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-54080

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 1
16261-54120

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
87251-89113

3L..LJ9#

 1
87251-89113

3L..LJ9#

 1
90404-54037

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 1
16261D - PLUG, W/O HEATER
90339-16001

3L..LJ9#

 1
16261M - CLIP, W/O HEATER PLUG
90467-22008

3L..LJ9#

 2
16261M - CLIP, W/O HEATER PLUG
90467-22008

3L..LJ9#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-54121

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 1
16264-54070

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 2
16331 - OUTLET, WATER
16331-54090

3L..LJ9#

 1
16331-54090

3L..LJ9#

 1
16331A - THERMOSTAT
16340-54010

3L..LJ9#

*WAX 88-100

 1
16340-54010

3L..LJ9#

*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16333-54123

3L..LJ9#

 1
16333-54113

3L..LJ95..RHD..GX

W(AUTOMATIC COLD START DIVICE)

 1
16333-54123

3L..LJ9#

 1
16333R - PLUG(FOR WATER OUTLET HOUSING)
90339-16001

3L..LJ9#

 1
16341 - GASKET, WATER OUTLET
16341-35010

3L..LJ9#

 1
16341-35010

3L..LJ9#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-54040

3L..LJ9#

 1
16343-54040

3L..LJ9#

 1
16361 - FAN
16361-54040

3L..LJ9#

 1
16361-54040

3L..LJ9#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-54070

3L..LJ9#

T=3.2

 1
16381-54071

3L..LJ9#

 1
16381-54071

3L..LJ9#

T=4.5

 1
16400 - RADIATOR ASSY
16400-5B420

3L..LJ9#

 1
16400-5B420

3L..LJ9#

 1
16400-5B421

3L..LJ9#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-75030

3L..LJ9#

 1
16470-75030

3L..LJ9#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

3L..LJ9#

*H,L=410

 1
90445-12078

3L..LJ9#

*H,L=390

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3L..LJ9#

 2
90467-11085

3L..LJ9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3L..LJ9#

 2
90467-11085

3L..LJ9#

 2
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-25025

3L..LJ9#

 1
90480-25025

3L..LJ9#

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

3L..LJ9#

*H,L=240

 1
90445-12078

3L..LJ9#

*H,L=240

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-75020

3L..LJ9#

 1
16405-75020

3L..LJ9#

 1
16571 - HOSE, RADIATOR, INLET
16571-54470

3L..LJ9#

 1
16571-54470

3L..LJ9#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.2

 1
90467-41006

3L..LJ9#

NO.1

 1
90467-41006

3L..LJ9#

NO.1

 1
90467-41007

3L..LJ9#

NO.1

 1
90466-37001

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.2

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.2

 1
90467-41006

3L..LJ9#

NO.1

 1
90467-41006

3L..LJ9#

NO.1

 1
90467-41007

3L..LJ9#

NO.1

 1
90466-37001

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.2

 1
16572 - HOSE, RADIATOR, OUTLET
16572-54520

3L..LJ9#

 1
16572-54520

3L..LJ9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-41006

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.1

 1
90467-41006

3L..LJ9#

NO.2

 1
90467-41007

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.1

 1
90467-37002

3L..LJ9#

NO.1

 1
90466-37001

3L..LJ9#

NO.1

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-41006

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.1

 1
90467-41006

3L..LJ9#

NO.2

 1
90467-41007

3L..LJ9#

NO.2

 1
90467-37005

3L..LJ9#

NO.1

 1
90467-37002

3L..LJ9#

NO.1

 1
90466-37001

3L..LJ9#

NO.1

 1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-54030

3L..LJ9#

 1
16581-54030

3L..LJ9#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-54520

3L..LJ9#

 1
16711-54520

3L..LJ9#

 1
16702A - CLIP(FOR FAN SHROUD NO.2)
90468-06092

3L..LJ9#

 2
90468-06092

3L..LJ9#

 2
16712 - SHROUD, FAN, NO.2
16712-67050

3L..LJ9#

 1
16712-67050

3L..LJ9#

 1
Common parts
90119-06807
90119-08689
90119-08694
90119-12224
90179-06286
90179-06293
90464-00743
90929-01219
91626-60818
Linked diagrams
1605
1903
8401
8719
