LJ95L-GKMNS (1996)
Toyota Land Cruiser 90

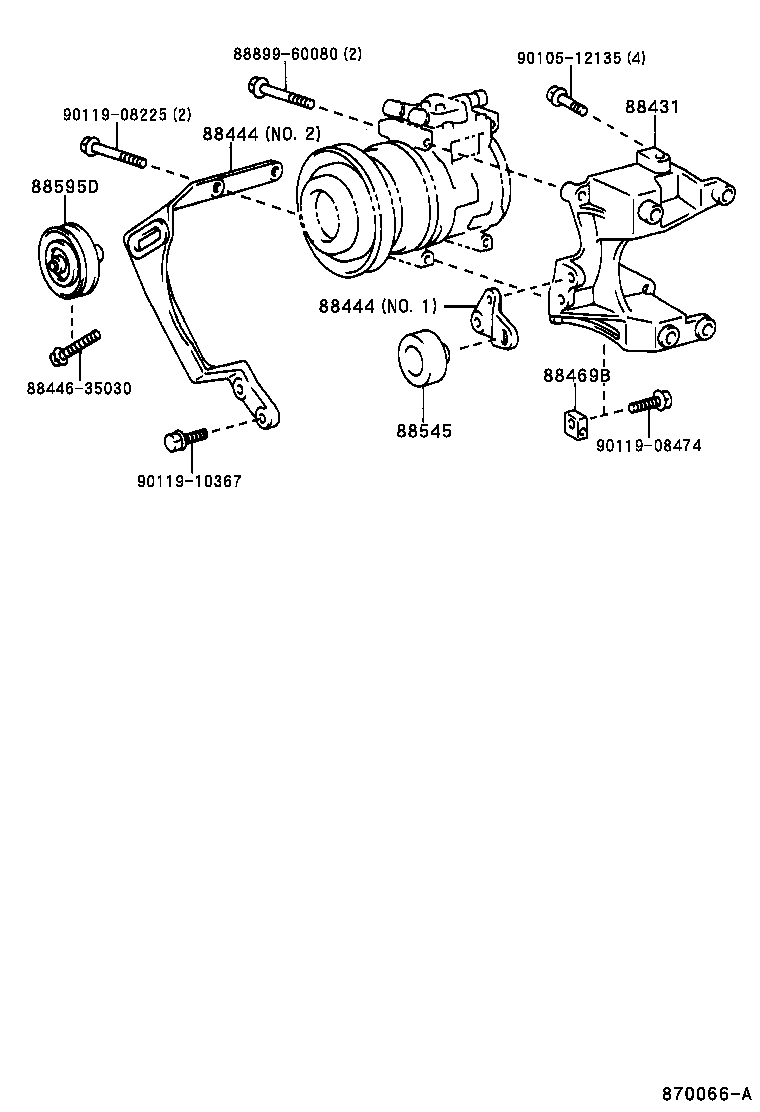

ILLUST NO. 2 OF 3(9604- )LJ9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22331 |
LJ9# |
1 | ||
| 88431-22331 |
LJ9# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22110 |
LJ9# NO.2 |
1 | ||
| 88444-22100 |
LJ9# NO.1 |
1 | ||
| 88444-22100 |
LJ9# NO.1 |
1 | ||
| 88444-22110 |
LJ9# NO.2 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22110 |
LJ9# NO.2 |
1 | ||
| 88444-22100 |
LJ9# NO.1 |
1 | ||
| 88444-22100 |
LJ9# NO.1 |
1 | ||
| 88444-22110 |
LJ9# NO.2 |
1 | ||
| 88469B - COLLAR | ||||
| 88469-30280 |
LJ9# |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LJ9# |
1 | ||
| 88440-26070 |
LJ9# |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LJ9# |
1 | ||
| 88440-35010 |
LJ9# |
1 | ||
| Common parts | ||||
| 88446-35030 | ||||
| 88899-60080 | ||||
| 90105-12135 | ||||
| 90119-08225 | ||||
| 90119-08474 | ||||
| 90119-10367 | ||||
ILLUST NO. 3 OF 3(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) REAR |
1 | ||
| 88321-32010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) REAR |
1 | ||
| 88321-32010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) REAR |
1 | ||
| 88321-32010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) FRONT |
1 | ||
| 88342-22010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) FRONT |
1 | ||
| 88342-22010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
RZJ90..GX;RZJ9#..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-60370 |
LJ9# |
1 | ||
| 88371-60370 |
LJ9# |
1 | ||
| Common parts | ||||
| 90099-04924 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
ILLUST NO. 1 OF 3(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-26030 |
KZJ9#,LJ9# |
1 | ||
| 88412-26030 |
KZJ9#,LJ9# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88411-2A030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60640 |
LJ9# |
1 | ||
| 88320-60640 |
LJ9# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-35250 |
KZJ9#,LJ9# |
1 | ||
| 88410-35250 |
KZJ9#,LJ9# |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-2D770 |
KZJ9#,LJ9# |
1 | ||
| 88688-2D770 |
KZJ9#,LJ9#..GEN,MA |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||
