Toyota Land cruiser 90 LJ95 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
GR
LAND CRUISER 90
LJ95L-GKMNS (1996)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9604- )LJ9#..LHD

Click highlighted areas on diagram

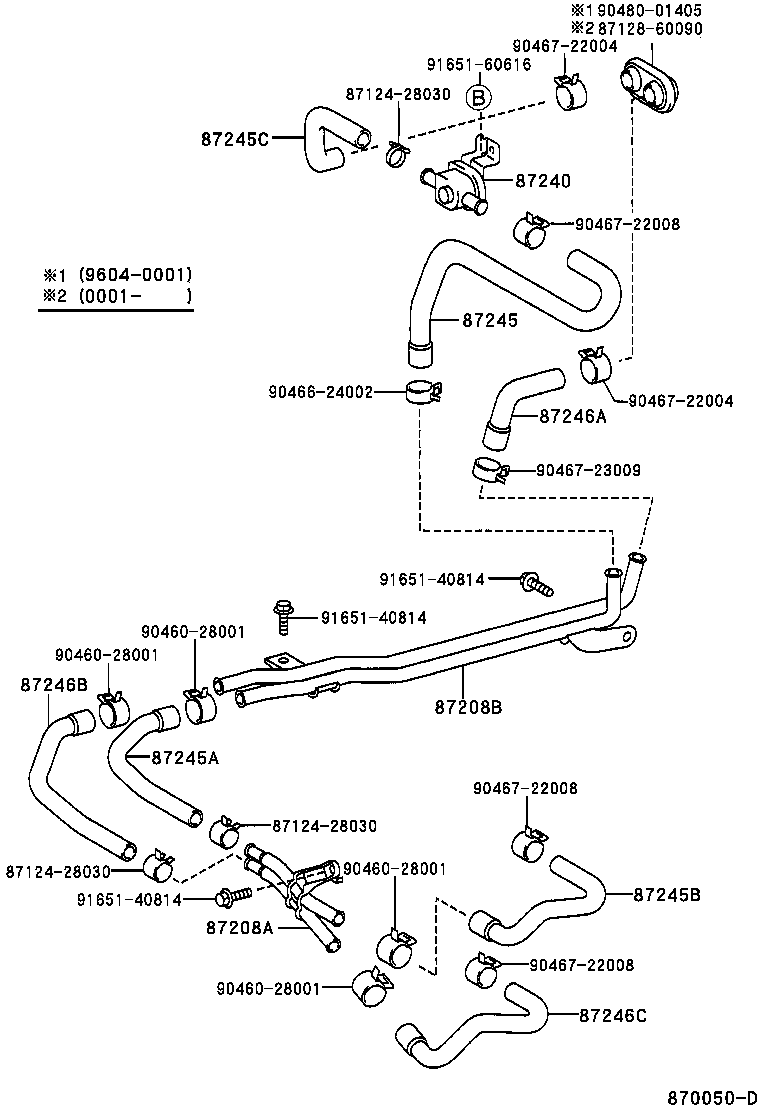

W/O(REAR HEATER)

Part #	Description	Period	Qty
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144	LJ9#	06/1999 - 09/2002	1
87208-89144	LJ9#	04/1996 - 06/1999	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-22211	LJ9#	04/1996 - 12/1996	1
87208-60480	LJ95..GX;LJ95..LHD..STD W(REAR HEATER)	06/1999 - 09/2002	1
87208-60520	LJ9#	12/1996 - 06/1999	1
87208-60480	LJ90;LJ95..GX;LJ95..LHD..STD W(REAR HEATER)	04/1996 - 06/1999	1
87208-60520	LJ9#	06/1999 - 09/2002	1
87240 - VALVE ASSY, HEATER WATER
87240-35050	KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD	04/1996 - 07/1998	1
87240-35070	RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD	07/1998 - 10/1999	1
87240-35070	RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD	06/1999 - 12/2999	1
87245 - HOSE, HEATER WATER, INLET
87245-60660	LJ9#..LHD	04/1996 - 06/1999	1
87245-60660	LJ9#..LHD	06/1999 - 09/2002	1
87245A - HOSE, HEATER WATER, INLET A
87245-2A320	LJ9# NO.2	04/1996 - 06/1999	1
87245-2A320	LJ9#	06/1999 - 09/2002	1
87245B - HOSE, HEATER WATER, INLET B
87245-2A260	LJ9# NO.2	04/1996 - 06/1999	1
87245-2A260	LJ9#	06/1999 - 09/2002	1
87245C - HOSE, HEATER WATER ,INLET C
87245-35670	RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD	04/1996 - 10/1999	1
87245-35670	RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD	06/1999 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60650	LJ9#..LHD	04/1996 - 06/1999	1
87245-60650	LJ9#..LHD	06/1999 - 09/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2A330	LJ9#	04/1996 - 06/1999	1
87245-2A330	LJ9#	06/1999 - 09/2002	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2A270	LJ9#	04/1996 - 06/1999	1
87245-2A270	LJ9#	06/1999 - 09/2002	1
Common parts
87124-28030
87128-60090
90460-28001
90466-24002
90467-22004
90467-22008
90467-23009
90480-01405
91651-40814
91651-60616

(9604- )LJ9#..LHD

Click highlighted areas on diagram

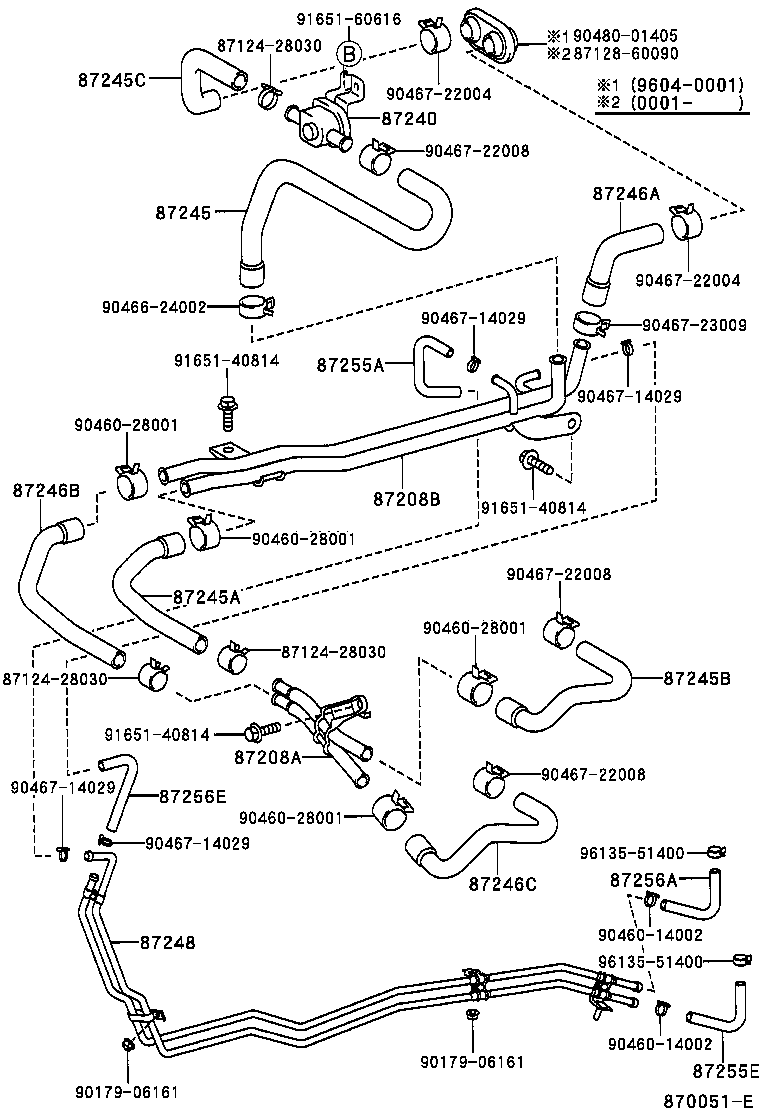

W(REAR HEATER)

Part #	Description	Period	Qty
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144	LJ9#	06/1999 - 09/2002	1
87208-89144	LJ9#	04/1996 - 06/1999	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-22211	LJ9#	04/1996 - 12/1996	1
87208-60480	LJ95..GX;LJ95..LHD..STD W(REAR HEATER)	06/1999 - 09/2002	1
87208-60520	LJ9#	12/1996 - 06/1999	1
87208-60480	LJ90;LJ95..GX;LJ95..LHD..STD W(REAR HEATER)	04/1996 - 06/1999	1
87208-60520	LJ9#	06/1999 - 09/2002	1
87240 - VALVE ASSY, HEATER WATER
87240-35050	KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD	04/1996 - 07/1998	1
87240-35070	RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD	07/1998 - 10/1999	1
87240-35070	RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD	06/1999 - 12/2999	1
87245 - HOSE, HEATER WATER, INLET
87245-60660	LJ9#..LHD	04/1996 - 06/1999	1
87245-60660	LJ9#..LHD	06/1999 - 09/2002	1
87245A - HOSE, HEATER WATER, INLET A
87245-2A320	LJ9# NO.2	04/1996 - 06/1999	1
87245-2A320	LJ9#	06/1999 - 09/2002	1
87245B - HOSE, HEATER WATER, INLET B
87245-2A260	LJ9# NO.2	04/1996 - 06/1999	1
87245-2A260	LJ9#	06/1999 - 09/2002	1
87245C - HOSE, HEATER WATER ,INLET C
87245-35670	RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD	04/1996 - 10/1999	1
87245-35670	RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD	06/1999 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60650	LJ9#..LHD	04/1996 - 06/1999	1
87245-60650	LJ9#..LHD	06/1999 - 09/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2A330	LJ9#	04/1996 - 06/1999	1
87245-2A330	LJ9#	06/1999 - 09/2002	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2A270	LJ9#	04/1996 - 06/1999	1
87245-2A270	LJ9#	06/1999 - 09/2002	1
87248 - PIPE SUB-ASSY, WATER
87248-60540	LJ9#..LHD	04/1996 - 06/1999	1
87248-60540	LJ95..LHD	06/1999 - 09/2002	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-60840	LJ9#..LHD	04/1996 - 06/1999	1
87245-60840	LJ95..LHD	06/1999 - 09/2002	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-35451	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN	10/1997 - 01/1998	1
87245-35450	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN	04/1996 - 10/1997	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-35460	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN	04/1996 - 10/1997	1
87245-35461	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN	10/1997 - 01/1998	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-60850	LJ95..LHD	06/1999 - 09/2002	1
87245-60850	LJ9#..LHD	04/1996 - 06/1999	1
Common parts
87124-28030
87128-60090
90179-06161
90460-14002
90460-28001
90466-24002
90467-14029
90467-22004
90467-22008
90467-23009
90480-01405
91651-40814
91651-60616
96135-51400

LJ95L-GKMNS (1996)

(9604- )LJ9#..LHD

(9604- )LJ9#..LHD
