LJ95L-GKMNS (1996)
Toyota Land Cruiser 90

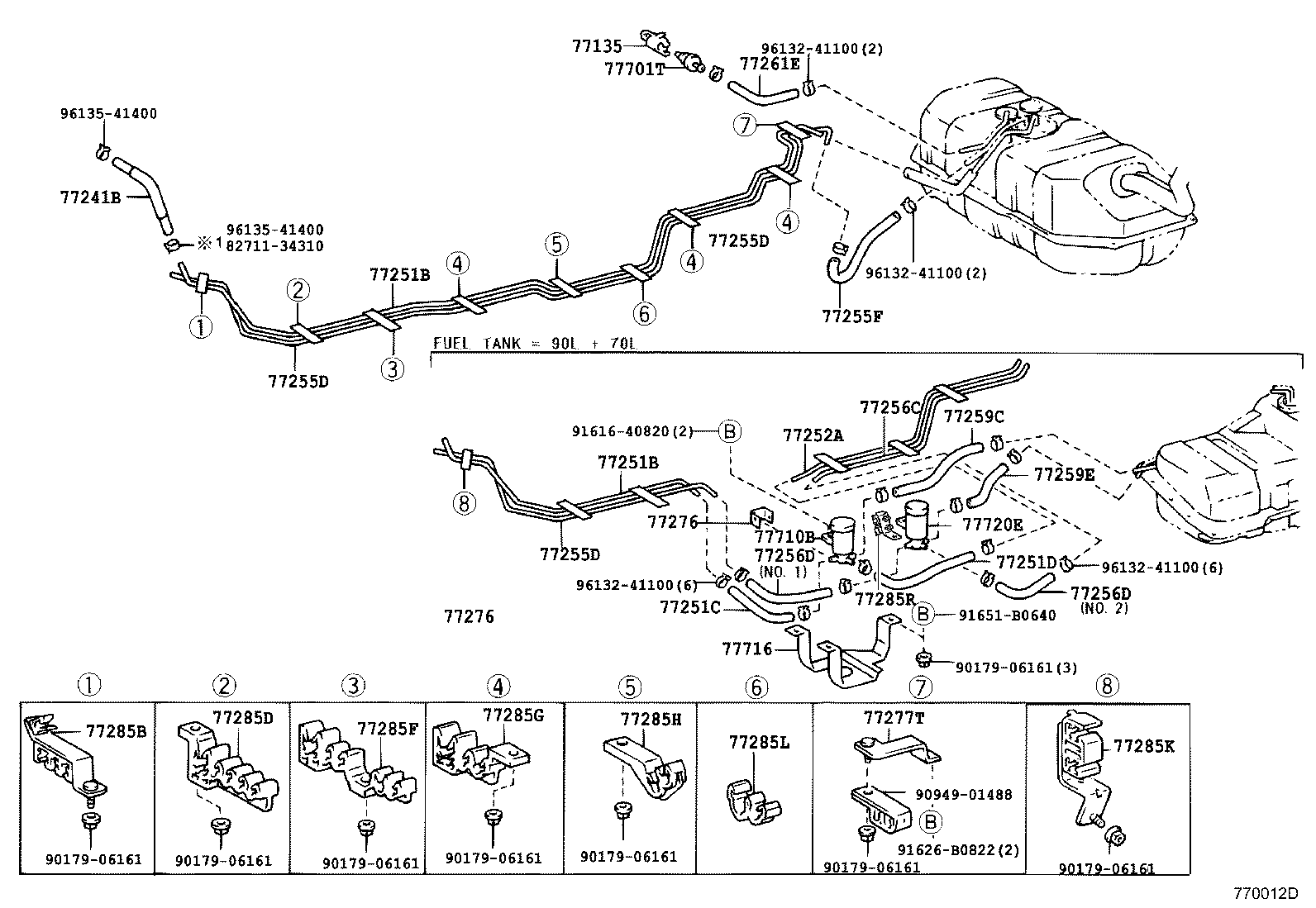

ILLUST NO. 2 OF 2(9604- )KZJ95,LJ95
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20080 |
KZJ9#,LJ9#,RZJ9#..(CBR,DSL,TD)..GEN |
1 | ||
| 77135-20080 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..(CBR,DSL,TD)..GEN |
1 | ||
| 77135-20080 |
KZJ9#,LJ9#,RZJ9#..(CBR,DSL,TD)..GEN |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77259-60200 |
KZJ9#,LJ9#..LHD L=460 |
1 | ||
| 77259-60200 |
KZJ9#,LJ9#..LHD L=460 |
1 | ||
| 77259-60200 |
LJ9#..LHD L=460 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60590 |
KZJ95,LJ95..LHD |
1 | ||
| 77251-60620 |
KZJ95,LJ95..LHD FUEL TANK=90L+70L |
1 | ||
| 77251-60591 |
KZJ95,LJ95..LHD |
1 | ||
| 77251-60620 |
KZJ95,LJ95..LHD FUEL TANK=90L+70L |
1 | ||
| 77251-60591 |
KZJ95,LJ95..LHD |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60590 |
KZJ95,LJ95..LHD |
1 | ||
| 77251-60620 |
KZJ95,LJ95..LHD FUEL TANK=90L+70L |
1 | ||
| 77251-60591 |
KZJ95,LJ95..LHD |
1 | ||
| 77251-60620 |
KZJ95,LJ95..LHD FUEL TANK=90L+70L |
1 | ||
| 77251-60591 |
KZJ95,LJ95..LHD |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95332-10018 |
KZJ95,LJ95..ARL,GEN *H,L=180 |
1 | ||
| 95332-10018 |
KZJ95,LJ95 *H,L=180 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95332-10020 |
KZJ95,LJ95 *H,L=200 |
1 | ||
| 95332-10020 |
KZJ95,LJ95..ARL,GEN *H,L=200 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-60450 |
KZJ95,LJ95 |
1 | ||
| 77252-60451 |
KZJ95,LJ95 |
1 | ||
| 77252-60451 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60540 |
KZJ95,LJ95 |
1 | ||
| 77255-60541 |
KZJ95,LJ95 |
1 | ||
| 77255-60541 |
KZJ95,LJ95 |
1 | ||
| 77255-60560 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77255-60560 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60540 |
KZJ95,LJ95 |
1 | ||
| 77255-60541 |
KZJ95,LJ95 |
1 | ||
| 77255-60541 |
KZJ95,LJ95 |
1 | ||
| 77255-60560 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77255-60560 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60540 |
KZJ95,LJ95 |
1 | ||
| 77255-60541 |
KZJ95,LJ95 |
1 | ||
| 77255-60541 |
KZJ95,LJ95 |
1 | ||
| 77255-60560 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77255-60560 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95332-10030 |
KZJ9#,LJ9# *H,L=190 |
1 | ||
| 95332-10030 |
KZJ9#,LJ9# *H,L=190 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-60340 |
KZJ95,LJ95 |
1 | ||
| 77256-60341 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77256-60341 |
KZJ95,LJ95 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 77259-60250 |
KZJ95,LJ95 NO.1 |
1 | ||
| 95333-06020 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77259-60250 |
KZJ95,LJ95..ARL,GEN NO.1 |
1 | ||
| 95333-06020 |
KZJ95,LJ95 NO.2 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 77259-60250 |
KZJ95,LJ95 NO.1 |
1 | ||
| 95333-06020 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77259-60250 |
KZJ95,LJ95..ARL,GEN NO.1 |
1 | ||
| 95333-06020 |
KZJ95,LJ95 NO.2 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60220 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77259-60190 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77259-60220 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77259-60190 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-60230 |
KZJ95,LJ95 |
1 | ||
| 77259-60230 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) *H,L=160 |
1 | ||
| 95333-06020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *H,L=160 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-60080 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-60080 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77277T - BRACKET, CHECK VALVE | ||||
| 77277-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77277-60050 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77277-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35270 |
KZJ9#,LJ9# |
1 | ||
| 77285-35270 |
KZJ9#,LJ9# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35280 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77285-35280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35290 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77285-35290 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
3 | ||
| 77285-35300 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
3 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60070 |
KZJ9#,LJ9# |
1 | ||
| 77285-60070 |
KZJ9#,LJ9# |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60160 |
KZJ95,LJ95 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30140 |
KZJ9#,LJ9# |
1 | ||
| 77285-30140 |
KZJ9#,LJ9# |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60160 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
KZJ9#,LJ9#,RZJ9#..(CBR,DSL,TD)..GEN |
1 | ||
| 90917-10067 |
KZJ9#,LJ9#,RZJ9#..(CBR,DSL,TD)..GEN |
1 | ||
| 90917-10067 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..(CBR,DSL,TD)..GEN |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60040 |
KZJ95,LJ95 |
1 | ||
| 77710-60040 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60090 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77716-60090 |
KZJ95,LJ95,RZJ95..CBR,DSL,TD |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60010 |
KZJ95,LJ95,RZJ95..CBR,DSL,TD |
1 | ||
| 77720-60010 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 82711-34310 | ||||
| 90179-06161 | ||||
| 90949-01488 | ||||
| 91616-40820 | ||||
| 91626-B0822 | ||||
| 91651-B0640 | ||||
| 96132-41100 | ||||
| 96135-41400 | ||||

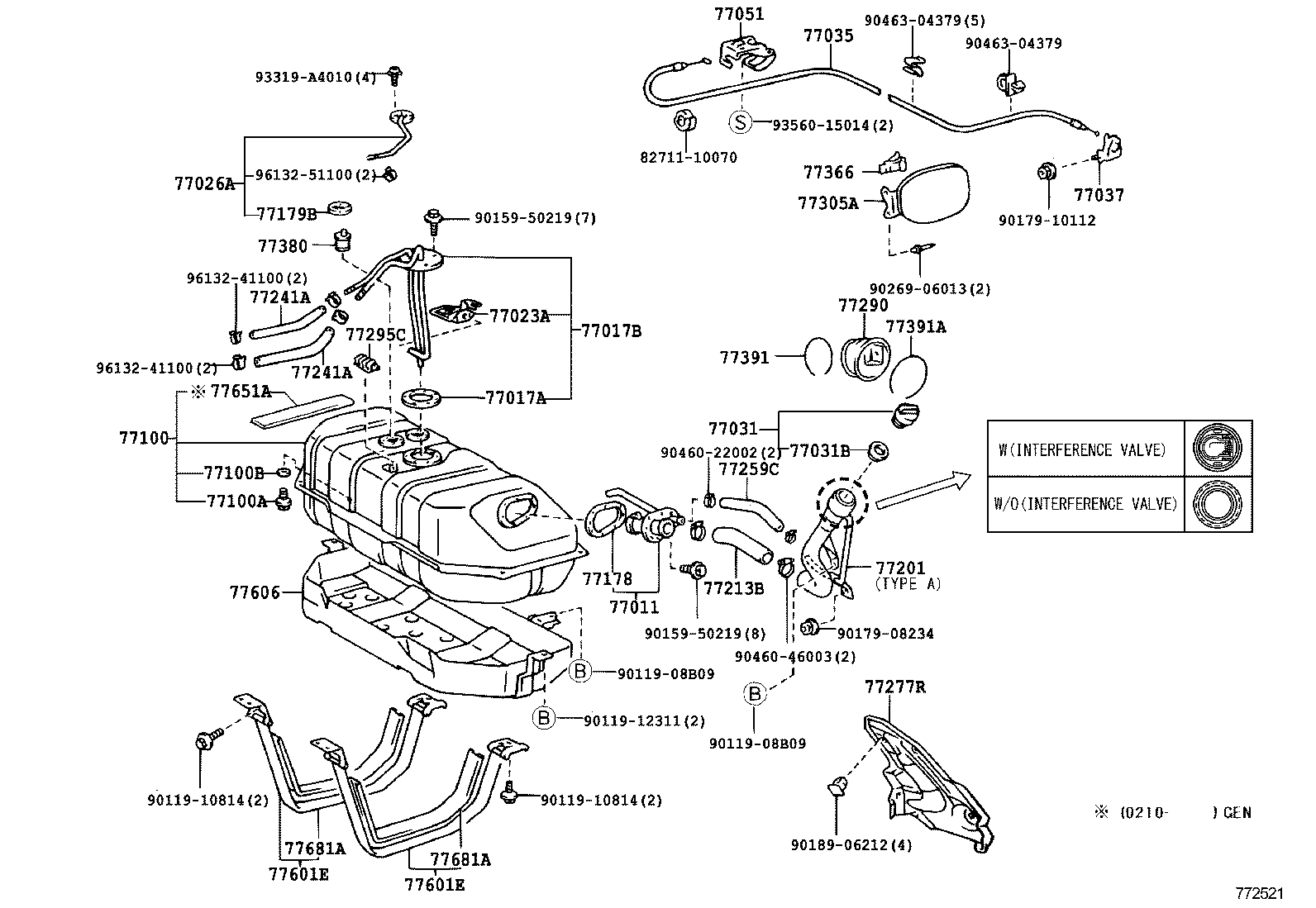

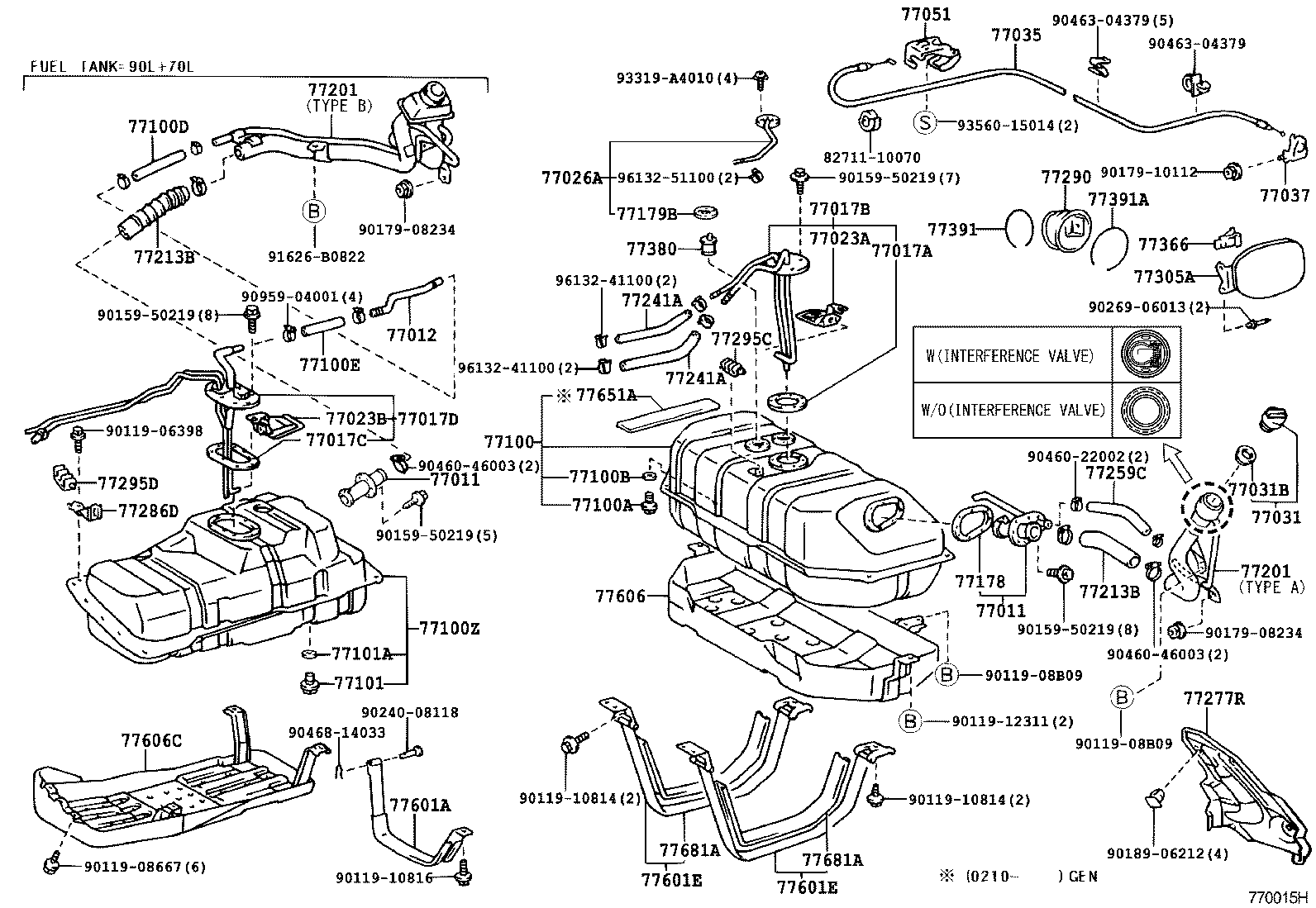

ILLUST NO. 1 OF 2(9604- )KZJ95,LJ95 ; (9604- )RZJ95..ARL,GEN
FUEL TANK,W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) FUEL TANK=90L+70L |
1 | ||
| 77011-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77011-60050 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) FUEL TANK=90L+70L |
1 | ||
| 77011-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77011-60050 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-35020 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14010 |
KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 77169-14010 |
KZJ9#,LJ9# |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60350 |
KZJ9#,LJ9# |
1 | ||
| 77017-60351 |
KZJ9#,LJ9# |
1 | ||
| 77017D - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-35020 |
KZJ95,LJ95 |
1 | ||
| 77017-35021 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77023A - FILTER SUB-ASSY, FUEL SUCTION TUBE(FOR SUB-TANK) | ||||
| 77023-26010 |
KZJ9#,LJ9# |
1 | ||
| 77023-26010 |
KZJ9#,LJ9# |
1 | ||
| 77023B - FILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2 | ||||
| 77023-26010 |
KZJ95,LJ95 |
1 | ||
| 77023-26010 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60100 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77026-60100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
KZJ9#,LJ9# |
1 | ||
| 77310-12150 |
KZJ9#,LJ9# |
1 | ||
| 77310-12150 |
KZJ9#,LJ9# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77316-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60060 |
KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX) |
1 | ||
| 77035-60060 |
RZJ95..LHD..GX..CBR;KZJ95,LJ95,VZJ95..LHD..(GX,VX) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77037-12050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060B1 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60370 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90105-12116 |
KZJ9#,LJ9# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
KZJ9#,LJ9# |
1 | ||
| 90430-12245 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77279-35040 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=170 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 77279-35040 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=170 |
1 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-60390 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77101 - PLUG(FOR FUEL SUB-TANK) | ||||
| 90105-12116 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77101A - GASKET(FOR FUEL SUB-TANK) | ||||
| 90430-12245 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77178-34010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77179-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60460 |
VZJ9#..GCC;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 77201-60640 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77201-60640 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77201-60500 |
VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD FUEL TANK=90L+70L;TYPE B |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60460 |
VZJ9#..GCC;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 77201-60640 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77201-60640 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77201-60500 |
VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD FUEL TANK=90L+70L;TYPE B |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35270 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=368,FUEL TANK=90L+70L |
1 | ||
| 77213-60120 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77213-60120 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35270 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=368,FUEL TANK=90L+70L |
1 | ||
| 77213-60120 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77213-60120 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60220 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77259-60190 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77259-60220 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77259-60190 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77277-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35030 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-60040 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77291-60040 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35150 |
KZJ9#,LJ9# |
1 | ||
| 77295-35150 |
KZJ9#,LJ9# |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35150 |
KZJ95,LJ95 |
1 | ||
| 77295-35150 |
KZJ95,LJ95..ARL,GEN |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77350-60020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 77350-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77360-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77391-14020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-60020 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391-60020 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-35060 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60090 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77606-60090 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-35010 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77606-35010 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 90119-06398 | ||||
| 90119-08667 | ||||
| 90119-08B09 | ||||
| 90119-10814 | ||||
| 90119-10816 | ||||
| 90119-12311 | ||||
| 90159-50219 | ||||
| 90179-08234 | ||||
| 90179-10112 | ||||
| 90189-06212 | ||||
| 90240-08118 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90463-04379 | ||||
| 90468-14033 | ||||
| 90959-04001 | ||||
| 91626-B0822 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 96132-41100 | ||||
| 96132-51100 | ||||
ILLUST NO. 1 OF 2(9604- )KZJ95,LJ95 ; (9604- )RZJ95..ARL,GEN
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) FUEL TANK=90L+70L |
1 | ||
| 77011-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77011-60050 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14010 |
KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 77169-14010 |
KZJ9#,LJ9# |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60350 |
KZJ9#,LJ9# |
1 | ||
| 77017-60351 |
KZJ9#,LJ9# |
1 | ||
| 77023A - FILTER SUB-ASSY, FUEL SUCTION TUBE(FOR SUB-TANK) | ||||
| 77023-26010 |
KZJ9#,LJ9# |
1 | ||
| 77023-26010 |
KZJ9#,LJ9# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60100 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77026-60100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
KZJ9#,LJ9# |
1 | ||
| 77310-12150 |
KZJ9#,LJ9# |
1 | ||
| 77310-12150 |
KZJ9#,LJ9# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77316-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60060 |
KZJ95,LJ95,RZJ95,VZJ95..LHD..(GX,VX) |
1 | ||
| 77035-60060 |
RZJ95..LHD..GX..CBR;KZJ95,LJ95,VZJ95..LHD..(GX,VX) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77037-12050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060B1 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60370 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90105-12116 |
KZJ9#,LJ9# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
KZJ9#,LJ9# |
1 | ||
| 90430-12245 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77178-34010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77179-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60460 |
VZJ9#..GCC;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 77201-60640 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77201-60640 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77201-60500 |
VZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD FUEL TANK=90L+70L;TYPE B |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35270 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=368,FUEL TANK=90L+70L |
1 | ||
| 77213-60120 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77213-60120 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 95333-06020 |
KZJ9#,LJ9# *H,L=180 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60220 |
KZJ95,LJ95 FUEL TANK=90L+70L |
1 | ||
| 77259-60190 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77259-60220 |
KZJ95,LJ95..ARL,GEN FUEL TANK=90L+70L |
1 | ||
| 77259-60190 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77277-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-60040 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77291-60040 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35150 |
KZJ9#,LJ9# |
1 | ||
| 77295-35150 |
KZJ9#,LJ9# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77350-60020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 77350-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77360-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77391-14020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-60020 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391-60020 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60090 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77606-60090 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 90119-08B09 | ||||
| 90119-10814 | ||||
| 90119-12311 | ||||
| 90159-50219 | ||||
| 90179-08234 | ||||
| 90179-10112 | ||||
| 90189-06212 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90463-04379 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 96132-41100 | ||||
| 96132-51100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
