LJ95L-GKMNS (1996)
Toyota Land Cruiser 90
Production
Apr 1996
-
Sep 2002
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9604- )LJ9#..LHD

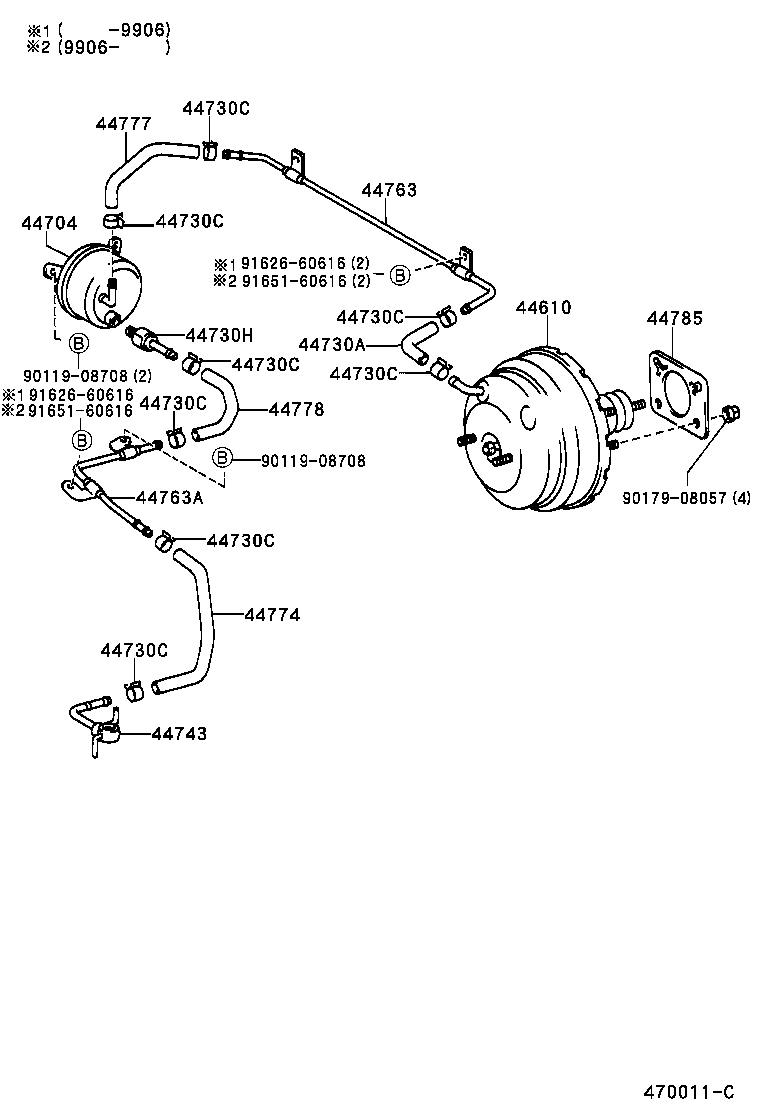

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60890 |
LJ9# |
1 | ||
| 44610-6A100 |
LJ9#;KZJ95..RHD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60200 |
LJ9# |
1 | ||
| 44704-60200 |
LJ9# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 95446-09160 |
LJ9#..LHD |
1 | ||
| 95446-09160 |
LJ9#..LHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 90467-16002 |
LJ9#..LHD |
8 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-60050 |
LJ9# |
1 | ||
| 44730-60050 |
LJ9# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09136 |
LJ9# |
1 | ||
| 90405-09136 |
LJ9# |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-60060 |
LJ9#..LHD |
1 | ||
| 44763-60060 |
LJ9#..LHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-60050 |
LJ9# |
1 | ||
| 44763-60050 |
LJ9# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-60200 |
LJ9# |
1 | ||
| 44774-60200 |
LJ9# |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60310 |
LJ9#..LHD |
1 | ||
| 44777-60310 |
LJ9#..LHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60140 |
LJ9# |
1 | ||
| 44778-60140 |
LJ9# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 44785-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90119-08708 | ||||
| 90179-08057 | ||||
| 91626-60616 | ||||
| 91651-60616 | ||||
