LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )LJ9#..LHD

Click highlighted areas on diagram

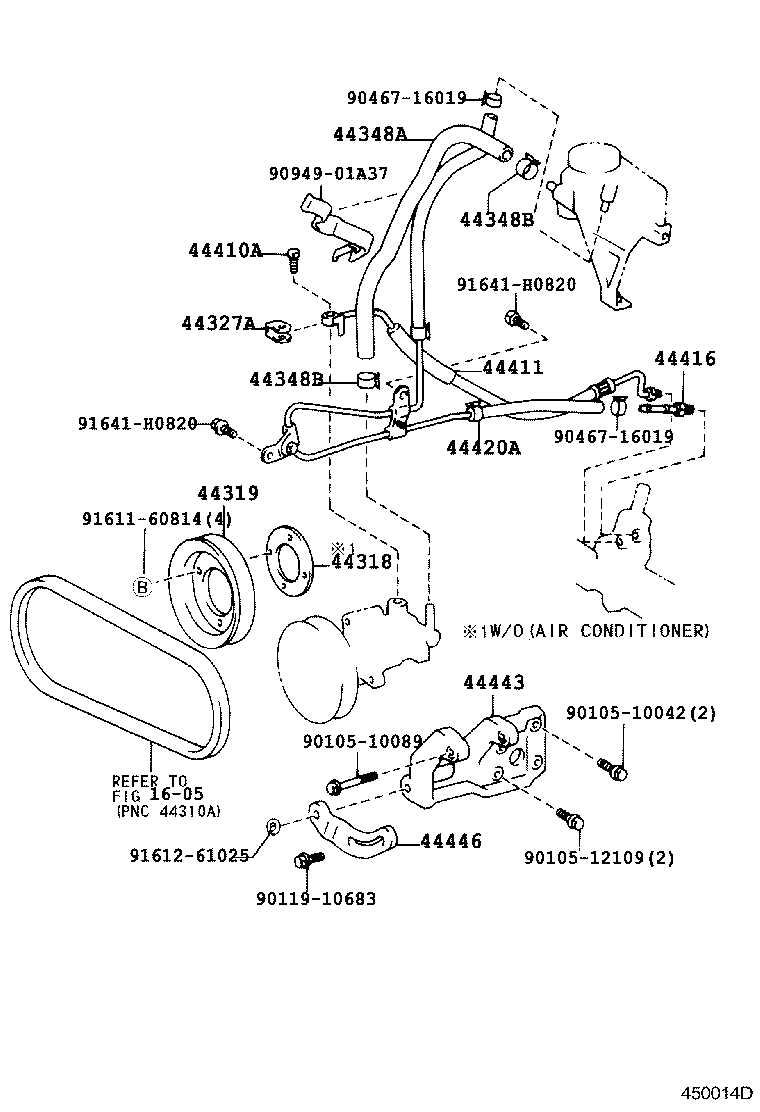

diagram 1605 44318 44319 44327A 44348A 44348B 44348B 44410A 44411 44416 44420A 44443 44446 9010510042 9010510089 9010512109 9011910683 9046716019 9046716019 9094901A37 9161160814 9161261025 91641H0820 91641H0820
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-35010

LJ9#

 1
44318-35010

LJ9#

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-22010

LJ9#

 1
44319-22010

LJ9#

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

KZJ9#,LJ9#

 1
44327-12010

KZJ9#,LJ9#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60210

LJ9#..LHD

 1
44348-60210

LJ9#..LHD

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

KZJ9#,LJ9#

 2
90467-21005

KZJ9#,LJ9#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

KZJ9#,LJ9#

 2
90467-21005

KZJ9#,LJ9#

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

KZJ95,LJ9#..DSL,TDEFI

 1
96341-41603

KZJ9#,LJ9#

 1
44411 - HOSE, PRESSURE FEED
44411-60510

LJ9#..LHD

 1
44411-60510

LJ9#..LHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-42020

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
44416-42020

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN)

 1
44416-42020

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
44420A - TUBE ASSY, RETURN
44420-60320

LJ9#..LHD

 1
44420-60320

LJ9#..LHD

 1
44443 - BRACKET, PUMP
44443-22080

LJ9#

 1
44443-22080

LJ9#

 1
44446 - STRUT, ADJUSTING
44446-30070

LJ9#

 1
44446-30070

LJ9#

 1
Common parts
90105-10042
90105-10089
90105-12109
90119-10683
90467-16019
90949-01A37
91611-60814
91612-61025
91641-H0820
Linked diagrams
1605
