LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0209)LJ9#

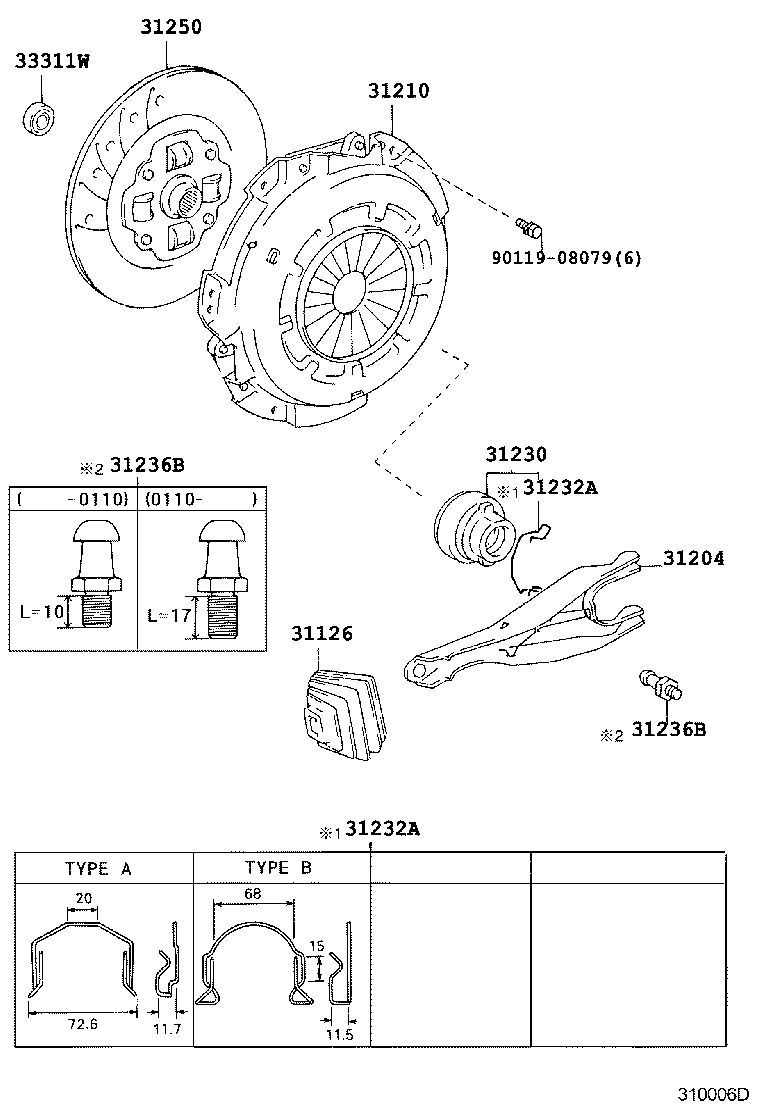

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31236B 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

LJ9#

 1
31126-20070

LJ9#

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35050

LJ9#

 1
31204-35050

LJ9#

 1
31210 - COVER ASSY, CLUTCH
31210-35100

LJ9#

 1
31210-35101

LJ9#

 1
31210-35100

LJ9#

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35060

LJ9#

 1
31230-35060

LJ9#

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35030

LJ9#

TYPE B:REFER ILLUST.

 1
31232-35020

LJ9#,RZJ9#..MTM

TYPE A:REFER ILLUST.

 1
31232-35020

RZJ90..GX;RZJ9#..CBR;LJ9#,VZJ9#..MTM;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
31232-35030

LJ9#,VZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35030

LJ9#

TYPE B:REFER ILLUST.

 1
31232-35020

LJ9#,RZJ9#..MTM

TYPE A:REFER ILLUST.

 1
31232-35020

RZJ90..GX;RZJ9#..CBR;LJ9#,VZJ9#..MTM;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
31232-35030

LJ9#,VZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

LJ9#

 1
31236-30060

RZJ90..GX;LJ9#,RZJ9#..CBR,DSL;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
31236-26010

LJ9#

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

LJ9#

 1
31236-30060

RZJ90..GX;LJ9#,RZJ9#..CBR,DSL;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
31236-26010

LJ9#

 1
31250 - DISC ASSY, CLUTCH
31250-35410

LJ9#

 1
31250-35222

LJ9#

 1
31250-35221

LJ9#

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
90363-12002

KZJ95,LJ9#,VZJ9#..MTM..(DSL,EFI,TDEFI)..(ARL,GCC,GEN)

 1
Common parts
90119-08079
