LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

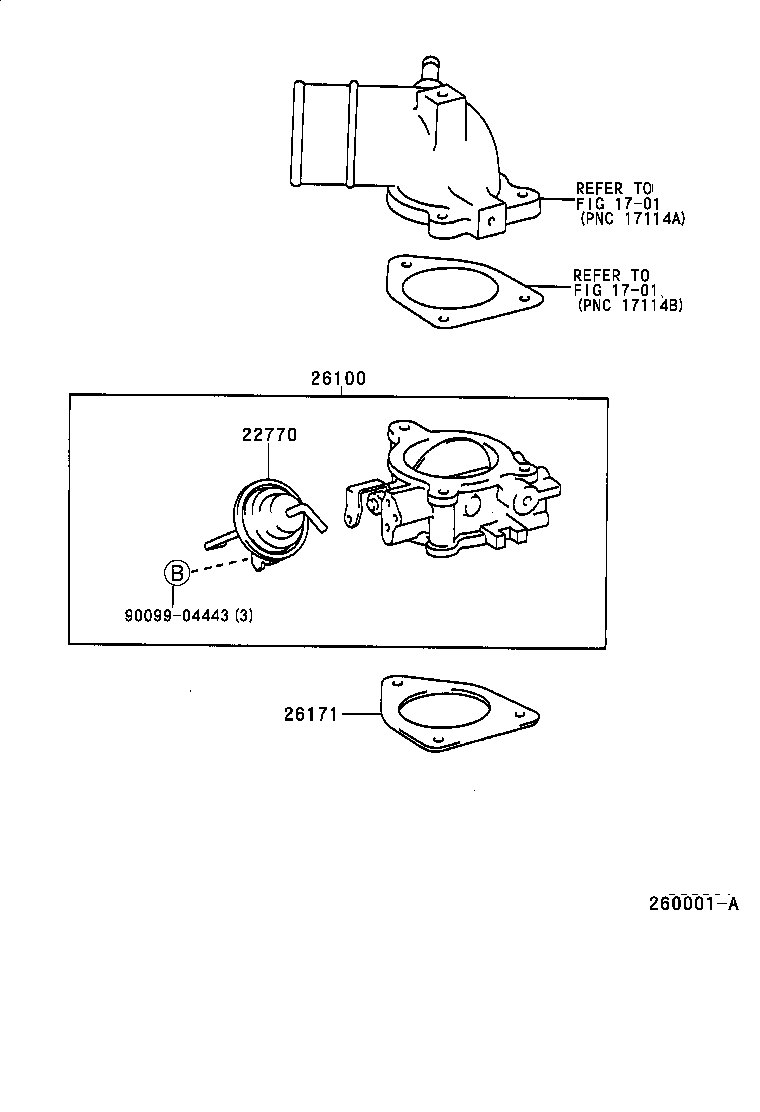

(9604-9704)3L

Click highlighted areas on diagram

diagram 1701 1701 1701 22770 26100 26171 9009904443
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-54150

3L..LJ9#

 1
26133-54260

3L..LJ9#

 1
26133-54260

3L..LJ9#

 1
26100 - VENTURI ASSY
26100-54230

3L..LJ9#

 1
26100-54260

3L..LJ9#

 1
26100-54260

3L..LJ9#

 1
26171 - GASKET, VENTURI
17116-54021

3L..LJ9#

 1
17116-54030

3L..LJ9#

 1
17116-54021

3L..LJ9#

 1
Common parts
90099-04443
Linked diagrams
1701

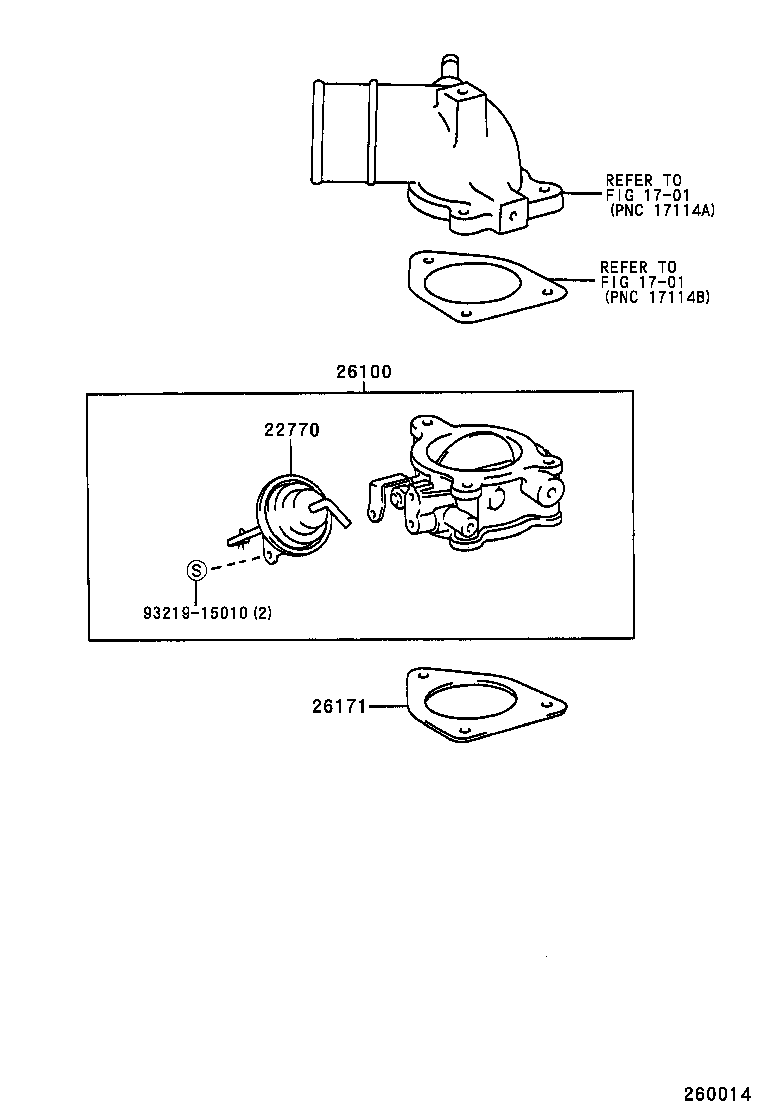

(9704- )3L

Click highlighted areas on diagram

diagram 1701 1701 22770 26100 26171 9321915010
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-54150

3L..LJ9#

 1
26133-54260

3L..LJ9#

 1
26133-54260

3L..LJ9#

 1
26100 - VENTURI ASSY
26100-54230

3L..LJ9#

 1
26100-54260

3L..LJ9#

 1
26100-54260

3L..LJ9#

 1
26171 - GASKET, VENTURI
17116-54021

3L..LJ9#

 1
17116-54030

3L..LJ9#

 1
17116-54021

3L..LJ9#

 1
Common parts
93219-15010
Linked diagrams
1701
