LJ95L-GKMNS (1996)
Toyota Land Cruiser 90
Production
Apr 1996
-
Sep 2002
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9604- )3L

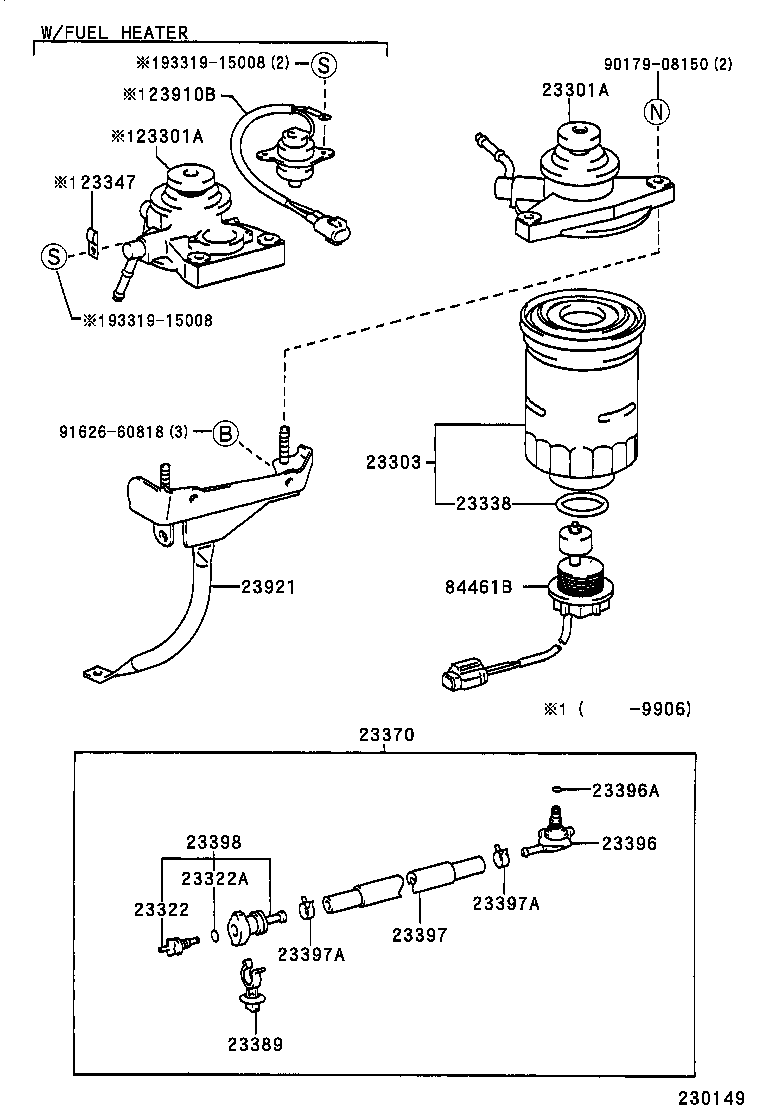

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23380-67310 |
3L..LJ9#..LHD |
1 | ||
| 23380-67170 |
3L..LJ95..LHD W(FUEL HEATER) |
1 | ||
| 23380-30060 |
3L..LJ9#..LHD |
1 | ||
| 23380-67160 |
3L..LJ9#..LHD |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23380-67310 |
3L..LJ9#..LHD |
1 | ||
| 23380-67170 |
3L..LJ95..LHD W(FUEL HEATER) |
1 | ||
| 23380-30060 |
3L..LJ9#..LHD |
1 | ||
| 23380-67160 |
3L..LJ9#..LHD |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
3L..LJ9# |
1 | ||
| 23390-64480 |
3L..LJ9# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
3L..LJ9# |
1 | ||
| 23322-64010 |
3L..LJ9# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
3L..LJ9# |
1 | ||
| 23344-54010 |
3L..LJ9# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
3L..LJ9# |
1 | ||
| 23344-64010 |
3L..LJ9# |
1 | ||
| 23347 - CLIP, CORD | ||||
| 23347-54010 |
3L..LJ95..LHD |
1 | ||
| 23370 - COCK ASSY, FUEL FILTER DRAIN | ||||
| 23370-67010 |
3L..LJ9# |
1 | ||
| 23370-67010 |
3L..LJ9# |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-67140 |
3L..LJ9# |
1 | ||
| 23389-67140 |
3L..LJ9# |
1 | ||
| 23396 - COCK, FUEL FILTER DRAIN | ||||
| 23396-67140 |
3L..LJ9# |
1 | ||
| 23396-67140 |
3L..LJ9# |
1 | ||
| 23396A - RING, O(FOR DRAIN COCK) | ||||
| 23344-54010 |
3L..LJ9# |
1 | ||
| 23344-54010 |
3L..LJ9# |
1 | ||
| 23397 - HOSE, FUEL FILTER DRAIN | ||||
| 23397-67140 |
3L..LJ9# |
1 | ||
| 23397-67140 |
3L..LJ9# |
1 | ||
| 23397A - CLIP, HOSE(FOR DRAIN HOSE) | ||||
| 90099-35036 |
3L..LJ9# |
2 | ||
| 90099-35036 |
3L..LJ9# |
2 | ||
| 23397A - CLIP, HOSE(FOR DRAIN HOSE) | ||||
| 90099-35036 |
3L..LJ9# |
2 | ||
| 90099-35036 |
3L..LJ9# |
2 | ||
| 23398 - VALVE, FUEL FILTER DRAIN | ||||
| 23398-67140 |
3L..LJ9# |
1 | ||
| 23398-67140 |
3L..LJ9# |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-67020 |
3L..LJ95..LHD |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-67060 |
3L..LJ9#..LHD |
1 | ||
| 23921-67060 |
3L..LJ9#..LHD |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60060 |
LJ9# |
1 | ||
| 84461-60060 |
LJ9# |
1 | ||
| Common parts | ||||
| 90179-08150 | ||||
| 91626-60818 | ||||
| 93319-15008 | ||||
