LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3L

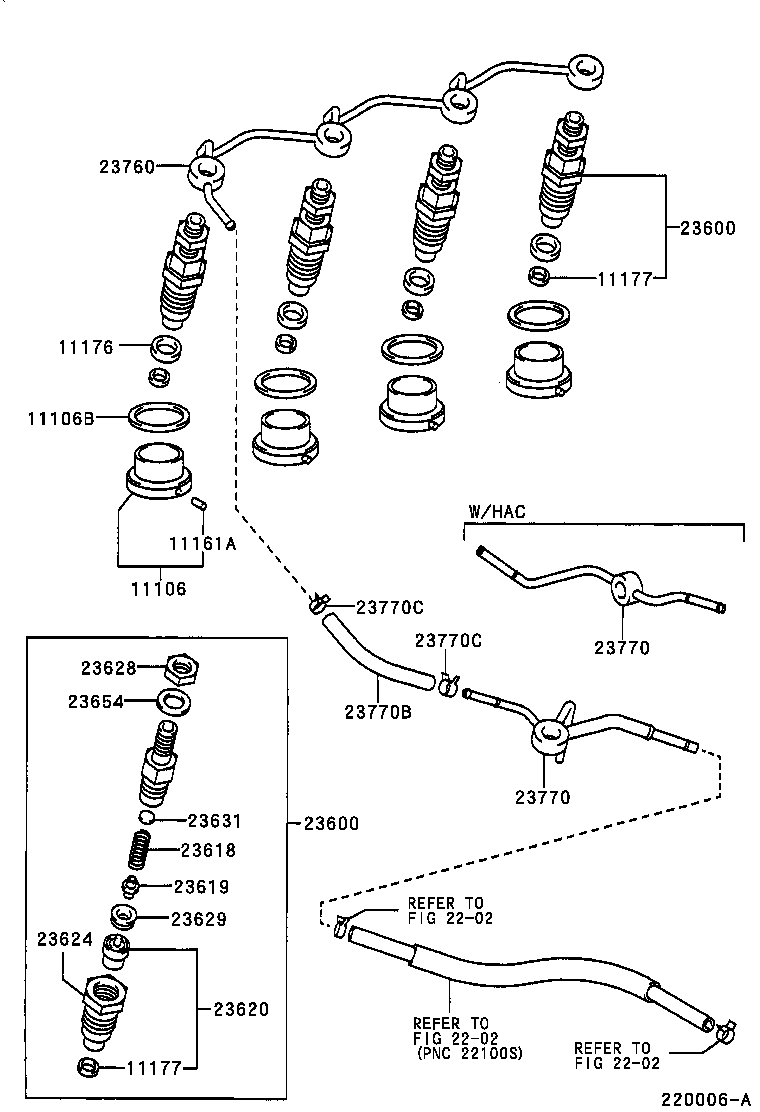

Click highlighted areas on diagram

diagram 11106 11106B 11161A 11176 11177 11177 2202 2202 2202 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23770 23770 23770B 23770C 23770C
Part # Description Qty Price
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-54120

3L..LJ9#

 4
11106-54120

3L..LJ9#

 4
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

3L..LJ9#

T=0.03

 8
11165-54030

3L..LJ9#

T=0.03

 8
11161A - PIN, STRAIGHT(FOR COMBUSTION CHAMBER)
90250-02046

3L..LJ9#

 4
90250-02046

3L..LJ9#

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

3L..LJ9#

 4
11176-64010

3L..LJ9#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54020

3L..LJ9#

 4
11177-54020

3L..LJ9#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54020

3L..LJ9#

 4
11177-54020

3L..LJ9#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59105

3L..LJ9#

 4
23600-59105

3L..LJ9#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59105

3L..LJ9#

 4
23600-59105

3L..LJ9#

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-54080

3L..LJ9#

 4
23618-54080

3L..LJ9#

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-64010

3L..LJ9#

 4
23619-64010

3L..LJ9#

 4
23620 - NOZZLE ASSY
23620-59045

3L..LJ9#

 4
23620-59045

3L..LJ9#

 4
23624 - NUT, NOZZLE RETAINING
23624-64040

3L..LJ9#

 4
23624-64040

3L..LJ9#

 4
23628 - NUT(FOR RING PACKING SETTING)
23628-64010

3L..LJ9#

 4
23628-64010

3L..LJ9#

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-54080

3L..LJ9#

 4
23629-54080

3L..LJ9#

 4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-64016

3L..LJ9#

T=1.050

 4
23631-64014

3L..LJ9#

T=1.000

 4
23631-64018

3L..LJ9#

T=1.100

 4
23632-64010

3L..LJ9#

T=1.150

 4
23632-64012

3L..LJ9#

T=1.200

 4
23631-64010

3L..LJ9#

T=0.900

 4
23632-64016

3L..LJ9#

T=1.300

 4
23633-64018

3L..LJ9#

T=1.600

 4
23633-64010

3L..LJ9#

T=1.400

 4
23633-64012

3L..LJ9#

T=1.450

 4
23633-64016

3L..LJ9#

T=1.550

 4
23632-64018

3L..LJ9#

T=1.350

 4
23631-64012

3L..LJ9#

T=0.950

 4
23633-64014

3L..LJ9#

T=1.500

 4
23634-64010

3L..LJ9#

T=1.650

 4
23634-64014

3L..LJ9#

T=1.750

 4
23632-64014

3L..LJ9#

T=1.250

 4
23634-64018

3L..LJ9#

T=1.850

 4
23634-64012

3L..LJ9#

T=1.700

 4
23634-64016

3L..LJ9#

T=1.800

 4
23631-64010

3L..LJ9#

T=0.900

 4
23635-64010

3L..LJ9#

T=1.900

 4
23635-64012

3L..LJ9#

T=1.950

 4
23631-64012

3L..LJ9#

T=0.950

 4
23631-64014

3L..LJ9#

T=1.000

 4
23631-64018

3L..LJ9#

T=1.100

 4
23631-64016

3L..LJ9#

T=1.050

 4
23632-64018

3L..LJ9#

T=1.350

 4
23632-64014

3L..LJ9#

T=1.250

 4
23633-64010

3L..LJ9#

T=1.400

 4
23633-64014

3L..LJ9#

T=1.500

 4
23632-64016

3L..LJ9#

T=1.300

 4
23632-64012

3L..LJ9#

T=1.200

 4
23632-64010

3L..LJ9#

T=1.150

 4
23633-64012

3L..LJ9#

T=1.450

 4
23633-64016

3L..LJ9#

T=1.550

 4
23634-64010

3L..LJ9#

T=1.650

 4
23635-64010

3L..LJ9#

T=1.900

 4
23634-64018

3L..LJ9#

T=1.850

 4
23633-64018

3L..LJ9#

T=1.600

 4
23634-64016

3L..LJ9#

T=1.800

 4
23634-64012

3L..LJ9#

T=1.700

 4
23635-64012

3L..LJ9#

T=1.950

 4
23634-64014

3L..LJ9#

T=1.750

 4
23654 - WASHER(FOR RING PACKING)
23654-64010

3L..LJ9#

 4
23654-64010

3L..LJ9#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-54030

3L..LJ9#

(J)

 1
23760-05010

3L..LJ9#

(L)

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-54080

3L..LJ9#

 1
23764-54090

3L..LJ9#

W(HIGH ALTITUDE COMPENSATOR)

 1
23764-54090

3L..LJ9#

W(HIGH ALTITUDE COMPENSATOR)

 1
23764-54080

3L..LJ9#

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-54080

3L..LJ9#

 1
23764-54090

3L..LJ9#

W(HIGH ALTITUDE COMPENSATOR)

 1
23764-54090

3L..LJ9#

W(HIGH ALTITUDE COMPENSATOR)

 1
23764-54080

3L..LJ9#

 1
23770B - HOSE, FUEL
95333-04020

3L..LJ9#

*H,L=120,ID=4

 1
95333-04020

3L..LJ9#

*H,L=120,ID=4

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-51000

3L..LJ9#

 2
96133-41000

3L..LJ9#

 2
96133-41000

3L..LJ9#

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-51000

3L..LJ9#

 2
96133-41000

3L..LJ9#

 2
96133-41000

3L..LJ9#

 2
Linked diagrams
2202
