LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3L

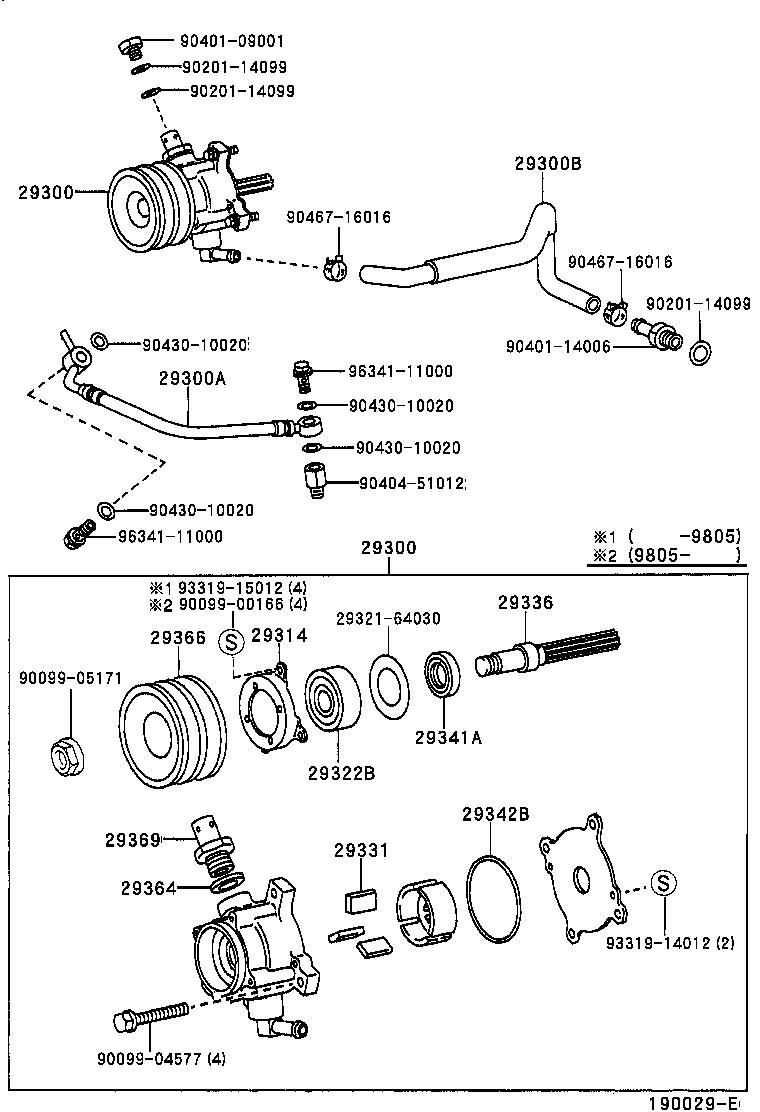

Click highlighted areas on diagram

diagram 29300 29300 29300A 29300B 29314 2932164030 29322B 29331 29336 29341A 29342B 29364 29366 29369 9009900166 9009904577 9009905171 9020114099 9020114099 9020114099 9040109001 9040114006 9040451012 9043010020 9043010020 9043010020 9043010020 9046716016 9046716016 9331914012 9331915012 9634111000 9634111000
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54140

3L..LJ9#

 1
29300-54150

3L..LJ9#

 1
29300-54170

3L..LJ9#

 1
29300-54150

3L..LJ9#

 1
29300 - PUMP ASSY, VACUUM
29300-54140

3L..LJ9#

 1
29300-54150

3L..LJ9#

 1
29300-54170

3L..LJ9#

 1
29300-54150

3L..LJ9#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02118

3L..LJ9#

 1
90923-02118

3L..LJ9#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29611-54090

3L..LJ9#

 1
29611-54090

3L..LJ9#

 1
29314 - RING, STOP
29314-64030

3L..LJ9#

 1
29314-64030

3L..LJ9#

 1
29322B - BEARING, VACUUM PUMP
90099-10199

3L..LJ9#

 1
90099-10166

3L..LJ9#

 1
90099-10199

3L..LJ9#

 1
29331 - BLADE, VACUUM PUMP, A
29331-64030

3L..LJ9#

 5
29331-54130

3L..LJ9#

 5
29336 - SHAFT, VACUUM PUMP
29336-64031

3L..LJ9#

 1
29336-64031

3L..LJ9#

 1
29341A - SEAL, OIL
29341-64030

3L..LJ9#

 1
29341-64030

3L..LJ9#

 1
29342B - RING, O
29342-64030

3L..LJ9#

 1
29342-64030

3L..LJ9#

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1KZ#,3L..KZJ9#,LJ9#

 1
29364-66010

1KZT,3L..KZJ9#,LJ9#

 1
29366 - PULLEY, VACUUM PUMP
29366-54110

3L..LJ9#

 1
29366-54110

3L..LJ9#

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1KZ#,3L..KZJ9#,LJ9#

 1
29369-64030

1KZT,3L..KZJ9#,LJ9#

 1
Common parts
29321-64030
90099-00166
90099-04577
90099-05171
90201-14099
90401-09001
90401-14006
90404-51012
90430-10020
90467-16016
93319-14012
93319-15012
96341-11000
