LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3L

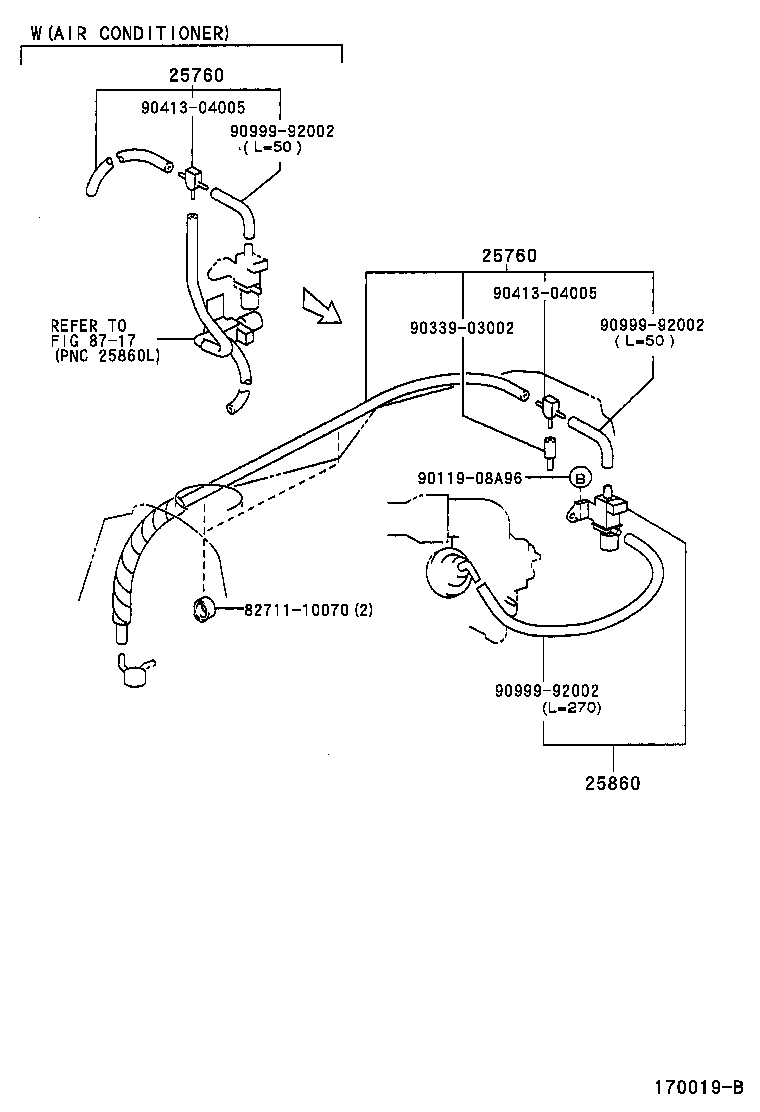

Click highlighted areas on diagram

diagram 25760 25760 25860 8271110070 8717 9011908A96 9033903002 9041304005 9041304005 9099992002 9099992002 9099992002
Part # Description Qty Price
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-54080

3L..LJ9#

 1
25760-54080

3L..LJ9#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-54080

3L..LJ9#

 1
25760-54080

3L..LJ9#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54130

3L..LJ9#

 1
25860-54130

3L..LJ9#

 1
Common parts
82711-10070
90119-08A96
90339-03002
90413-04005
90999-92002
Linked diagrams
8717
