LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3L..LHD

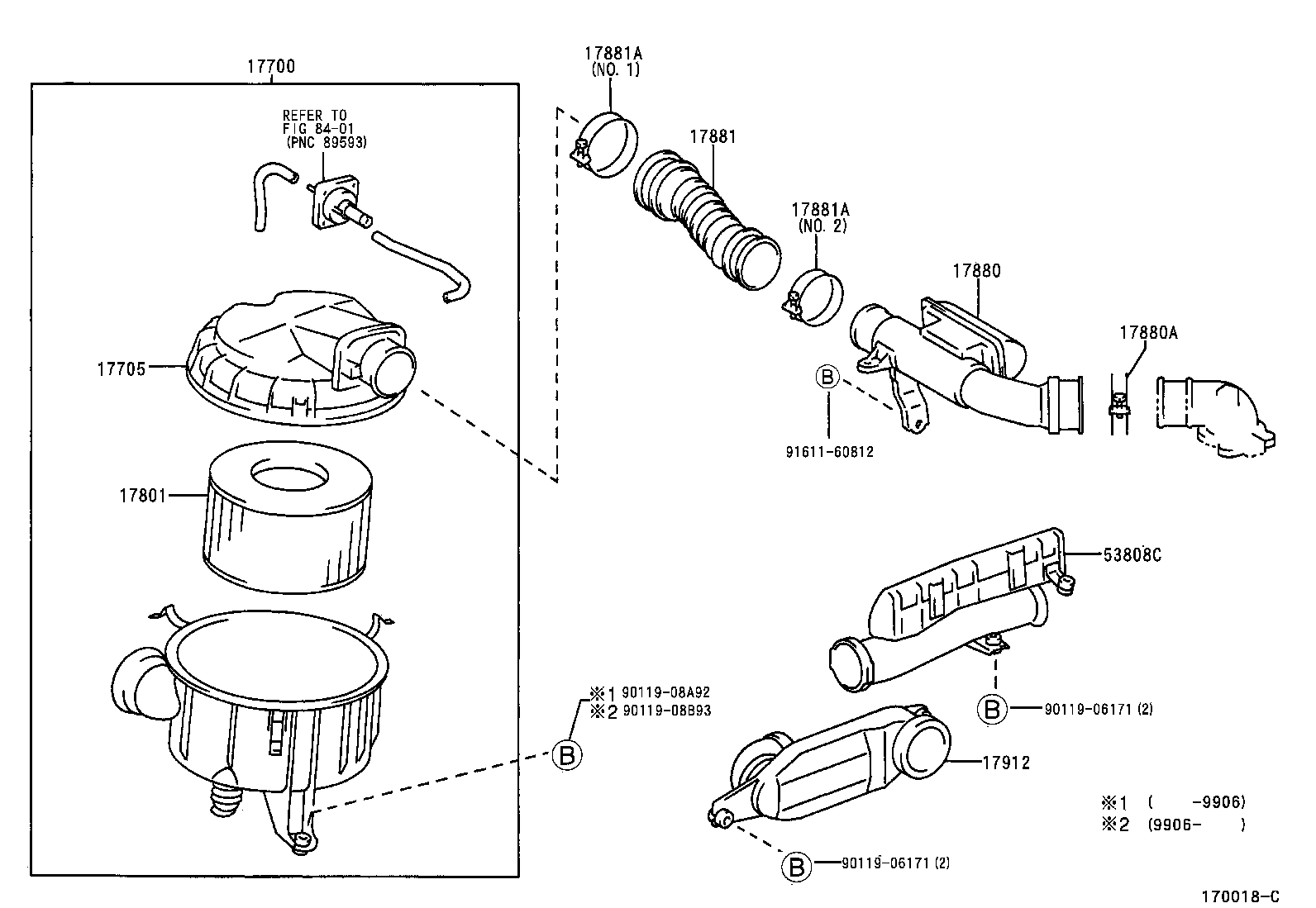

Click highlighted areas on diagram

diagram 17700 17705 17801 17880 17880A 17881 17881A 17881A 17912 53808C 8401 9011906171 9011906171 9011908A92 9011908B93 9161160812
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-5B040

3L..LJ9#..LHD

W(AIR CLEANER PLUGGING WARNING)

 1
17700-5B030

3L..LJ9#..LHD

 1
17700-5B030

3L..LJ9#..LHD

 1
17700-5B040

3L..LJ9#..LHD

W(AIR CLEANER PLUGGING WARNING)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-67100

3L..LJ9#

 1
17705-54370

3L..LJ9#..LHD

W(AIR CLEANER PLUGGING WARNING)

 1
17705-54370

3L..LJ9#..LHD

W(AIR CLEANER PLUGGING WARNING)

 1
17705-67100

3L..LJ9#..LHD

 1
17705-67100

3L..LJ9#..LHD

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-67060

3L..LJ9#

 1
17801-67060

3L..LJ9#..LHD

 1
17801-67060

3L..LJ9#..LHD

 1
17880 - HOSE ASSY, AIR CLEANER
17880-54220

3L..LJ9#..LHD

 1
17880-54220

3L..LJ9#..LHD

 1
17880A - CLAMP, HOSE
96111-10730

3L..LJ9#..LHD

 1
96111-10730

3L..LJ9#..LHD

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-54610

3L..LJ9#..LHD

 1
17881-54610

3L..LJ9#..LHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

3L..LJ9#..LHD

NO.2

 1
96111-10830

3L..LJ9#..LHD

NO.1

 1
96111-10670

3L..LJ9#..LHD

NO.2

 1
96111-10830

3L..LJ9#..LHD

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

3L..LJ9#..LHD

NO.2

 1
96111-10830

3L..LJ9#..LHD

NO.1

 1
96111-10670

3L..LJ9#..LHD

NO.2

 1
96111-10830

3L..LJ9#..LHD

NO.1

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-35010

3L..LJ9#..LHD

 1
52820-35010

3L..LJ9#..LHD

 1
53808C - DUCT SUB-ASSY, FRONT FENDER AIR, LH
53807-60040

LJ9#..LHD

 1
53807-60040

LJ9#..LHD

 1
Common parts
90119-06171
90119-08A92
90119-08B93
91611-60812
Linked diagrams
8401
