LJ95L-GKMNS (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3L

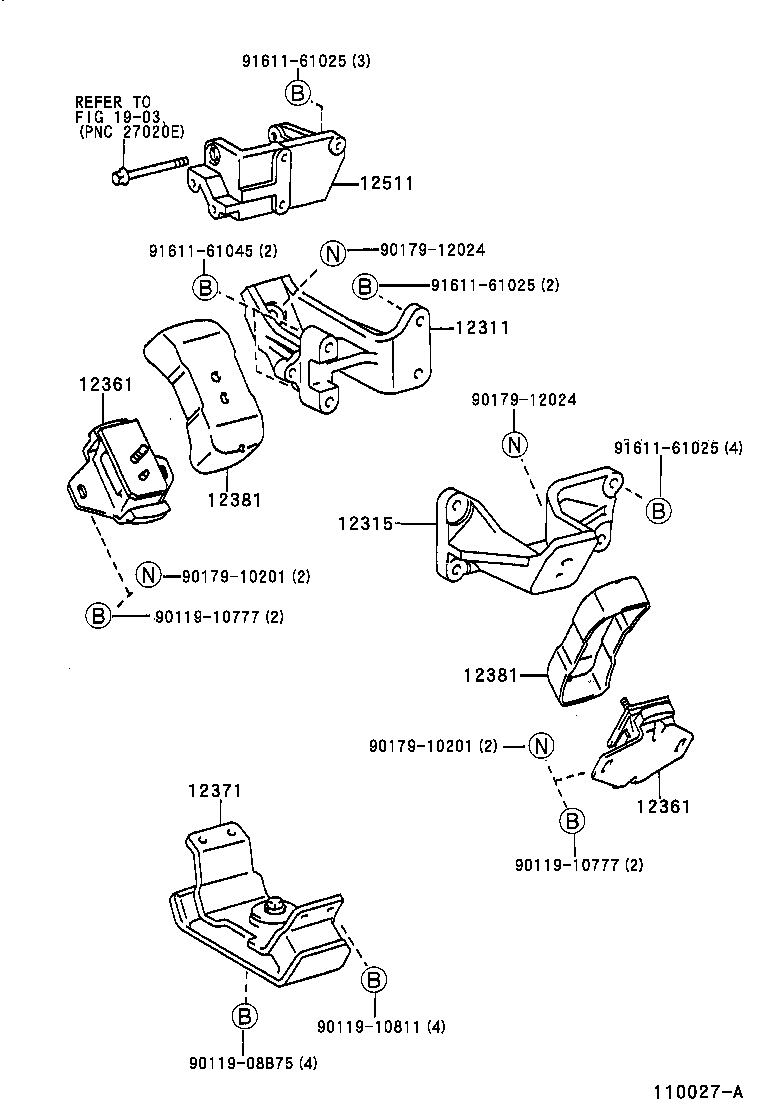

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 1903 9011908B75 9011910777 9011910777 9011910811 9017910201 9017910201 9017912024 9017912024 9161161025 9161161025 9161161025 9161161045
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54230

3L..LJ9#

 1
12311-54230

3L..LJ9#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-54050

3L..LJ9#

 1
12315-54050

3L..LJ9#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L..LJ9#

 2
12361-54121

3L..LJ9#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L..LJ9#

 2
12361-54121

3L..LJ9#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54160

3L..LJ9#

 1
12371-54160

3L..LJ9#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

3L..LJ9#

 2
12381-54020

3L..LJ9#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

3L..LJ9#

 2
12381-54020

3L..LJ9#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-54020

3L..LJ9#

 1
12511-54021

3L..LJ9#

 1
12511-54021

3L..LJ9#

 1
Common parts
90119-08B75
90119-10777
90119-10811
90179-10201
90179-12024
91611-61025
91611-61045
Linked diagrams
1903
