KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(9604- )KZJ9#..GEN

Click highlighted areas on diagram

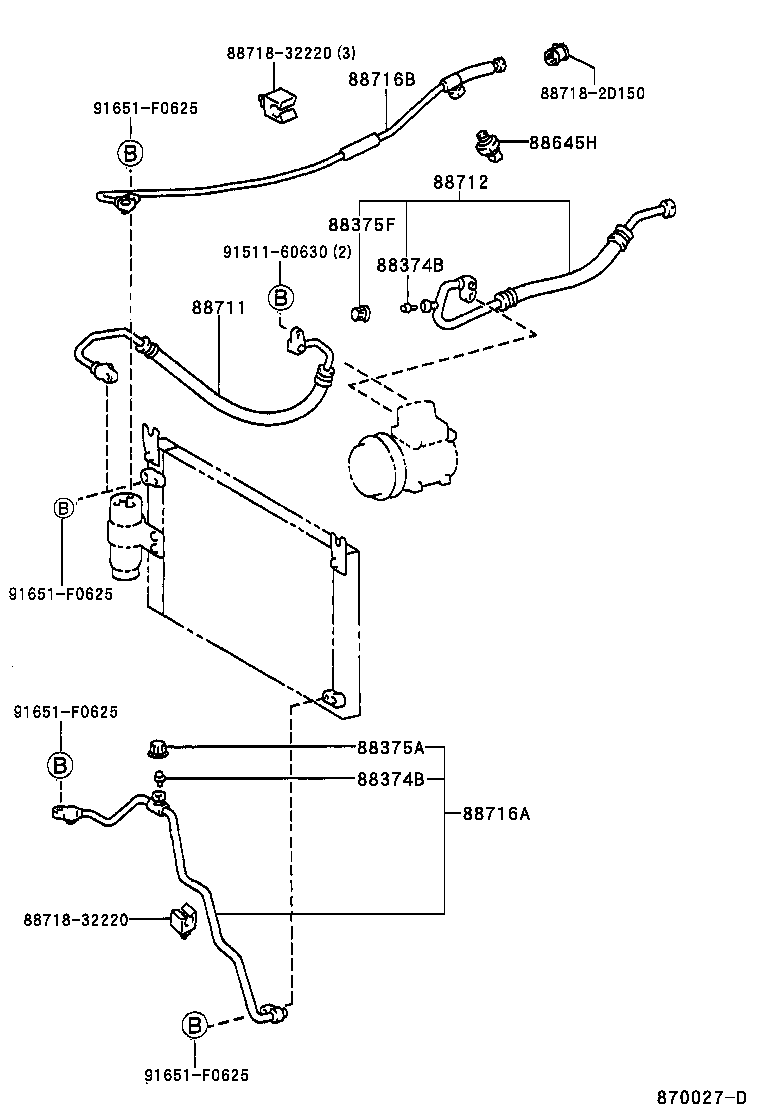

SINGLE AIR CONDITIONER

diagram 88374B 88374B 88375A 88375F 88645H 88711 88712 88716A 88716B 887182D150 8871832220 8871832220 9151160630 91651F0625 91651F0625 91651F0625 91651F0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290

LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)

 1
88375-30290

LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9#

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35460

KZJ9#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35450

KZJ9#

 1
88712-35451

KZJ9#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A670

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A890

KZJ9#,LJ9#..LHD

 1
88716-35400

KZJ9#,LJ9#..LHD

 1
Common parts
88718-2D150
88718-32220
91511-60630
91651-F0625

ILLUST NO. 1 OF 4(9604- )

Click highlighted areas on diagram

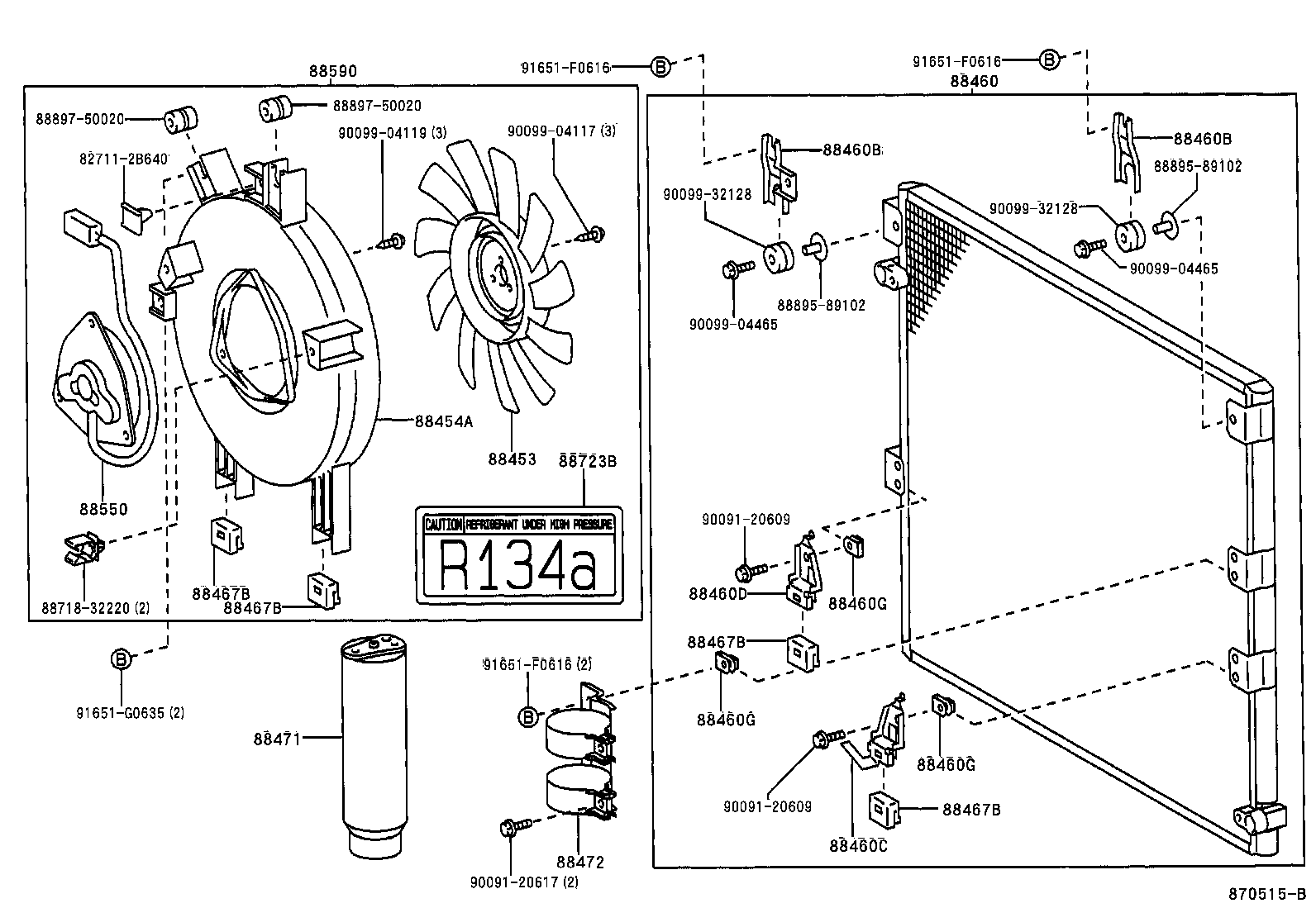

DUAL AIR CONDITIONER(CONDENSER)

diagram 827112B640 88453 88454A 88460 88460B 88460B 88460C 88460D 88460G 88460G 88460G 88467B 88467B 88467B 88467B 88471 88472 88550 88590 8871832220 88723B 8889589102 8889589102 8889750020 8889750020 9009120609 9009120609 9009120617 9009904117 9009904119 9009904465 9009904465 9009932128 9009932128 91651F0616 91651F0616 91651F0616 91651G0635
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60240

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN

 1
88460-60240

KZJ9#,LJ9#,RZJ9#..GCC,GEN

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60570

LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60570

LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-35310

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-35300

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 4
88688-26470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 4
88688-26470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 4
88688-26470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 4
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 1
88471-34010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60130

RZJ95..ARL;LJ95,RZJ95..STD;KZJ90,LJ90,RZJ90,VZJ9#

 1
Common parts
82711-2B640
88718-32220
88895-89102
88897-50020
90091-20609
90091-20617
90099-04117
90099-04119
90099-04465
90099-32128
91651-F0616
91651-G0635

ILLUST NO. 3 OF 4(9604-9906)

Click highlighted areas on diagram

DUAL AIR CONDITIONER---REAR

diagram 8871495D00 8871860780 8871860790 8871860790 8871860800 8871860810 8871860820 8871860820 8871860830 8871860840 88726B 88726C 88727B 88727C 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 91633G0640 91633G0640 91633G0640 91633G0640 91633G0640 91633G0640 91633G0640 9331554010 9331554010
Part # Description Qty Price
Common parts
88714-95D00
88718-60780
88718-60790
88718-60800
88718-60810
88718-60820
88718-60830
88718-60840
90179-06161
91633-G0640
93315-54010

ILLUST NO. 1 OF 4(9604- )

Click highlighted areas on diagram

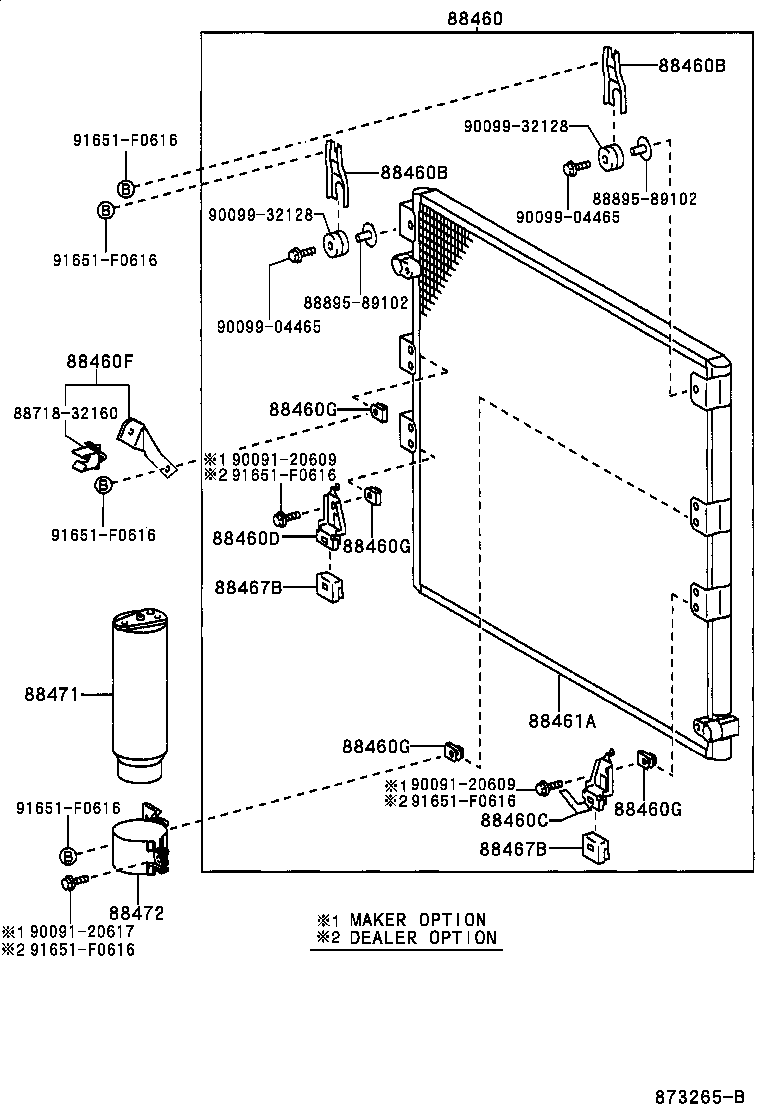

SINGLE AIR CONDITIONER(CONDENSER)

diagram 88460 88460B 88460B 88460C 88460D 88460F 88460G 88460G 88460G 88460G 88461A 88467B 88467B 88471 88472 8871832160 8889589102 8889589102 9009120609 9009120609 9009120617 9009904465 9009904465 9009932128 9009932128 91651F0616 91651F0616 91651F0616 91651F0616 91651F0616 91651F0616 91651F0616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60240

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN

 1
88460-60240

KZJ9#,LJ9#,RZJ9#..GCC,GEN

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60570

LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60570

LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-35310

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-35300

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 4
88688-26470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 4
88688-26470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 4
88688-26470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 4
88688-26470

KZJ9#,LJ9#,RZJ9#,VZJ9#

 4
88461A - CORE, COOLER CONDENSER
88461-60010

KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC)

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#

 1
88471-34010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60130

RZJ95..ARL;LJ95,RZJ95..STD;KZJ90,LJ90,RZJ90,VZJ9#

 1
Common parts
88718-32160
88895-89102
90091-20609
90091-20617
90099-04465
90099-32128
91651-F0616

ILLUST NO. 3 OF 4(9906- )ARL,GCC,GEN,MA

Click highlighted areas on diagram

DUAL AIR CONDITIONER---REAR

diagram 8871860780 8871860790 8871860790 8871860800 8871860810 8871860830 8871860840 887186A500 88726B 88726C 88727B 88727C 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 91633G0640 91633G0640 91633G0640 91633G0640 91633G0640 91633G0640 9331554010 9331554010 9331554010
Part # Description Qty Price
Common parts
88718-60780
88718-60790
88718-60800
88718-60810
88718-60830
88718-60840
88718-6A500
90179-06161
91633-G0640
93315-54010

ILLUST NO. 2 OF 4(9604-0008)KZJ9#..GEN

Click highlighted areas on diagram

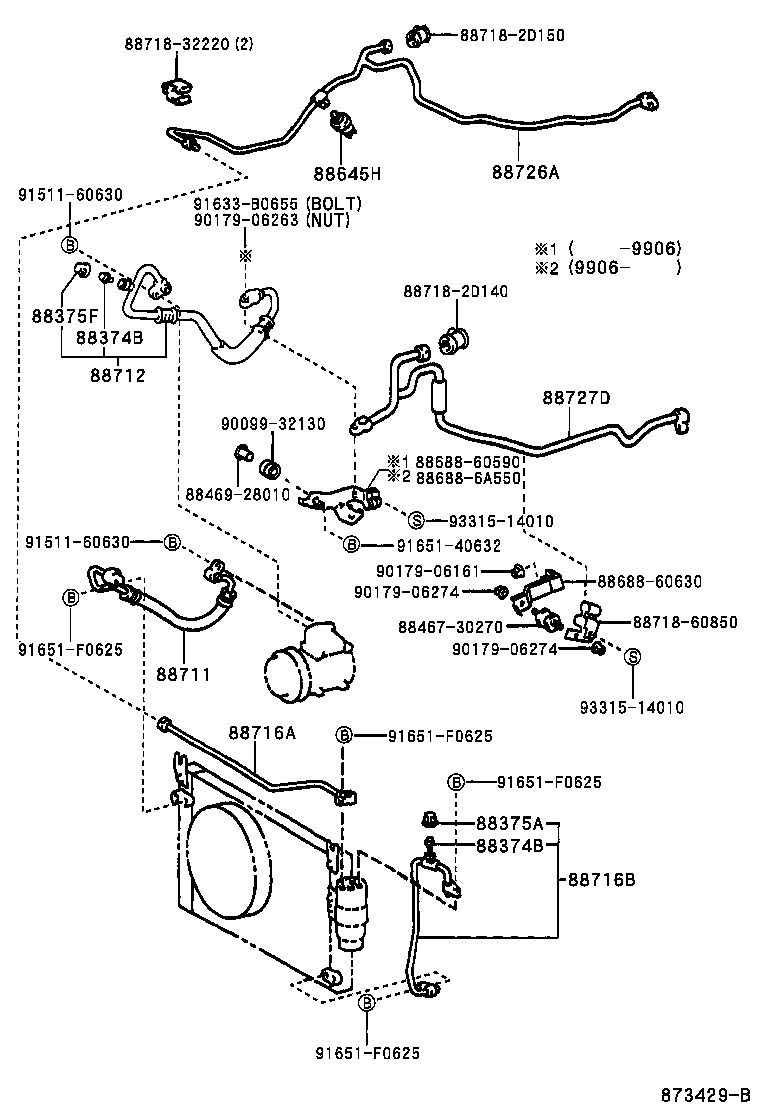

DUAL AIR CONDITIONER---FRONT

diagram 88374B 88374B 88375A 88375F 8846730270 8846928010 88645H 8868860590 8868860630 886886A550 88711 88712 88716A 88716B 887182D140 887182D150 8871832220 8871860850 88726A 88727D 9009932130 9017906161 9017906263 9017906274 9017906274 9151160630 9151160630 91633B0655 9165140632 91651F0625 91651F0625 91651F0625 91651F0625 9331514010 9331514010
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290

LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)

 1
88375-30290

LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9#

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35460

KZJ9#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35450

KZJ9#

 1
88712-35451

KZJ9#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A670

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A890

KZJ9#,LJ9#..LHD

 1
88716-35400

KZJ9#,LJ9#..LHD

 1
Common parts
88467-30270
88469-28010
88688-60590
88688-60630
88688-6A550
88718-2D140
88718-2D150
88718-32220
88718-60850
90099-32130
90179-06161
90179-06263
90179-06274
91511-60630
91633-B0655
91651-40632
91651-F0625
93315-14010

ILLUST NO. 4 OF 4(9604- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
