KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )TD ; (9604- )KZJ95..ARL

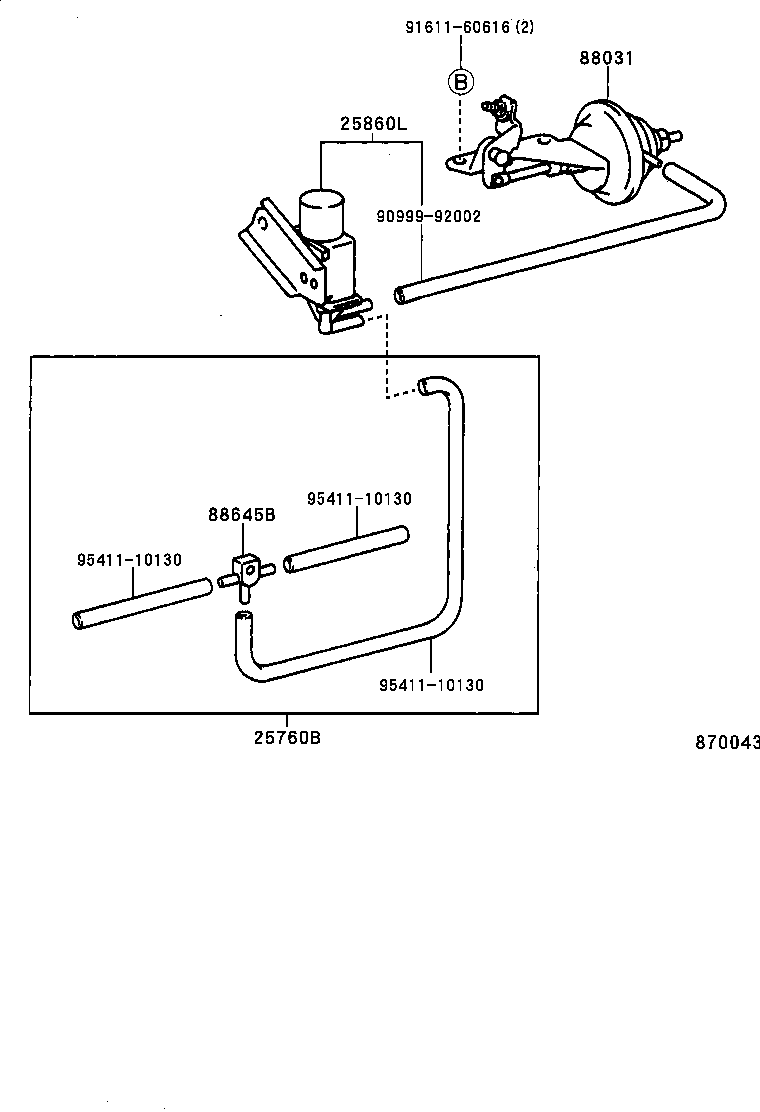

Click highlighted areas on diagram

diagram 25760B 25860L 88031 88645B 9099992002 9161160616 9541110130 9541110130 9541110130
Part # Description Qty Price
25760B - HOSE ASSY, VACUUM TRANSMITTING
25760-67020

1KZT..KZJ9#

 1
25760-67020

1KZT..KZJ9#

 1
25860L - VALVE ASSY, VACUUM SWITCHING
25860-67010

1KZT..KZJ9#

 1
25860-67010

1KZT..KZJ9#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-35110

KZJ9#,LJ9#

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

KZJ9#

 1
90413-04005

KZJ9#..GEN

 1
Common parts
90999-92002
91611-60616
95411-10130
