KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0008)KZJ9#..GEN

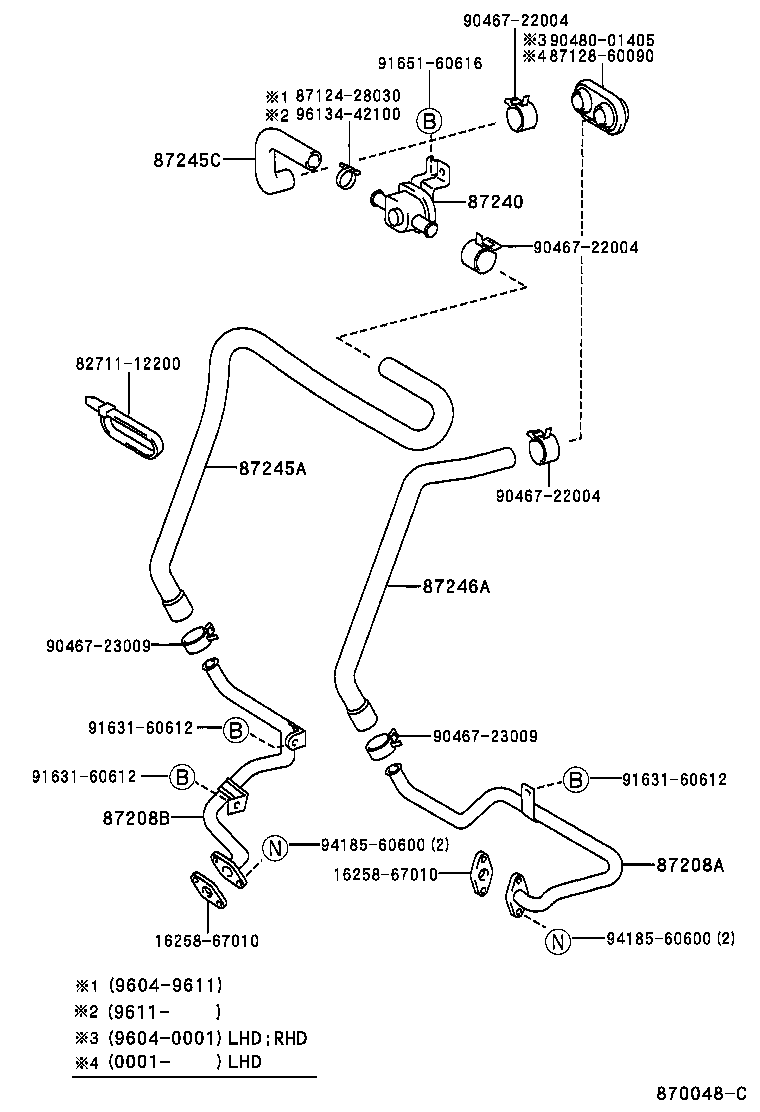

Click highlighted areas on diagram

W/O(REAR HEATER)

diagram 1625867010 1625867010 8271112200 8712428030 8712860090 87208A 87208B 87240 87245A 87245C 87246A 9046722004 9046722004 9046722004 9046723009 9046723009 9048001405 9163160612 9163160612 9163160612 9165160616 9418560600 9418560600 9613442100
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-35250

KZJ9#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-35260

KZJ9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
87240-35070

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
87240-35070

RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60870

KZJ9#

W(REAR HEATER)

 1
87245-35410

KZJ9#

 1
87245-60770

KZJ9#

W(REAR HEATER)

 1
87245-60870

KZJ9#..GEN

W(REAR HEATER)

 1
87245-35410

KZJ9#..GEN

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-35670

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
87245-35670

RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35420

KZJ9#..GEN

 1
87245-35420

KZJ9#

 1
87245-60780

KZJ9#..GEN

W(REAR HEATER)

 1
87245-60780

KZJ9#

W(REAR HEATER)

 1
Common parts
16258-67010
82711-12200
87124-28030
87128-60090
90467-22004
90467-23009
90480-01405
91631-60612
91651-60616
94185-60600
96134-42100

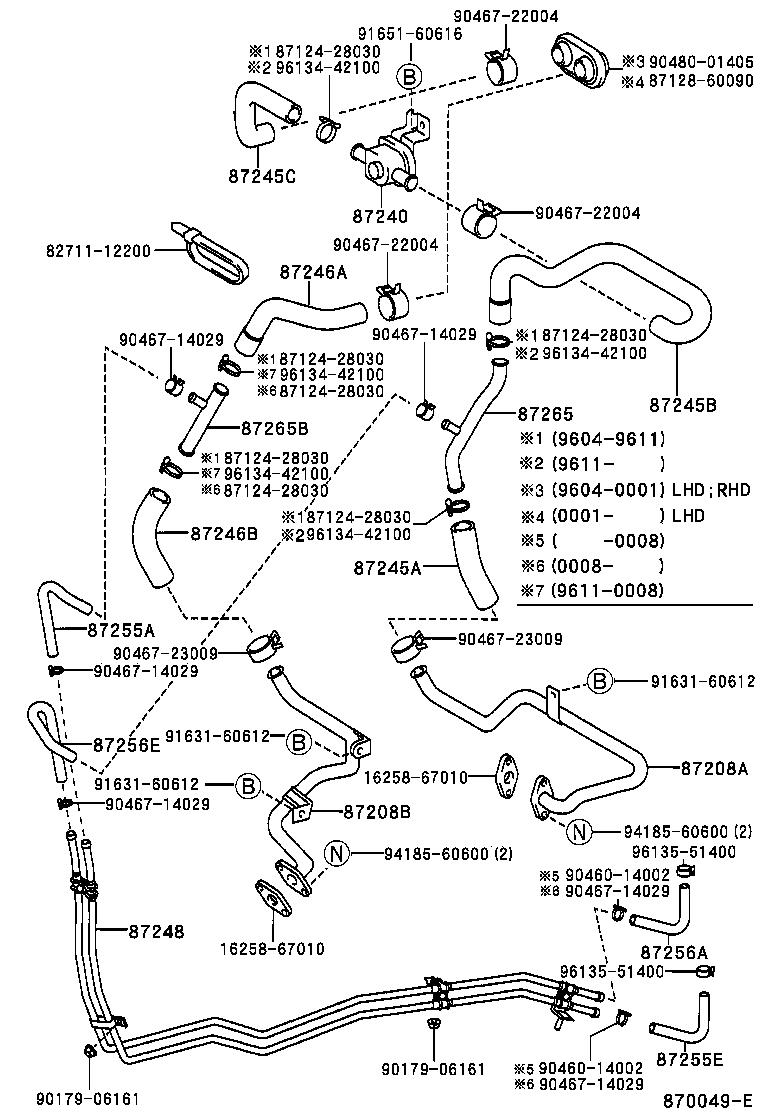

(9604- )KZJ9#..GEN

Click highlighted areas on diagram

W(REAR HEATER)

diagram 1625867010 1625867010 8271112200 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712860090 87208A 87208B 87240 87245A 87245B 87245C 87246A 87246B 87248 87255A 87255E 87256A 87256E 87265 87265B 9017906161 9017906161 9046014002 9046014002 9046714029 9046714029 9046714029 9046714029 9046714029 9046714029 9046722004 9046722004 9046722004 9046723009 9046723009 9048001405 9163160612 9163160612 9163160612 9165160616 9418560600 9418560600 9613442100 9613442100 9613442100 9613442100 9613442100 9613551400 9613551400
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-35250

KZJ9#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-35260

KZJ9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35050

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
87240-35070

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
87240-35070

RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35410

KZJ9#

 1
87245-60770

KZJ9#

W(REAR HEATER)

 1
87245-60870

KZJ9#

W(REAR HEATER)

 1
87245-60870

KZJ9#..GEN

W(REAR HEATER)

 1
87245-35410

KZJ9#..GEN

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60760

KZJ9#

 1
87245-60760

KZJ9#..GEN

 1
87245-35410

KZJ9#

W(REAR HEATER)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-35670

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
87245-35670

RZJ90..GX..GEN;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ95..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35420

KZJ9#..GEN

 1
87245-35420

KZJ9#

 1
87245-60780

KZJ9#..GEN

W(REAR HEATER)

 1
87245-60780

KZJ9#

W(REAR HEATER)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60790

KZJ9#

W(REAR HEATER)

 1
87245-60880

KZJ9#..GEN

W(REAR HEATER)

 1
87245-60880

KZJ9#

W(REAR HEATER)

 1
87248 - PIPE SUB-ASSY, WATER
87248-60530

KZJ9#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-60830

KZJ9#

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-35451

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN

 1
87245-35450

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-35460

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN

 1
87245-35461

LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-60820

KZJ9#

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-60130

KZJ9#

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-60140

KZJ9#

 1
Common parts
16258-67010
82711-12200
87124-28030
87128-60090
90179-06161
90460-14002
90467-14029
90467-22004
90467-23009
90480-01405
91631-60612
91651-60616
94185-60600
96134-42100
96135-51400
