KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

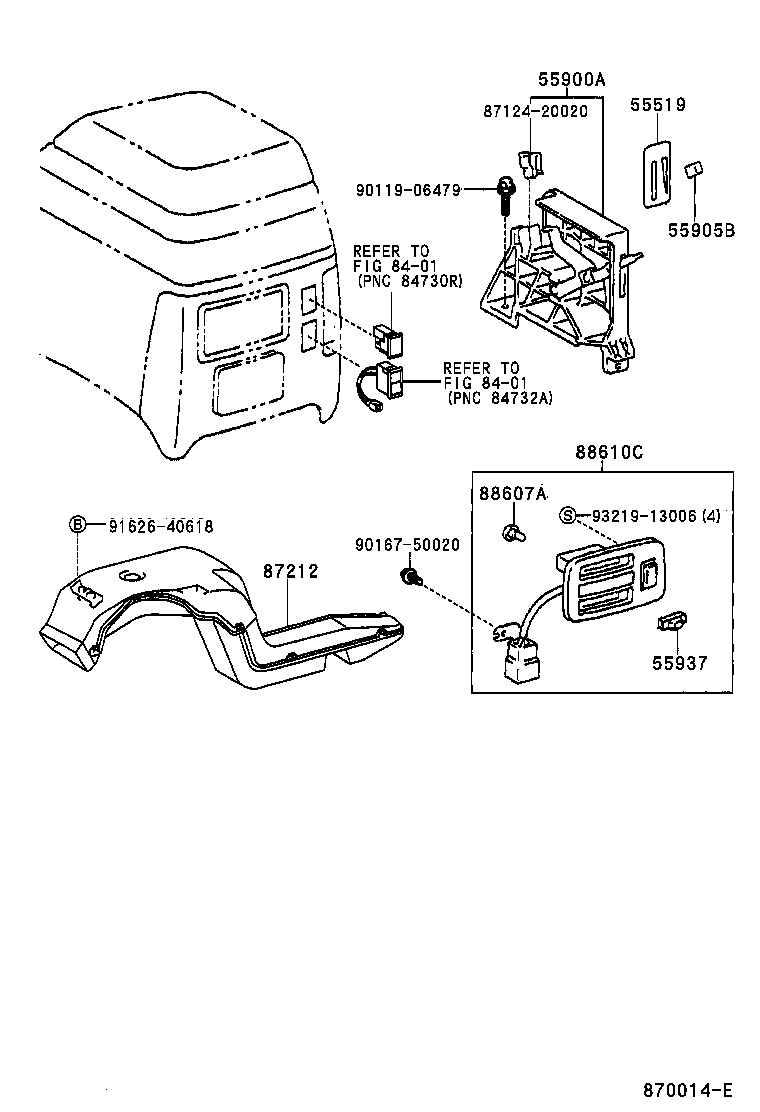

ILLUST NO. 3 OF 5(9604- )
REAR CONTROL & REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-60250 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-60430 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-89115 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 87123-26010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87211-60230 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 90119-06479 | ||||
| 90167-50020 | ||||
| 91626-40618 | ||||
| 93219-13006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 5(9604- )
FRONT CONTOROL..MANUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-60100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55906-60100 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-60130 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-60080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55908-60080 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-60080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55909-60080 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-60160 |
KZJ9#,LJ9#,RZJ9#..LHD..(GCC,GEN) W(AIR CONDITIONER) |
1 | ||
| 55910-60160 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD..(DSL,EFI,TD) W(AIR CONDITIONER) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-60020 |
KZJ9#,LJ9#,RZJ9#..LHD..(GCC,GEN) W(AIR CONDITIONER) |
1 | ||
| 81942-60020 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD..(DSL,EFI,TD) W(AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 90464-00560 | ||||
| 90467-09043 | ||||
| 90480-13024 | ||||
| 93568-55016 | ||||

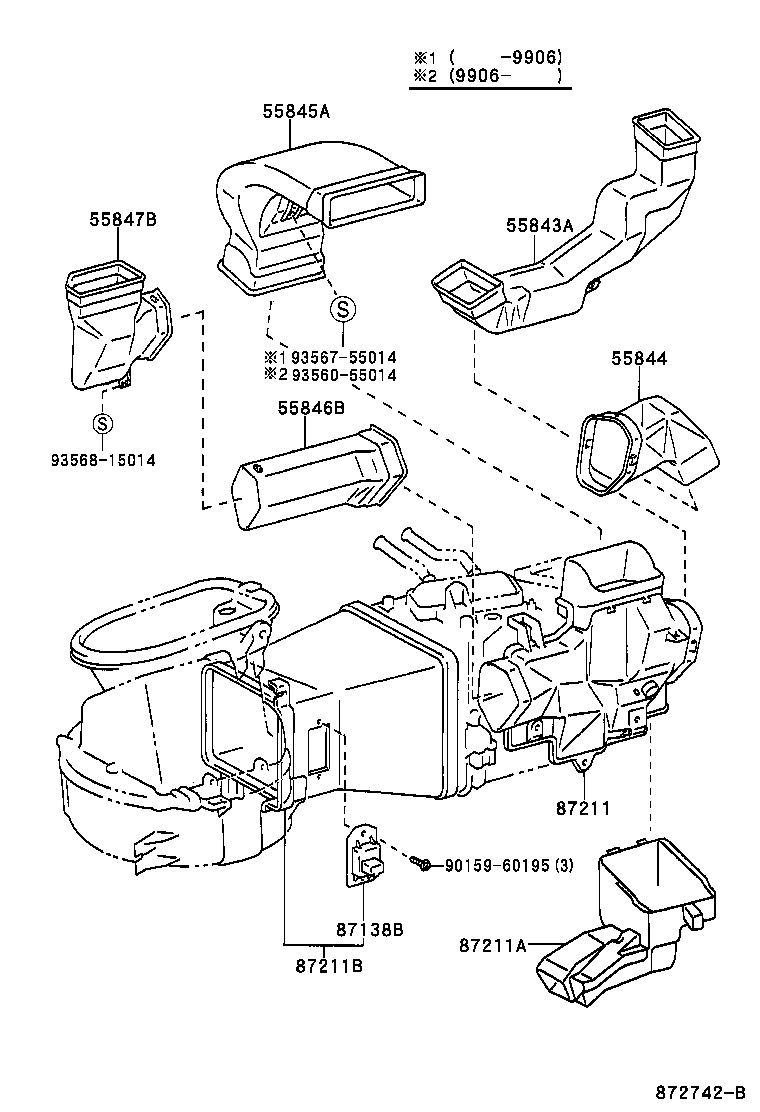

ILLUST NO. 2 OF 5(9604- )
FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55843-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55844-60100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55845-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55846-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55847-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-35050 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) |
1 | ||
| 87138-35050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 87138-35050 |
KZJ9#..GEN |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-35120 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35270 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-35250 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35140 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35250 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-35150 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 87211-35150 |
KZJ9#..GEN |
1 | ||
| Common parts | ||||
| 90159-60195 | ||||
| 93560-55014 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||

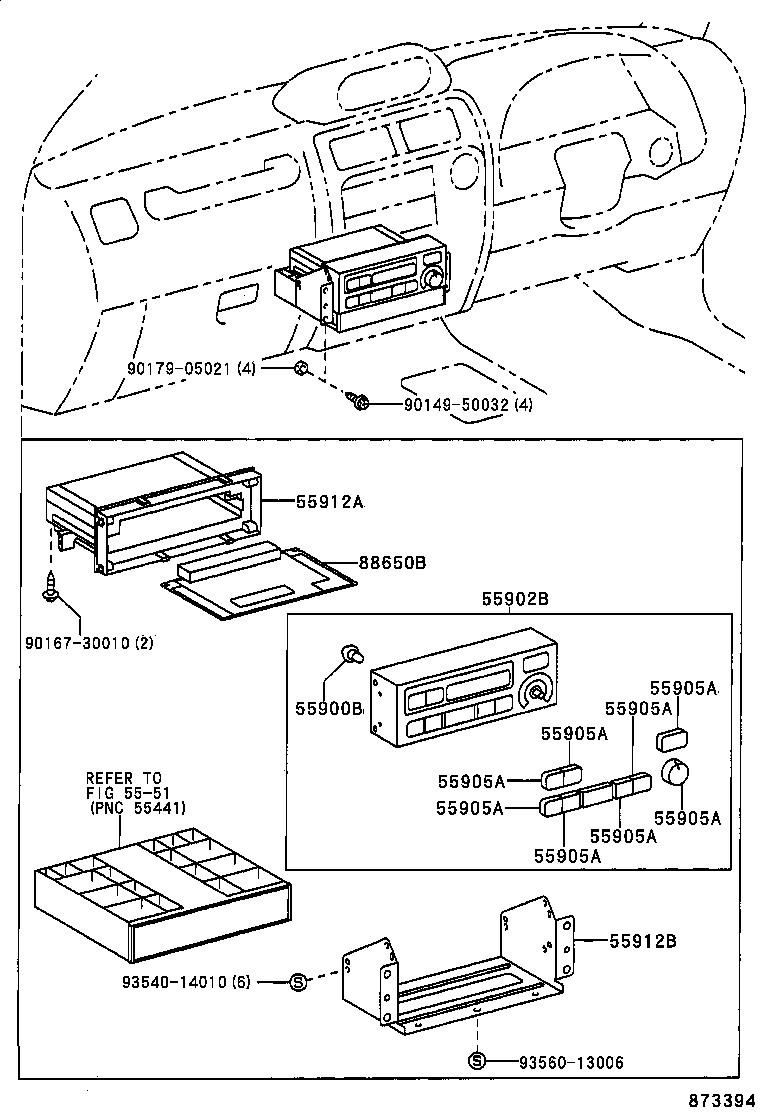

ILLUST NO. 1 OF 5(9906- )RZJ95..GCC,GEN ; (9906- )KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,CO,GCC,GEN
FRONT CONTROL--AUTO A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.2 |
3 | ||
| 55905-2B040 |
VZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9# NO.1 |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90167-30010 | ||||
| 90179-05021 | ||||
| 93540-14010 | ||||
| 93560-13006 | ||||
| Linked diagrams | ||||
| 5551 | ||||

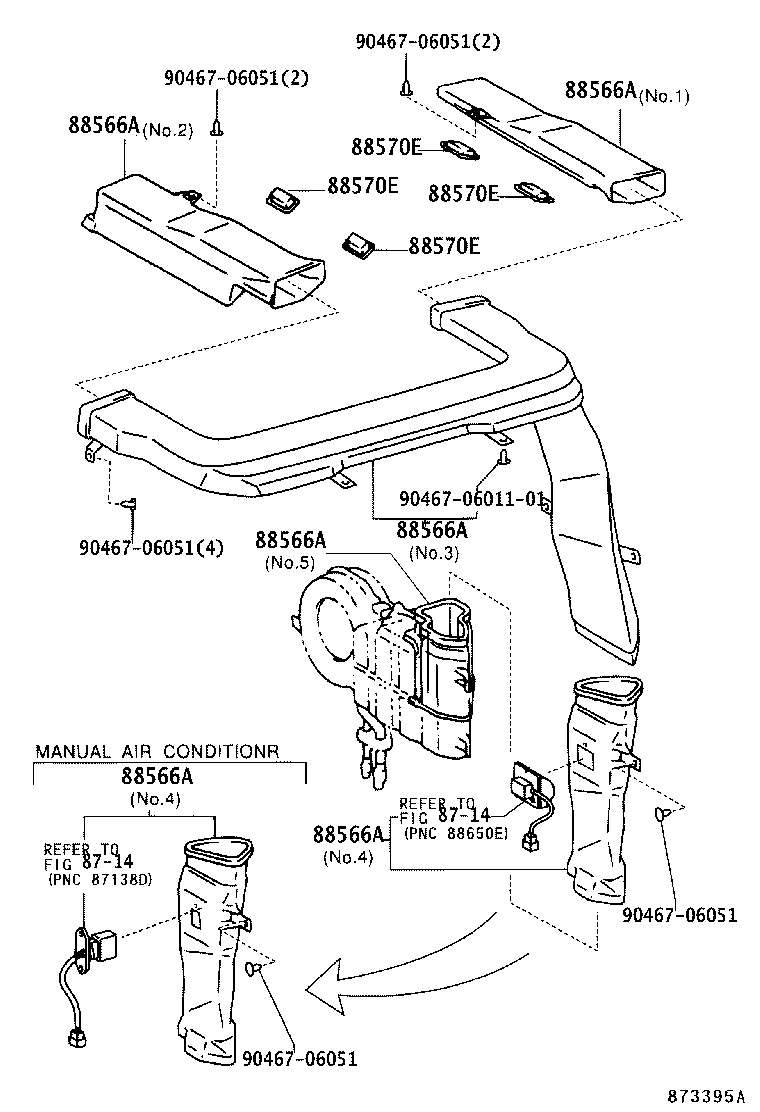

ILLUST NO. 4 OF 5(9604- )
REAR COOLER AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) NO.4 |
1 | ||
| Common parts | ||||
| 90467-0601101 | ||||
| 90467-06051 | ||||
| Linked diagrams | ||||
| 8714 | ||||

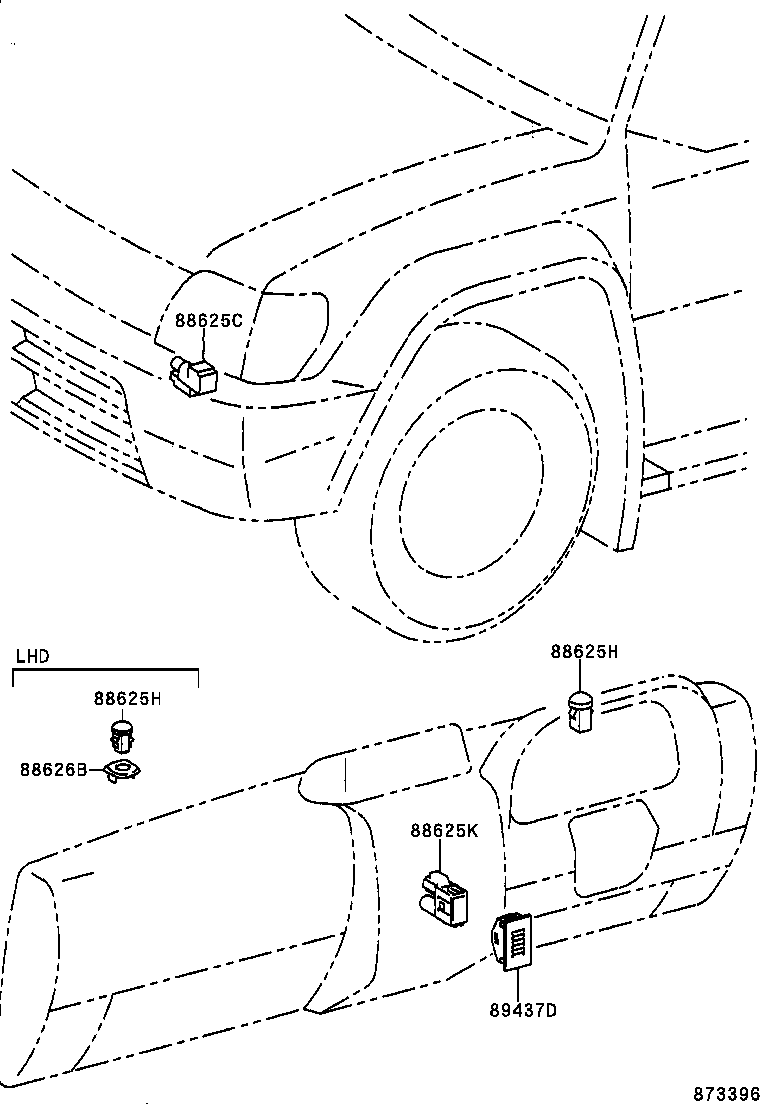

ILLUST NO. 5 OF 5(9906- )RZJ95..GCC,GEN ; (9906- )KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,CO,GCC,GEN
SENSOR
| Part # | Description | Qty | Price |
|---|
