KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
ILLUST NO. 3 OF 3(9604- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-60070 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-35010 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 88541-95J00 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-35040 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN |
1 | ||
| 87111A - CASE, HEATER | ||||
| 87111-35200 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN LOWER |
1 | ||
| 87111-60020 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN UPPER |
1 | ||
| 87111-35210 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN CENTER |
1 | ||
| 87111A - CASE, HEATER | ||||
| 87111-35200 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN LOWER |
1 | ||
| 87111-60020 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN UPPER |
1 | ||
| 87111-35210 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN CENTER |
1 | ||
| 87111A - CASE, HEATER | ||||
| 87111-35200 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN LOWER |
1 | ||
| 87111-60020 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN UPPER |
1 | ||
| 87111-35210 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN CENTER |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-60130 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| 87110-60131 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-35070 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN |
1 | ||
| 87156D - CONNECTOR, HEATER WATER HOSE, NO.2 | ||||
| 87156-35060 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.2 |
1 | ||
| 87156-35061 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.2 |
1 | ||
| 87156-35050 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.1 |
1 | ||
| 87156-35051 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.1 |
1 | ||
| 87156D - CONNECTOR, HEATER WATER HOSE, NO.2 | ||||
| 87156-35060 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.2 |
1 | ||
| 87156-35061 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.2 |
1 | ||
| 87156-35050 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.1 |
1 | ||
| 87156-35051 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN NO.1 |
1 | ||
| 87344C - WIRE, HEATER | ||||
| 87344-60010 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 87124-35050 | ||||
| 87124-35060 | ||||
| 87399-35020 | ||||
| 90301-15015 | ||||
| 90480-01674 | ||||
| 93313-14008 | ||||
| 93319-14012 | ||||
| 93540-24016 | ||||
| 93560-15012 | ||||
ILLUST NO. 1 OF 3(9604- )
FRONT BLOWER(MANUAL A/C)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-60171 |
KZJ9#,LJ9#,RZJ9#..LHD..GEN |
1 | ||
| 87103-60170 |
KZJ9#,LJ9#,RZJ9#..LHD..GEN |
1 | ||
| 87103-60172 |
RZJ90..GX;RZJ9#..LHD..CBR..GEN;KZJ9#,LJ9#,VZJ95..LHD..(CO,GEN) |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60310 |
RZJ90..GX;RZJ9#..LHD..CBR..GEN;KZJ9#,LJ9#,VZJ95..LHD..(CO,GEN) |
1 | ||
| 87130-60310 |
KZJ9#,LJ9#,RZJ9#,VZJ95..LHD..(CO,GEN) |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 90119-06446 | ||||
| 90179-06069 | ||||

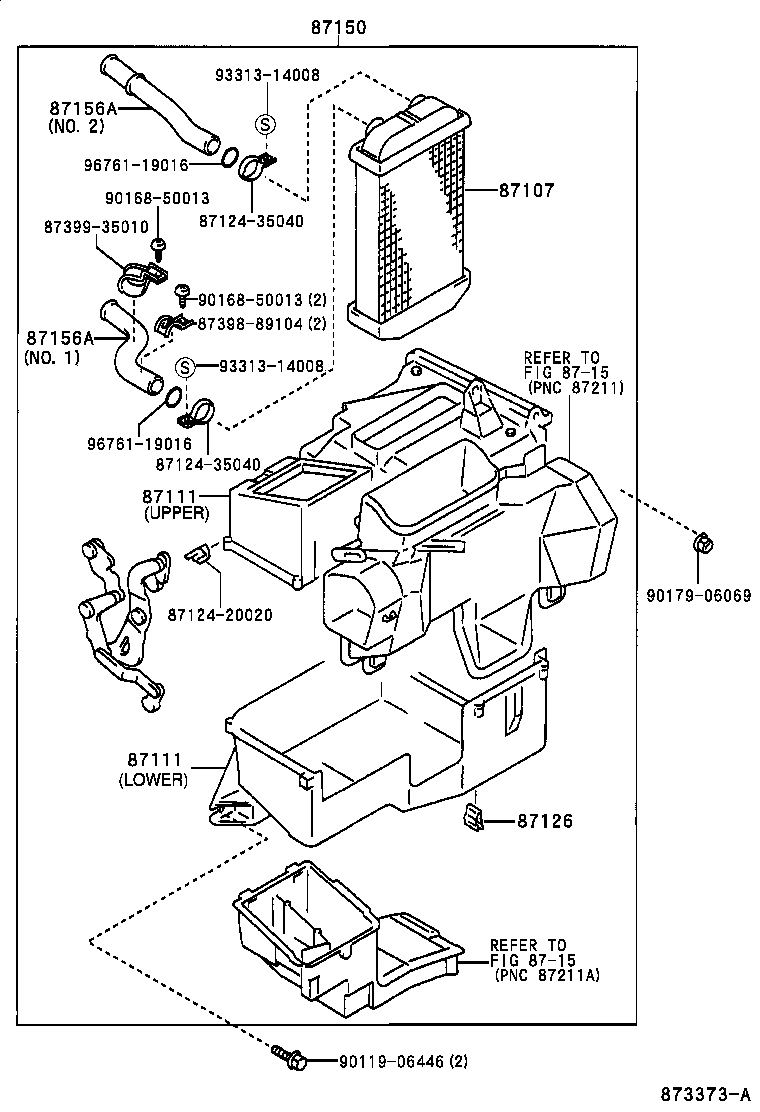

ILLUST NO. 2 OF 3(9604- )LHD
FRONT RADIATOR(MANUAL A/C)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-35060 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35310 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35321 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-89101 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35310 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35321 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-89101 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-89101 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-35210 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD |
1 | ||
| 87150-35132 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87150-35130 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87150-35131 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87150-35210 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87156A - CONNECTOR, HEATER WATER HOSE | ||||
| 87156-35030 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 87156-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.2 |
1 | ||
| 87156A - CONNECTOR, HEATER WATER HOSE | ||||
| 87156-35030 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 87156-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.2 |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 87124-35040 | ||||
| 87398-89104 | ||||
| 87399-35010 | ||||
| 90119-06446 | ||||
| 90168-50013 | ||||
| 90179-06069 | ||||
| 93313-14008 | ||||
| 96761-19016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 3(9906- )LHD
FRONT RADIATOR(AUTO A/C)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-35060 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35310 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35321 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-89101 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35310 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87111-35321 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-89101 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD LOWER |
1 | ||
| 87111-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD UPPER |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-35210 |
VZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD |
1 | ||
| 87150-35132 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87150-35130 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87150-35131 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87150-35210 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 87156A - CONNECTOR, HEATER WATER HOSE | ||||
| 87156-35030 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 87156-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.2 |
1 | ||
| 87156A - CONNECTOR, HEATER WATER HOSE | ||||
| 87156-35030 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 87156-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.2 |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 87124-35040 | ||||
| 87398-89104 | ||||
| 87399-35010 | ||||
| 90119-06446 | ||||
| 90168-50013 | ||||
| 90179-06069 | ||||
| 93313-14008 | ||||
| 96761-19016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
