KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

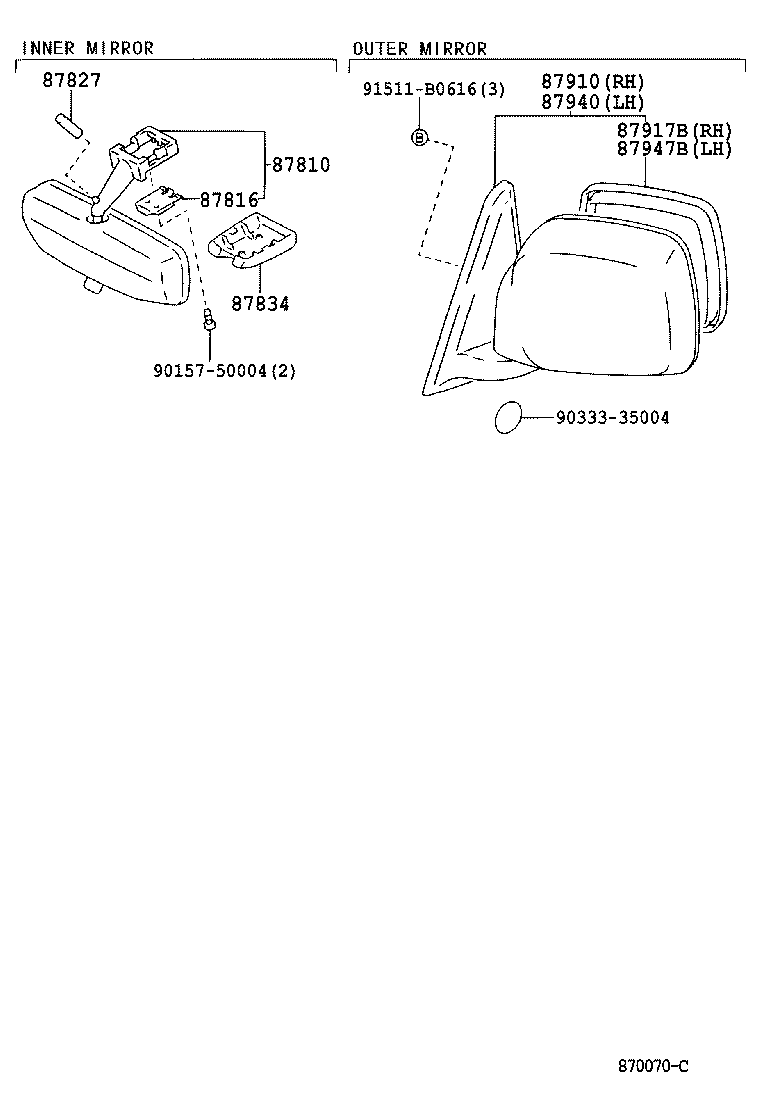

Click highlighted areas on diagram

diagram 87810 87816 87827 87834 87910 87917B 87940 87947B 9015750004 9033335004 91511B0616
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-14170B4

KZJ9#,LJ9#,RZJ9#,VZJ9#

LT.BLUISH GRAY,TRIM1#

 1
87810-14170B1

KZJ9#,LJ9#,RZJ9#,VZJ9#

MOON MIST,TRIM1#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
74372-30030

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-22020

KZJ9#,LJ9#,RZJ9#,VZJ95

 1
87828-12010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-10010B1

KZJ9#,LJ9#,RZJ9#,VZJ9#

MOON MIST,TRIM1#

 1
87834-10010B0

KZJ9#,LJ9#,RZJ9#,VZJ9#

LT.BLUISH GRAY,TRIM1#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-60540

KZJ9#,LJ9#,RZJ9#..GEN

 1
87910-60560

KZJ9#,LJ95,RZJ9#..LHD..GX..GEN

ELECTRIC REMOTE CONTROL

 1
87910-60760

RZJ90..GX;KZJ9#,LJ9#,RZJ9#..LHD..(CBR,DSL,TD)..GEN

MANUAL REMOTE CONTROL MIRROR

 1
87910-60610

RZJ95..LHD..GX..CBR..GEN;KZJ9#,LJ95,RZJ90,VZJ95..LHD..(GX,VX)..(CO,GEN)

CHROME PLATED ELECTRIC REMOTE CONTROL

 1
87910-60610

KZJ9#,LJ95,RZJ9#,VZJ95..LHD..(GX,VX)..(CO,GEN)

CHROME PLATED ELECTRIC REMOTE CONTROL

 1
87910-60760

KZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN)

MANUAL REMOTE CONTROL MIRROR

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-60540

KZJ9#,LJ9#,RZJ9#..GEN

 1
87931-60550

VZJ95..CO;KZJ9#,LJ9#,RZJ9#..CO,GCC,GEN,MA

 1
87931-60550

KZJ9#,LJ95,RZJ9#..GX..GEN

ELECTRIC REMOTE CONTROL

 1
87931-60550

RZJ90..GX;RZJ9#..CBR..GEN;KZJ9#,LJ9#,VZJ95..CO,GEN;RZJ95..RHD..GX..EFI..GEN

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-60480

KZJ9#,LJ9#,RZJ9#,VZJ95..ARL,GEN

 1
87940-60500

KZJ9#,LJ95,RZJ9#..LHD..GX..GEN

ELECTRIC REMOTE CONTROL

 1
87940-60540

RZJ95..LHD..GX..CBR..GEN;KZJ9#,LJ95,RZJ90,VZJ95..LHD..(GX,VX)..(CO,GEN)

CHROME PLATED ELECTRIC REMOTE CONTROL

 1
87940-60680

RZJ90..GX;KZJ9#,LJ9#,RZJ9#..LHD..(CBR,DSL,TD)..GEN

MANUAL REMOTE CONTROL MIRROR

 1
87940-60680

KZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN)

MANUAL REMOTE CONTROL MIRROR

 1
87940-60540

KZJ9#,LJ95,RZJ9#,VZJ95..LHD..(GX,VX)..(CO,GEN)

CHROME PLATED ELECTRIC REMOTE CONTROL

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-60480

KZJ9#,LJ9#,RZJ9#,VZJ95..ARL,GEN

 1
87961-60490

KZJ9#,LJ95,RZJ9#,VZJ95..(GX,VX)..(ARL,GEN)

ELECTRIC REMOTE CONTROL

 1
87961-60490

VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ9#

 1
Common parts
90157-50004
90333-35004
91511-B0616
