KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )RZJ95..VX ; (9604- )KZJ9#,VZJ9# ;(9604- )RZJ9#..GX..ARL,GCC,GEN

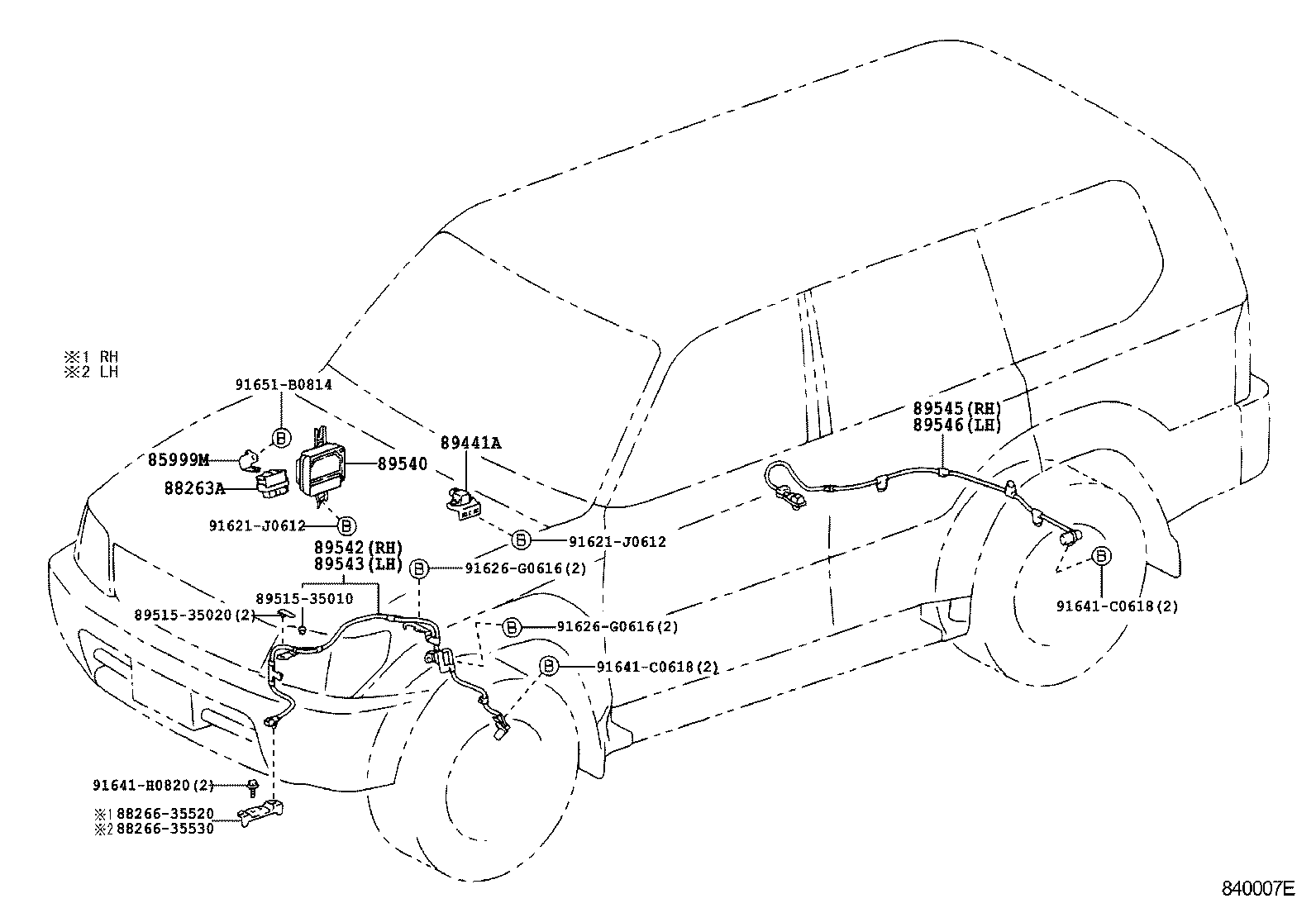

Click highlighted areas on diagram

diagram 85999M 88263A 8826635520 8826635530 89441A 8951535010 8951535020 89540 89542 89543 89545 89546 91621J0612 91621J0612 91626G0616 91626G0616 91641C0618 91641C0618 91641H0820 91651B0814
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-35080

RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR

 1
85999-35080

RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX)

 1
88263A - RELAY, SKID CONTROL
88263-35090

RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)

 1
88263-35090

RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
89441A - SENSOR, DECELERATION
89440-35030

RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX

 1
89440-60100

RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-60060

KZJ9#,RZJ95..GX..(CBR,TD)..GEN

W(DIFFERENTIAL LOCK)

 1
89540-60061

KZJ9#,RZJ95..GX..(CBR,TD)..GEN

W(DIFFERENTIAL LOCK)

 1
89540-60100

RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)

W(DIFFERENTIAL LOCK)

 1
89540-60051

RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX

 1
89540-60050

KZJ9#,RZJ9#,VZJ9#..GX,VX

 1
89542 - SENSOR, SPEED, FRONT RH
89542-35050

RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
89542-35050

RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-35050

RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)

 1
89543-35050

RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
89545 - SENSOR, SPEED, REAR RH
89545-35030

RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
89545-35030

RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)

 1
89546 - SENSOR, SPEED, REAR LH
89546-35030

RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
89546-35030

RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)

 1
Common parts
88266-35520
88266-35530
89515-35010
89515-35020
91621-J0612
91626-G0616
91641-C0618
91641-H0820
91651-B0814
