KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

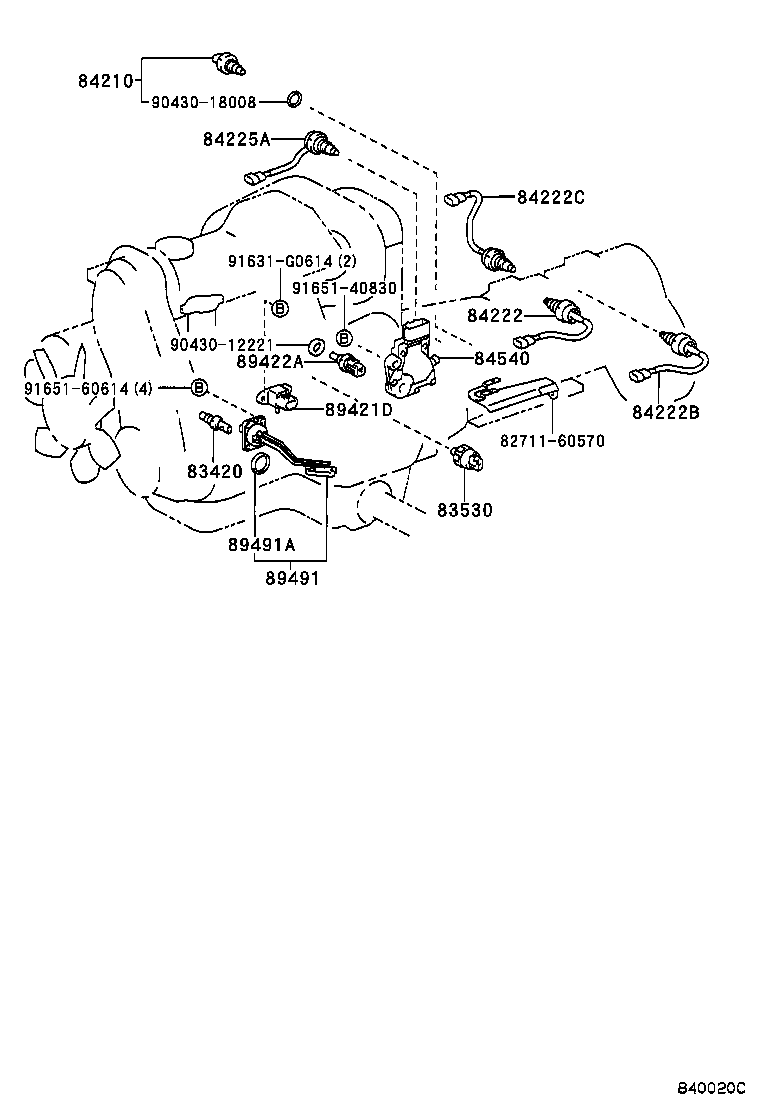

ILLUST NO. 1 OF 6(9604- )KZJ9#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
KZJ9#,LJ9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KZJ9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 84210-12040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35080 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 84222-35080 |
VZJ95;RZJ95..ATM;RZJ95..LHD..STD;RZJ95..MTM..GX..(ARL,GCC,GEN);KZJ9#,RZJ90,VZJ90..ARL,GCC,GEN,MA |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-35110 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 84222-35110 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89421-60030 |
KZJ9#..GEN |
1 | ||
| 89421-60030 |
KZJ9# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
KZJ9#..GEN |
1 | ||
| 89422-20010 |
KZJ9#;LJ95..RHD..GX |
1 | ||
| Common parts | ||||
| 82711-60570 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91631-G0614 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||

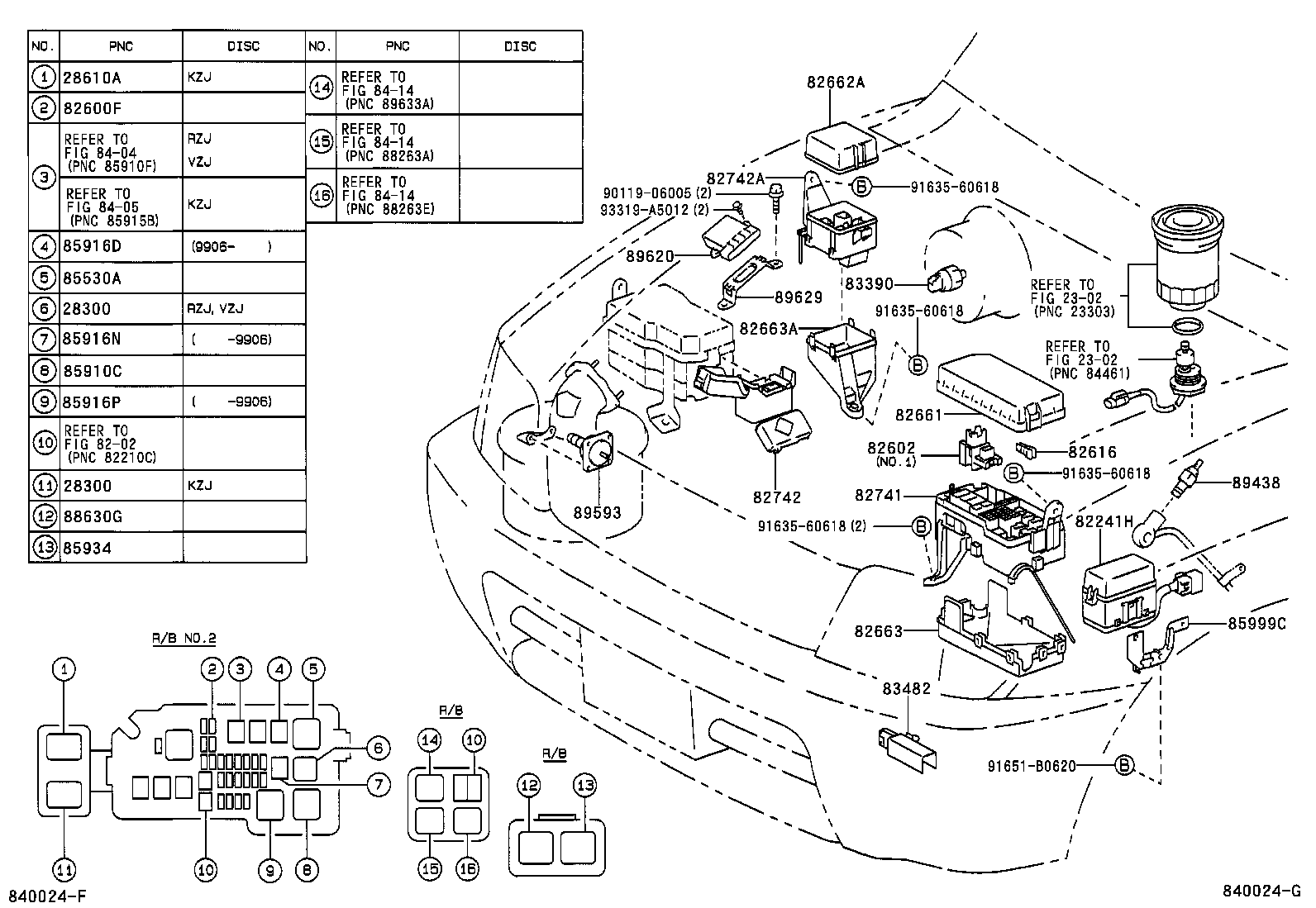

ILLUST NO. 2 OF 6(9604- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54360 |
3RZFE..RZJ90..CO;1KZT,3L,5VZFE..KZJ9#,LJ9#,VZJ95..CO,GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
RZJ95..GX,VX;VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
RZJ95..GX,VX;VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 10A,MINI FUSE,RED |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60060 |
RZJ95..RHD..ATM;KZJ9#,VZJ95..ARL,CO,GEN,MA;RZJ95..RHD..MTM..GX..(ARL,GEN) NO.1 |
1 | ||
| 82602-60060 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82616-20010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-60120 |
KZJ9#,LJ9# |
1 | ||
| 82662-60240 |
KZJ9#,LJ9# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82663-60020 |
RZJ90..CO;RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..ARL,CO,GEN,MA |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60010 |
RZJ90..CO;RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..ARL,CO,GEN,MA |
1 | ||
| 82741-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-35010 |
KZJ9#,LJ9# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
KZJ9#,LJ9# |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-35010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02006 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 90987-02006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90987-04002 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90987-02006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91635-60618 | ||||
| 91651-B0620 | ||||
| 93319-A5012 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||

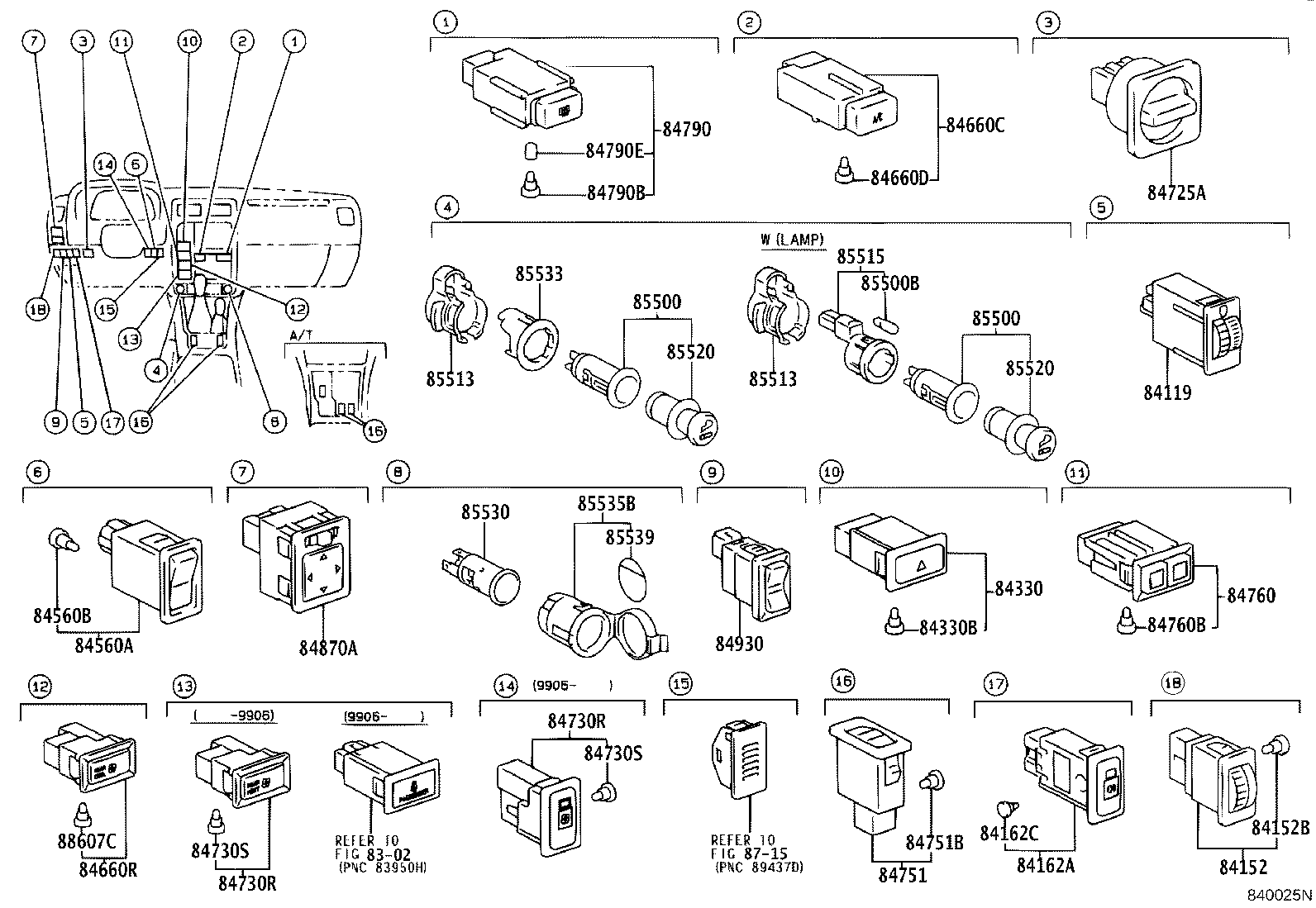

ILLUST NO. 3 OF 6(9604- )LHD
CLUSTER PANEL SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-43010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 84332-43010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 14V 0.91W |
1 | ||
| 84999-10860 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-33010 |
VZJ95..GX;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90;RZJ95,VZJ95..LHD..(STD,VX)..(CO,GEN) |
1 | ||
| 84660-33010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-33010 |
VZJ95..GX;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90;RZJ95,VZJ95..LHD..(STD,VX)..(CO,GEN) 14V 0.84W |
1 | ||
| 88607-33010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 14V 0.84W |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-60090 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) CONSOLE BOX |
1 | ||
| 84730-60090 |
VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX..(ARL,GCC,GEN) |
2 | ||
| 84730-60080 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90..GEN;LJ95,RZJ95..GX..(CBR,DSL) INSTRUMENT PANEL |
1 | ||
| 84730-60090 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90..GEN;LJ95,RZJ95..GX..(CBR,DSL) CONSOLE BOX |
1 | ||
| 84730-60080 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) INSTRUMENT PANEL |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-60090 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) CONSOLE BOX |
1 | ||
| 84730-60090 |
VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX..(ARL,GCC,GEN) |
2 | ||
| 84730-60080 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90..GEN;LJ95,RZJ95..GX..(CBR,DSL) INSTRUMENT PANEL |
1 | ||
| 84730-60090 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90..GEN;LJ95,RZJ95..GX..(CBR,DSL) CONSOLE BOX |
1 | ||
| 84730-60080 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) INSTRUMENT PANEL |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10310 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) 14V 0.91W |
2 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10310 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) 14V 0.91W |
2 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 84760B - BULB, ANTENNA SWITCH | ||||
| 84999-10420 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 84790-60050 |
VZJ95..GX;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90;RZJ95,VZJ95..LHD..(STD,VX)..(CO,GEN) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 14V 0.84W |
1 | ||
| 84999-10450 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 14V 1.4W |
1 | ||
| 84999-10320 |
VZJ95..GX;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90;RZJ95,VZJ95..LHD..(STD,VX)..(CO,GEN) 14V 0.84W |
1 | ||
| 84999-10450 |
VZJ95..GX;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90;RZJ95,VZJ95..LHD..(STD,VX)..(CO,GEN) 14V 1.4W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 84998-10060 |
VZJ95..GX;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90;RZJ95,VZJ95..LHD..(STD,VX)..(CO,GEN) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
VZJ9#;KZJ9#,LJ95,RZJ9#..GX |
1 | ||
| 84870-16020 |
RZJ95..GX..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-87003 |
KZJ9#,LJ9#,RZJ9#,VZJ95..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 84930-87003 |
KZJ9#..GEN |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 85500-12240 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 85500-12240 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 85513-12020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 85513-12020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 85520-28010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 85520-28010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 85530-33020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
RZJ95..(GX,STD)..(GCC,GEN,MA);KZJ9#,LJ9#,RZJ90,VZJ95..(DSL,EFI,TD)..(CO,GEN) |
1 | ||
| 85533-26010 |
VZJ95..CO;RZJ90,VZJ95..GX;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60020B0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 85535-60020C0 |
VZJ95..ARL,GCC;KZJ9#,LJ95,RZJ9#,VZJ90..GX,VX BLACK,TRIM10 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 85539-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8715 | ||||

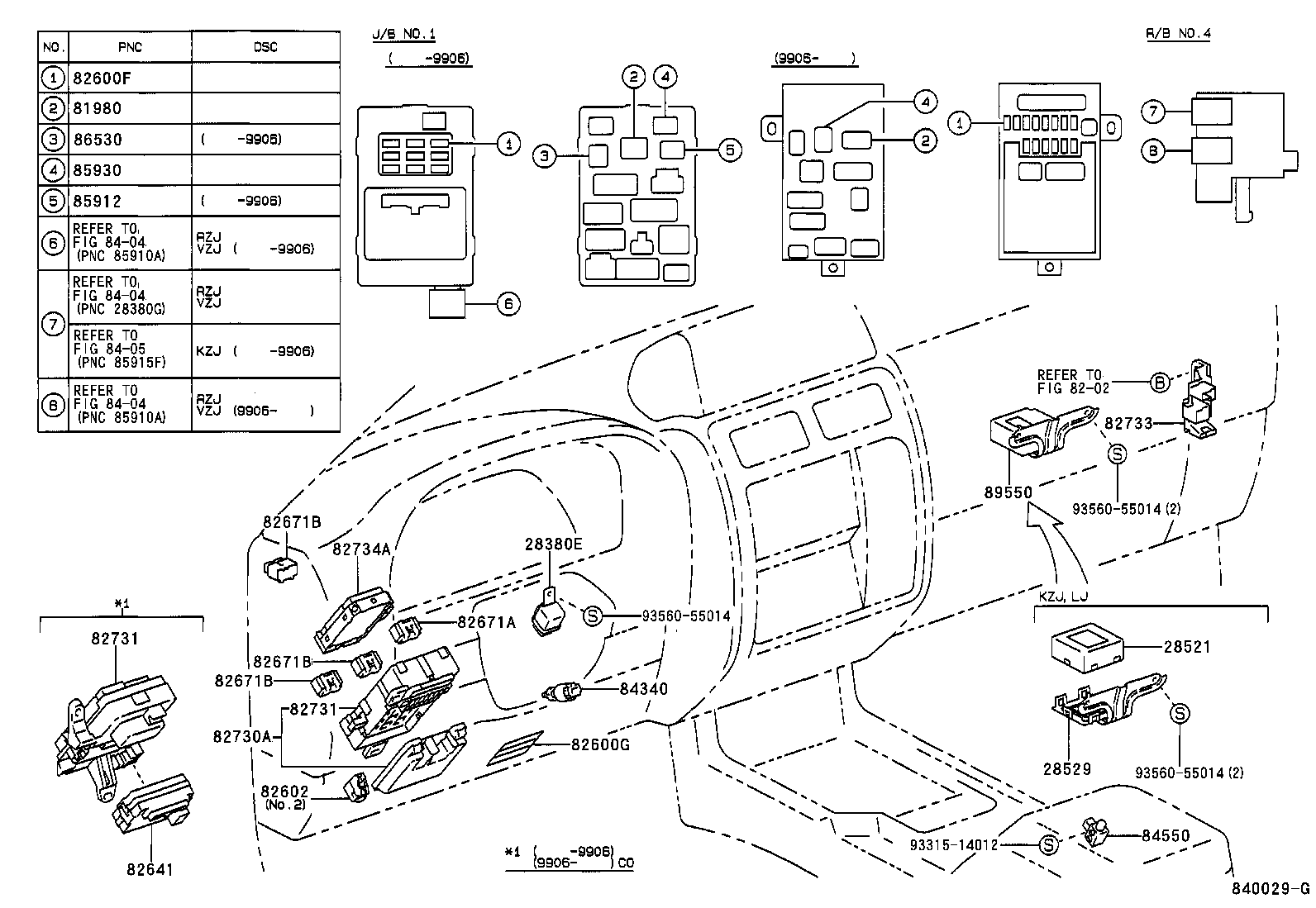

ILLUST NO. 5 OF 6(9604- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-67020 |
1KZT..KZJ9# |
1 | ||
| 28521-67020 |
1KZT..KZJ9# |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-67010 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
RZJ95..GX,VX;VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,CO,GEN) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
RZJ95..GX,VX;VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 10A,MINI FUSE,RED |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60060 |
RZJ95..RHD..ATM;KZJ9#,VZJ95..ARL,CO,GEN,MA;RZJ95..RHD..MTM..GX..(ARL,GEN) NO.1 |
1 | ||
| 82602-60060 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60040 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 82641-60020 |
KZJ9#,LJ95,RZJ9#..GX..GEN W(LIGHT REMINDER) |
1 | ||
| 82641-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ95..CO,GEN |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30340 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82671-30340 |
RZJ90..CO;RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..ARL,CO,GEN,MA |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30340 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 82671-30340 |
VZJ95..ARL,CO;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95..ARL,GCC,MA;KZJ9#,LJ9#,RZJ90,VZJ90 |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30340 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 82671-30340 |
VZJ95..ARL,CO;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95..ARL,GCC,MA;KZJ9#,LJ9#,RZJ90,VZJ90 |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30340 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 82671-30340 |
VZJ95..ARL,CO;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95..ARL,GCC,MA;KZJ9#,LJ9#,RZJ90,VZJ90 |
2 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82734-35020 |
VZJ95..ARL,CO;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95..ARL,GCC,MA;KZJ9#,LJ9#,RZJ90,VZJ90 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) TOKAI RIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 84550-16060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 90987-02012 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 93315-14012 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

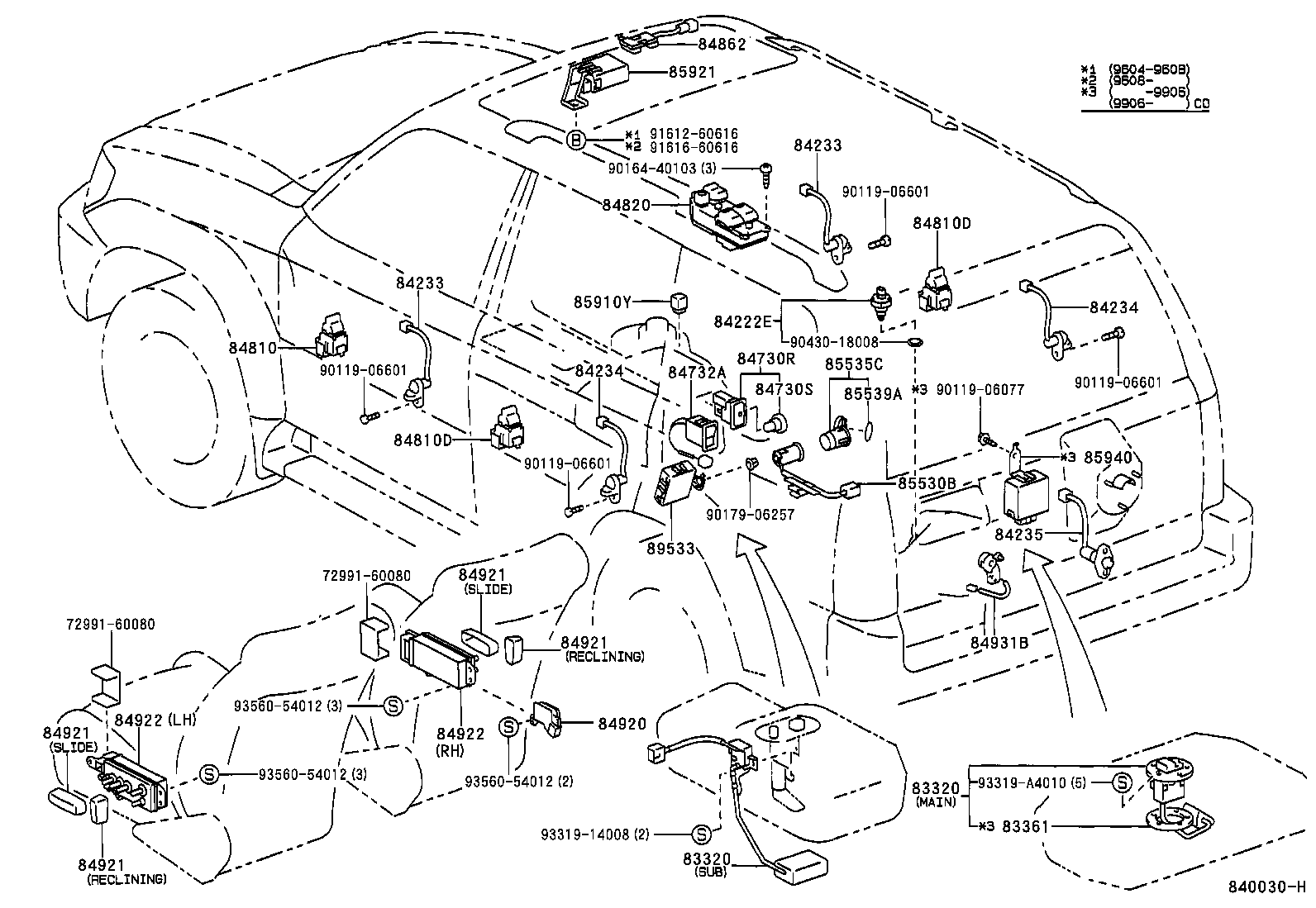

ILLUST NO. 6 OF 6(9604- )
ROOF,DOOR,SEAT & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69285 |
KZJ9#,LJ9# MAIN FUEL TANK |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69285 |
KZJ9#,LJ9# MAIN FUEL TANK |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-12010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 84231-12080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 84231-12080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 84231-60030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-60090 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) CONSOLE BOX |
1 | ||
| 84730-60090 |
VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX..(ARL,GCC,GEN) |
2 | ||
| 84730-60080 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90..GEN;LJ95,RZJ95..GX..(CBR,DSL) INSTRUMENT PANEL |
1 | ||
| 84730-60090 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90..GEN;LJ95,RZJ95..GX..(CBR,DSL) CONSOLE BOX |
1 | ||
| 84730-60080 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) INSTRUMENT PANEL |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10310 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) 14V 0.91W |
2 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-60070 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) |
1 | ||
| 84730-60070 |
VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX..(ARL,GCC,GEN) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10100 |
KZJ90,RZJ90,VZJ90..GX,VX |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-20060B2 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(ARL,GCC,GEN) MOON MIST,TRIM1# |
1 | ||
| 84862-20060B2 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) MOON MIST,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(REAR WIPER) |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60080 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| Common parts | ||||
| 72991-60080 | ||||
| 90119-06077 | ||||
| 90119-06601 | ||||
| 90164-40103 | ||||
| 90179-06257 | ||||
| 90430-18008 | ||||
| 91612-60616 | ||||
| 91616-60616 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
| 93560-54012 | ||||
ILLUST NO. 4 OF 6(9604- )LHD
ICNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26140 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 84140-26140 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-6A300 |
RZJ90..GX;KZJ9#,LJ9#,RZJ9#..LHD..(CBR,DSL,TD)..GEN |
1 | ||
| 84310-35640 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD W(REAR WIPER) |
1 | ||
| 84310-35640 |
KZJ9#,LJ9#,RZJ9#..LHD..(DSL,EFI,TD)..(CO,GEN) W(REAR WIPER) |
1 | ||
| 84310-6A300 |
KZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
VZJ95..ARL,GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 84312-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 84450-12200 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-60800 |
KZJ9#,LJ9#,RZJ9#..LHD..GEN |
1 | ||
| 84652-60870 |
RZJ90..GX;KZJ9#,LJ9#,RZJ9#..LHD..(CBR,DSL,TD)..GEN |
1 | ||
| 84652-35520 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD W(REAR WIPER) |
1 | ||
| 84652-35520 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(DSL,EFI,TD) W(REAR WIPER) |
1 | ||
| 84652-60870 |
KZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
