KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
ILLUST NO. 2 OF 3(9604- )
CLOCK,DETECTOR & SENSOR SPEEDOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-60080 |
KZJ9#,LJ9# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83181-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 96711-24030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# ANALOG |
1 | ||
| 83910-60160 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) ANALOG |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# ANALOG |
1 | ||
| 83910-60160 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) ANALOG |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07002 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) ANALOG |
2 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07002 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) ANALOG |
2 | ||
| Common parts | ||||
| 93568-15014 | ||||

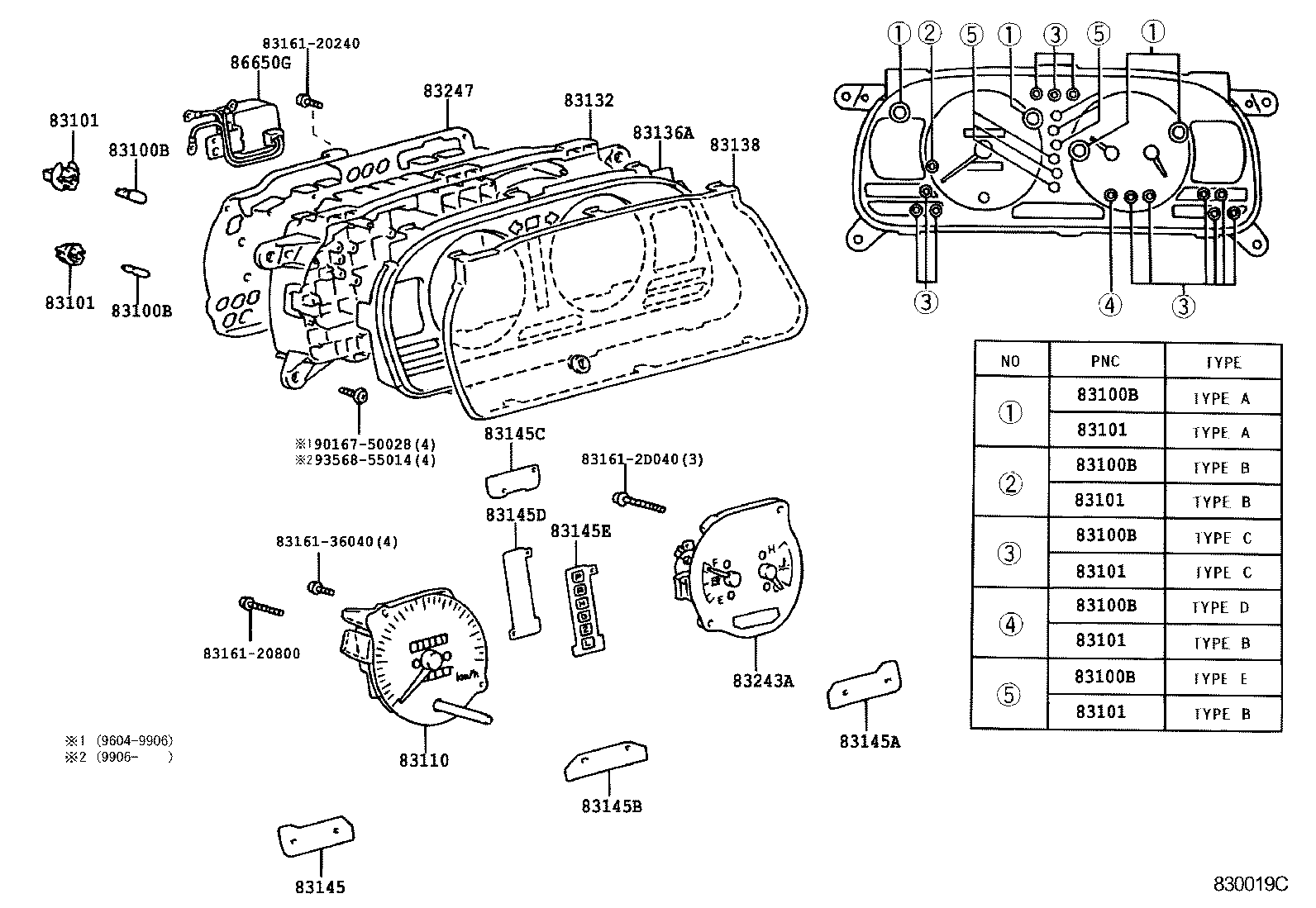

ILLUST NO. 1 OF 3(9604-9906)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-60060 |
KZJ9#,LJ9# MPH & KM/H |
1 | ||
| 83220-60110 |
KZJ9#,LJ9# KM/H |
1 | ||
| 83220-60061 |
KZJ9#,LJ9# MPH & KM/H |
1 | ||
| 83220-60111 |
KZJ9#,LJ9# KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83841-6B700 |
KZJ9#..GEN |
1 | ||
| 83841-6B720 |
KZJ9#..GEN W(AIR CLEANER PLUGGING WARNING) |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83851-60060 |
LJ95,RZJ95..MTM..GX;KZJ9#,LJ90,RZJ90,VZJ95..MTM..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-60240 |
KZJ9#,RZJ9#..CBR,TD TYPE B |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-60040 |
KZJ9# |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83834-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-60040 |
KZJ9# |
1 | ||
| 83861-6A080 |
KZJ9# W(AIR CLEANER PLUGGING WARNING) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 83248-20010 |
KZJ9#,LJ9# |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20800 | ||||
| 83161-2D040 | ||||
| 83161-36040 | ||||
| 90167-50028 | ||||
| 93568-55014 | ||||

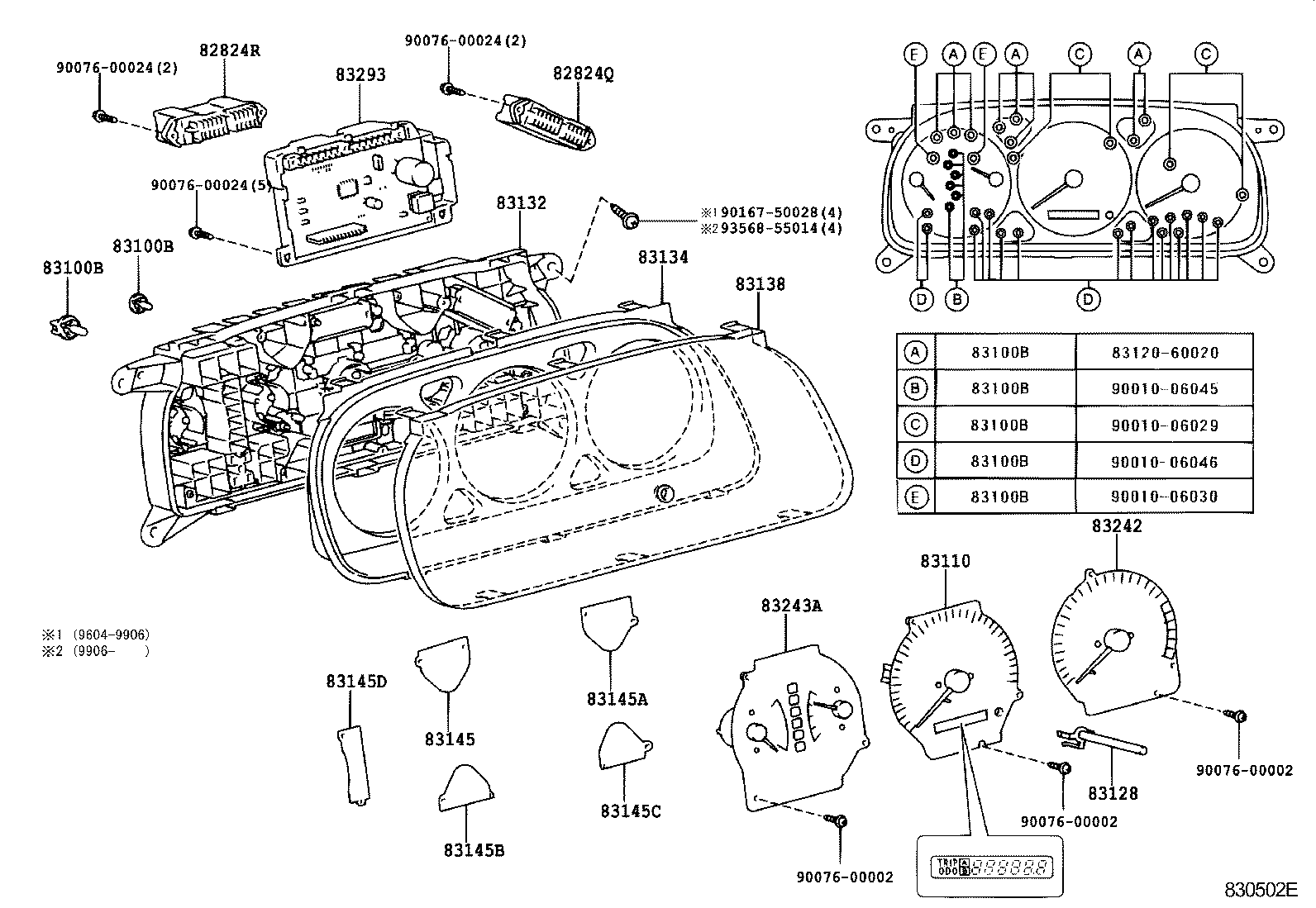

ILLUST NO. 1 OF 3(9604-9906) ; (9906- )CO
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
19 | ||
| 83147-20060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-60060 |
KZJ9#,LJ9# MPH & KM/H |
1 | ||
| 83220-60110 |
KZJ9#,LJ9# KM/H |
1 | ||
| 83220-60061 |
KZJ9#,LJ9# MPH & KM/H |
1 | ||
| 83220-60111 |
KZJ9#,LJ9# KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83841-6B700 |
KZJ9#..GEN |
1 | ||
| 83841-6B720 |
KZJ9#..GEN W(AIR CLEANER PLUGGING WARNING) |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83851-60060 |
LJ95,RZJ95..MTM..GX;KZJ9#,LJ90,RZJ90,VZJ95..MTM..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-60240 |
KZJ9#,RZJ9#..CBR,TD TYPE B |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-60240 |
KZJ9#,RZJ9#..CBR,TD TYPE B |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-60040 |
KZJ9# |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83834-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-60040 |
LJ95..GX;KZJ9#,LJ90 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-60050 |
LJ95,RZJ95..GX;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-60040 |
KZJ9# |
1 | ||
| 83861-6A080 |
KZJ9# W(AIR CLEANER PLUGGING WARNING) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 83248-20010 |
KZJ9#,LJ9# |
1 | ||
| Common parts | ||||
| 83161-20021 | ||||
| 83161-20240 | ||||
| 83161-20800 | ||||
| 83161-26060 | ||||
| 83161-2D040 | ||||
| 83161-36040 | ||||
| 90167-50028 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 3(9906- )ARL,GCC,GEN,MA
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-20040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90076-04006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-1A020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-60060 |
KZJ9#,LJ9# MPH & KM/H |
1 | ||
| 83220-60110 |
KZJ9#,LJ9# KM/H |
1 | ||
| 83220-60061 |
KZJ9#,LJ9# MPH & KM/H |
1 | ||
| 83220-60111 |
KZJ9#,LJ9# KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83841-6B700 |
KZJ9#..GEN |
1 | ||
| 83841-6B720 |
KZJ9#..GEN W(AIR CLEANER PLUGGING WARNING) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-60240 |
KZJ9#,RZJ9#..CBR,TD TYPE B |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-60040 |
KZJ9# |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83834-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-60040 |
LJ95..GX;KZJ9#,LJ90 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90076-00002 | ||||
| 90076-00024 | ||||
| 90167-50028 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(9906- )ARL,GCC,GEN,MA
ACCESSORY METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82272B - WIRE, AMMETER | ||||
| 82272-60010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 83240B - CASE ASSY, ACCESSORY METER | ||||
| 83240-60190 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 83265A - COMPUTER, ACCESSORY METER | ||||
| 83265-60200 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 83267 - COVER, ACCESSORY METER | ||||
| 83267-60200 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 83297-60020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.2 |
2 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 83297-60020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.2 |
2 | ||
| 83298 - HOUSING,ACCESSORY METER COMPUTER | ||||
| 83298-60010B0 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90072-03004 | ||||
| 90077-04001 | ||||
| 90077-04005 | ||||
| 90077-04007 | ||||
| 90179-08068 | ||||
ILLUST NO. 3 OF 3(9604-9906)ARL,GCC,GEN
ACCESSORY METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82272B - WIRE, AMMETER | ||||
| 82272-60010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 83240B - CASE ASSY, ACCESSORY METER | ||||
| 83240-60190 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 83254B - PLATE, ACCESSORY METER | ||||
| 83254-60190 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 90010-07003 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN 14V1.4W,W(GREEN CAP) |
3 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 90010-07003 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN 14V1.4W,W(GREEN CAP) |
3 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 90010-07003 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN 14V1.4W,W(GREEN CAP) |
3 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 83297-60020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.2 |
2 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 83297-60020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.2 |
2 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 83297-60020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) NO.2 |
2 | ||
| 83298 - HOUSING,ACCESSORY METER COMPUTER | ||||
| 83298-60010B0 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| F1603 - BOARD SUB-ASSY, ACCESSORY METER | ||||
| F1603-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 82711-3A440 | ||||
| 82711-95408 | ||||
| 90072-03004 | ||||
| 90077-04001 | ||||
| 90077-04006 | ||||
| 90077-04010 | ||||
| 90179-08068 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
