KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
ILLUST NO. 2 OF10(9604- )KZJ9#
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60630 |
KZJ9# |
1 | ||
| 82121-60630 |
KZJ9#..GEN |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35480 |
KZJ9# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-35050 |
KZJ9#,LJ9# |
1 | ||
| 82124-35050 |
KZJ9#,LJ90..LHD |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35060 |
KZJ9#,LJ9# 2.2KW |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06263 | ||||
| 91621-40814 | ||||

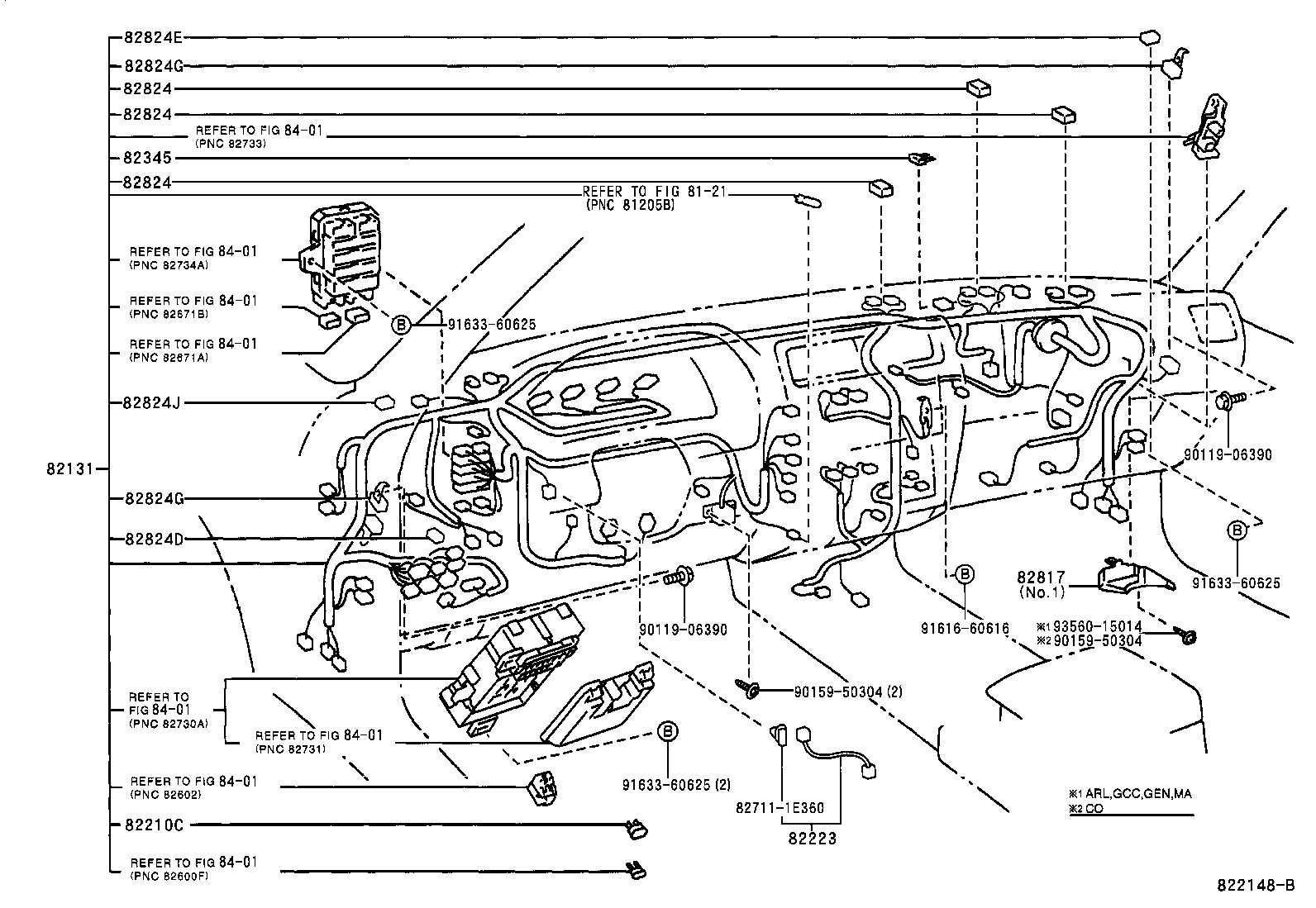

ILLUST NO. 3 OF10(9604-9906)LHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-6B270 |
KZJ9# |
1 | ||
| 82131-6B271 |
KZJ9# |
1 | ||
| 82131-6B272 |
KZJ9#..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KZJ9#,LJ9# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08280 |
VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 82345-12050 |
RZJ90..GX;RZJ95..ATM..GCC;KZJ9#,LJ9#..DSL,TD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35450 |
RZJ90..CO;KZJ9#,VZJ95..(EFI,TD)..(CO,GEN) NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30190 |
RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90..ARL,GCC,GEN;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
2 | ||
| 82824-20130 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
2 | ||
| 82824-20130 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-30190 |
RZJ95,VZJ95..ARL,CO,MA;KZJ9#,VZJ9#..MTM..(EFI,TD)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50304 | ||||
| 91616-60616 | ||||
| 91633-60625 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 9 OF10(9604- )ARL,CO,GCC,GEN
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 82345-12050 |
RZJ90..GX;RZJ95..ATM..GCC;KZJ9#,LJ9#..DSL,TD |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 82345-12050 |
RZJ90..GX;RZJ95..ATM..GCC;KZJ9#,LJ9#..DSL,TD |
1 | ||

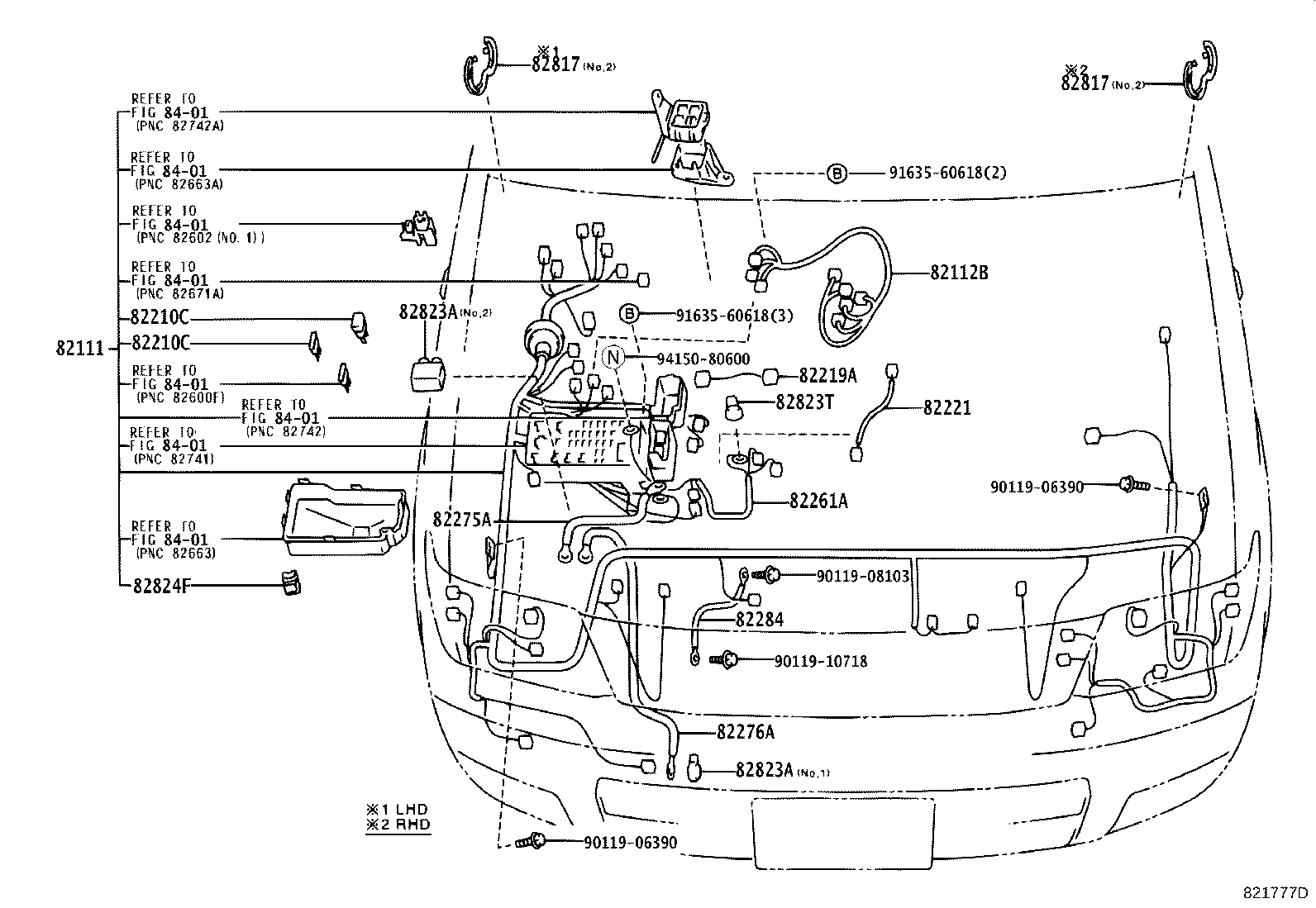

ILLUST NO. 1 OF10(9604-9906) ; (9906- )CO
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60540 |
KZJ9# W(ABS) |
1 | ||
| 82111-60530 |
KZJ9# |
1 | ||
| 82111-60541 |
KZJ9# W(ABS) |
1 | ||
| 82111-60531 |
KZJ9# |
1 | ||
| 82111-60532 |
KZJ9#..GEN |
1 | ||
| 82111-60542 |
KZJ9#..GEN W(ABS) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KZJ9#,LJ9# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08280 |
VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KZJ9#,LJ9# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08280 |
VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60080 |
KZJ9# |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60060 |
KZJ9#,LJ9# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60080 |
RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..LHD |
1 | ||
| 82284-60080 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35450 |
RZJ90..CO;KZJ9#,VZJ95..(EFI,TD)..(CO,GEN) NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35450 |
RZJ90..CO;KZJ9#,VZJ95..(EFI,TD)..(CO,GEN) NO.1 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823-90300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823-90300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KZJ9#,LJ9# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82824-30180 |
RZJ90..CO;RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..ARL,CO,GEN,MA |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08103 | ||||
| 90119-10718 | ||||
| 91651-A0616 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF10(9604- )
ROOF,DOOR,FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82506-60030 |
KZJ9#,LJ95,RZJ9#..LHD..GX W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR) |
1 | ||
| 82506-60020 |
KZJ9#,LJ95,RZJ9#..LHD..GX..GEN W(FRONT DOOR SPEAKER & REMOTE CONTROL MIRROR) |
1 | ||
| 82506-60021 |
KZJ9#,LJ95,RZJ9#..LHD..GX..GEN W(FRONT DOOR SPEAKER & REMOTE CONTROL MIRROR) |
1 | ||
| 82505-60010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90..GEN W(FRONT DOOR SPEAKER) |
1 | ||
| 82505-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(FRONT DOOR SPEAKER) |
1 | ||
| 82506-60011 |
KZJ9#,LJ9#,RZJ9#..LHD..(GCC,GEN) W(FRONT DOOR LOCK & FRONT DOOR SPEAKER) |
1 | ||
| 82506-60010 |
KZJ9#,LJ9#,RZJ9#..LHD W(FRONT DOOR LOCK & FRONT DOOR SPEAKER) |
1 | ||
| 82506-60031 |
KZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82505-60020 |
LJ95..RHD..STD;KZJ9#,LJ95,RZJ9#..LHD..GX..GEN W(FRONT DOOR SPEAKER & REMOTE CONTROL MIRROR) |
1 | ||
| 82505-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(FRONT DOOR SPEAKER) |
1 | ||
| 82505-60040 |
KZJ9#,LJ95,RZJ9#..LHD..GX..GEN |
1 | ||
| 82505-60030 |
KZJ9#,LJ9#,RZJ9#..LHD..(GCC,GEN) W(FRONT DOOR LOCK & FRONT DOOR SPEAKER) |
1 | ||
| 82152-60210 |
KZJ90,RZJ90,VZJ90..EFI,TD W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR) |
1 | ||
| 82505-60010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90..GEN W(FRONT DOOR SPEAKER) |
1 | ||
| 82505-60020 |
LJ95..RHD..STD;KZJ9#,LJ95,RZJ9#..LHD..GX W(FRONT DOOR SPEAKER & REMOTE CONTROL MIRROR) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-60690 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 82161-60691 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 82161-60692 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60390 |
KZJ90,RZJ90..CBR,TD W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82162-60380 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 82162-60440 |
KZJ90,RZJ90,VZJ90..EFI,TD W(ABS) |
1 | ||
| 82162-60441 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) W(ABS) |
1 | ||
| 82162-60381 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 82162-60391 |
KZJ90,RZJ90..CBR,TD W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82162-60382 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 82162-60442 |
KZJ90,RZJ90,VZJ90..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 82162-60392 |
KZJ90 W(ABS & DIFFERENTIAL LOCK) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60180 |
VZJ95..ATM..GCC;RZJ95,VZJ95..ARL;KZJ9#,RZJ9#..CBR,TD W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60240 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60140 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 82165-60140 |
RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-60030 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) W(REAR HEATER) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60640 |
KZJ9#,LJ95,RZJ9#..LHD..GX W(ROOF RAIL) |
1 | ||
| 82171-60580 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 82171-60600 |
KZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(SUN ROOF) |
1 | ||
| 82171-60670 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) W(ROOF RAIL) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-60100 |
KZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60140 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60150 |
KZJ9#,LJ9#,RZJ9#..GEN W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(HIGH MOUNT STOP LAMP,REAR WINDOW DEFOGGER & REAR WINDOW WIPER) |
1 | ||
| 82184-60151 |
RZJ90..GX;KZJ9#,LJ9#,RZJ9#..(CBR,DSL,TD)..GEN W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60181 |
KZJ9#,LJ9#,RZJ9#..GEN W(REAR WINDOW WIPER) |
1 | ||
| 82184-60141 |
RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90,VZJ90 W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60160 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 82184-60181 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 W(REAR WINDOW WIPER) |
1 | ||
| 82184-60151 |
KZJ9#,LJ9#,RZJ9#..GEN W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60160 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90..GEN |
1 | ||
| 82184-60171 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(HIGH MOUNT STOP LAMP,REAR WINDOW DEFOGGER & REAR WINDOW WIPER) |
1 | ||
| 82184-60180 |
KZJ9#,LJ9#,RZJ9#..GEN W(REAR WINDOW WIPER) |
1 | ||
| 82184-60141 |
RZJ95..LHD..GEN;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..CO,GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60151 |
RZJ90..GX;KZJ9#,LJ9#..DSL,TD W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60141 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-60030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82186-60030 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| Common parts | ||||
| 82713-60010 | ||||
| 90119-06390 | ||||
| 90119-08A30 | ||||
| 90179-06161 | ||||
| 90269-04010 | ||||
| 90950-01234 | ||||
ILLUST NO. 6 OF10(9604- )KZJ9#
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60060 | ||||
| 82711-12200 | ||||
| 82711-1E340 | ||||
| 82711-34310 | ||||
| 82715-20770 | ||||
| 82715-34310 | ||||
| 82715-35230 | ||||
| 82715-35320 | ||||
| 82715-35350 | ||||
| 82715-35370 | ||||
| 82715-35581 | ||||
| 82715-35610 | ||||
| 82715-35620 | ||||
| 82715-35630 | ||||
| 82715-35660 | ||||
| 82715-35670 | ||||
| 82715-35700 | ||||
| 82715-35730 | ||||
| 82715-35800 | ||||
| 82715-35810 | ||||
| 82715-35820 | ||||
| 82715-35830 | ||||
| 82715-3D300 | ||||
| 82715-42060 | ||||
| 82715-60190 | ||||
| 82715-89112 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 82729-35150 | ||||
| 82729-60040 | ||||
| 90119-08A30 | ||||
| 91511-60610 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60820 | ||||
| 91611-61014 | ||||
| 91621-40814 | ||||
| 91651-40610 | ||||

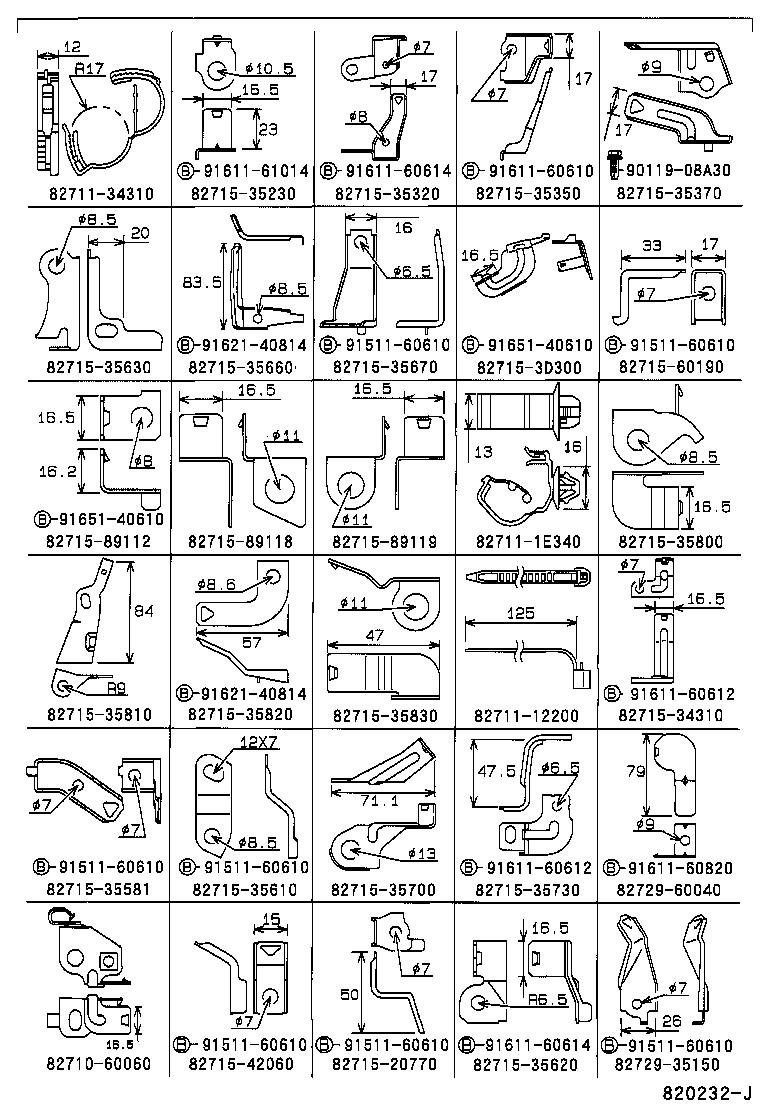

ILLUST NO. 7 OF10(9604- )
COWL WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10330 | ||||
| 82711-16130 | ||||
| 82711-1E040 | ||||
| 82711-1E320 | ||||
| 82711-2A630 | ||||
| 82711-60580 | ||||
| 82711-95711 | ||||
| 82715-35290 | ||||
| 82715-35640 | ||||
| 82715-60870 | ||||
| 82715-60880 | ||||
| 91616-60616 | ||||
ILLUST NO. 8 OF10(9604- )ARL,CO,GCC,GEN
ROOF,FLOOR,DOOR WIRE CLAMPS & BKTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 82711-2A720 | ||||
| 82711-3H630 | ||||
| 82715-60250 | ||||
ILLUST NO. 6 OF10(9604- )ARL,CO,GCC,GEN
ENGINE ROOM WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-34310 | ||||
| 82711-35420 | ||||
| 82715-22070 | ||||
| 82715-35620 | ||||
| 82715-60280 | ||||
| 82715-60890 | ||||
| 90179-06110 | ||||
| 91626-60616 | ||||
| 91666-60618 | ||||
ILLUST NO. 1 OF10(9906- )KZJ9#,LJ9#
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60540 |
KZJ9# W(ABS) |
1 | ||
| 82111-60530 |
KZJ9# |
1 | ||
| 82111-60541 |
KZJ9# W(ABS) |
1 | ||
| 82111-60531 |
KZJ9# |
1 | ||
| 82111-60532 |
KZJ9#..GEN |
1 | ||
| 82111-60542 |
KZJ9#..GEN W(ABS) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KZJ9#,LJ9# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08280 |
VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KZJ9#,LJ9# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08280 |
VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60080 |
KZJ9# |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60060 |
KZJ9#,LJ9# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60080 |
RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..LHD |
1 | ||
| 82284-60080 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35450 |
RZJ90..CO;KZJ9#,VZJ95..(EFI,TD)..(CO,GEN) NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35450 |
RZJ90..CO;KZJ9#,VZJ95..(EFI,TD)..(CO,GEN) NO.1 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823-90300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823-90300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.2 |
1 | ||
| 82823-22080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN NO.1 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KZJ9#,LJ9# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 82824-30180 |
RZJ90..CO;RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..ARL,CO,GEN,MA |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08103 | ||||
| 90119-10718 | ||||
| 91635-60618 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(9906- )LHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-6B270 |
KZJ9# |
1 | ||
| 82131-6B271 |
KZJ9# |
1 | ||
| 82131-6B272 |
KZJ9#..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KZJ9#,LJ9# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08280 |
VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 82345-12050 |
RZJ90..GX;RZJ95..ATM..GCC;KZJ9#,LJ9#..DSL,TD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35450 |
RZJ90..CO;KZJ9#,VZJ95..(EFI,TD)..(CO,GEN) NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30190 |
RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90..ARL,GCC,GEN;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
2 | ||
| 82824-20130 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
2 | ||
| 82824-20130 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-30190 |
RZJ95,VZJ95..ARL,CO,MA;KZJ9#,VZJ9#..MTM..(EFI,TD)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90119-06390 | ||||
| 90159-50304 | ||||
| 91616-60616 | ||||
| 91633-60625 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO.10 OF10(9604- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10437 | ||||
| 90980-10619 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11162 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
