KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )CO,GCC,GEN,MA

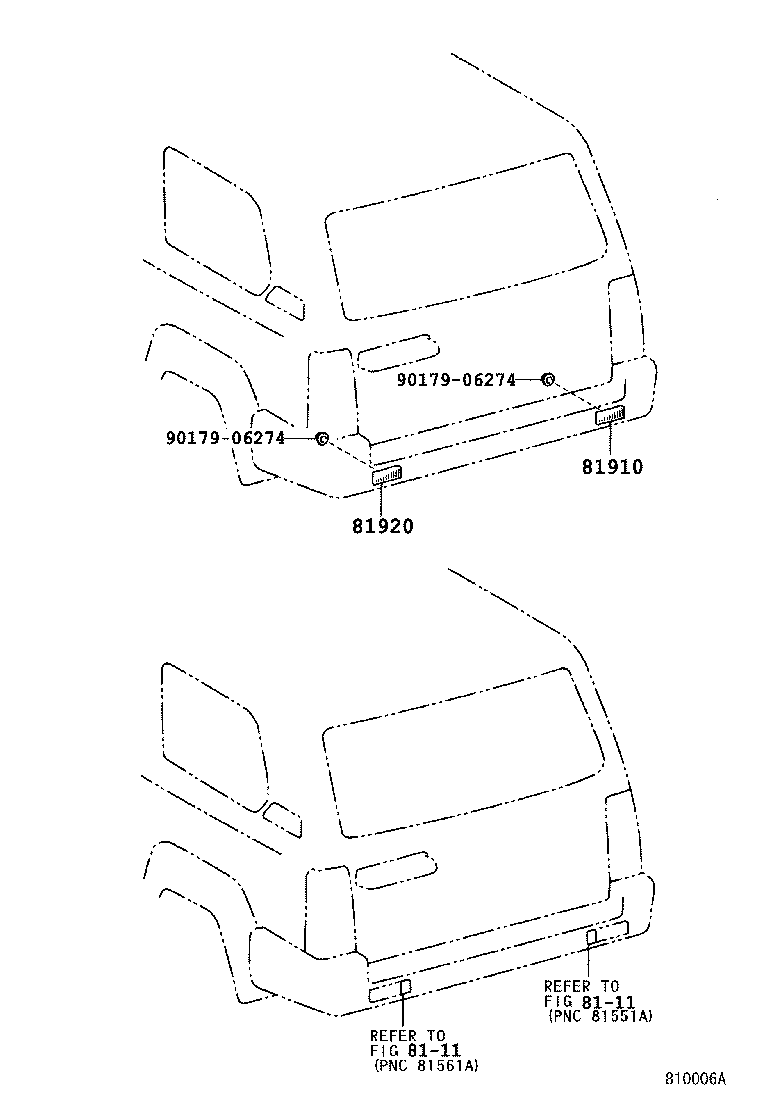

Click highlighted areas on diagram

diagram 8111 8111 81910 81920 9017906274 9017906274
Part # Description Qty Price
81910 - REFLECTOR ASSY, REFLEX, RH
81910-60090

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN

 1
81910-60090

KZJ9#..GEN

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81920-60030

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN

 1
81920-60030

KZJ9#..GEN

 1
Common parts
90179-06274
Linked diagrams
8111
